IKEA 304.896.40 NYVATTNET Kitchen Faucet

IKEA 304.896.40 NYVATTNET Kitchen Faucet

  • Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.
  • Switch off main shut-off valve before changing mixer tap.

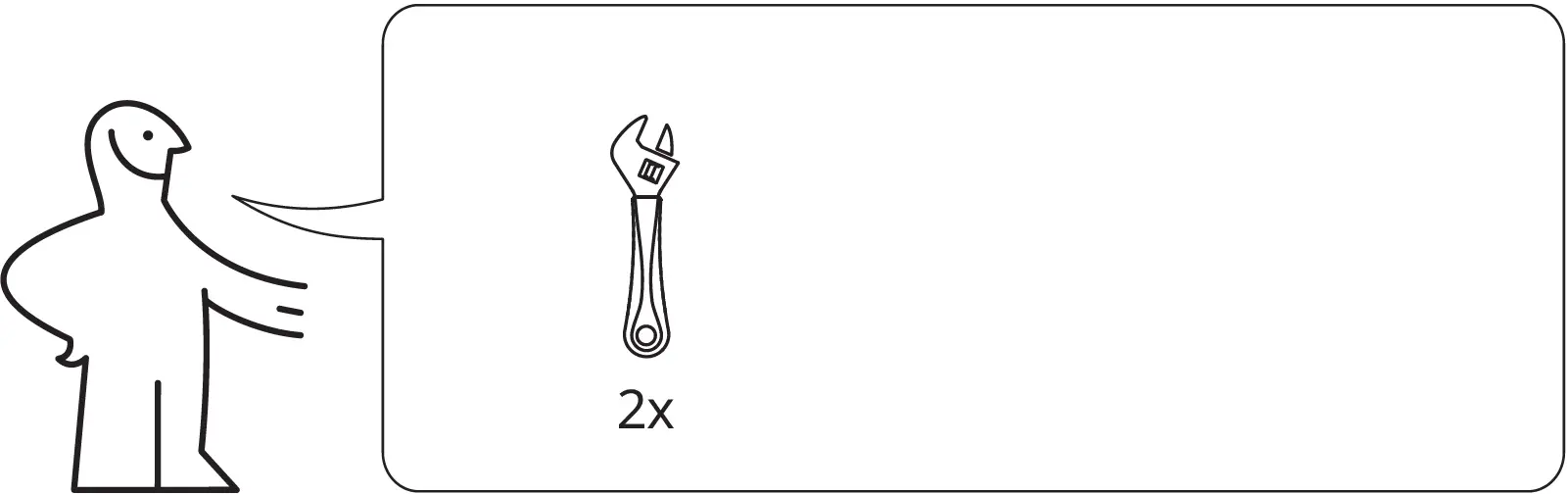

Tools Needed

Setup 01

Setup 02

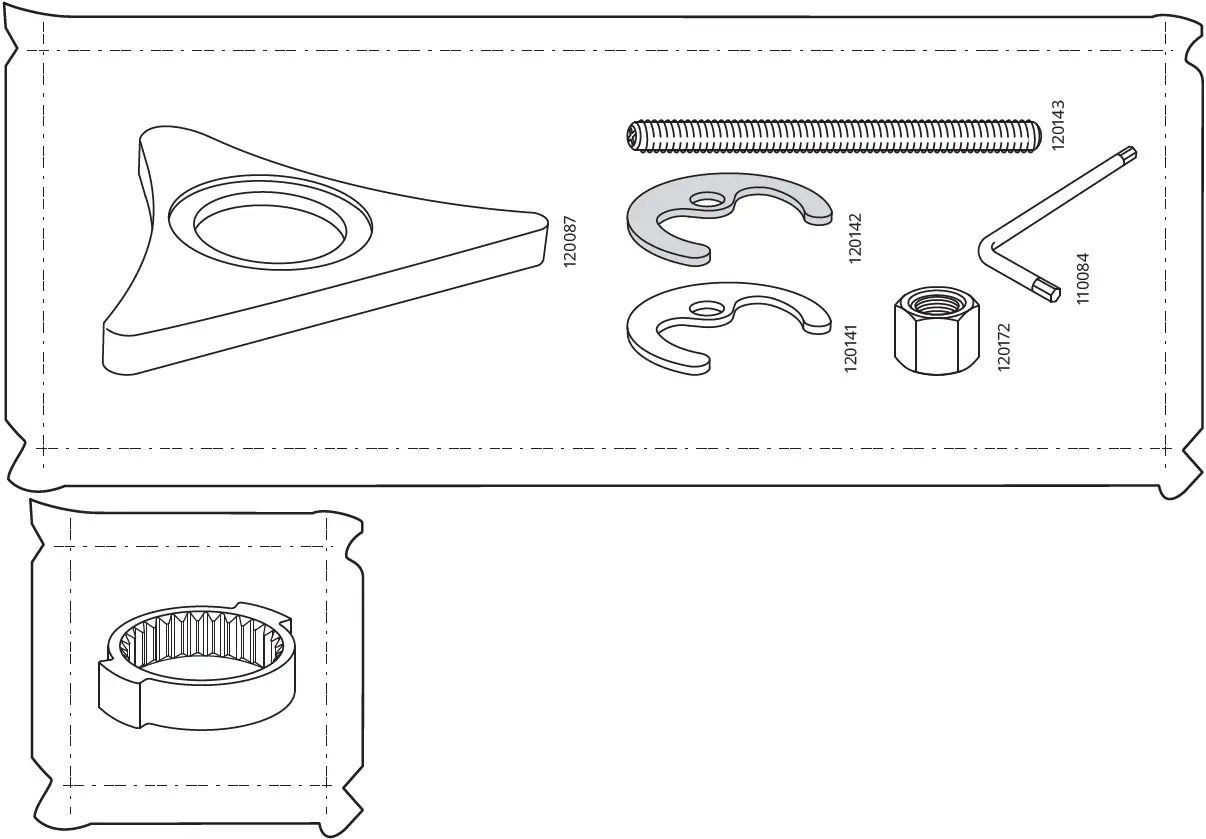

Setup 03

Information

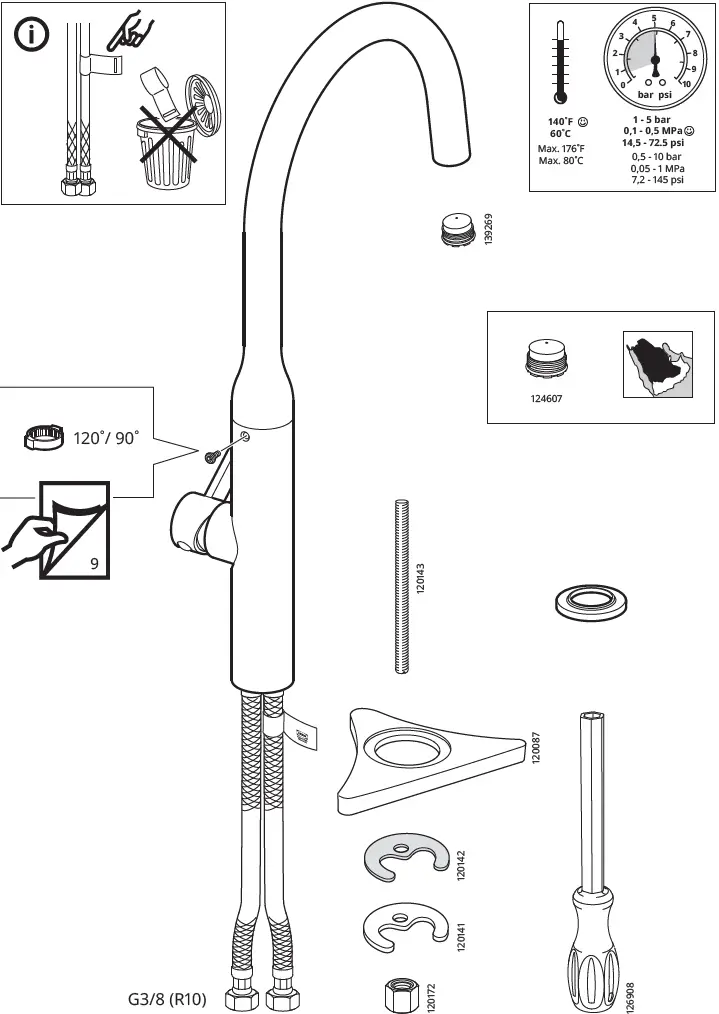

Setup 04

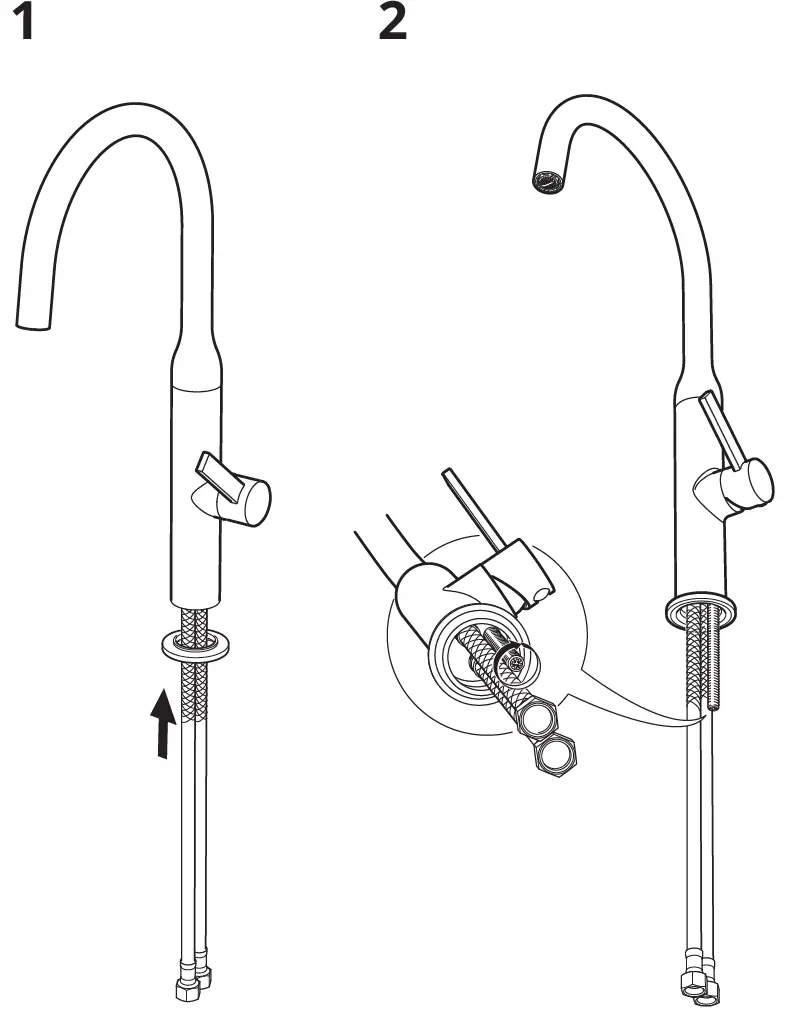

Operation 01

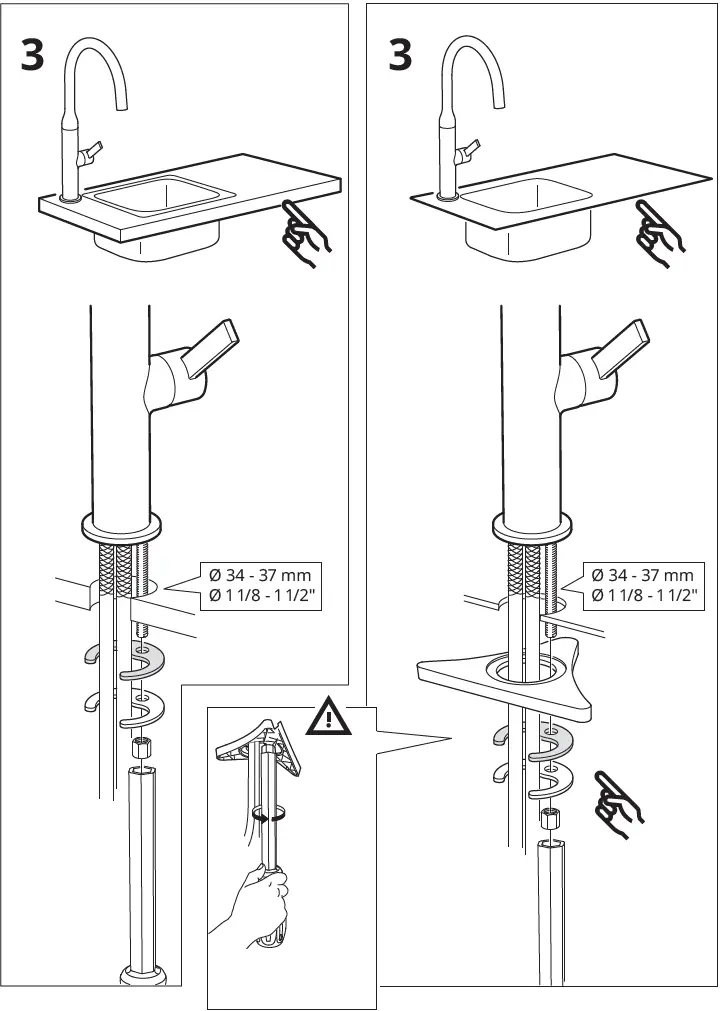

Operation 02

Seal the open surfaces with silicone to prevent water from penetrating the worktop upon any leaks. Silicone is not included.

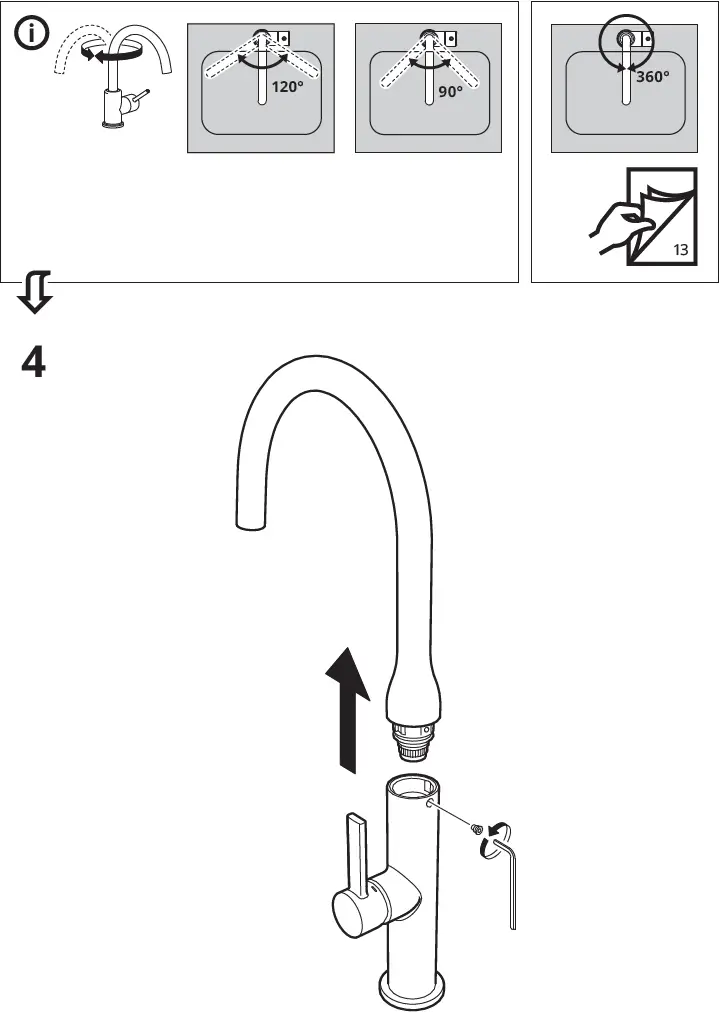

Operation 03

Operation 04

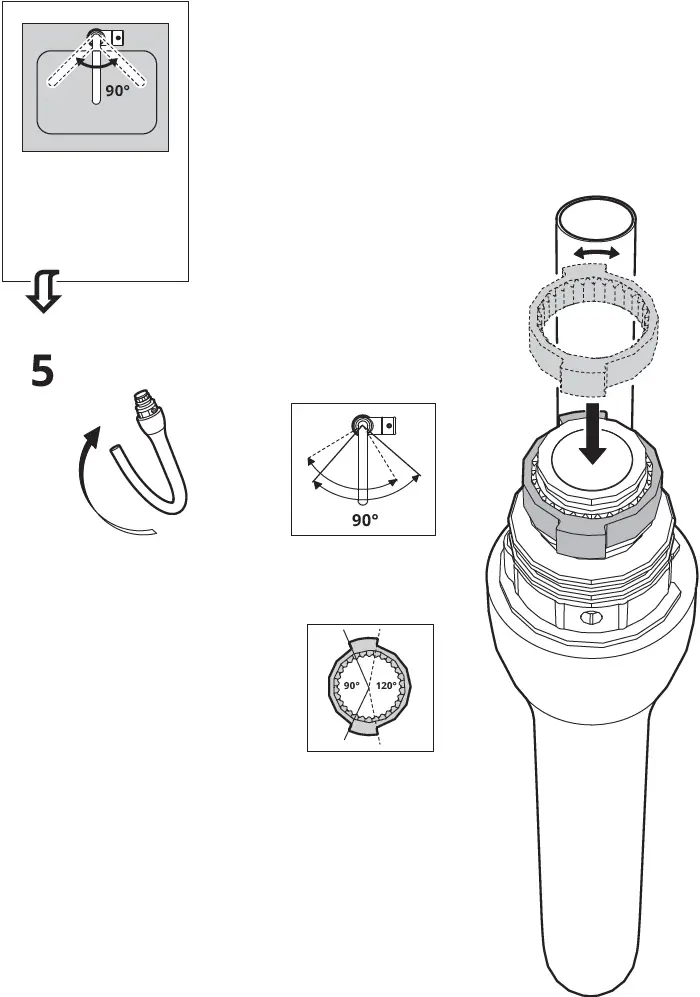

Operation 05

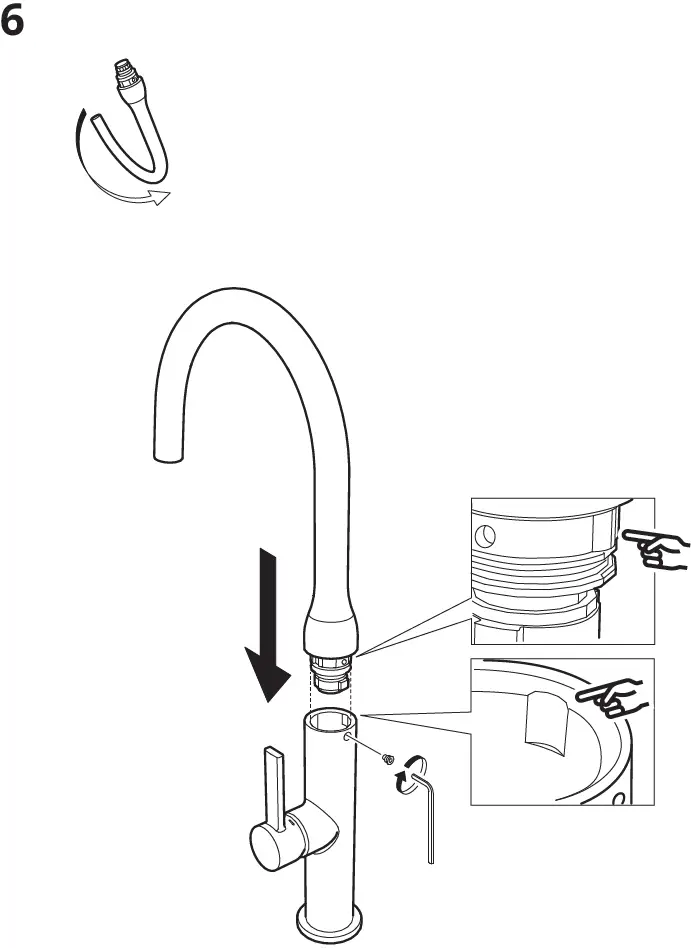

Operation 06

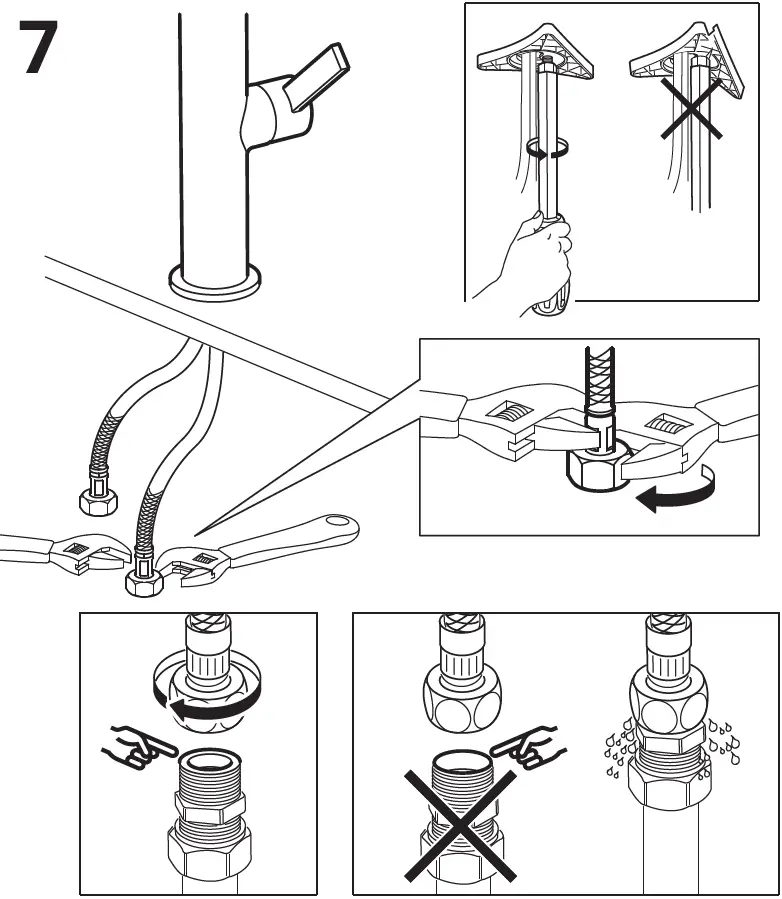

Operation 07

IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washers.

Information

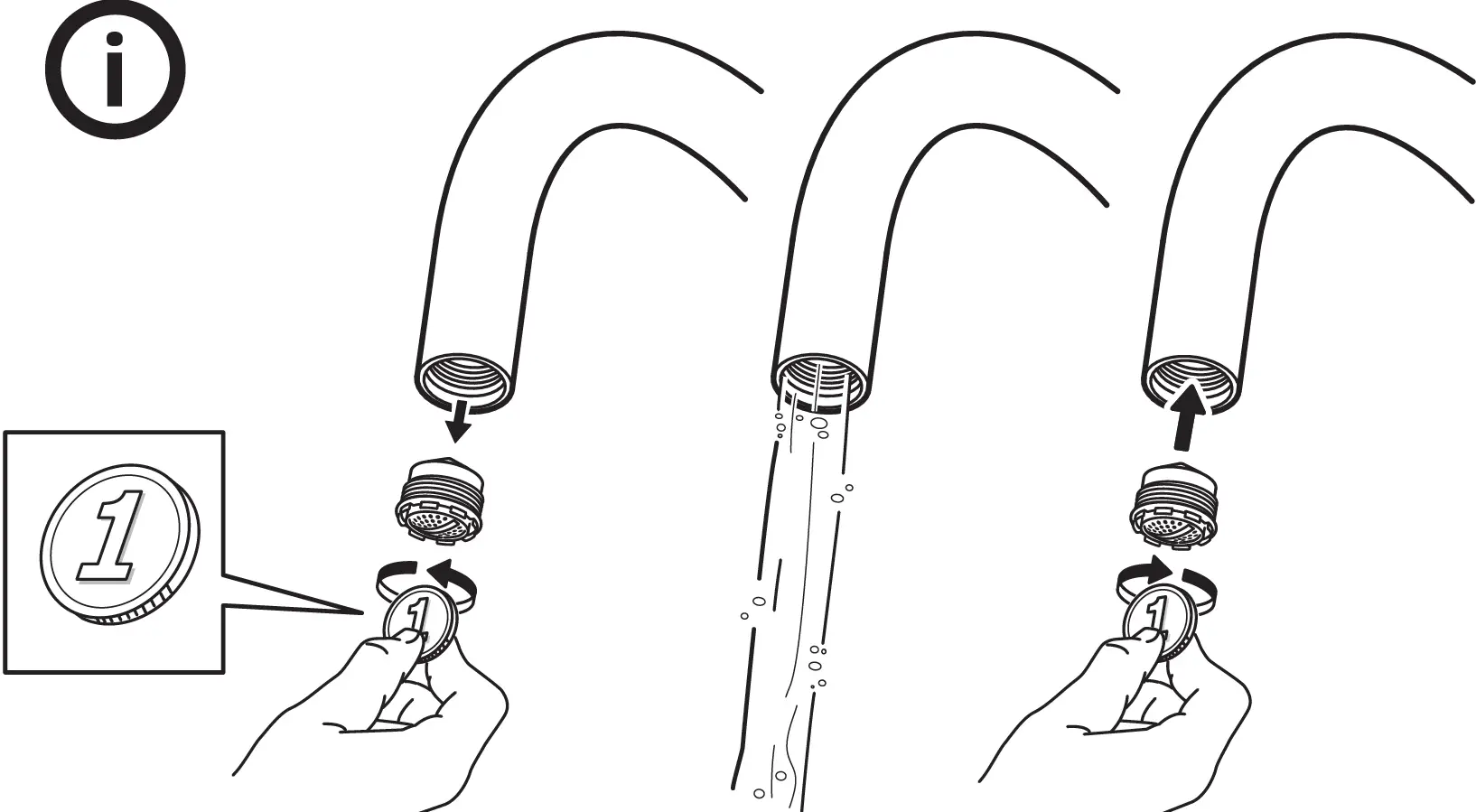

Operation 10

Before use: Unscrew the Aerator/Flow Guide with a coin and allow the water to run freely for a few minutes. Then screw the Aerator/Flow Guide back in place up to the stop DO NOT OVER TIGHTEN.
Check at regular intervals to make sure that the installation is not leaking.

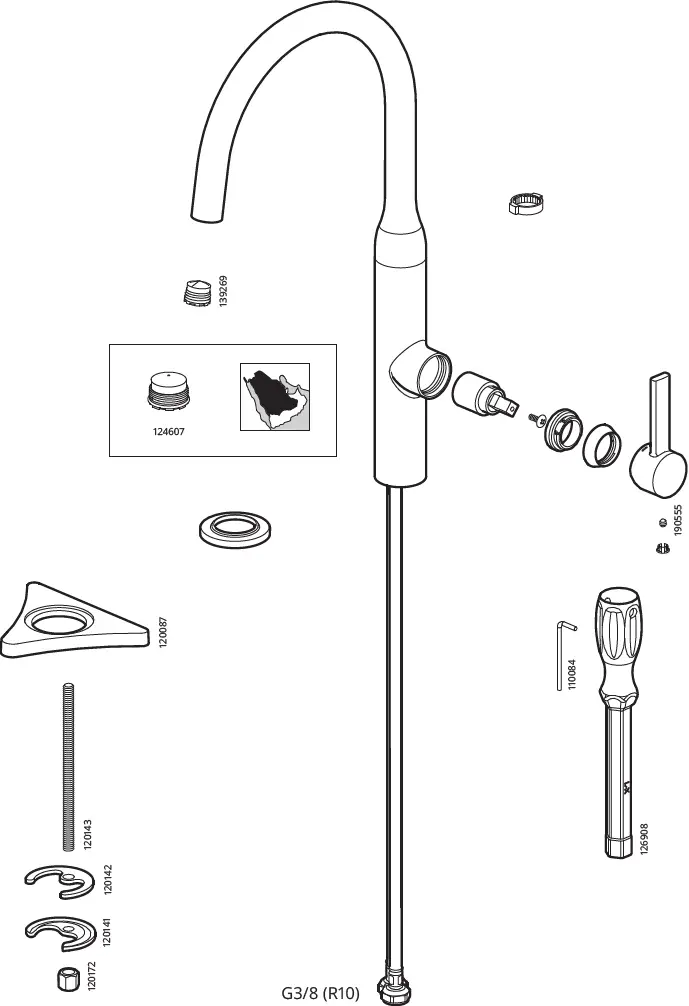

Operation 11
