MD2379
INSTALLATION INSTRUCTION

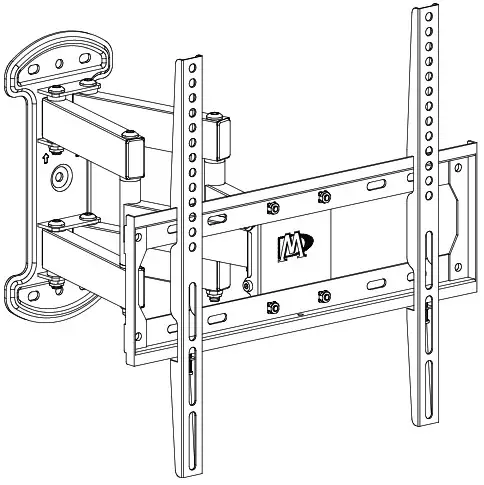

MD2379 Single Stud Full Motion TV Mount
Before getting started, let’s make sure this mount is perfect for you!

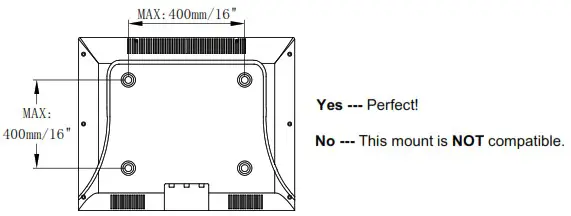

| 1 Is your TV VESA equal to/greater than 75x75mm/3×3″ and equal to/less than 400x400mm/16×16″? |  |
| 2 Does your TV (including accessories) weigh less than 99 LBS (45 kg)? |  |

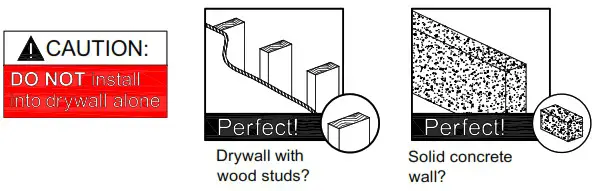

| 3 What is your wall made of? |  |

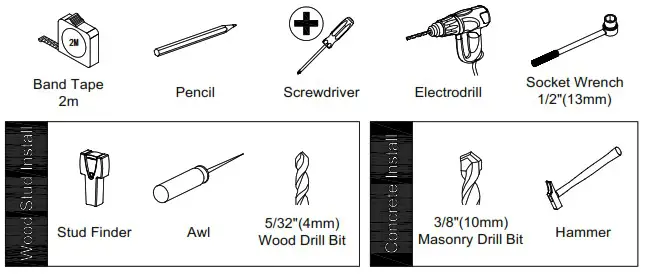

| 4 Installation Tools (Not Included) |  |
| 5 Safety Caution | Please read this instruction carefully before installation. ● This product is designed for use in wood stud and solid concrete wall. – DO NOT install into drywall alone. ● The wall must be capable of supporting five times the weight of the TV and mount combined. ● Do not apply this product to any purpose not indicated by Mounting Dream. ● Incorrect installation may result in product damage or body injury. Mounting Dream shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse. |
STEP 1 Attach Brackets to TV

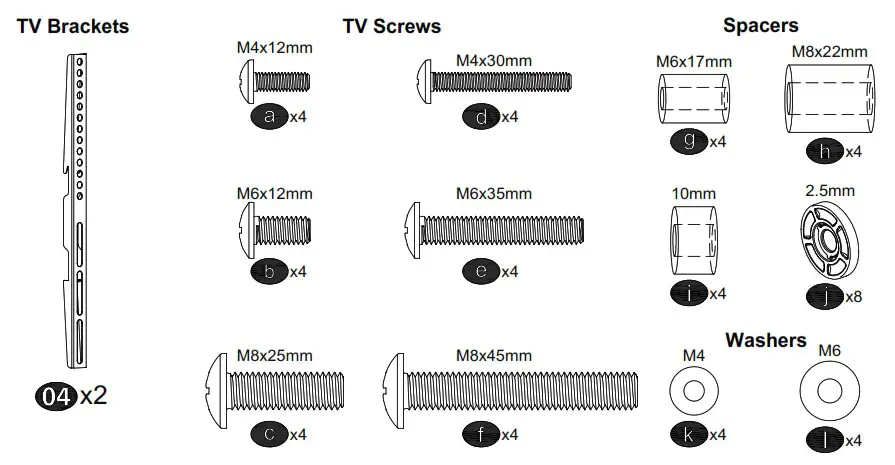

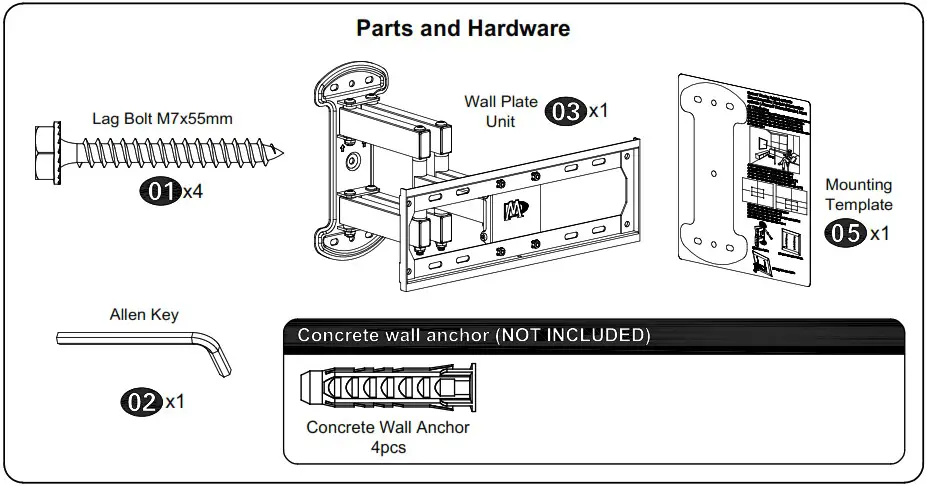

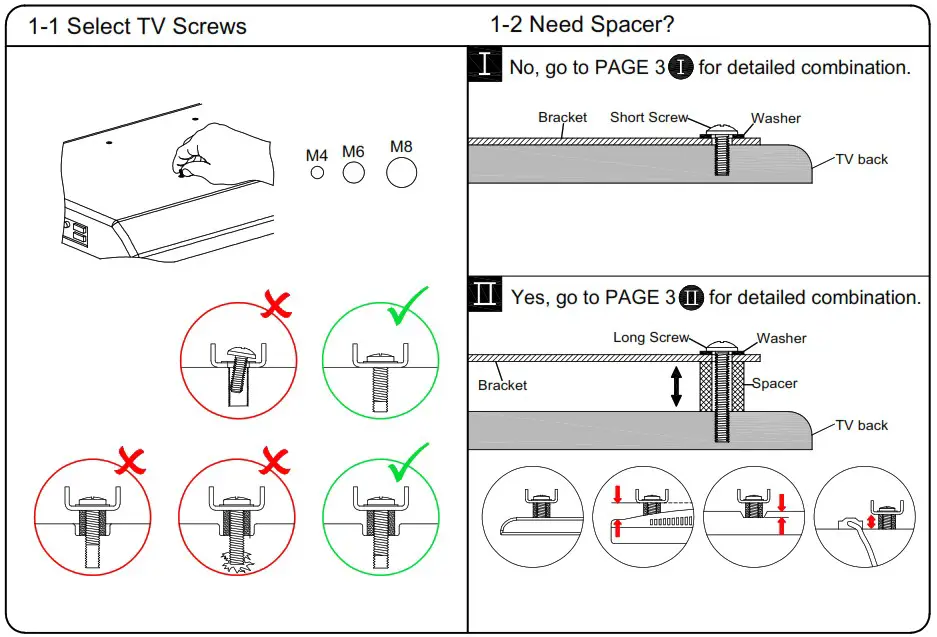

Parts and Hardware
WARNING:This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged.
NOTE: Not all hardware included will be used.

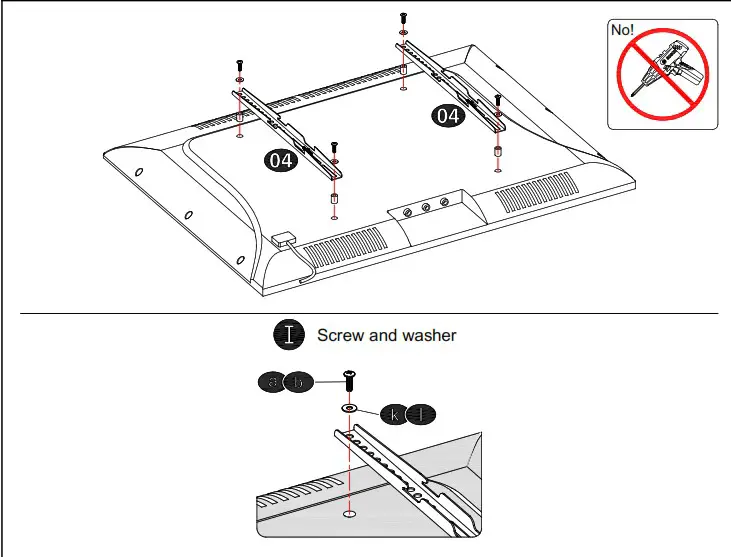

1-3 Attach the TV Brackets

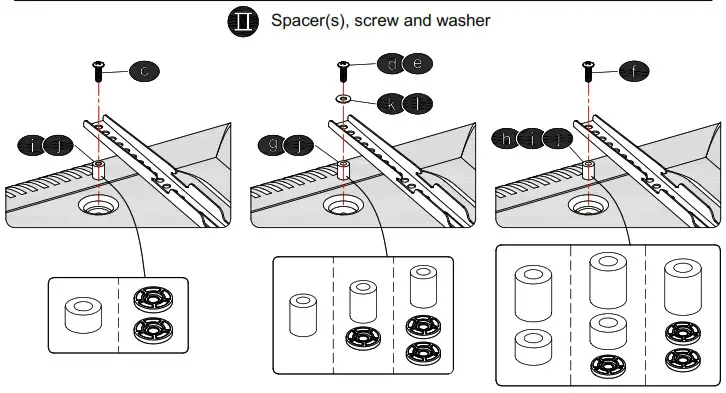

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to remove the inner circle.
STEP 2 Attach Wall Plate to Wall
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 6

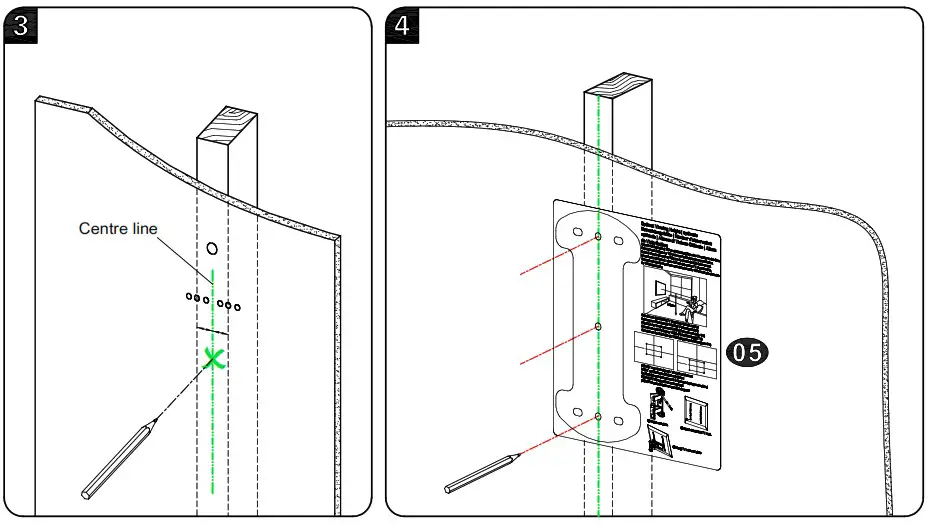

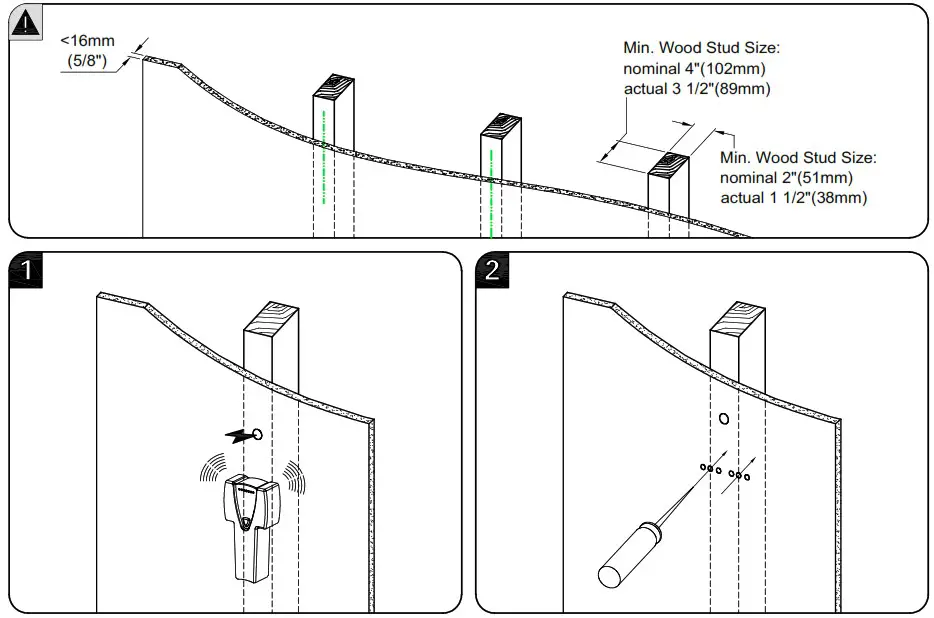

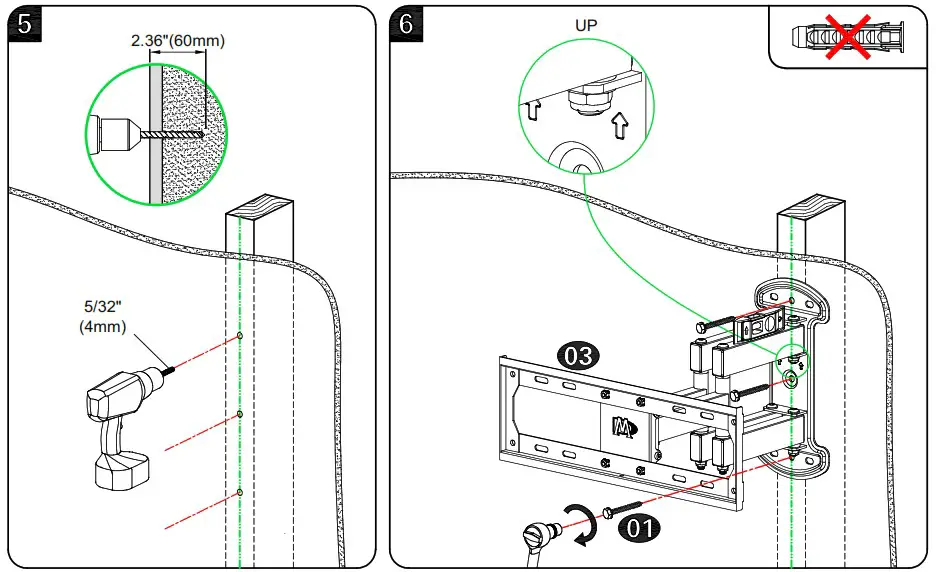

STEP 2A Wood Stud Installation
CAUTION: To avoid potential personal injury or property damage:
All 3 lag bolts 01 MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.

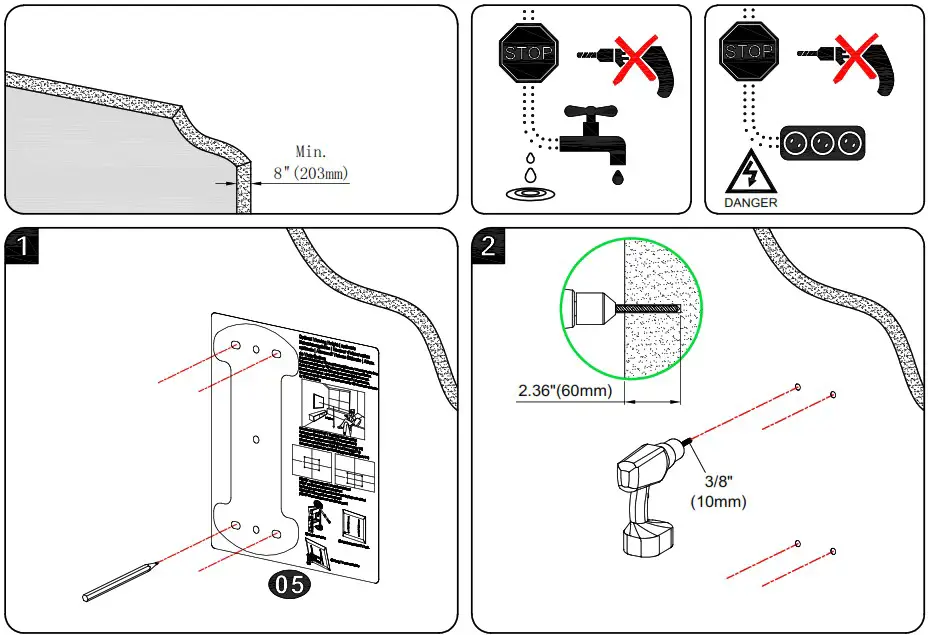

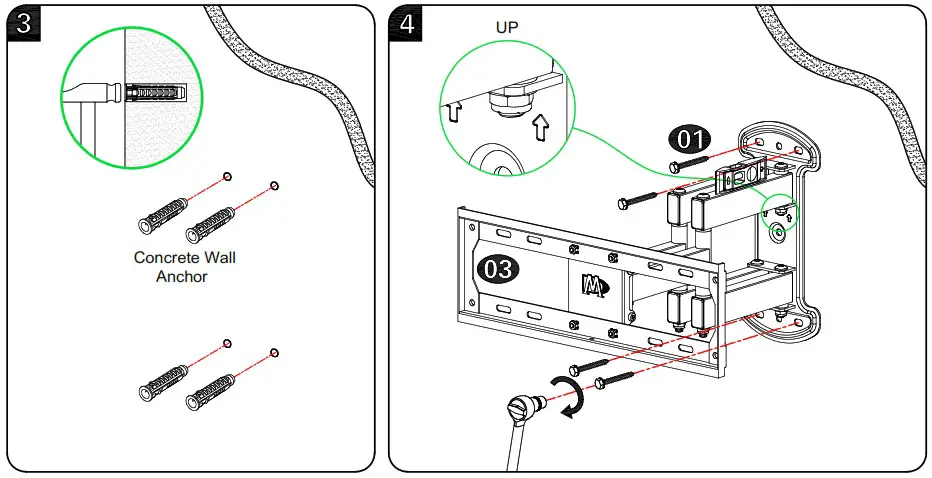

STEP 2B Solid Concrete Wall Installation
CAUTION: To avoid potential personal injury or property damage:
All 4 lag bolts 01 MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.

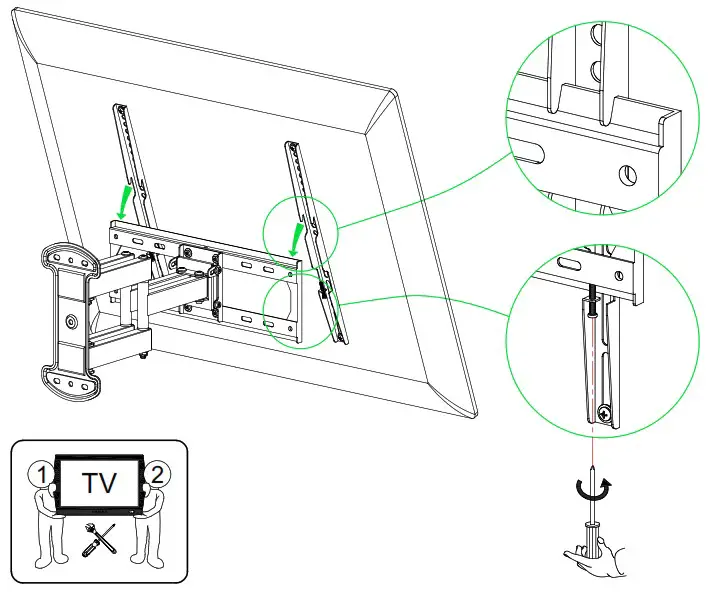

STEP 3 Hang and Secure TV to Wall Plate

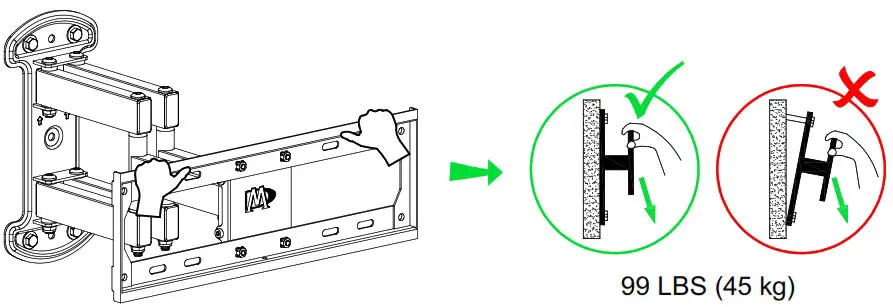

Before hanging TV, please conduct “wall plate installation integrity test” first.
STEP 4 Adjustments

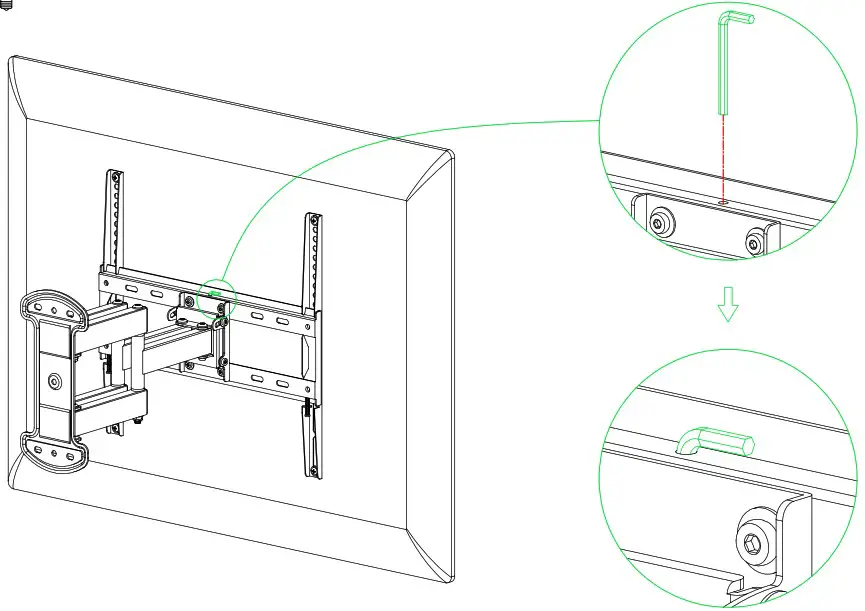

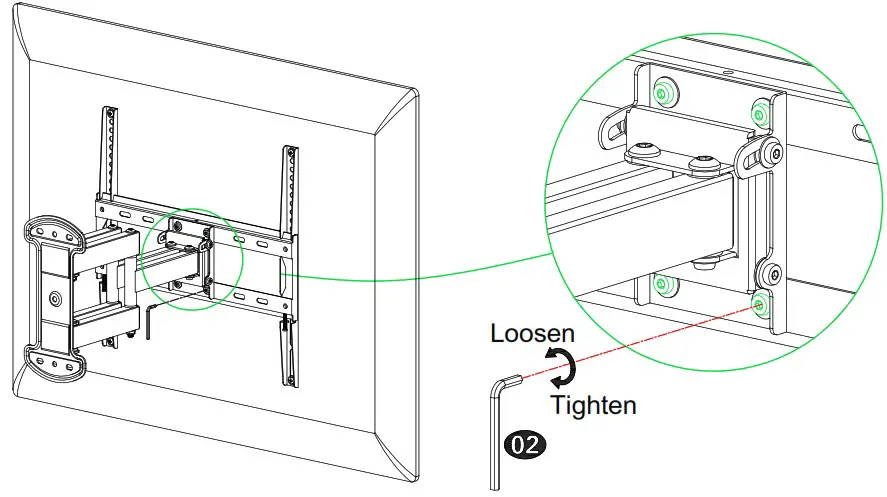

4-1 TV leveling adjustment (±3°):
Loosen 4 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level, and retighten to secure.

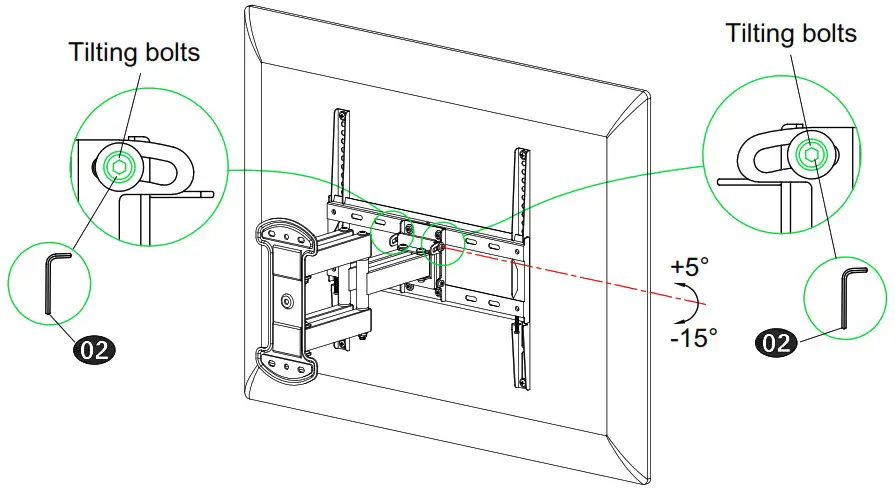

4-2 Tilting angle adjustment (+5°/-15°)：
Pull TV to your desired angle then fasten 2 tilting bolts with Allen key 02.
Allen key storage: For easy adjustment, you might put the Allen key on the wall plate as illustration.

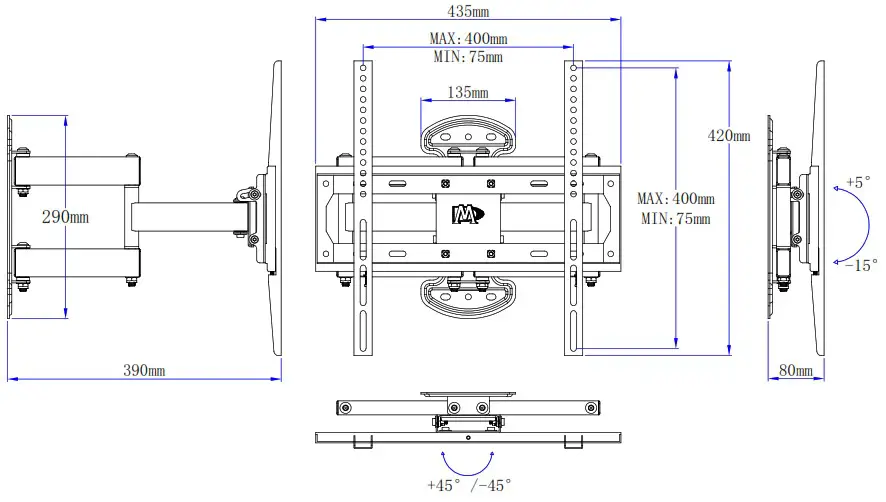

Product dimensions:
