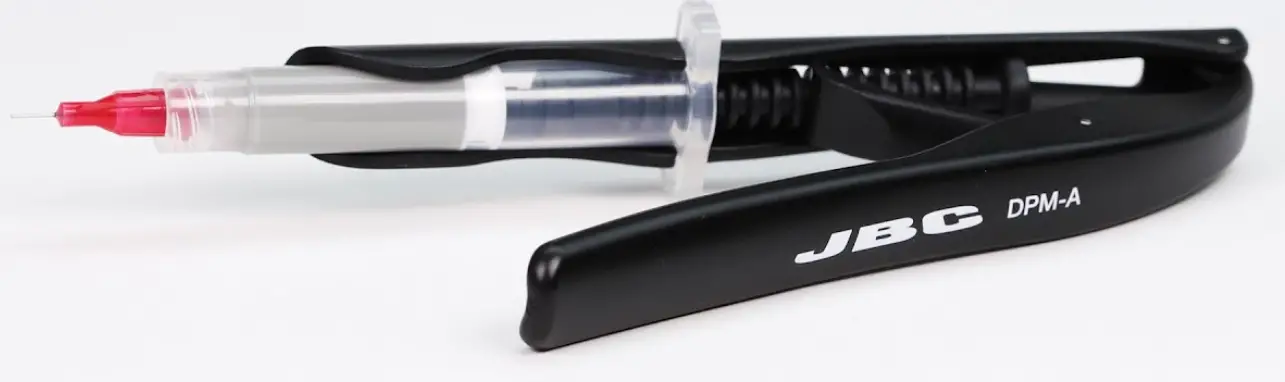

JBC DPM-A Solder Paste Hand Dispenser
How to use
DPM use 3CC syringes. Ask your solder paste supplier for this format or fill in the syringe barrel with solder past.

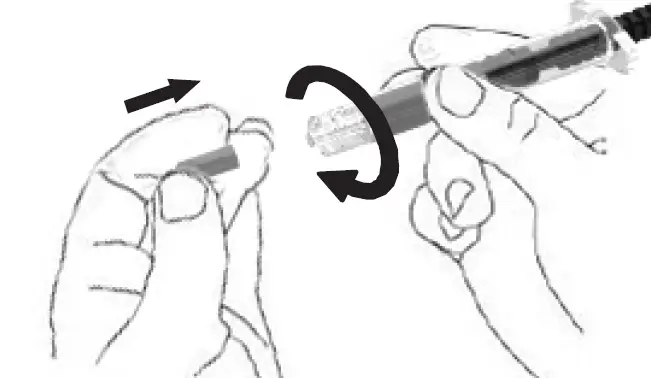

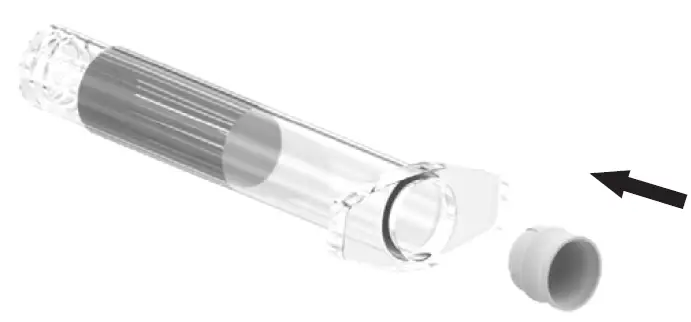

- Place the piston into the syringe barrel.

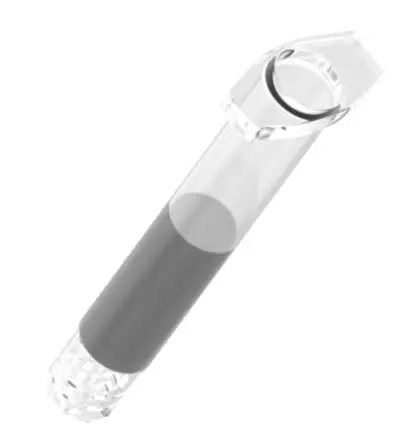

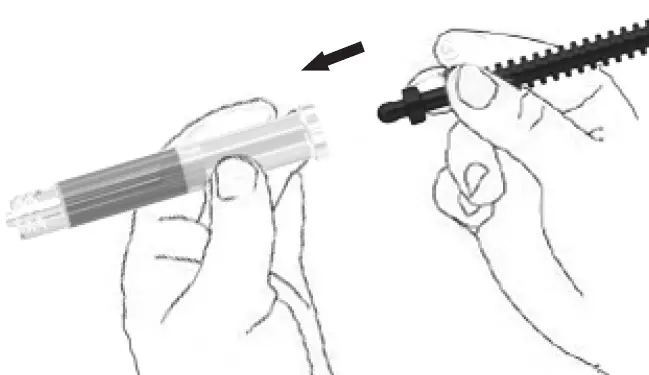

- Insert the plunger rod in the syringe barrel to eliminate air and press the solder past.
- Place the needle in the syringe barrel.

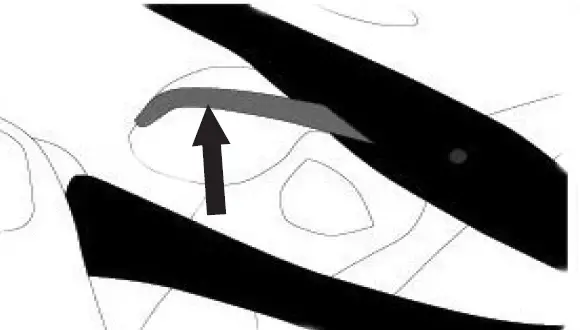

- Lift the toggle

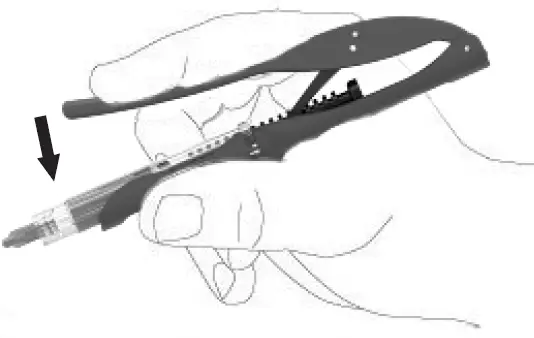

- Insert the plunger with the syringe in the housing, fit the syringe fins in

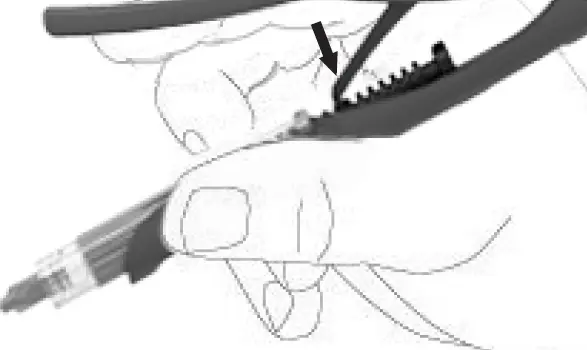

- Lower the toggle

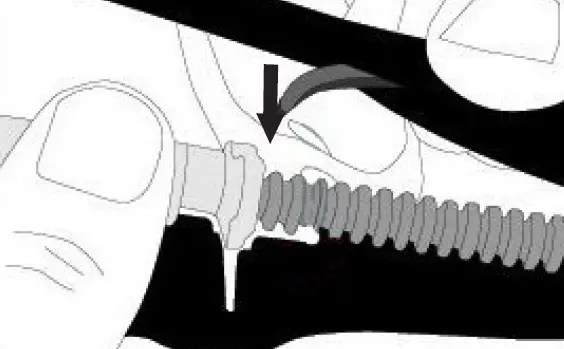

- Operate the lever until the paste comes out
DPM use 3CC syringes. Ask your solder paste supplier for this format or fill in the syringe barrel with solder past.
Nozzles Range

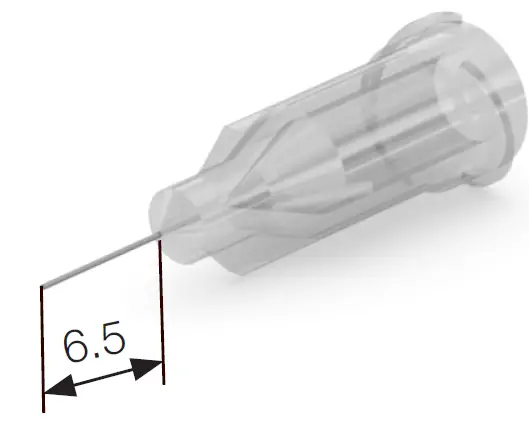

STAINLESS STEEL NEEDLES
| STYLE | Ref. | COLOR | SOLDER PASTE | GAUGE | ØID (mm) |
|
Stainless Steel Needles | ND18S6 | Green | Type 2 | 18 | 0.84 |
| ND20S6 | Pink | Type 3 | 20 | 0.61 | |
| ND21S6 | Purple | Type 3 | 21 | 0.51 | |
| ND22S6 | Blue | Type 3 | 22 | 0.41 | |
| ND23S6 | Orange | Type 3 | 23 | 0.31 | |
| ND25S6 | Plan Red | Type 4 | 25 | 0.25 | |
| ND27S6 | Clear | Type 5 | 27 | 0.2 | |
| ND30S6 | Lavender | Type 6 | 30 | 0.15 |

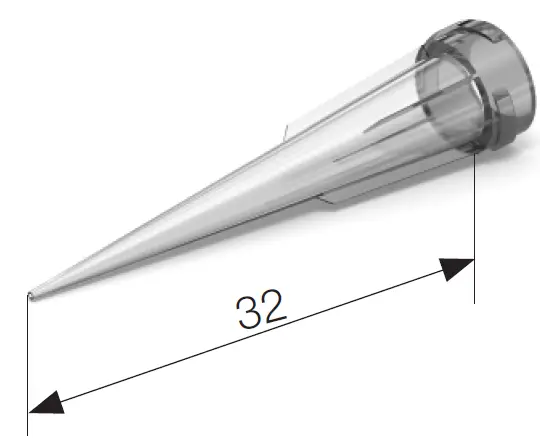

TAPERED TIPS
| STYLE | Ref. | COLOR | SOLDER PASTE | GAUGE | ØID (mm) |
|
Tapered Tips | ND18P | Green | Type 2 | 18 | 0.84 |
| ND20P | Pink | Type 3 | 20 | 0.64 | |
| ND22P | Blue | Type 3 | 22 | 0.41 | |
| ND25P | Red | Type 4 | 25 | 0.25 | |
| ND27P | Clear | Type 5 | 27 | 0.2 |
ØID (in) | ØOD (mm) | ØOD (in) | LENGTH (mm) | LENGTH (in) | TOTAL LENGTH (mm) | TOTAL LENGTH (in) | QTY |
| 0.050 | 1.27 | 0.033 | 6.5 | 0.25 | 24 | 0.25 | 10 |
| 0.036 | 0.90 | 0.024 | 6.5 | 0.25 | 24 | 0.25 | 10 |
| 0.032 | 0.82 | 0.020 | 6.5 | 0.25 | 24 | 0.25 | 10 |
| 0.028 | 0.72 | 0.016 | 6.5 | 0.25 | 24 | 0.25 | 10 |
| 0.025 | 0.63 | 0.013 | 6.5 | 0.25 | 24 | 0.25 | 10 |
| 0.020 | 0.50 | 0.010 | 6.5 | 0.25 | 24 | 0.25 | 10 |
| 0.016 | 0.40 | 0.008 | 6.5 | 0.25 | 24 | 0.25 | 10 |
| 0.012 | 0.31 | 0.006 | 6.5 | 0.25 | 24 | 0.25 | 10 |
| ØID (in) | ØOD (mm) | ØOD (in) | LENGTH (mm) | LENGTH (in) | TOTAL LENGTH (mm) | TOTAL LENGTH (in) | QTY |
| 0.033 | 1.27 | 0.050 | – | – | 32 | 1.26 | 10 |
| 0.024 | 1.20 | 0.048 | – | – | 32 | 1.26 | 10 |
| 0.016 | 0.72 | 0.028 | – | – | 32 | 1.26 | 10 |
| 0.010 | 0.50 | 0.020 | – | – | 32 | 1.26 | 10 |
| 0.008 | 0.40 | 0.016 | – | – | 32 | 1.26 | 10 |
Specifications
- Dimensions: 130x66x16mm / 0.05kg 5.12×2.60×0.63in / 0.11lb
- Package Dimensions: 155x55x45mm / 0.007kg 6.10×2.17×1.77in / 0.16lb
Complies with CE standards ESD Safe
