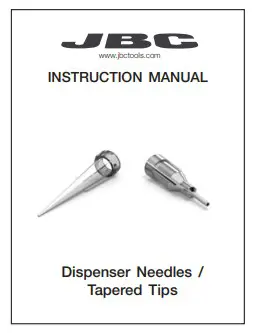

JBC ND-KS Dispenser Needles Instruction Manual
Packing List
ND-KS
The following items are included:
Stainless
Needles…………10 pcs. (2 of each reference)
ND-KP
The following items are included:
Tapered
Tips………………..10 pcs. (2 of each reference)
Manual …………………………………………. 1 unit
Ref. 0023946
Manual …………………………………………. 1 unit
Ref. 002394

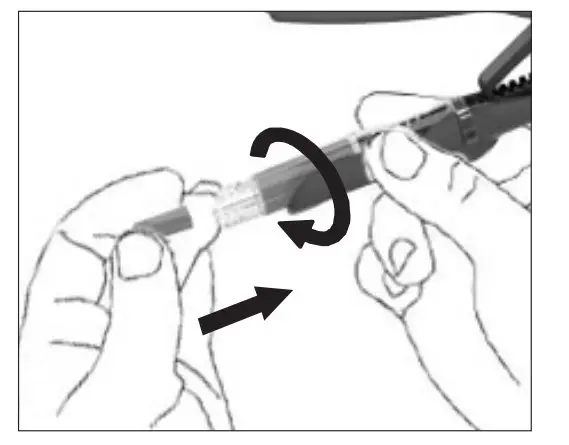

How to use
- Replace the cap with the needle in the plunger housing
Stainless Steel Needles Range
| STYLE | Ref.* | COLOR | SOLDER PASTE | GAUGE | ØID (mm) | ØID (in) | ØOD (mm) | ØOD (in) | LENGTH (mm) | LENGTH (in) | TOTAL LENGTH (mm) | TOTAL LENGTH (in) |
| Stainless Steel Needles | ND18S6 | Green | Type 2 | 18 | 0.84 | 0.050 | 1.27 | 0.033 | 6.5 | 0.25 | 24 | 0.25 |
| ND20S6 | Pink | Type 3 | 20 | 0.61 | 0.036 | 0.90 | 0.024 | 6.5 | 0.25 | 24 | 0.25 | |
| ND21S6 | Purple | Type 3 | 21 | 0.51 | 0.032 | 0.82 | 0.020 | 6.5 | 0.25 | 24 | 0.25 | |
| ND22S6 | Blue | Type 3 | 22 | 0.41 | 0.028 | 0.72 | 0.016 | 6.5 | 0.25 | 24 | 0.25 | |
| ND23S6 | Orange | Type 3 | 23 | 0.31 | 0.025 | 0.63 | 0.013 | 6.5 | 0.25 | 24 | 0.25 | |
| ND25S6 | Plan Red | Type 4 | 25 | 0.25 | 0.020 | 0.50 | 0.010 | 6.5 | 0.25 | 24 | 0.25 | |
| ND27S6 | Clear | Type 5 | 27 | 0.2 | 0.016 | 0.40 | 0.008 | 6.5 | 0.25 | 24 | 0.25 | |
| ND30S6 | Lavender | Type 6 | 30 | 0.15 | 0.012 | 0.31 | 0.006 | 6.5 | 0.25 | 24 | 0.25 |
Tapered Tips Range
| STYLE | Ref.* | COLOR | SOLDER PASTE | GAUGE | ØID (mm) | ØID (in) | ØOD (mm) | ØOD (in) | LENGTH (mm) | LENGTH (in) | TOTAL LENGTH (mm) | TOTAL LENGTH (in) |
| Tapered Tips | ND18P | Green | Type 2 | 18 | 0.84 | 0.033 | 1.27 | 0.050 | – | – | 32 | 1.26 |
| ND20P | Pink | Type 3 | 20 | 0.64 | 0.024 | 1.20 | 0.048 | – | – | 32 | 1.26 | |
| ND22P | Blue | Type 3 | 22 | 0.41 | 0.016 | 0.72 | 0.028 | – | – | 32 | 1.26 | |
| ND25P | Red | Type 4 | 25 | 0.25 | 0.010 | 0.50 | 0.020 | – | – | 32 | 1.26 | |
| ND27P | Clear | Type 5 | 27 | 0.2 | 0.008 | 0.40 | 0.016 | – | – | 32 | 1.26 |
Specifications
- Weight: 2g (0,004 lb)
- Dimensions: 95x55x40mm (3.74×2.16×1.57 in)
Complies with CE standards
Warranty
JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
This product should not be thrown in the garbage. In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility
