JBC NDKP Set Dispenser Tapered Tips
This manual corresponds to the following references:
- ND-KS
- ND-KP
Packing List
ND-KS
The following items are included:
Set Dispenser Steel Needles …… 16 units
(2 of each reference, see page 3)
Manual …………………………………………. 1 unit
Ref. 0027833
ND-KP
The following items are included:
Set Dispenser Tapered Tips ……. 10 units
(2 of each reference, see page 3)
Manual ..……………………………………….. 1 unit
Ref. 0027833
How to use

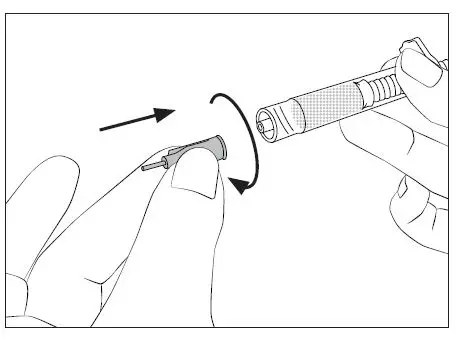

Exchange the siringe cap for a stainlees steel needle or a tappered tip.
Steel Needles Range
| STYLE | Ref.* | COLOR | SOLDER PASTE | GAUGE | ØID (mm) | ØID (in) | ØOD (mm) | ØOD (in) | LENGTH (mm) | LENGTH (in) | TOTAL LENGTH (mm) | TOTAL LENGTH (in) |
|
Stainless Steel Needles | ND18S6 | Green | Type 2 | 18 | 0.84 | 0.050 | 1.27 | 0.033 | 6.5 | 0.25 | 24 | 0.25 |
| ND20S6 | Pink | Type 3 | 20 | 0.61 | 0.036 | 0.90 | 0.024 | 6.5 | 0.25 | 24 | 0.25 | |
| ND21S6 | Purple | Type 3 | 21 | 0.51 | 0.032 | 0.82 | 0.020 | 6.5 | 0.25 | 24 | 0.25 | |
| ND22S6 | Blue | Type 3 | 22 | 0.41 | 0.028 | 0.72 | 0.016 | 6.5 | 0.25 | 24 | 0.25 | |
| ND23S6 | Orange | Type 3 | 23 | 0.31 | 0.025 | 0.63 | 0.013 | 6.5 | 0.25 | 24 | 0.25 | |
| ND25S6 | Plan Red | Type 4 | 25 | 0.25 | 0.020 | 0.50 | 0.010 | 6.5 | 0.25 | 24 | 0.25 | |
| ND27S6 | Clear | Type 5 | 27 | 0.2 | 0.016 | 0.40 | 0.008 | 6.5 | 0.25 | 24 | 0.25 | |
| ND30S6 | Lavender | Type 6 | 30 | 0.15 | 0.012 | 0.31 | 0.006 | 6.5 | 0.25 | 24 | 0.25 |
* These references are supplied in packages of 10 units.

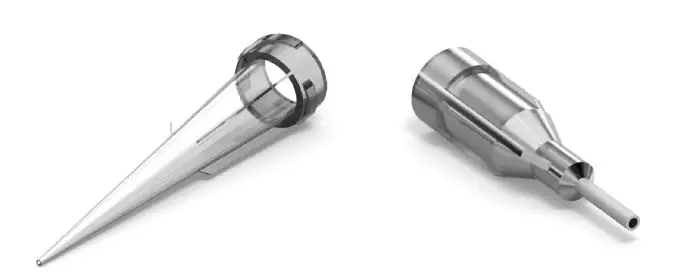

Tapered Tips Range
| STYLE | Ref.* | COLOR | SOLDER PASTE | GAUGE | ØID (mm) | ØID (in) | ØOD (mm) | ØOD (in) | LENGTH (mm) | LENGTH (in) | TOTAL LENGTH (mm) | TOTAL LENGTH (in) |
|
Tapered Tips | ND18P | Green | Type 2 | 18 | 0.84 | 0.033 | 1.27 | 0.050 | – | – | 32 | 1.26 |
| ND20P | Pink | Type 3 | 20 | 0.64 | 0.024 | 1.20 | 0.048 | – | – | 32 | 1.26 | |
| ND22P | Blue | Type 3 | 22 | 0.41 | 0.016 | 0.72 | 0.028 | – | – | 32 | 1.26 | |
| ND25P | Red | Type 4 | 25 | 0.25 | 0.010 | 0.50 | 0.020 | – | – | 32 | 1.26 | |
| ND27P | Clear | Type 5 | 27 | 0.2 | 0.008 | 0.40 | 0.016 | – | – | 32 | 1.26 |
* These references are supplied in packages of 10 units.
Specifications
NDKS
Set Dispenser Steel Needles
Ref. ND-KS
- Total Net Weight: 20.9 g / 0.046 lb
- Package Dimensions/Weight: 90 x 55 x 40 mm / 32.5 g
(L x W x H) 3.54 x 2.17 x 1.57 in / 0.072 lb
NDKP
Set Dispenser Tapered Tips
Ref. ND-KP
- Total Net Weight: 18.8 g / 0,014 lb
- Package Dimensions/Weight: 90 x 55 x 40 mm / 30.3 g
(L x W x H) 3.54 x 2.17 x 1.57 in / 0.067 lb
Complies with CE standards
Warranty
JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor.
Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.
