Standard Mounting Gasket
- Perfect for dish table and drainboard installations or other custom design.

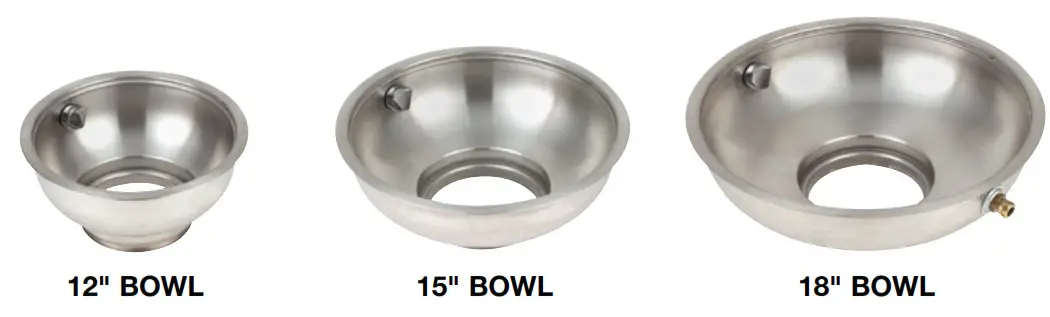

- All bowls made from 16 gauge stainless steel.
- 12″ and 15″ bowl sinks are provided one adjustable water nozzle. 18″ bowl has two nozzles provided.
- Includes mounting adapter for mounting disposer to bowl.
BOWL ASSEMBLY TYPES (Each type available in all 3 sizes)
 | ||
| • Includes removable splash baffle. • Includes reversible bowl cover for either flush mounted, to provide larger working area, or inverted for greater waste confining recessed area. | • Includes stainless steel sleeve guard which helps reduce silverware loss. • Includes removable splash baffle that mounts to top of sleeve guard which can be used as a scrap block. | • Includes removable splash baffle. • Baffle sits up ½” from bowl opening to help prevent silverware loss. |
Our products appear on The KCL CADalog CD-ROM based CAD Foodservice Symbol Library. More information is available from Kochman Consultants, Ltd. at www.kclcad.com.
4700 21st STREET
RACINE, WI 53406
TEL: 800-845-8345
FAX: 262-554-3620
www.insinkerator.com
The Emerson logo is a trademark and a service mark of Emerson Electric Co.
lnSinkErator is a division of Emerson Electric Co.
© Incinerator
Printed in USA Form No. F183-06E-19-02
