Food Waste Disposers
Instruction Manual

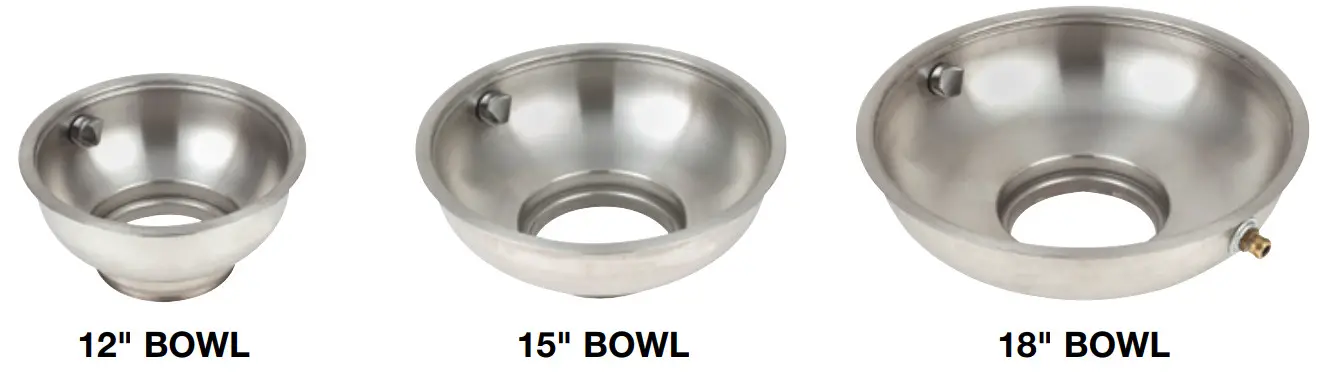

AVAILABLE SIZES
- Perfect for dish table and drainboard installations or other custom design.
- All bowls made from 16 gauge stainless steel.
- 12″ and 15″ bowl sinks are provided one adjustable water nozzle. 18″ bowl has two nozzles provided.
- Includes mounting adapter for mounting disposer to bowl.
BOWL ASSEMBLY TYPES (Each type available in all 3 sizes)

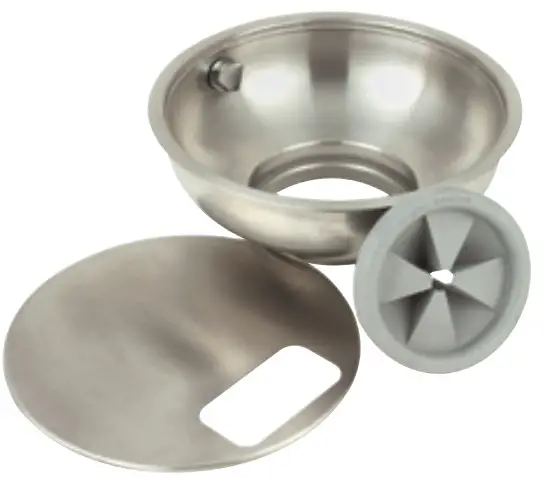

TYPE “A”
- Includes removable splash baffle.
- Includes reversible bowl cover for either flush mounted, to provide larger working area, or inverted for greater waste confining recessed area.

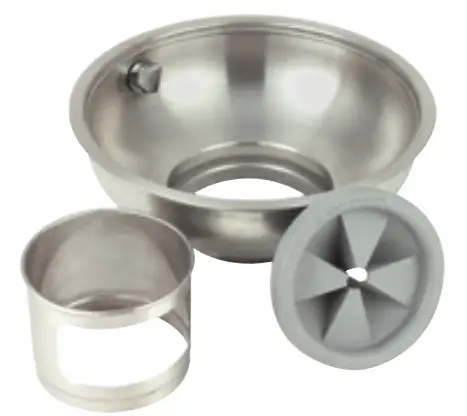

TYPE “B”
- Includes stainless steel sleeve guard which helps reduce silverware loss.
- Includes removable splash baffle that mounts to top of sleeve guard which can be used as a scrap block.

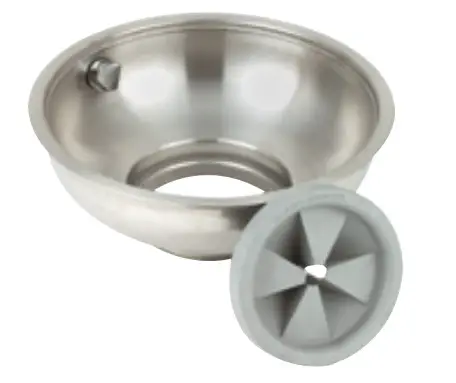

TYPE “C”
- Includes removable splash baffle.
- Baffle sits up ‘/2″ from bowl opening to help prevent silverware loss.
Our products appear on The KCL CADalog CD-ROM based CAD Foodservice Symbol Library.
More information is available from Kochman Consultants, Ltd. at www.kcicad.com.
