Food Waste Disposers
STANDARD SERIES
Badger® 5
Dimensions
* Distance from the bottom of the sink to the center line of the disposer outlet.
Add 1/2″ when stainless steel sinks are used.
** Length of tailpipe from the center line of disposer outlet to end of the tailpipe.
NOTE: Plumb waste line to prevent standing water in disposer motor housing.
Submittal Sheet
This popular model offers the following features and benefits:
- 1/2 Horsepower Heavy Duty Motor (Quiet Dura-Drive® Induction Motor)
- We Come To You® 3-Year
In-Home Limited Warranty - Rugged Galvanized Steel Construction (For Disposer Durability)
- Space-Saving Compact Design

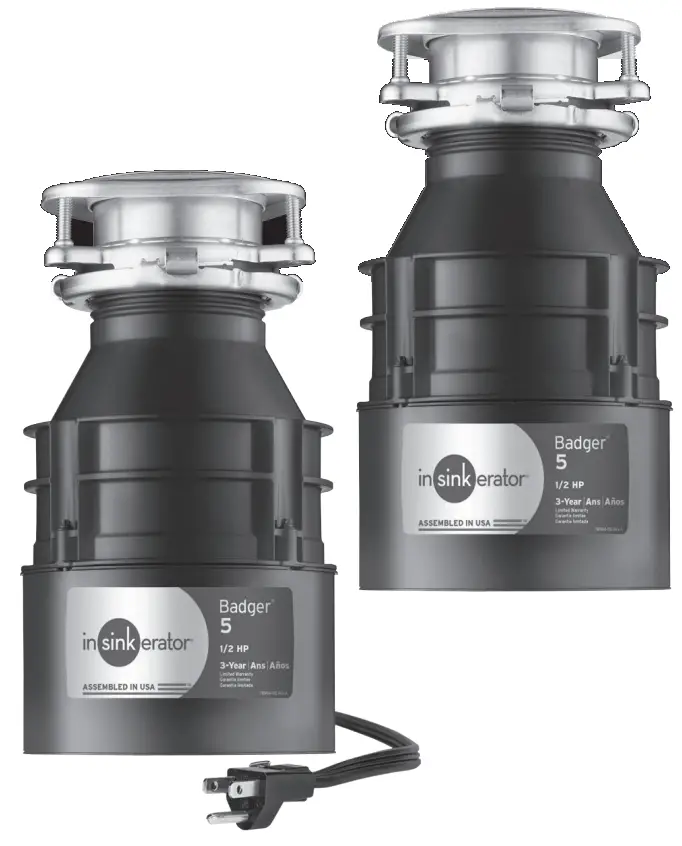

- Available with or without a factory-installed power cord.
Sample Specification
Food Waste Disposer(s) shall be InSinkErator Badger® 5, continuous feed, with 1/2 H.P. motor, galvanized steel grinding elements with two stainless steel 360° swivel lugs.
Self-service wrench.
Available with or without a factory-installed power cord.
Warranty:
3- Year parts and in-home service.
* The complete InSinkErator warranty is included in the Care & Use Booklet packed with each unit.
Specifications
| Type of Feed | Continuous |
| On/Off Control | Wall Switch |
| Motor | Single Phase |
| HP | 1/2 |
| Volts | 120 |
| HZ | 60 |
| RPM | 1725 |
| Amp. (Avg. Load) | 6. |
| Time Rating | Intermittent |
| Lubrication | Permanently Lubricated Upper & Lower Bearings |
| Shipping Weight (Approx.) | 13 lbs.10 oz. (without cord) 13 lbs.14 oz. (with cord) |
| Unit Finish | Condor Grey |
| Overall Height | 11-1/2″ |
| Grind Chamber Capacity | 26 oz. |
| Motor Protection | Manual Reset Overload |
| Average Water Usage | Approx.1 Gallon per Person Per Day |
| Average Electrical Usage | 3-4 KWh per Year |
| Drain Connection | 1-1/2″ Cushioned Slip Joint |
| Dishwasher Drain Connection | Yes |
| Factory Installed Power Cord | Available with or without |
Food waste is roughly 80% water. By using your disposal regularly, you can help divert food waste from landfills and reduce greenhouse gas emissions.
Make sustainability a family affair by using your disposal. After all, the smallest changes can make the biggest impact.
Job Specifications
1-800-558-5700
www.insinkerator.com
The Emerson logo is a trademark and service mark of Emerson Electric Co. The mounting collar configuration is a trademark of Emerson Electric Co.
InSinkErator may make improvements and/or changes in the specifications at any time, in its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models.
© 2019 InSinkErator, InSinkErator® is a business unit of Emerson Electric Co. All Rights Reserved.
H901-19L-64-10
