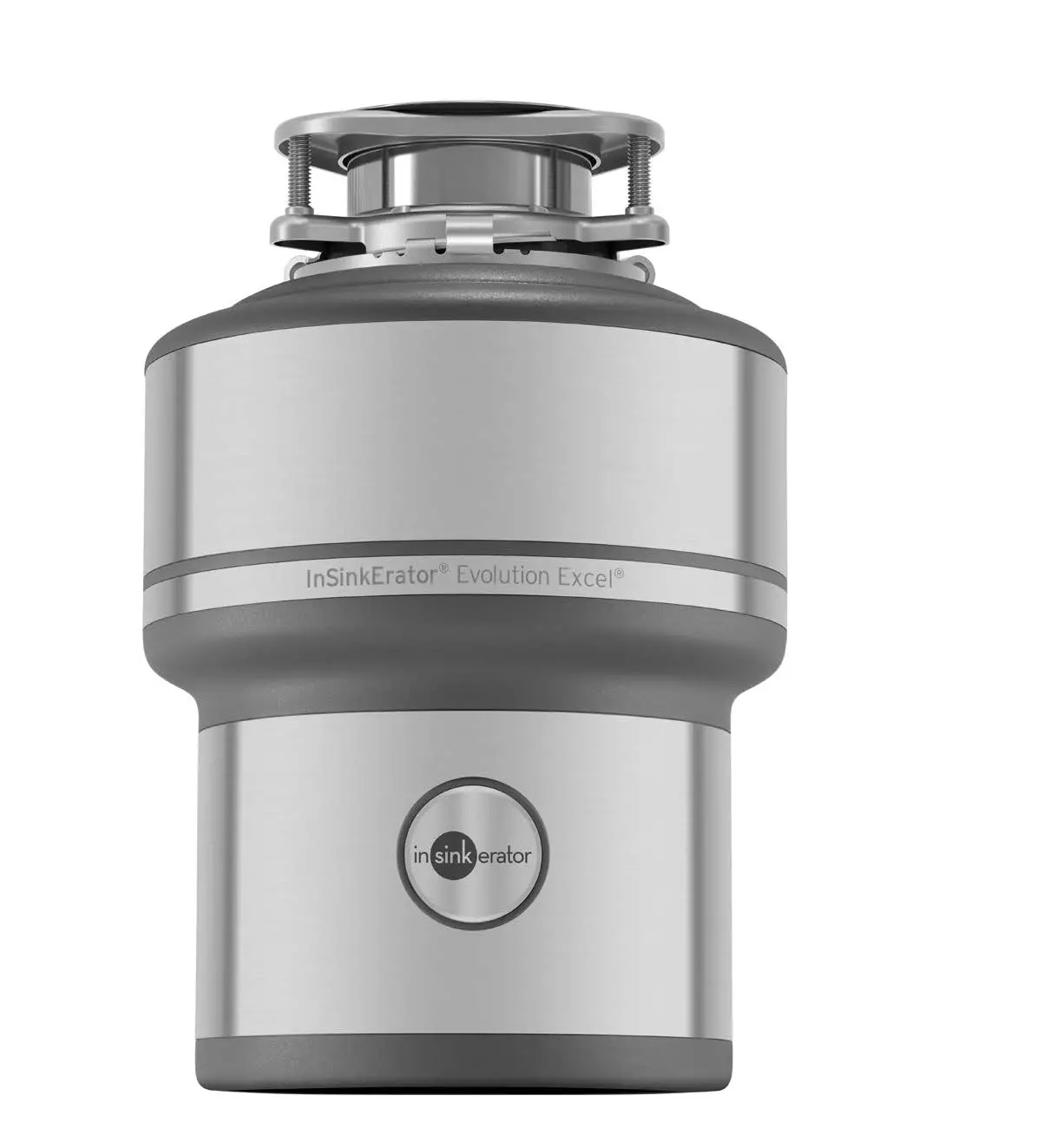

insinkerator Food Waste Disposers
Submittal Sheet
The ultimate in disposer performance. Nothing grinds more with less noise.
- Easy Swap. Designed to fit existing InSinkErator disposers.
- 3-Stage MultiGrind® Technology for heavy-duty food scraps like beef bones.
- Features exclusive Jam-Sensor® Circuit that increases motor torque 500% to automatically break through the toughest jams.
- Highest Durability. Alloy stainless steel components with LeakGuard Liner.™
- Quietest disposer on the market, with extra insulated SoundSeal® Technology.
Specifications
| Type of Feed | Continuous |
| On/Off Control | Wall Switch |
| Motor | Single Phase |
| HP | 1.0 |
| Volts | 120 |
| Reversing | Auto-Reverse Grind System® feature |
| HZ | 60 |
| RPM | 1725 |
| Amp. (Avg. Load) | 10.2 |
| Time Rating | Intermittent |
| Lubrication | Permanently Lubricated Upper & Lower Bearings |
| Shipping Weight (Approx.) | 23.0 lbs. |
| Unit Finish | Stainless Steel Light Gray |
| Overall Height | 13″ |
| SoundSeal Plus Technology | Anti-Vibration Mount® Anti-Vibration Tailpipe Mount™ |
| Quiet Collar® Sink Baffle | |
| Multi-Layer SoundLimiter™ Insulation | |
| MultiGrind Plus | GrindShear Ring® |
| Technology | Tri-Action Lug® System |
| feature | |
| Undercutter Disk® | |
| Jam-Sensor® Circuit | |
| Grind Chamber Capacity | 40 oz. |
| Motor Protection | Manual Reset Overload |
| Average Water Usage | Approx. 1 Gallon Per Person Per Day |
| Average Electrical Usage | 3-4 KWh Per Year |
| Drain Connection | 1-1/2″ Anti-Vibration (Hose Clamp) |
| Dishwasher Drain Connection | Yes |

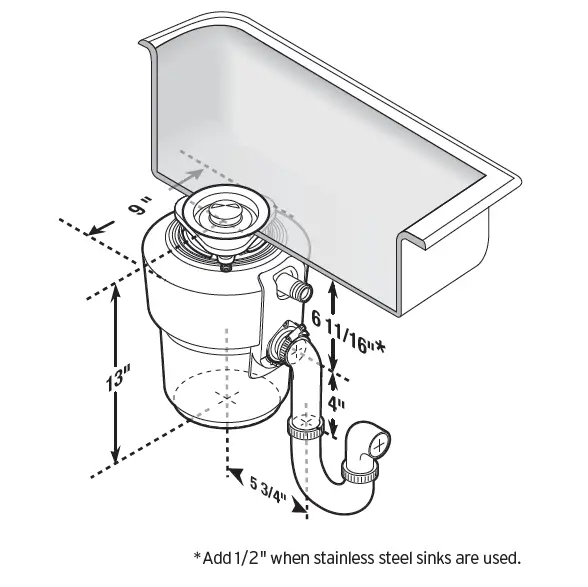

Dimensions
Sample Specification
Food Waste Disposer(s) shall be InSinkErator Model Evolution Excel® with MultiGrind® and SoundSeal® technologies, 1.0 HP motor, Auto-Reverse Grind System®, Stainless Steel Grind Chamber, and components.
Warranty:
10- Year parts and in-home service.

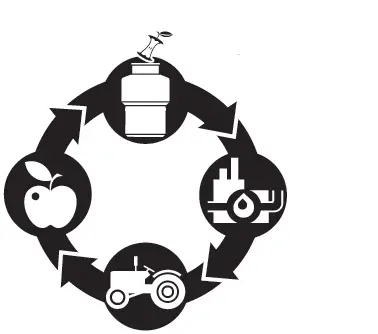

Food waste
Food waste is roughly 80% water. By using your disposal regularly, you can help divert food waste from landfills and reduce greenhouse gas emissions. Make sustainability a family affair by using your disposal. After all, the smallest changes can make the biggest impact.
1-800-558-5700 www.insinkerator.com
