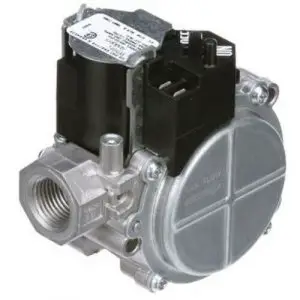

EMERSON Electronic Ignition Gas Valves Installation Guide
80% of furnaces made in the past 15 years can be serviced with six 36J Gas Valve models
Trusted by more OEMs
White-Rodgers is the largest gas valve manufacturer in North America More OEMs use White-Rodgers than any other brand
Ease of Installation
Quick connect spade terminals Most models include LP conversion kit Reducer bushing kit included on most models
DID YOU KNOW?
36J series gas valves replace over 500 models.
FEATURES
- Convertible – natural or LP gas
- Adjustable regulator(s)
- Inlet/outlet screens
- Built-in pressure taps
- Electric on-off switch
- Quick connect spade terminals
- Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
SPECIFICATIONS
Electrical Rating
- 28 Amps (Single Stage)
- 43 Amps (Two-Stage)
Operating Voltage
- 24 Vac 50/60 Hz
Temperature Operating Range
- -40° to 175° F (-40° to 79° C)
Maximum Pressure Rating
- 1/2″ PSI 14.0″ WC
Inlet & Outlet Pressure Taps
- 1/8″ NPT
Mounting
- Multipoise
Agency Approvals
- CSA

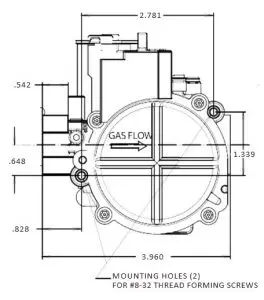

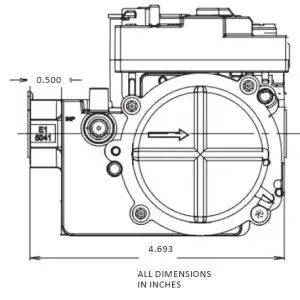

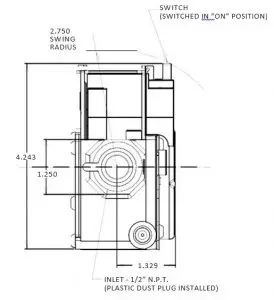

Product View
- 36G/36
- 6J
- 36G
| Valve (Stages) | Pipe Size | 1” Pressure Drop Capacity | Range of Regulation | ||
| BTU/HR | BTU/HR | ||||
| Std. Gas .64 Sp. Gr. (1000 Btu/ft3) | LP Gas 1.53 Sp. Gr. (2500 Btu/ft3) | Std Gas .64 Sp. Gr. (1000 Btu/ft3) | LP Gas 1.53 Sp. Gr. (2500 Btu/ft3) | ||
| Single | 1/2” x 1/2” | 140,000 | 226,800 | 20,000-210,000 | 65,000-340,000 |
| Two | 1/2” x 1/2” | 140,000 | 226,800 | 20,000-210,000 | 65,000-340,000 |
| Modulating | 1/2” x 1/2” | 140,000 | 226,800 | 40,000-210,000 | 65,600-340,000 |
| Voltage | Stages / Opening | Pipe Size | Regulator Setting | Natural Gas Adj. Range (WC) | Lp Gas Adj. Range (WC) | LP Kit Incl. | Reducer Bushing Kit | Flow Direction | Inlet / Outlet Pressure Tap | HSI / DSI | Intermittent / Proven Pilot | Flange Mount Capable | Model Number | Item Number |
| 24 Vac 50/60Hz | 1 – Stage Fast Open | 1/2” X 1/2” | 3.5” | 2.5”-5.0” | 7.0”-12.0” | No** | No | Str. Thru | Yes / Yes* | Yes | No | No | 36G22-254 | 36G22-254 |
| 24 Vac 50/60Hz | 1 – Stage Fast Open | 1/2” X 1/2” | 3.5” | 2.5”-5.0” | 7.0”-12.0” | Yes | No | Str. Thru | Yes / Yes* NPT & Towers | Yes | Yes | Yes | 36G32-500 | 36G32-500 |
| 24 Vac 50/60Hz | 1 – Stage Slow Open | 1/2” X 1/2” | 3.5” | 2.5”-5.0” | 7.0”-12.0” | Yes | No | Str. Thru | Yes / Yes* NPT & Towers | Yes | Yes | Yes | 36G33-500 | 36G33-500 |
| 24 Vac 50/60Hz | 1 – Stage Fast Open | 1/2” X 1/2” | 3.5” | 2.5”-5.0” | 7.0”-12.0” | Yes | Yes | Str. Thru | Yes / Yes | Yes | No | No | 36J22-214 | 36J22-214 |
| 24 Vac 50/60Hz | 1 – Stage Slow Open | 1/2” X 1/2” | 3.5” | 2.5”-5.0” | 7.0”-12.0” | Yes | Yes | Str. Thru | Yes / Yes | Yes | No | No | 36J24-214 | 36J24-214 |
| 24 Vac 50/60Hz | Modulating | 1/2” X 1/2” | 3.5” | 0.4”-4.0” | 1.3”-11.5” | Yes | Yes | Str. Thru | Yes / Yes | Yes | No | No | 36J27-554 | 36J27-554 |
| 24 Vac 50/60Hz | 2 – Stage Fast Open | 1/2” X 1/2” | 1.5” Low 3.5” High | 1.0”-4.0” Low 2.0”-5.0” High | 4.0”-10.0” Low 6.0”-12.0” High | Yes | Yes | Str. Thru | Yes / Yes* | Yes | No | No | 36J54-214 | 36J54-214 |
| 24 Vac 50/60Hz | 2 – Stage Slow Open | 1/2” X 1/2” | 1.5” Low 3.5” High | 1.0”-4.0” Low 2.0”-5.0” High | 4.0”-10.0” Low 6.0”-12.0” High | Yes | Yes | Str. Thru | Yes / Yes* | Yes | No | No | 36J55-214 | 36J55-214 |
| 24 Vac 50/60Hz | 1 – Stage Slow Open | 1/2” X 1/2” | 3.5” | 2.5”-5.0” | 7.0”-12.0” | Yes | No | 90° Bottom Outlet | Yes / Yes* | Yes | No | No | 36J24-614 | 36J24-614 |
| 24 Vac 50/60Hz | 2 – Stage Slow Open | 1/2” X 1/2” | 1.5” Low 3.5” High | 1.0”-4.0” Low 2.0”-5.0” High | 4.0”-10.0” Low 6.0”-12.0” High | Yes | No | 90° Bottom Outlet | Yes / Yes* | Yes | No | No | 36J55-614 | 36J55-614 |
** Use F92-0659 to convert to regulated L.P. gas Not for Standing Pilot
* To measure outlet pressure on valves, loosen outlet pressure tap screw one quarter turn and put manometer hose over the top of the outlet pressure tap.
