Kogan 65” Smart Hdr 4k Led Tv User Guide

kogan 65” SMART HDR 4K LED TV User Guide

COMPONENTS

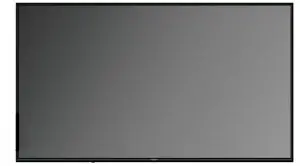

1. Kogan 65” Smart HDR 4K LED TV
2. Remote control

3. Stand (x2)

4. M6 x 20mm screw (x2)

5. AAA battery (x2)

6. Quick-start guide

7. Warranty card


NOT INCLUDED:
Phillips head screwdriver, antenna cable, broadband internet connection.

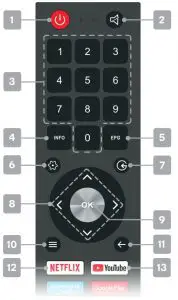

REMOTE CONTROL OVERVIEW

1. Power, press to enter or exit standby mode
2. Mute to toggle sound on/off
3. Number buttons to select channels or input passwords
4. INFO displays the current program information
5. Electronic Program Guidien DTV mode
6. Device preferences to display sound and picture options.
7. Source displays the list of input source channels.
8. Direction buttons for navigating menus and settings.
9. OK Enter select the current item or confirm selection, Display Channel list in DTV mode
10. Quick Menu to display TV options with optional, adjustable settings.
11. Back to the previous menu
12. to open app homepage
13. to open app homepage

14. to open app homepage
15. to open app homepage
16. Google Assistant to launch the built-in virtual assistant for voice commands
17. Volume to adjust the volume up or down
18. Program to scroll channels
19. Home to access the home page
20. Teletext to show/hide Teletext (Teletext not available in Australia or New Zealand)
    USB Press to switch to the USB source.
    Audio to select available languages and audio channels.
    Subtitles to select subtitles
    Start playback in media mode;
    MIX mode in teletext
    II Pause in media/PVR mode;
    Timeshit function in DTV mode
    Stop in media/PVR mode;
    Hold teletext page on display, press again to release
    Record in DTV mode;
    Change size of teletext screen
    Reverse playback rapidly in media mode; Subtitle mode, or Submenu
    Skip to previous in media mode;
    Index page
    Skip to next in media mode;
    Reveal hidden information in some teletext pages Advance playback rapidly in media mode;
    Cancel teletext but not exit
21. Colour buttons for navigational use within apps

ASSEMBLY AND INSTALLATION

BEFORE YOU GET STARTED
Spread cushioning flat to lay the TV on. This will help to prevent damage.

1. Stand Assembly
   • Attach stands to base of TV, ensuring `L’ and `R’ markings on the TV and stands match.
   • Insert one 20mm screw for each stand and use Phillips head screwdriver (not supplied) to tighten.
2. Remote control Assembly
   • Open the battery compartment cover on the back side.
   • Insert two 1.5V AAA size batteries, making sure to match the polarity markings (+ / -) of the batteries with the diagram inside the compartment.
   • Replace battery compartment cover.

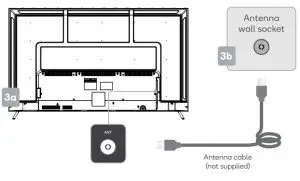

3. Connect to Antenna

• • • Connect an antenna cable (not supplied) via the `ANT’ input port at the back of the TV.
    • Ensure the antenna cable is also connected to a working antenna, either via an antenna wall socket in your home, or directly.

4. Turning TV on

Plug the power cord into a suitable power outlet, then press the POWER () button on the remote control, making sure to aim it at the sensor at the front of the TV. Alternatively, you can press the power button on the lower side of the back panel on the TV.

TURNING TV OFF

Press the POWER () button on the remote control to enter standby mode. To power down the TV completely, unplug the power cord from the power outlet. Do not leave your set in standby mode for long periods of time. If you will not use the TV for a long time, it is recommended to unplug the set from both the power outlet and aerial.

FIRST TIME SETUP

When turning the TV on for the first time, the Welcome screen will appear. Use the , and OK buttons to navigate the following options.

Bluetooth
Your Android TV remote control has Bluetooth capabilities. Follow the onscreen prompts to pair the remote with the TV. This will allow you to use voice commands with your remote via the Google Assistant button.

Language
Select your menu language.

Quickly set up with Android phone
If you have an Android smartphone, you can easily transfer your phone’s Wi-Fi network and Google account to your TV. If not, select “Skip”.

Select Wi-Fi network
Your Android TV will automatically scan for wireless networks nearby. Ensure the TV is within range of your wireless modem or router, and have your password handy. Follow the prompts to input your password and connect your TV to your selected network.
If you’d prefer to connect an Ethernet cable to connect to the internet, simply insert the cable (not supplied) to the “LAN” input port at the back of the TV (4a), and ensure that it is correctly connected to the internet.

Google Account sign-in
Linking your Google Account to your Android TV will allow you to install new apps from the Play store, as well as receive recommendations, movies, and more from Google.

Terms of Service
This page will allow you to read each of the Google Terms of Service, Privacy Policy, and Google Play Terms of Service in full, and to accept.

Location
Grant permission for your Android TV to detect your location. You can adjust these permissions at any time from Settings.

Help improve Android
Grant permission for your Android TV to detect your location to automatically send diagnostic information to Google.

Following these options, the Auto Tuning screen will appear. Ensure you have an antenna cable connected to the `ANT’ input port at the back of the TV (4a).

The auto tuning function will search for and save all available free-to-air TV channels. After confirming your settings (the default will be set for Australia), the process will automatically begin. The number of searched channels will be displayed on the screen.
When setup is complete, you will be able to access the Home page.

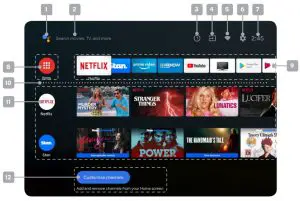

HOME PAGE

1. Google Assistant
   Click to launch the built-in virtual assistant, which will begin listening for voice commands. Give it a try, ask “What’s the weather today?”
2. Text search
   Enter text manually to search TV apps.
3. System notifications
4. Source
   Access free-to-air channels (`DTV’) or other input source channels.
5. Internet connection
   This will display as a Wi-Fi or LAN icon, depending on your connection. Select for connectivity options.
6. Settings
   Access the global settings menu.
7. Clock
   Time and date settings can be adjusted 12 Customize channels in the global settings.
8. Apps
   Access the App Centre to display all installed apps. Free-to-air channels can be accessed under the `Live TV’ option.
9. Favorites list
   A customization list of apps available at a single click.
10. Play next
    Displays the program you are watching notifications are present. or have queued to play next.
11. Pinned channels
    Show the program list of pinned channels. The order of this list can be adjusted by pressing <from the channel icon and selecting the “<>” icon. Empty channels will not be shown on the home page.
12. Customize Channels
    Add or remove pinned channels from the home page.

SETTINGS

Global settings

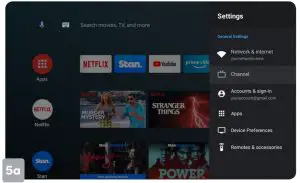

To access the global settings menu (5a), simply navigate to the icon on the Home screen. Here you will find all of the adjustable options for Android TV’s interface, connectivity, and apps.
In DTV mode you can also press theQuick Menu button on your remote control and use the </> buttons to navigate to the Settings option.

Quick Menu
Options for your TV (picture, aspect ratio, speakers, etc) can be accessed by pressing the Quick Menu button on your remote control. Use </> buttons to navigate through the sub menus, and buttons to access Channel and Recording/Time Shift options.

Device preferences
To open the device options sub menu directly during live TV playback, press the Device preferences button on your remote control.

BASIC TROUBLESHOOTING

Poor picture and sound quality

• Try a different channel
• Adjust the antenna
• Check all connections

No picture or sound in TV status

• Try another channel
• Press the TV/AV button
• Make sure TV is plugged in
• Check the antenna connection

No sound or sound is too low at maximum volume

• Check the volume settings on any external speakers connected to your television
• Adjust the TV volume accordingly
• Check another channel or input
• Check that MUTE hasn’t been turned on

No colour, wrong colour or tints

• Make sure the program itself is broadcast in colour
• Select the picture menu, then adjust the colour and tint submenus

Picture rolls vertically

• Check all connections

Blurred or snowy picture, distorted sound

• Check direction, location and
  connections to your antenna
• Issues may be caused by the use of
  an indoor antenna (poor signal)

Remote control malfunctions

• Replace remote control batteries
• Check battery terminals
• Remote is out of range, move closer to TV
• Remove any obstructions between remote and IR sensor of TV  Make sure the power cord to your TV is plugged in and turned on

Image is not centred on the screen

• Adjust the horizontal and vertical position

“No Signal” on HDMI source

• Test the device with a different HDMI cable
• Plug the device into another HDMI
  port
• Try a different device connected to
  the same cable and port
• Perform a factory reset on your TV

For our full TV troubleshooting guide and extended User Manual for this TV, head online to help.kogan.com
