LED Batten/LED
BN058C

Mounting Instruction

Batten mounting

Installationon ceiling or wall through mounting clips.
Mounting distance(L)
Unit/(mm)

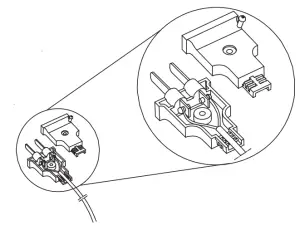

1. Wire connection I
   Use 2-pin plug* for power connection.
   *2-pin plug is not provided.

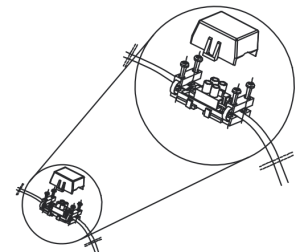

2. Wire connectionII
   Using wire connection box* for power connection.
   *Wire connection box and Connector is not provided.
   Connector dimensions:
   10 mm×20mm×25mm.
   10mm×20mm×25mm。

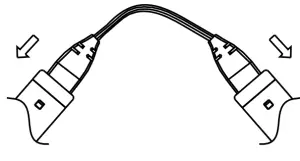

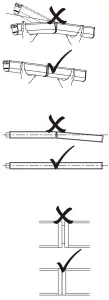

3. Linking method I
   Click fit male plug part into the female socket. Affix next system, only after linking.
   The maximum amount of linking: 8pcs

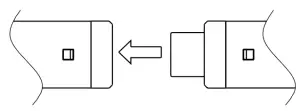

4. Linking method II
   Use connector jack cable(Not provided in this pack)
   for linking, as required.
   The maximum amount of linking: 8pcs.


Signify Luminaires (Shanghai) Co., Ltd.
Address: 2F, Building 6, No. 1805, Huyi Highway, Malu Town, Jiading District, SH, PRC
Postcode: 201801

Operation Instruction

1. The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
2. Do not use the fixture if housing or power cables are damaged.
3. The product is suitable for ceiling, surface & cover mounting.
4. Do not use in supply voltage exceeding 220-240V±10% for extended periods.
5. Do not place readily flammable material near the lamp.
6. In case of operation failure, please switch off the power and contact your nearest dealer.
7. The manufacture will not be held responsible for improper usage or modification of the product.

1. This product allows a maximum of 8 pcs trunking (via a connector or end-to-end trunking). For your safety concern, the connection of BN058C with any other product is prohibited.
2. Please switch off the power supply before changing the product or connection!
3. Max current of power cable: 2A.
4. The light source of this luminaire is not replaceable; when the light source reaches its end of life, the whole luminaire shall be replaced
5. The corrosive atmosphere or hazardous materials such as sulfur, chlorine, phthalate, etc must be avoided during use and storage.
6. This product is designed only for indoor use, please do not use it anywhere humid, wet, or outdoor.

Applicable to China Only
