REELCRAFT SW/TW5000 Series Welding Hose Reels

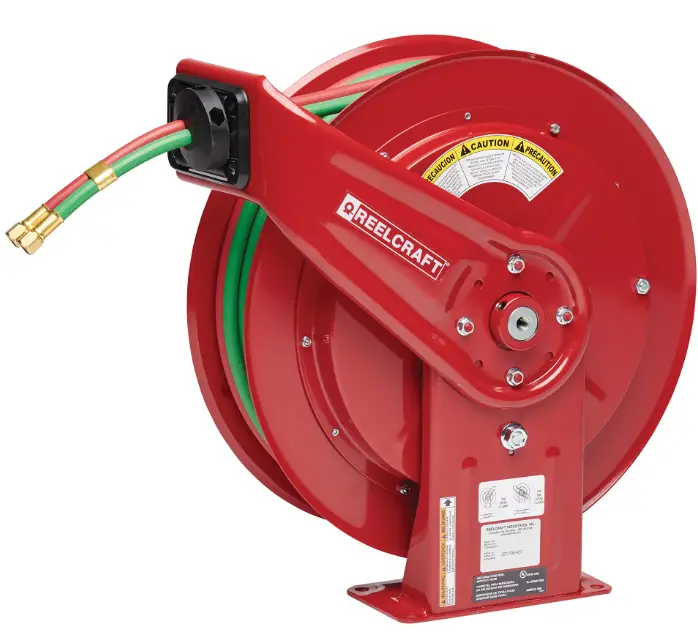

REELCRAFT-SW-TW5000-Series-Welding-Hose-Reels-PRODUCT-IMAGE

Operating Instructions

Series SW/TW5000 Welding Hose Reels

Low Pressure Model Numbers: TW5425 OLPT SW5450 OLPT

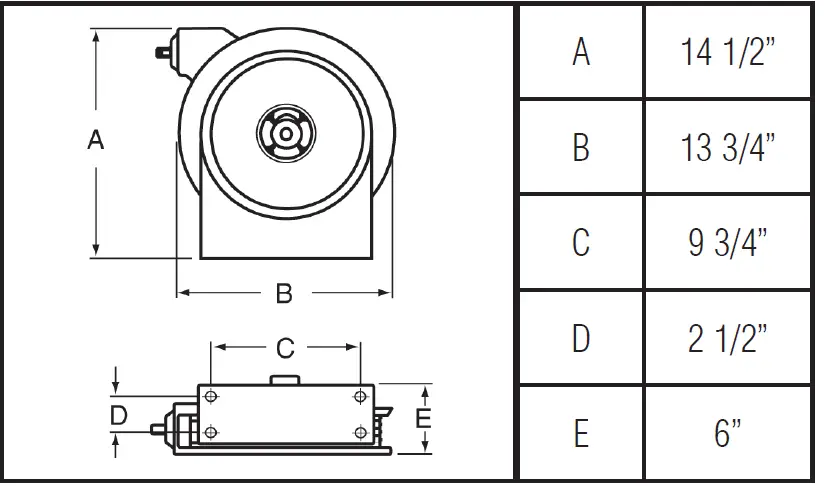

Dimensions

REELCRAFT-SW-TW5000-Series-Welding-Hose-Reels-01Four 5/16” diameter mounting holes

IMPORTANT
Read this manual carefully before installing, operating or servicing this equipment.

SAFETY

Personal injury and/or equipment damage may result if proper safety precautions are not observed.

  • Ensure that reel is properly installed before connecting input and output hoses.
  • Bleed fluid/gas pressure from system before servicing reel.
  • Before connecting reel to supply line, ensure that pressure does not exceed maximum working pressure rating of reel.
  • Remember, even low pressure is very dangerous and can cause personal injury or death.
  • Be aware of machinery and personnel in work area.
  • If a leak occurs in the hose or reel, remove system pressure immediately.
  • A high tension spring assembly is contained within the reel. Exercise extreme caution.
  • Pull hose from reel by grasping the hose itself, not the control valve.
  • Ensure that reel, hose, and equipment being serviced are properly grounded. Use an ohmmeter to check ground continuity.
  • If reel ceases to unwind or rewind, remove system pressure immediately. Do not pull or jerk on hose!
  • Treat and respect the hose reel as any other piece of machinery, observing all common safety practices.

IN-SERVICE CAUTION:

  • The user is cautioned not to shut off the fuel gas at the regulator or supply source first, as a flashback may result, and thereby damage the hose.
  • Users are cautioned specifically to shut off the gas at the torch first, and then at the regulator or supply source, to limit permeation of gas through the hose wall. This should be done when the torch will not be used for periods in excess of 30 minutes.
  • After the flame has been extinguished and the gas turned off at the supply source, it is recommended that any remaining gas be bled to minimize degradation of the rubber during long shutdowns.
  • To prevent an accumulation or concentration of gas that could be explosive or otherwise harmful to personnel, adequate ventilation must be provided at all times, particularly in confined areas where fuel gas is being used.
  • Additional advice for minimizing the permeation problem has been supplied by an NWSA member who states “The source of gas (fuel gas and oxygen) should be closed before leaving for the day or shift. After the cylinder or manifold valves have been closed, the torch valves
    (both fuel gas and oxygen) should be opened to remove all pressure from hoses.

INSTALLATION INSTRUCTIONS

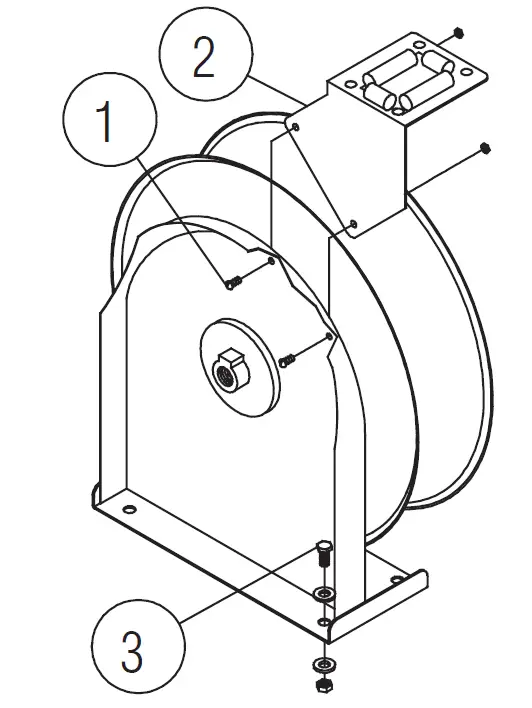

MOUNTING

Caution: Unless reel was specified differently when ordering, maximum installation height is 10 feet. Do not exceed this dis-tance. Observe all applicable NEC, OSHA & local codes when installing this equipment.

REELCRAFT-SW-TW5000-Series-Welding-Hose-Reels-02

  1. Unpack and inspect reel for damage. Turn by hand to check for smooth operation. Check for completeness.
  2. Configure reel for top, side, or bottom-wind hose dispensing by removing bolts (or nuts) (1) securing guide arm bracket (2).
  3. Determine new guide arm bracket location and remove corresponding bolts, (or nuts). Position guide arm bracket to reel and replace bolts (or nuts).
  4. Position reel on floor, wall or ceiling. Secure into place using four (customer supplied) screws or bolts (3).

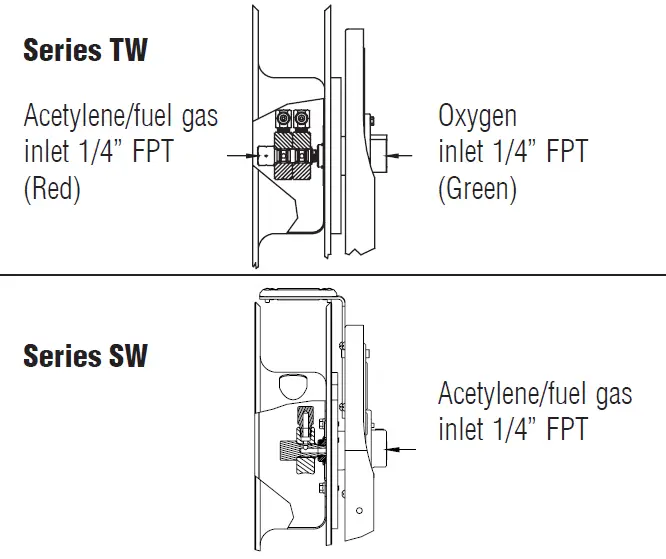

INSTALLING THE INPUT HOSES

Caution: Apply teflon tape to all input connections to insure a proper seal. REELCRAFT-SW-TW5000-Series-Welding-Hose-Reels-03

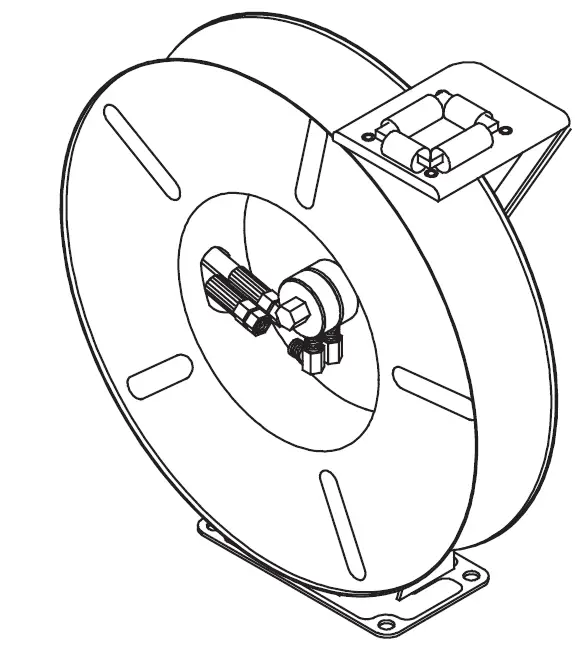

INSTALLING THE OUTPUT HOSES

Caution: Use extreme caution; reel under tension, avoid releasing latch mechanism.

  1. Manually turn spool assembly until spring is tight, back off three turns, then latch.
  2. Route output hoses through guide bracket.
  3. Using a wrench, firmly hold on to output fittings on swivel while tightening the hose connector. REELCRAFT-SW-TW5000-Series-Welding-Hose-Reels-04

SERVICE INSTRUCTIONS
User servicing of the reel is limited to replacing the input/output hoses or swivel only. Refer all other repairs to an authorized service person or directly to Reelcraft Industries, Inc. Failure to do so can result in personal injury and/or equipment damage and may void the warranty.
Caution: Rewind hose on reel, then bleed pressure from system before performing the following procedures.

  1. Replace hoses in accordance with procedures given in “Installation Instructions” section of this manual.

REPLACING THE SWIVEL
Caution: Remove supply line pressure before performing the following procedure.

  1. Remove supply line from swivel.
  2. Remove swivel assembly from inlet shaft.
  3. Apply thread sealant to threaded connection and re-install swivel assembly to inlet shaft by reversing steps 1 & 2.
ADJUSTMENTS

Caution: Use extreme caution; reel under tension. Avoid releasing latch mechanism. If necessary, adjust spring tension of reel by adding or removing wraps of hose from spool, one wrap at a time, until desired tension is obtained. Add wraps to increase tension. Remove wraps to decrease tension. When adding wraps of hose, be careful not to exceed the winding mechanisms spring capacity. Add just enough wraps of hose to achieve the desired tension. Damage to the winding mechanism will result if spring is over-tensioned.REELCRAFT-SW-TW5000-Series-Welding-Hose-Reels-05

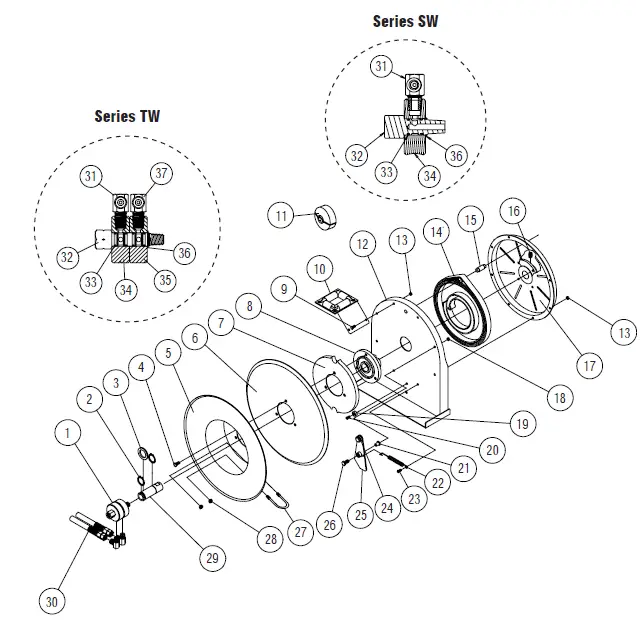

Item #Description#ReqTW5425 OLPTSW5450 OLPT
1Swivel Assembly1S260057-1602843
21” Snap Ring1300031300031
3Spacing Washer2300034300034
4Self Tap Screw Plastite3S295-102S295-102
5Reel Sheave1260022260022
6Reel Sheave Disc1500006500006
7Latch Cam1S500019S500019
8Spring Arbor1S260648S260648
910-32 x 1/2” Machine Screw2300002300002
10Guide Arm and Roller Assembly1S500107S500107
11Bumper Stop Assembly18-HR1004-38-HR1004-3
12Base Assembly1500101500101
1310-32 Hex Nut7S300011S300011
14Drive Spring Assembly1S504230503755
15Spring Case Stud1S261360S261360
163/8-16 x 1/2” Set Screw1300006300006
17Spring Case and Hub Assembly1S500103S500103
1810-32 x 3/8” Nyloc Nut1S82-15S82-15
19Latch Bumper1S400021S400021
2010-24 x 3/8” Screw1S32-136S32-136
21Latch Bushing1S400012S400012
22Latch Spring1S400018S400018
2310-32 x 3/8” Machine Screw5300001300001
24O-Ring1400020400020
25Latch Plate Assembly1S400109S400109
2610-32 x 1” Machine Screw1300035300035
27U-bolt13-1174403-117440
281/4-20 Nyloc Nut2261650-1261650-1
29Main Shaft1602306602306
30Hose Assembly1601031-25601162-50
3190° Ell Acet/Fuel1S300090S300090
32Swivel Stem1260054260653
33O-Ring4S314-14S314-14
34Swivel Body – Acet1260056260056
35Swivel Body – Oxy1260055—–
36Snap Ring1300087300087
3790° Ell Oxygen1S300091—–
Hose I.D. and Length1/4” x 25’1/4” x 50’
Reel Inlet Connection1/4” FPT1/4” FPT
Max. Operating Pressure200 PSI200 PSI
Max. Operating Temperature210 °F210 °F
