50-0195 Professional Hose Reel
User Manual
Pressure Washer
Hose Reels
Accessories
Hose Reels
A convenient way to store your pressure washer hose.
Reel capacities based on R1 Mi-T-M hoses.
| PART NUMBER | 50-0195 | 50-0196 | 50-0164 | 50-0165 |
| REEL DIAMETER | 13in. | 16in. | 13in. | 16in. |
| MAX. HOSE LENGTH | 150ft. | 200ft. | 100ft. | 200ft. |
| PIVOTING ACTION | 360° | 360° | 0° | 0° |
| UNIT RATING | 4000-PSI and lower | 4000-PSI and lower | 4000-PSI and lower | 4000-PSI and lower |
- Frame mount
- Easy-mount bracket design
- Clean hands hose guide
- Live system
Note: Hose reels 50-0164 and 50-0165 must be mounted with 13-0208A18, 45° bracket or 13-0210A18, 90° bracket.

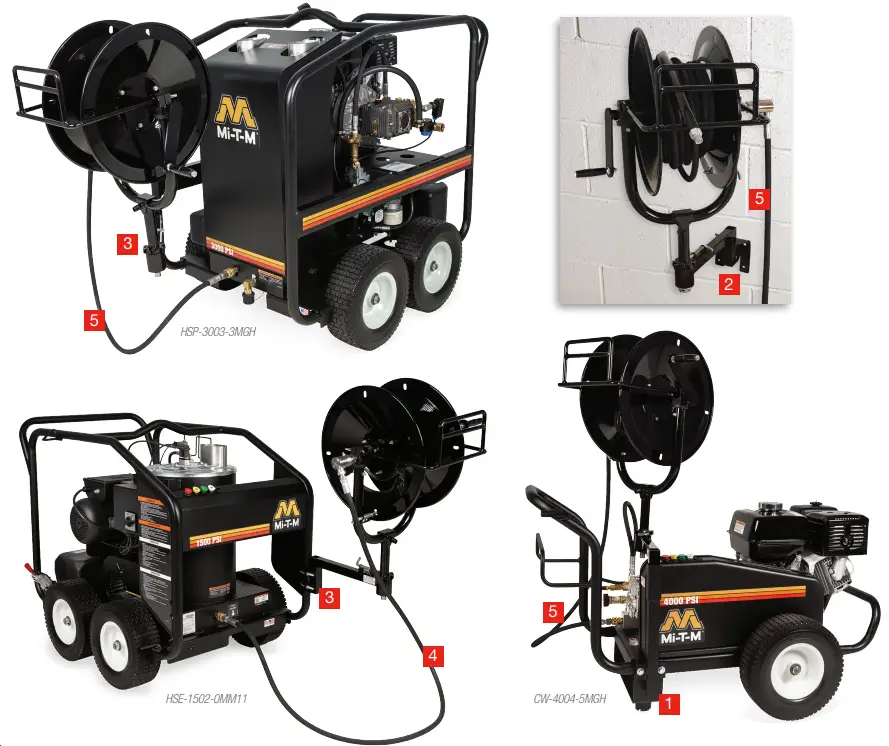

Brackets
- – Cold water base mount, fits JCW and CW Premium Series 13-0175A18
– For hose reels on single and dual-axle trailers 13-0179A18 - – Wall-mount, fits HG Series 13-0207A18
– 45°, mounts hose reel without swivel over unit 13-0208A18
– 90°, mounts hose reel without swivel to side of unit 13-0210A18 - – Universal mount, fits HSE-2503 models, HS Series and HSE Direct Drive Series AW-0050-0138
– 29-inch bar, fits CWC Premium Series AW-0050-0140
Elbow
– Elbow, required for 50-0164 and 50-0165 hose reels and jumper hose mounting 24-0105
Jumper Hoses
– 40-inch, for hose reels on single and dual-axle trailers 15-0159 - – 85-inch, quick connect, fits HS and HSE Direct Drive Series 850-0278
- – 57-inch, quick connect, fits Cold Water Pressure Washers, HSP Series and HSE Belt Drive Series 852-0139
Note: 850-0278 and 852-0139 jumper hoses are not rated for steam applications.
