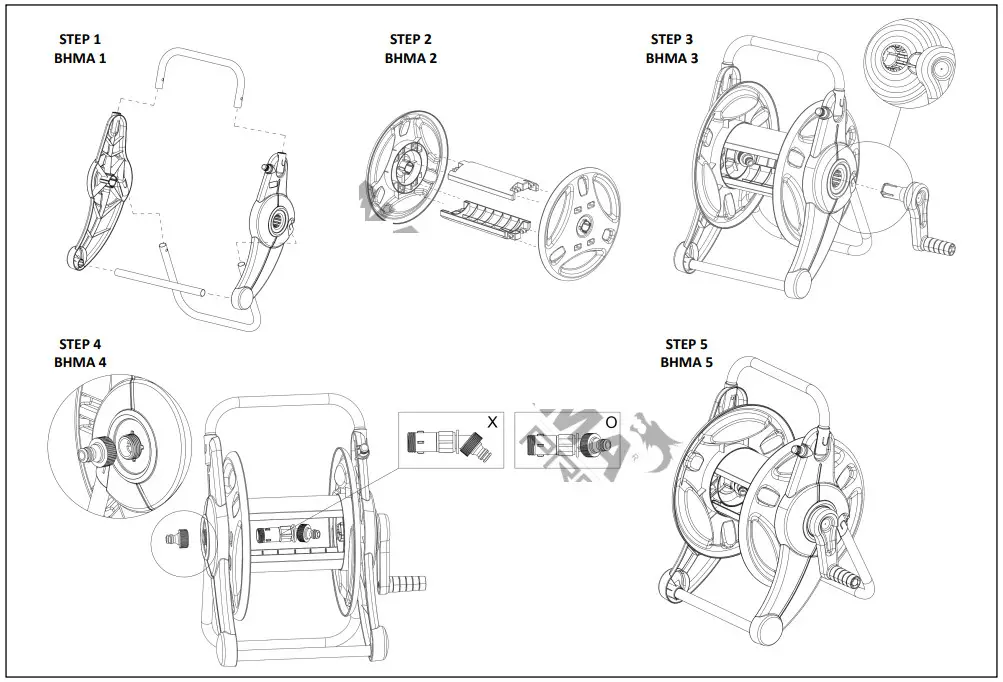

ASSEMBLY INSTRUCTIONS
GH9125
044727

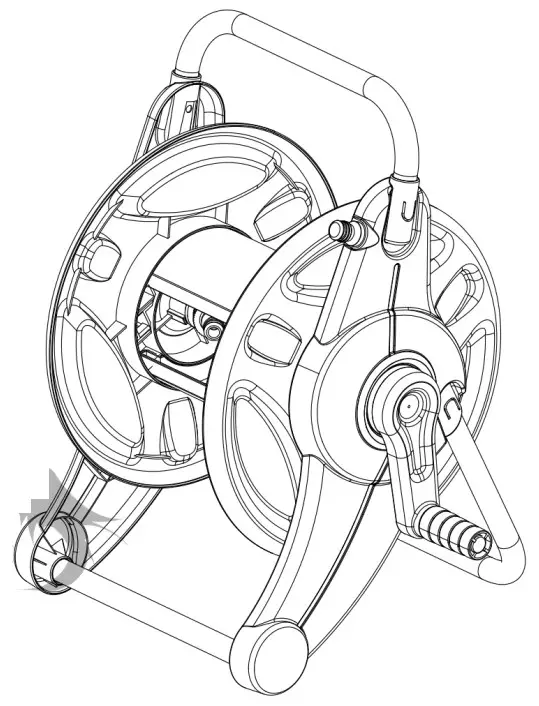

GH9125 30m Hose Reel
SUITABLE FOR:
– 1/2″ HOSES UP TO 150 FEET (13MM HOSE UP TO 45M)
– 5/8 ”HOSES UP TO 120 FEET (16MM HOSE UP TO 35M)
PARTS LIST PART
| NO. DESCRIPTION | QUANTITY |

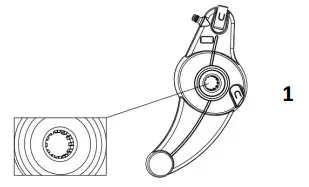

| 1. LEFT REEL STAND |  |
| 2. RIGHT REEL STAND |  |
| 3. U-SHAPED METAL TUBE |  |
| 4. METAL WHEEL CROSS BAR |  |
| 5. METAL CROSS BAR |  |
| 6. REEL |  |
| 7. REEL CROSS BAR |  |
| 8. CRANK HANDLE |  |
| 9. FEMALE ADAPTOR |  |
| 10. ELBOW HOSE CONNECTOR SET |  |
