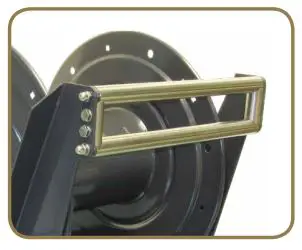

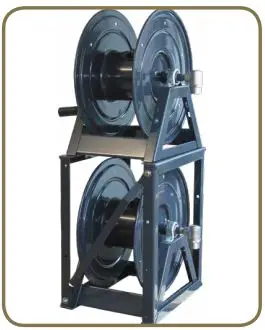

7 AVAILABLE A-FRAME ACCESSORIES

8 Documents / Resources

8.1 References

9 Related Posts

GENERAL PUMP DHRA50150 Industrial Hose Reels

GENERAL-PUMP-DHRA50150-Industrial-Hose-Reels-PRODUCT

FEATURES / BENEFITS

Friction Brake
Direct hand-crank rewind with locking pin
Solid steel construction
Durable powdercoated finish
Full flow swivel stainless swivel

SPECIFICATIONS

PART NUMBER	DHRA50150	DHRA50300	DHRA50450
3/8″ Hose Capacity	150 ft.	300 ft.	450 ft.
5/8″ Garden Hose Cap.	125 ft.	225 ft.	325 ft.
3/4″ Garden Hose Cap.	100 ft.	175 ft.	250 ft.
Swivel Pressure Rating	5,000 PSI
Inlet	1/2″ NPT-F
Outlet	1/2″ NPT-F
Max. Temp	250º F

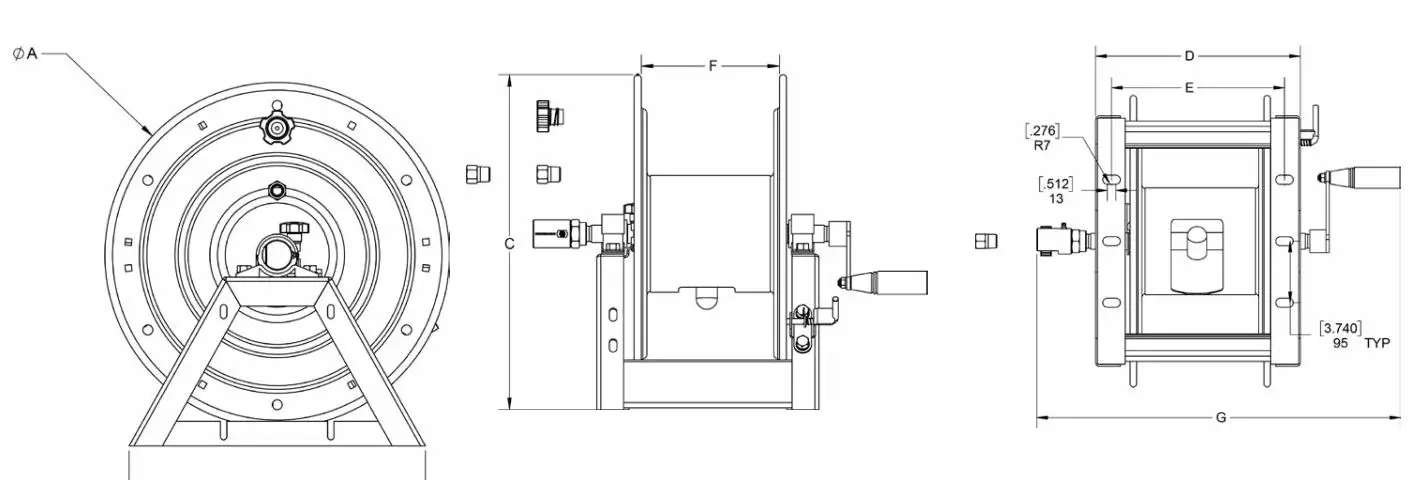

DIMENSIONS

	Dimensions inches/mm
	A	B	C	D	E	F	G
DHRA50150	17.7/450	15.2/387	18.6/473.6	12.4/315	10.4/264	7.7/196	22.0/558
DHRA50300	17,7/450	15.2/387	18.6/473.6	17.5/445	15.5/394	12.8/326	27.0/688
DHRA50450	17.7/450	15.2/387	18.6473.6	23.0/585	21.2/539	18.3466	32.6/829

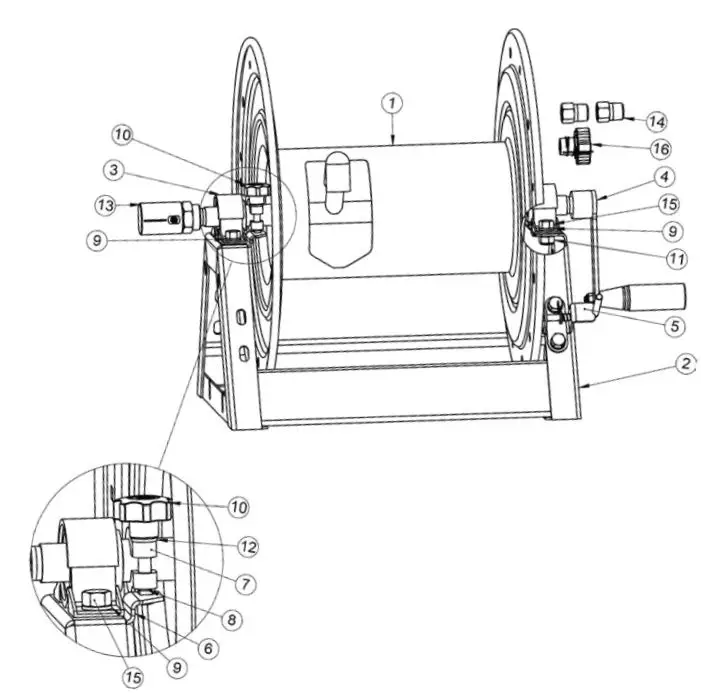

PARTS LIST

Item	Part No.	Description	QTY
1	2103282	Assy, Hub & Flange, DHRA50450	1
	2103242	Assy, Hub & Flange, DHRA50300
	2103247	Assy, Hub & Flange, DHRA50150
2	2103283	Frame, Hose Reel, DHRA50450	1
	2103243	Frame, Hose Reel, DHRA50300
	2103248	Frame, Hose Reel, DHRA50150
3	2640025	Pillow Block	2
4	2103244	Assy, Crank	1
5	2103245	Assy, Lock Pin	1
6	2540087	Bracket, Brake	1
7	2660268	Brake	1
8	2200103	Bolt, M8	1
9	2203413	Washer, Flat, M10	12
10	2660405	Knob, Brake	1
11	2203017	Nut, M10, Nylok, SST	6
12	2200013	Washer, M8, SS	1
13	DSW9012SS	Swivel 1/2″ NPT-F Ball Bearing	1
14	2530112	Fitting, 1/2NPT-MX3/8NPT-F	2
15	2200104	Bolt, M10	6
16	D10032K	Fitting, GH-F 1/2” NPT-M, Filter & Spring	1

GENERAL-PUMP-DHRA50150-Industrial-Hose-Reels-FIG2

Lock Pin Repair Kit 2103245
Item	Part No.	Description	QTY.
1	2540085	Bracket, Lock	1
2	2540086	Pin, Lock	1
3	2720025	Spring, Lock Pin	1
4	2200013	Washer, M8, SS	1
5	2202033	Pin, Cotter, 2×20	1

Brake Repair Kit 2103139
Item	Part No.	Description	QTY.
1	2660268	Brake	1
2	2200103	Bolt, M8	1
3	2660405	Knob, Brake	1
4	2200013	Washer, M8, SS	1

GENERAL-PUMP-DHRA50150-Industrial-Hose-Reels-FIG4

ASSEMBLY / OPERATING INSTRUCTIONS

Connect the handle to either end of the axle which doubles as a fluid path, use a suitable thread sealant and tighten accordingly.
Connect the swivel on the opposite end of the axle as the handle, use a suitable thread sealant and tighten accordingly.
See parts list image for orientation of swivel*
Attach outlet hose to the outlet fitting located in the hub, use a suitable thread sealant and tighten accordingly.
Attach supply hose to the hose reel swivel, use a suitable thread sealant and tighten accordingly.
Use 1/2” or 13 mm bolts when securing the hose reel to ceiling or wall.
The hose reel is ready for operation.
NOTE: THREAD SEALANT NOT INCLUDED

WARNING: Exposure of skin directly to pressurized air or fluids could result in severe bodily injury!
Warning. Only trained and qualified personnel should install or replace the device.
Warning. De-pressurize prior to servicing.
