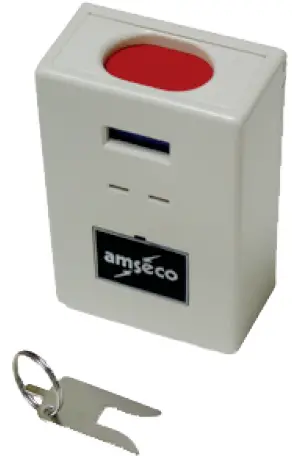

POTTER HUS-7A Latching Hold-Up Switch
- Form C contact
- U-shaped key reset
- Status window indicator
The HUS-7A is a single button, latching hold-up switch designed to provide a rapid signal to alarm systems. It is activated by pressing down the single button switch. A status window indicates the condition of the switch: RED (alarmed), BLUE (armed). A U-shaped key is supplied to reset the HUS-7A. The hold-up switch sends a signal to a dedicated 24 hour hold-up circuit of a burglar control panel.

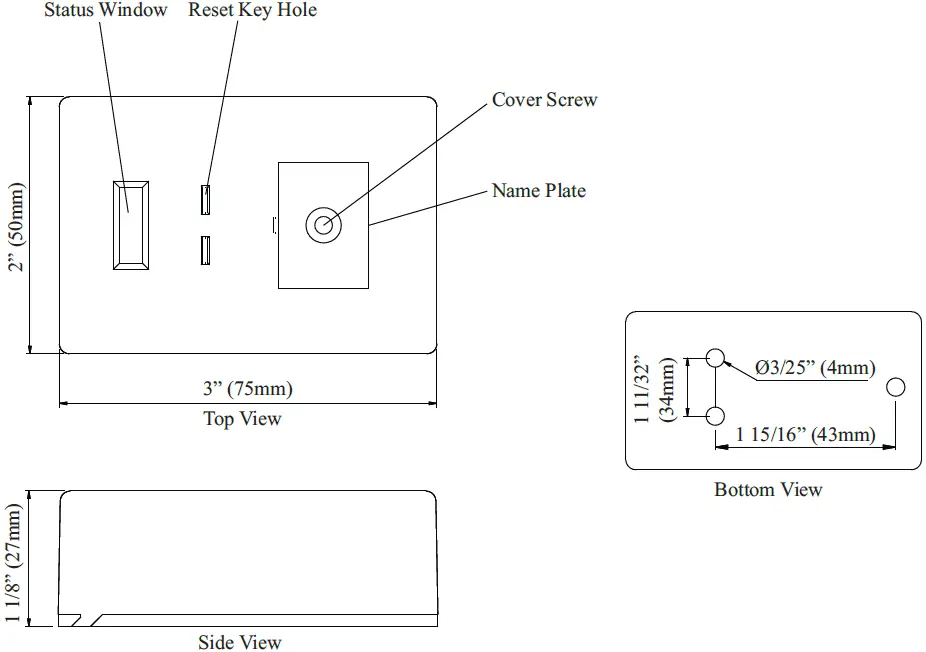

Dimensions
Specifications
| Model Number | Stock Number | Contact Type | Contact Rating | Overall Stroke | Overall Force | Operating Method | ||
| 125V DC | 30V DC | 125V AC | ||||||
| HUS-7A | 4370034 | Form C N.O./N.C | 5 Amp | 5 Amp | .4 Amp | Up to 7mm (±1) | 300g – 350g | Single-button latching |
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support:866-956-1211
Canada 888-882-1833
www.pottersignal.com
