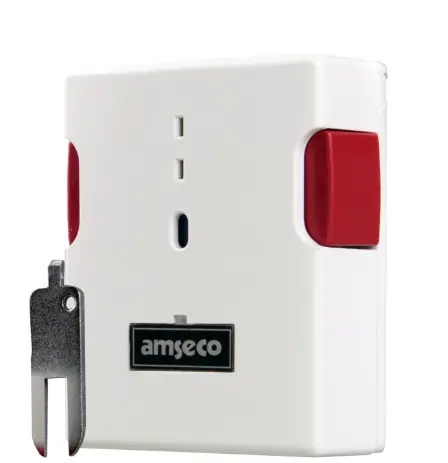

POTTER HUSD-15B Series Dual Action Hold up Switch Owner
FEATURES
- Dual button activation to eliminate accidental triggering
- SPDT transfer contact for supervised loop
- Terminal strip with three wire terminals
- Tamper protected switch mechanism using UL listed microswitch
- Concealed mounting screw
- Status window indicator
- White plastic case housing

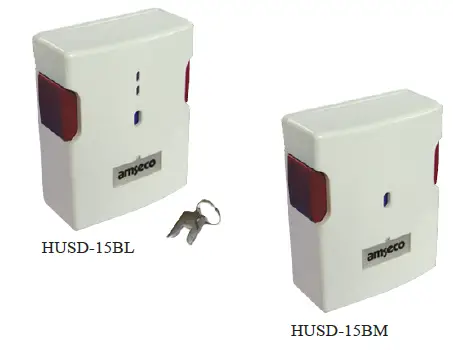

- HUSD-15BL latching button,tool reset (included)
- HUSD-15BM momentary button, auto-reset
The HUSD-15B Series is a Form C (SPDT), dual button hold-up switch that is designed to generate an alarm condition only when both buttons are pressed simultaneously, thus preventing accidental triggering. The housing of this series is specially designed with a status window, red (alarm) and blue (armed), to verify the switch condition. The housing mounting screw is concealed to provide additional tampering protection. The built-in UL approved microswitch design generates an alarm condition when the cover is removed or damaged. The terminal strip consists of three wire ports that provide a firm and secure wiring installation. The HUSD-15BL is designed for latching operation when triggered. The HUSD-15BM is designed for momentary operation.
Dimensions

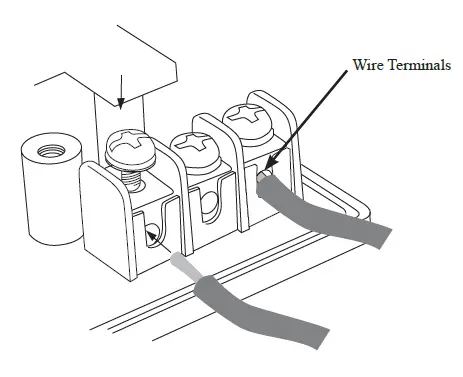

Wire Installation

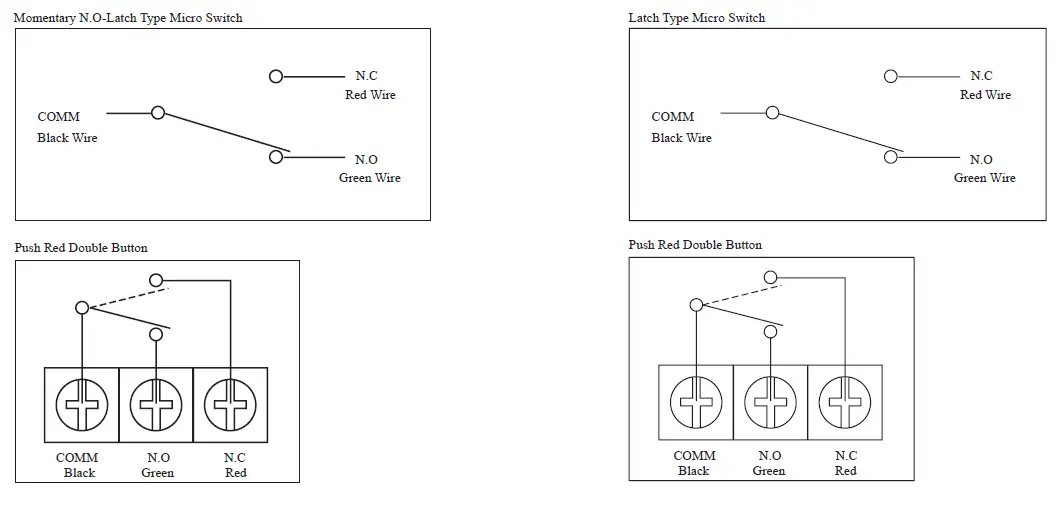

Operating Method
Specifications
