Fralimk Nika-w3mcl2030l Lighted Medicine Cabinet With Mirror Instruction Manual

FRALIMK NIKA-W3MCL2030L Lighted Medicine Cabinet with Mirror

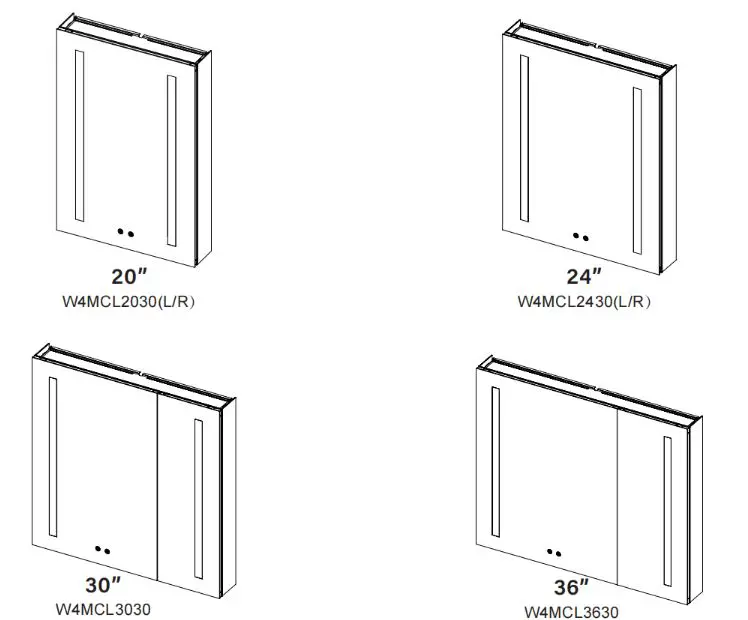

PRODUCT SERIES INFORMATION

• NIKA
• VICK

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical furnishing, basic precautions should always be followed,Requires two(2) person in installation.

DANGER : READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS MIRROR CABINET

WARNING : To reduce the risk of burns, fire, electric shock or injury to persons. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer. Never drop or insert any object into any opening. Do not use outdoors.

WARNING:  Risk of electric shock. Connect this furnishing to a properly grounded circuit only. See Grounding instructions.

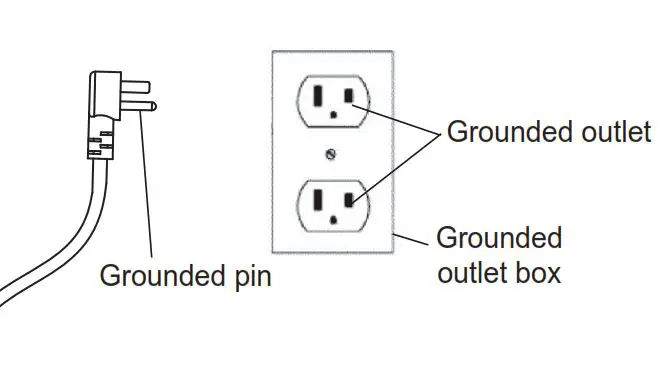

GROUNDING INSTRUCTIONS:
WARNING : This product must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the product. An Electrical option cabinet must be wired to a 20 Amp GFI (Ground Fault Interrupter) protected circuit when used in bathrooms and all other locations required by the National Electric Code.

NOTE: To ensure the normal use of product, it Is required to set out wires as per the regulations of IEE. The product is only applicate to the indoor installation. The installation must be executed by a professional electrician, wrong installation may lead to product damage and personal injury.

PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE ALL RIGHTS RESERVED

ELECTRIC CONNECTIONS

ALL WIRING SHOULD BE DONE BYA QUALIFIED LICENCED ELECTRICIAN

WARNING: Shut off power before wiring the mirror.
WARNING: An Electrical option mirror must be wired to a 20 Amp GFI (Ground Fault Interrupter) protected circuit when used in bathrooms and all other locations required by the National Electric Code
WARNING: This mirror must be connected to a grounded, metal permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the mirror.
CAUTION: Requires 120 VAC 20 Amp GFl protected circuit.

Electric wiring: Be sure to provide enough wire to make the proper and safe connection to the Field/Power.

MIRROR FEATURES

• Copper free silver mirror
• High output LED lighting: CRI 90+, 2700-640OK CCT, IP44
• Color Temperature changing touch switch for surface LED
• Recess mount or wall surface mount
• Defogger

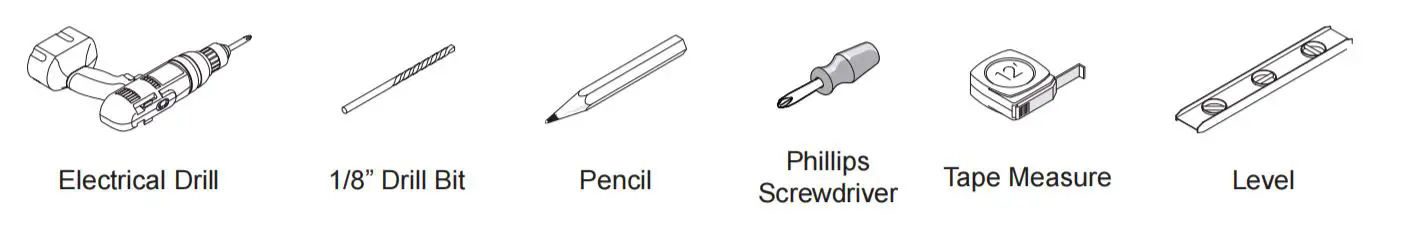

TOOLS REQUIRED FOR ASSEMBLY

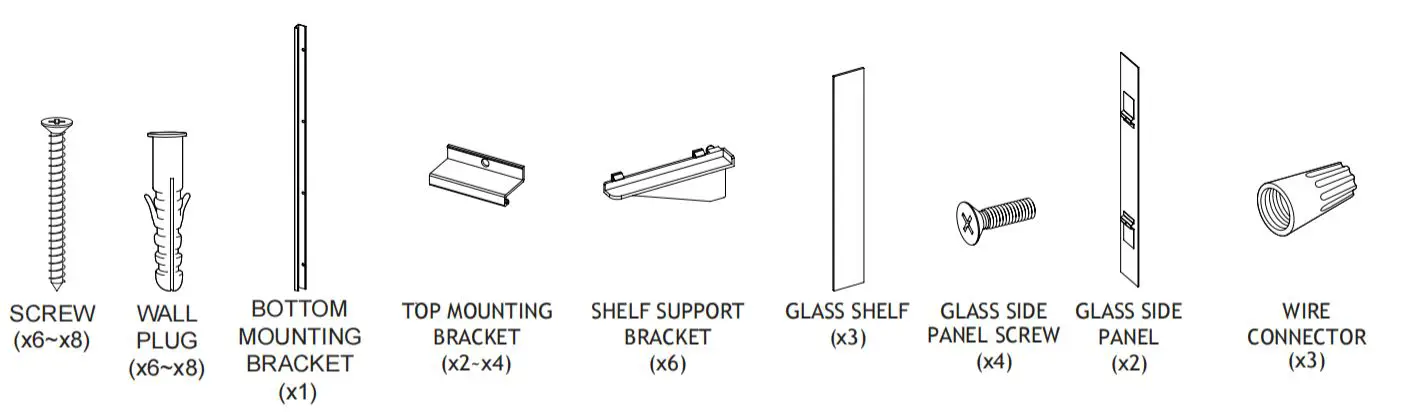

PARTS INCLUDED

NOTE: Determine overall mirror dimensions before installation. Requires two(2) person in installation. Accessories and parts may vary from the picture above.Depends on the product model and size.

DIMENSIONS

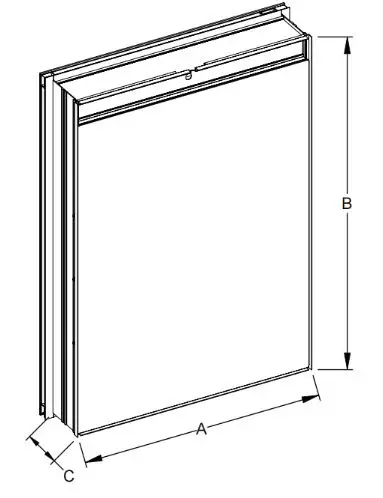

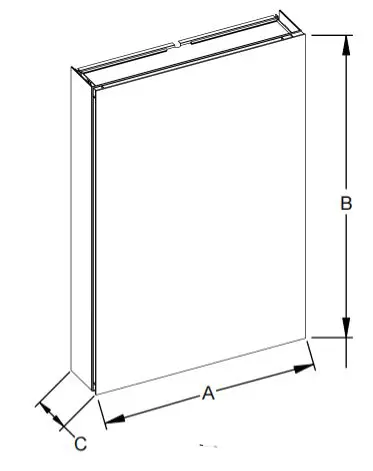

1. A- Cabinet Width
2. B- Cabinet Height
3. C- Cabinet Depth

NOTE: Please use rough in size for recess mounting installation(wall cut-out). All dimensions and specifications are nominal and may vary.Use actual products for accuracy in critical situations.

NOTE: All rough-in dimensions for reference only!

PRIOR TO MOUNTING

Remove the Door(s) prior to mounting your cabinet(s)

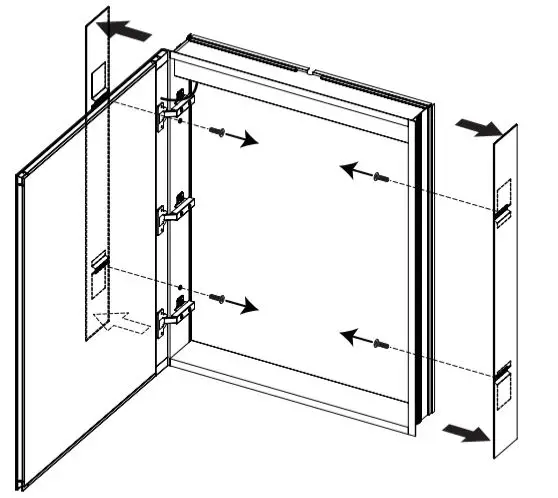

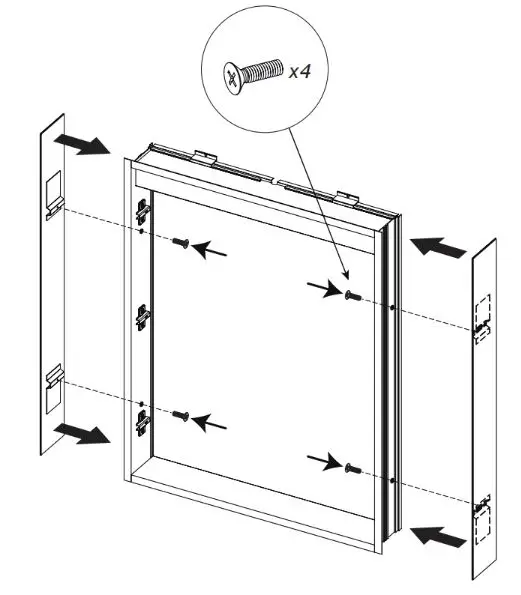

1. Carefully remove side mirror panels for recess mount installation.
   For recess mount only!

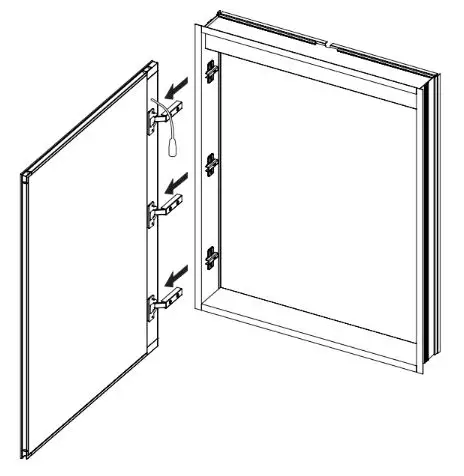

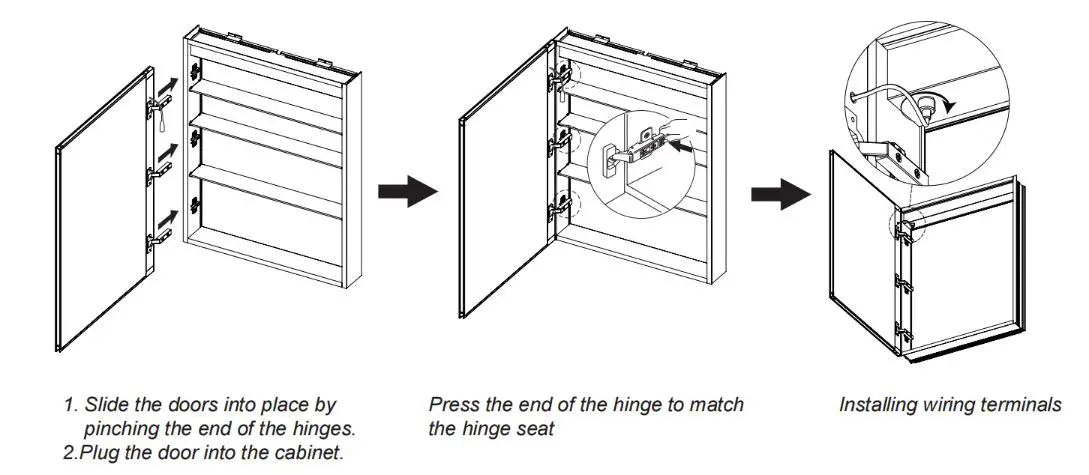

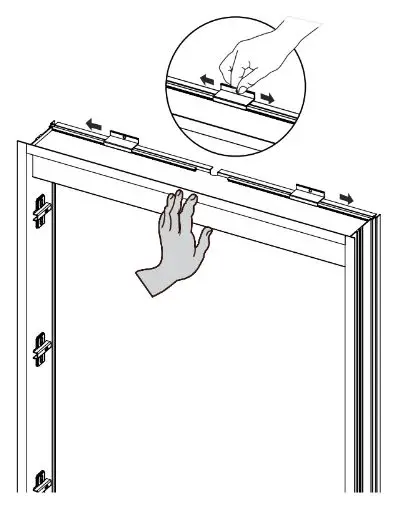

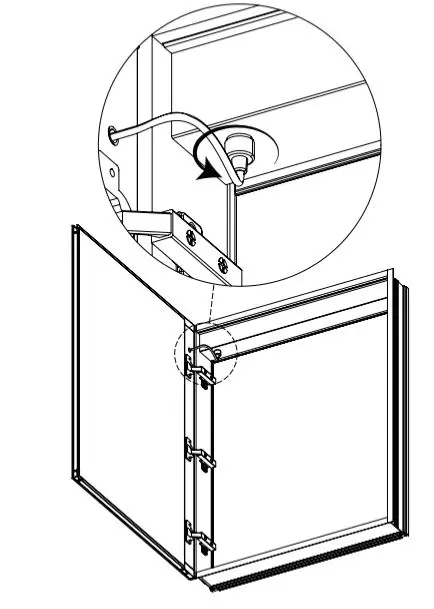

2. Remove door(s) prior to mounting your cabinet Start with unplugging the door from the cabinet.
3. While supporting the door release(the lever under the hinge am), slide the door off the frame.
4. Take off the door(s) carefully and lay it down on a safe area.

RECESS INSTALLATION

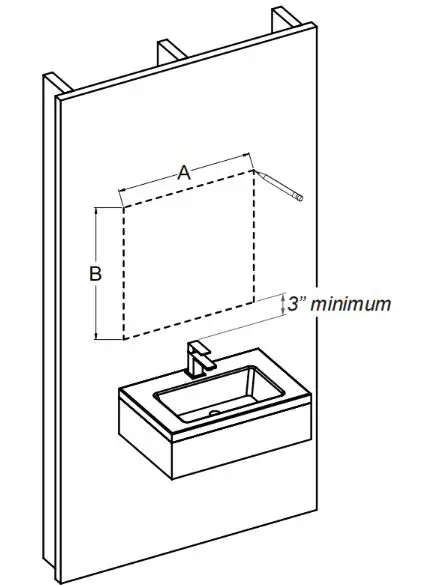

1. Refer to “dimensions” on page 4 to measure Rough in size.

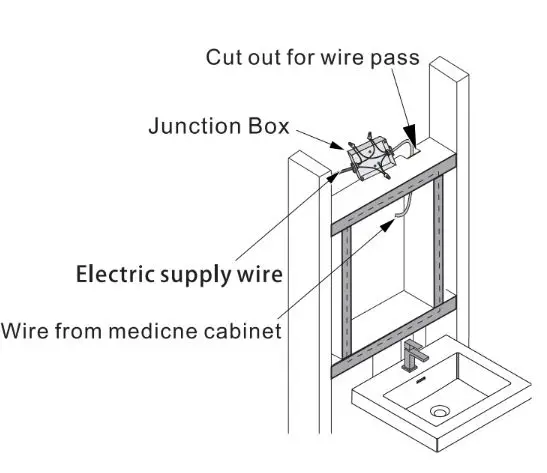

   NOTE:To recess mount, the wall cavity must be framed and the cabinet secured to framing studs. Reroute electrical or water supply lines from the cavity. Consult a professional if drain or vent piping is encountered, or if the wall is load-bearing.
2. Draw the perimeter of the cabinet on the wall.
3. Cut the hole as marked dimension with suitable tool.
4. Frame the opening for the cabinet based on the measurements.

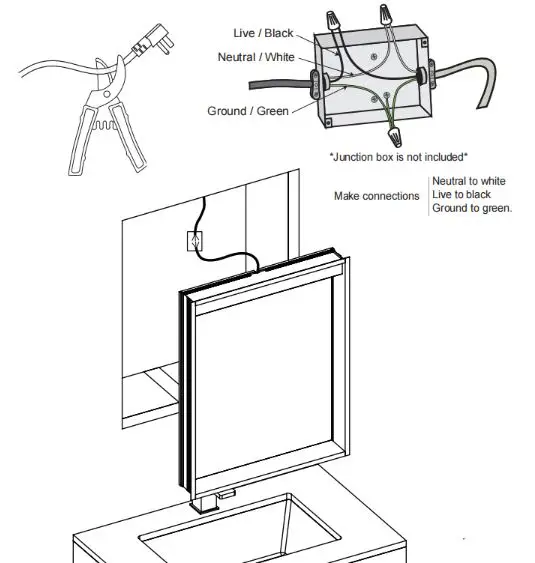

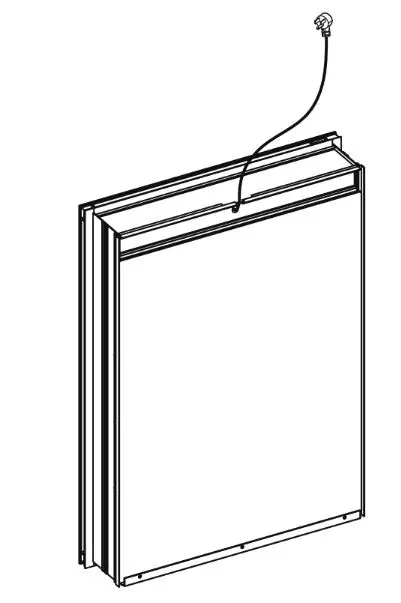

5. First cut off the power plug, then use the WIRE CONNECTOR connect to external power supply.
   WARNING: Turn off the power before wire connection!

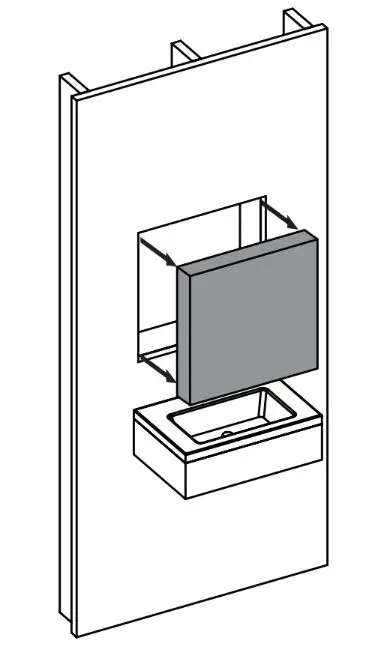

6. Position cabinet in cut out opening.

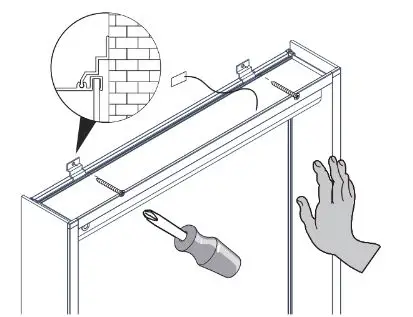

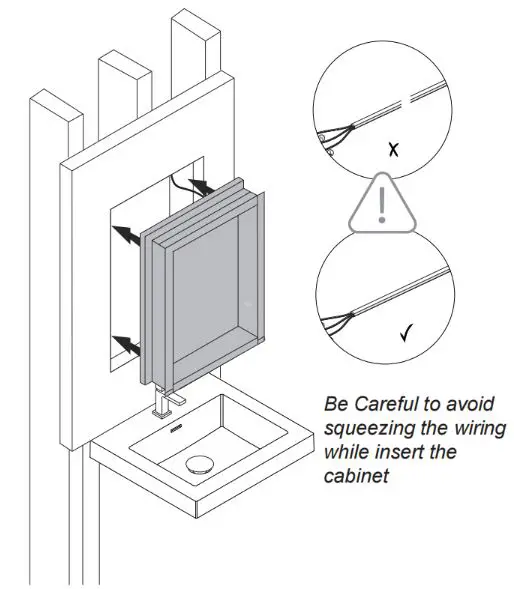

7. Connect electrical wires and then place the cabinet between the wall studs.

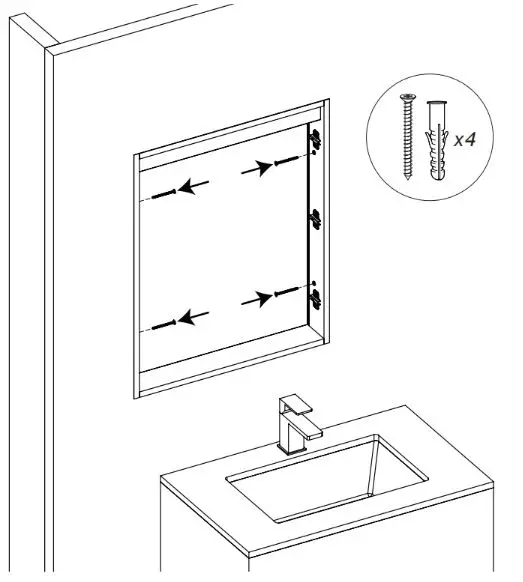

8. Affix using hardware screws into the studs.
   NOTE: For wood stud wallyou need to use screw to fix the cabinet. For brick/concrete/stone/tile wall, you need to use wall plug and screw together to fix the cabinet.

SURFACE-MOUNTED INSTALLATION

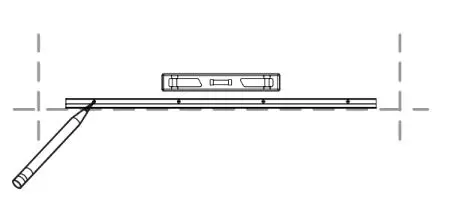

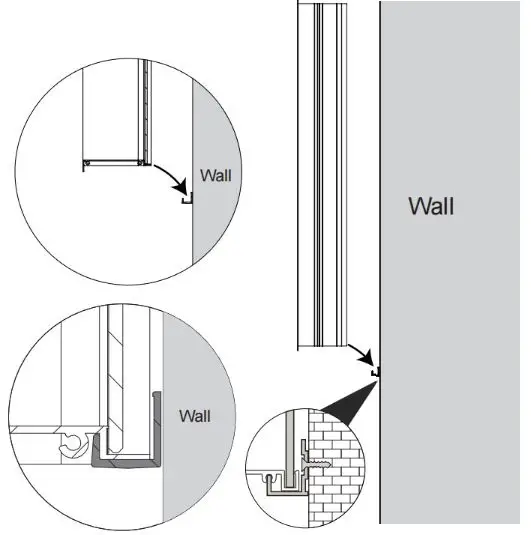

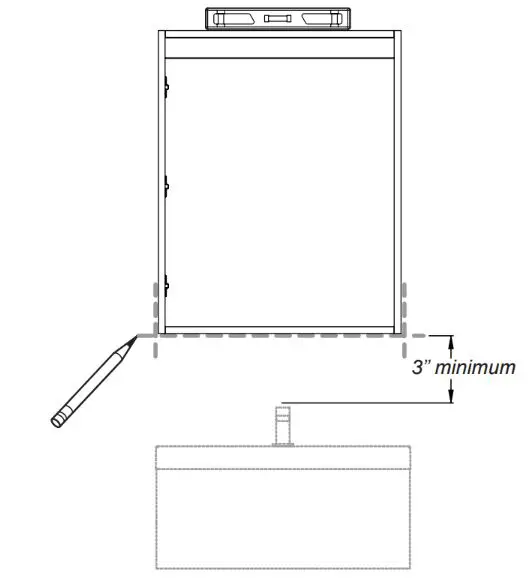

1. Level and mark the cabinet’s location on the wall.
2. Mark the position of the Bottom Mounting Bracket and Punch.
   Bottom mounting brackets must be attached to furring strip/channel or wall studs
3. Punch holes in the mark, put in wall plug, fix Bottom Mounting Bracket to the wall with screw.
   Attach bottom bracket to wall.

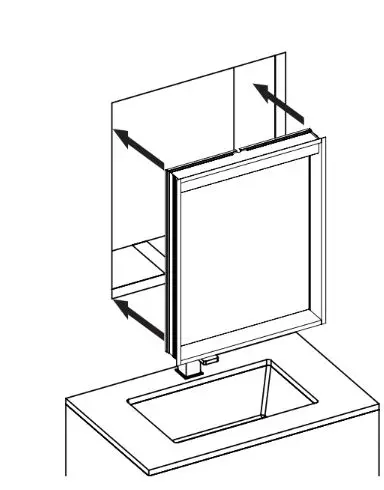

4. With assistance, to rest the cabinet on the mounting bracket and hold in place.
   Make sure cabinet is leveled and fully inserted into the groove of the bottom bracket.

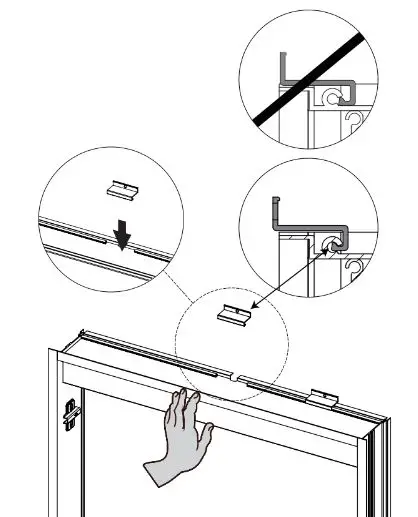

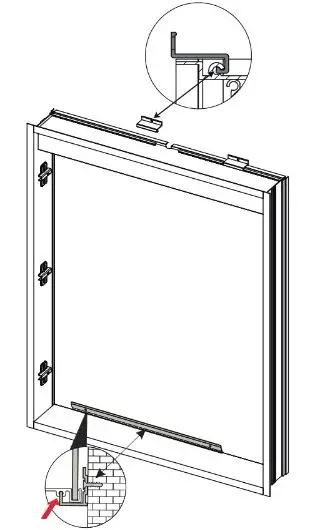

5. Insert top mounting bracket into the top of the cabinet.
6. Make sure top brackets are locked in the grooves.

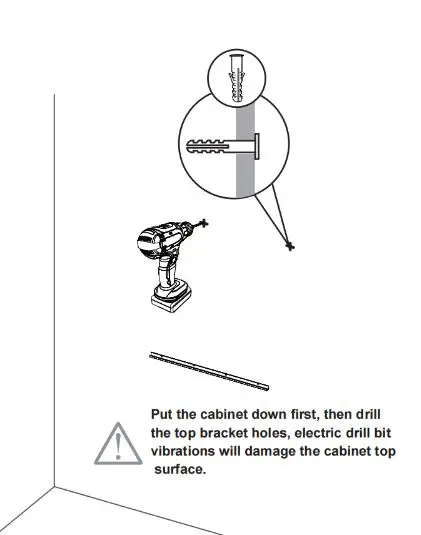

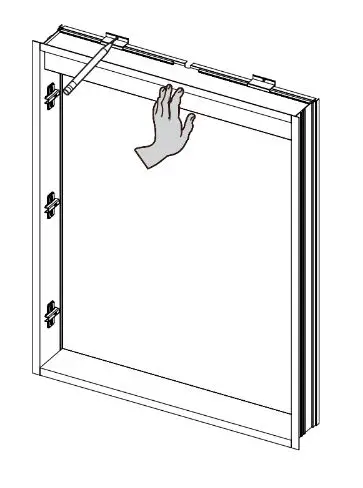

7. Adjust the position of Top Mounting Bracket and mark the holes with a pencil
8. Remove the cabinet, drill holes according to the marked position, and put in Wall Plugs.
9. Put the cabinet on the bottom mounting bracket and hold the place, then insert the top mounting bracket into the top of cabinet, fix the top mounting brackets to the holes with screw.(repeat step 4-6)
10. Test the fit of the cabinet before Final assembly.
    Make sure cabinet is leveled and fully inserted into the groove of the bracket.
11. Install the side mirrors

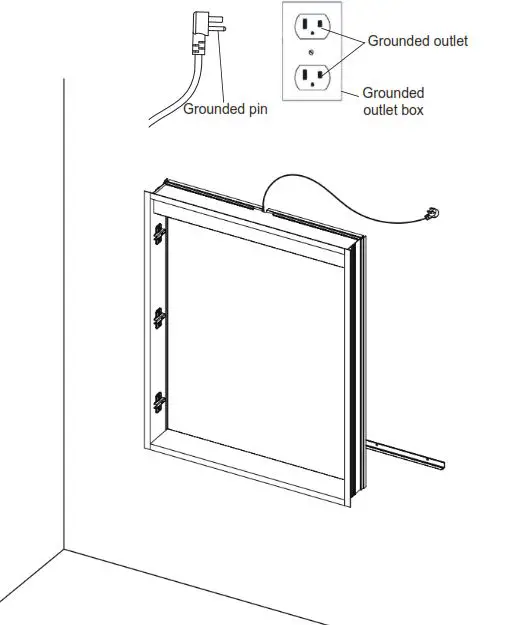

12. Put the plug into the socket

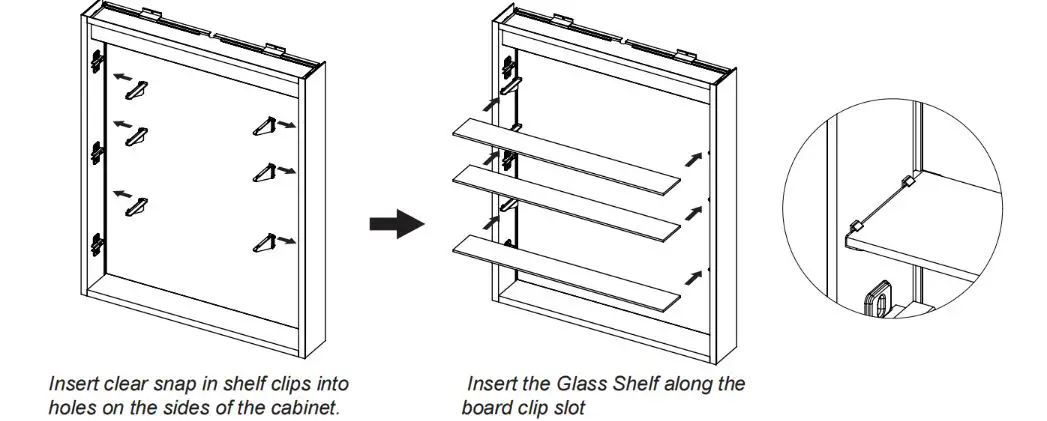

GLASS SHELF INSTALLATION

MIRROR DOOR INSTALLATION

Door Adjustment/ Door Removal

OPTIONAL DOOR ADJUSTMENT

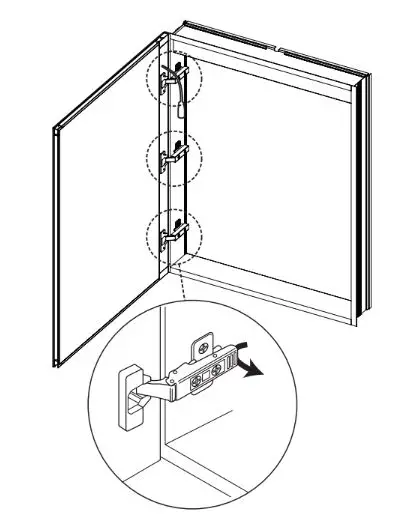

Doors may need to be adjusted after the initial shipping of the cabinet. The cabinet doors have a three-way adjustment feature. Height, side-to side, level and depth can be adjusted. With the hinge slightly closed you can access the middle screw for up/down adjustment. With the hinge fully extended you can access the front and back screws. These screws will move the door side to side and in and out.

FINAL ASSEMBLY

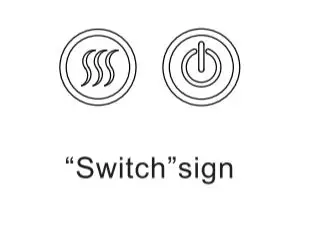

How to use Defogger Switch and Dimmer Switch:

• Touch to turn the light on or off.
• Touch to turn the defogger on or off (The defogger power will automatically tun off after an hour)
• Touch and hold to change the color temperature of the light from 2700K to 6500K.
• Touch and hold to dim or brighten the light from 10% to 100%.

How to use Defogger Switch and Dimmer Switch:
Left touch Senor
ON/OFF Anti-fog(The defogger power will automatically turn off after an hour) light brightness change from 10%% to 100% by holding

Right Touch Sensor
ON/OFF Lighting light temperature change from 2700K to 6500K by holding

OPERATION

1. Touch the sensor button to turn ON the light.
2. Touch and hold the light ON sensor button to change the light temperature from 2700K to 6500K. Release the bottom when the light temperature reaches the desired color.
3. Touch the sensor button to turn ON the defogger
4. Touch and hold the defogger ON sensor to dim the light.Release the bottom when the light reaches the desired brightness setting
5. Inside LED Light with door switch sensor makes it a lighted medicine cabinet when you open the door. Open the door, Inside LED Light ON.
   The mirrors are equipped with a memory feature to preserve the previous brightness setting.
   Suggestion: Turn off the mirror power supply if you don’t use it fora long time.

USE AND MAINTENANCE

Warnings:

1. Please do not use if you found the mirror have been broken.
2. Never put any sharp or heavy material on the mirror surface, other wise the glass mirror will be broken and body injury accidents may Occur.
3. S.Turn off the power switch in storm lightning weather to avoid electric parts damage.

Use and Maintenance:
CAUTION:
Mirror and mirror’s body are constructed of mirrored glass and aluminum. Use a damp cloth to clean your mirrors. Do not use any abrasive material as it may damage the surface and finish of the mirror.A mild detergent may be used to clean the surfaces of the mirror. Spray the cloth, not the mirrors or surrounding surfaces.
