BN68 40 Inch Full HD Flat TV
User Guide
BN68 40 Inch Full HD Flat TV

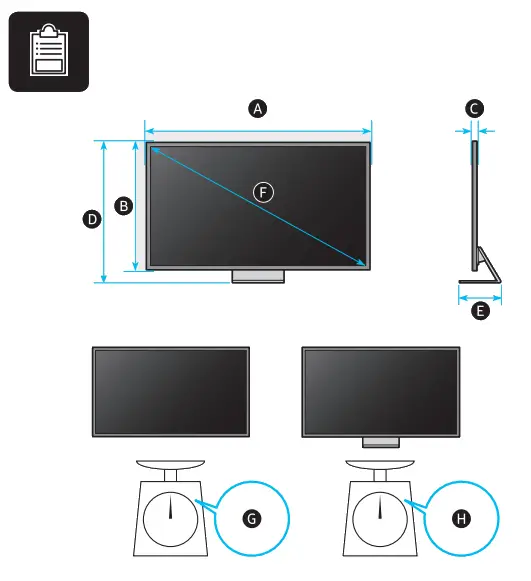

A | B | C | D | E | F | G | H | |
| 55QN95B 55QNB95 | 48.3 inches (1228.0 mm) (122.80 cm) | 27.8 inches (707.3 mm) (70.73 cm) | 0.7 inches (17.4 mm) (1.74 cm) | 30.6 inches (777.3 mm) (77.73 cm) | 11.7 inches (298.4 mm) (29.84 cm) | 54.6 inches (138 cm) | 35.5 lbs (16.1 kg) | 53.4 lbs (24.2 kg) |
| 65QN95B 65QNB95 | 57.0 inches (1446.9 mm) (144.69 cm) | 32.7 inches (829.7 mm) (82.97 cm) | 0.7 inches (17.4 mm) (1.74 cm) | 35.4 inches (900.2 mm) (90.02 cm) | 11.7 inches (298.4 mm) (29.84 cm) | 64.5 inches (163 cm) | 49.2 lbs (22.3 kg) | 67.0 lbs (30.4 kg) |
| 55QN700B 55QN750B | 48.2 inches (1224.8 mm) (122.48 cm) | 27.8 inches (705.3 mm) (70.53 cm) | 0.7 inches (17.8 mm) (1.78 cm) | 30.5 inches (775.8 mm) (77.58 cm) | 12.7 inches (298.4 mm) (29.84 cm) | 54.6 inches (138 cm) | 36.6 lbs (16.6 kg) | 53.8 lbs (24.4 kg) |
| 65QN700B 65QNB700 65QN750B | 56.8 inches (1443.7 mm) (144.37 cm) | 32.6 inches (828.4 mm) (82.84 cm) | 0.7 inches (17.8 mm) (1.78 cm) | 35.3 inches (897.4 mm) (89.74 cm) | 12.7 inches (298.4 mm) (29.84 cm) | 64.5 inches (163 cm) | 50.0 lbs (22.6 kg) | 67.7 lbs (30.7 kg) |
| 65QN800B 65QNB800 | 56.8 inches (1443.7 mm) (144.37 cm) | 32.6 inches (828.4 mm) (82.84 cm) | 0.7 inches (16.9 mm) (1.69 cm) | 35.3 inches (897.7 mm) (89.77 cm) | 11.7 inches (298.4 mm) (29.84 cm) | 64.5 inches (163 cm) | 51.4 lbs (23.3 kg) | 68.8 lbs (31.2 kg) |
| 65QN900B | 56.4 inches (1433.1 mm) (143.31 cm) | 32.3 inches (819.9 mm) (81.99 cm) | 0.6 inches (15.2 mm) (1.52 cm) | 35.2 inches (893.4 mm) (89.34 cm) | 11.7 inches (298.4 mm) (29.84 cm) | 64.5 inches (163 cm) | 49.8 lbs (22.6 kg) | 67.2 lbs (30.5 kg) |

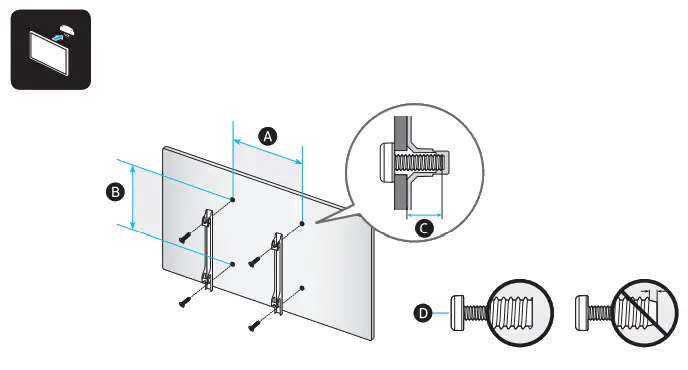

| VESA x (mm) | (mm) | x 4 | |
| 55QN95B 55QNB95 | 400 x 300 | 5-6 | M8 |
| 65QN95B 65QNB95 | |||
| 55QN700B 55QN750B | |||
| 65QN700B 65QNB700 | |||
| 65QN750B 65QN800B | |||
| 65QNB800 65QN900B |

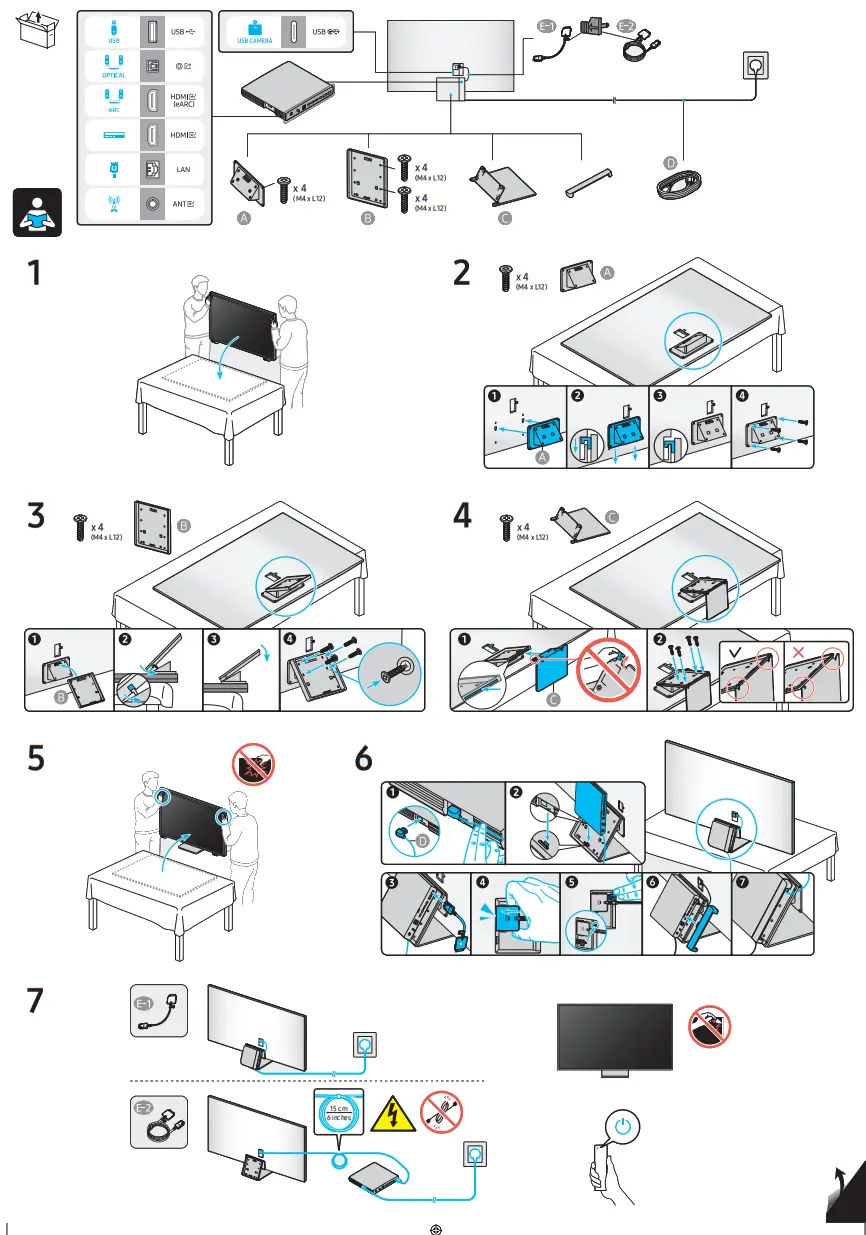

QUICK SETUP GUIDE
 BN68-13658E |  |
