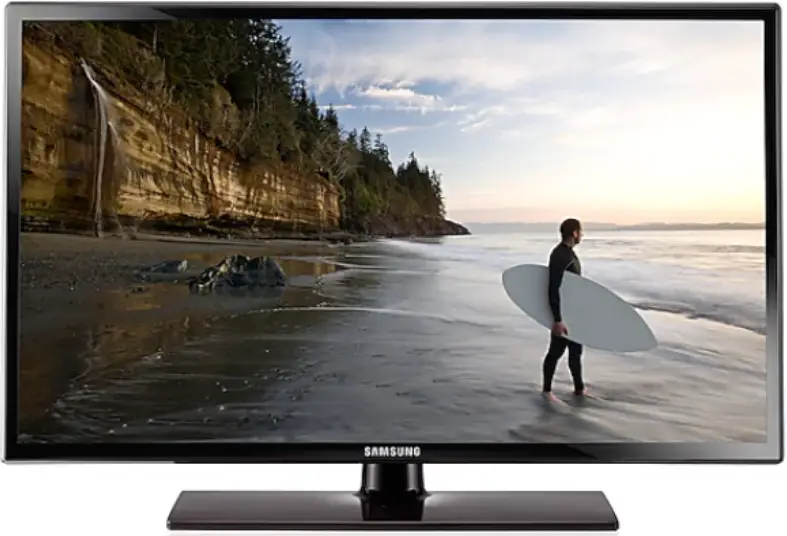

SAMSUNG BN68-14392C-00 HD LCD TV User Gui

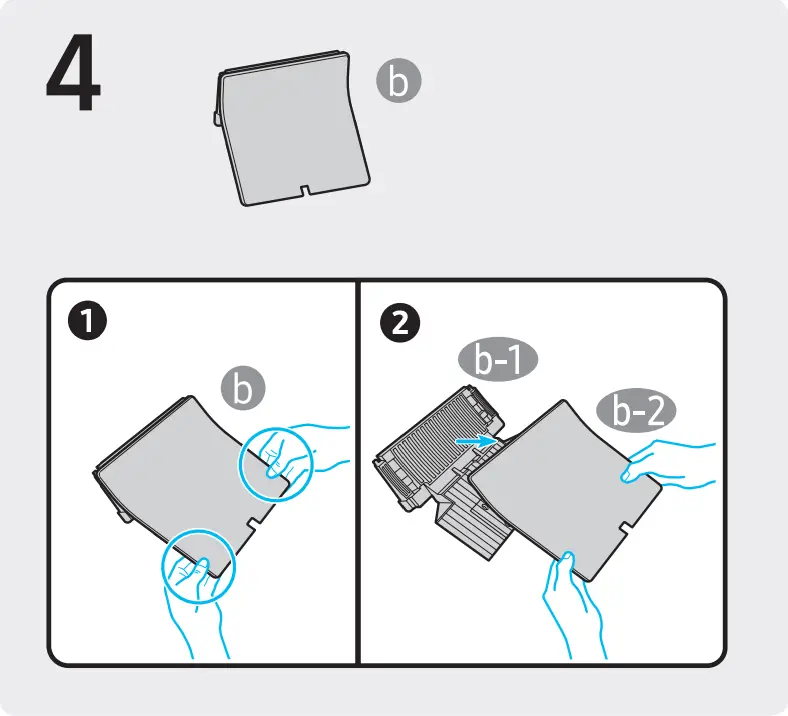

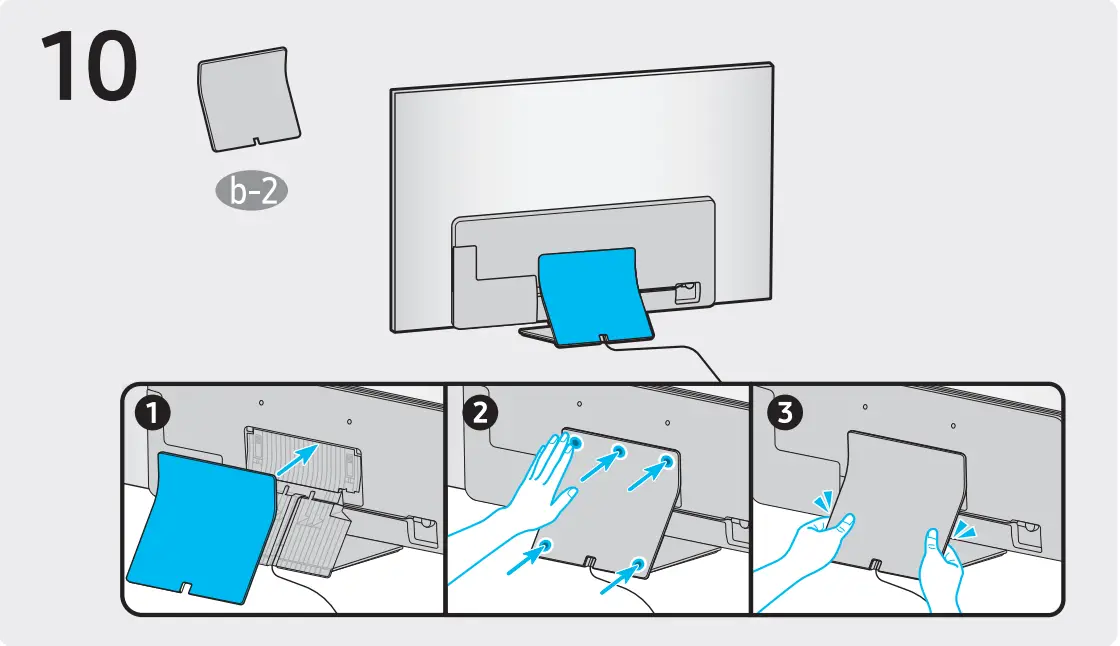

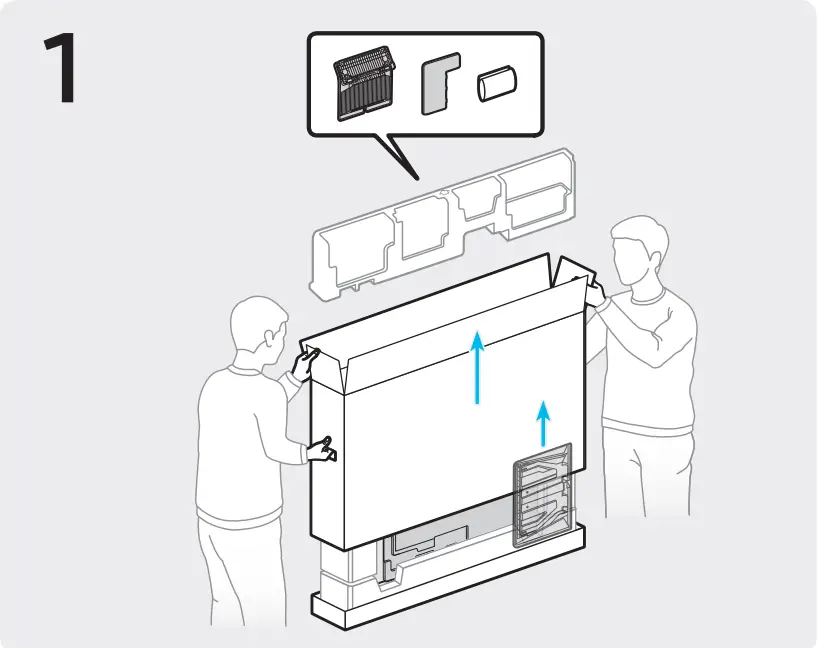

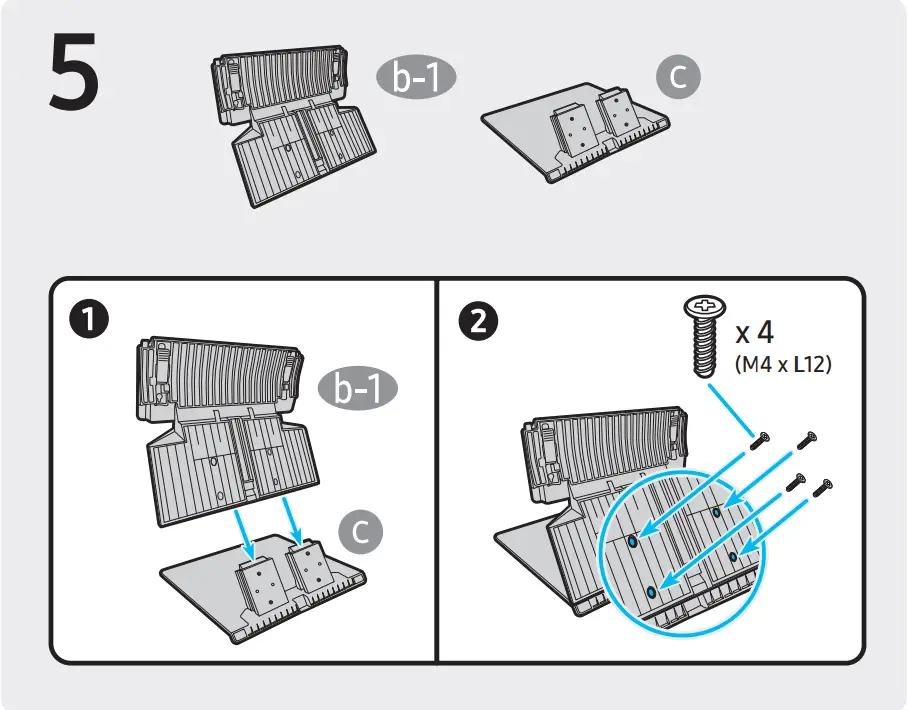

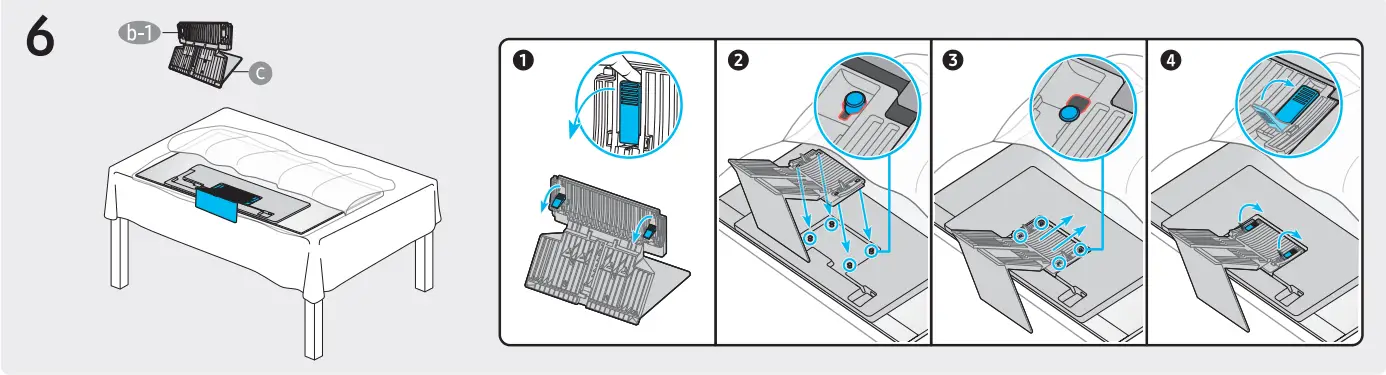

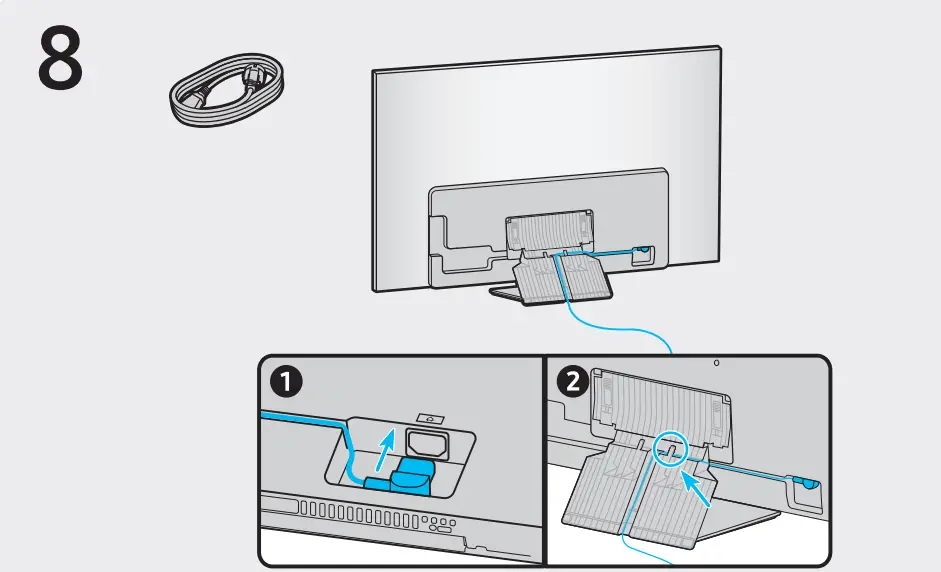

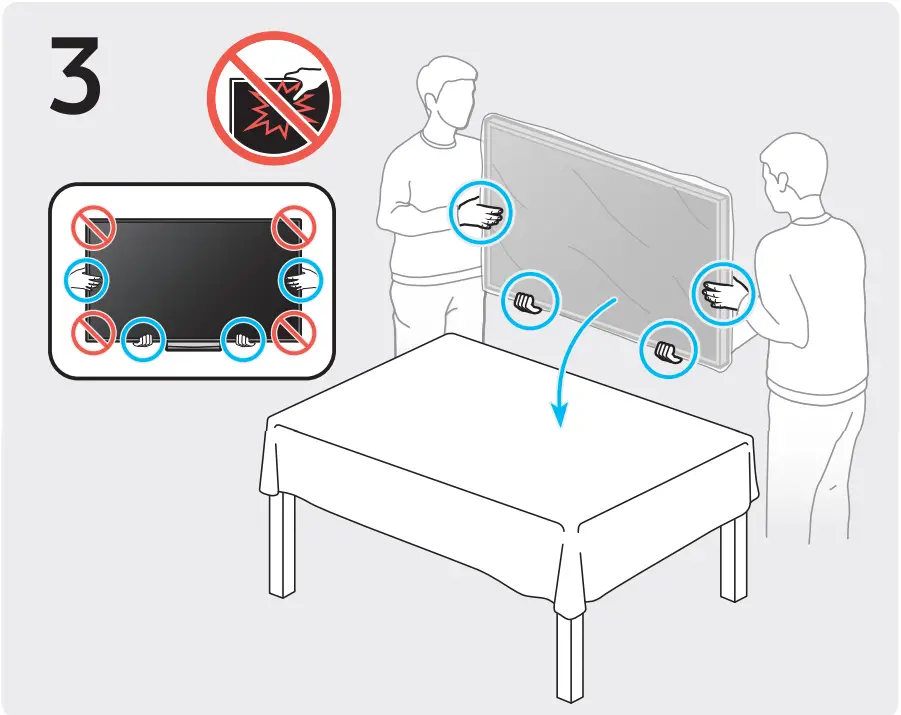

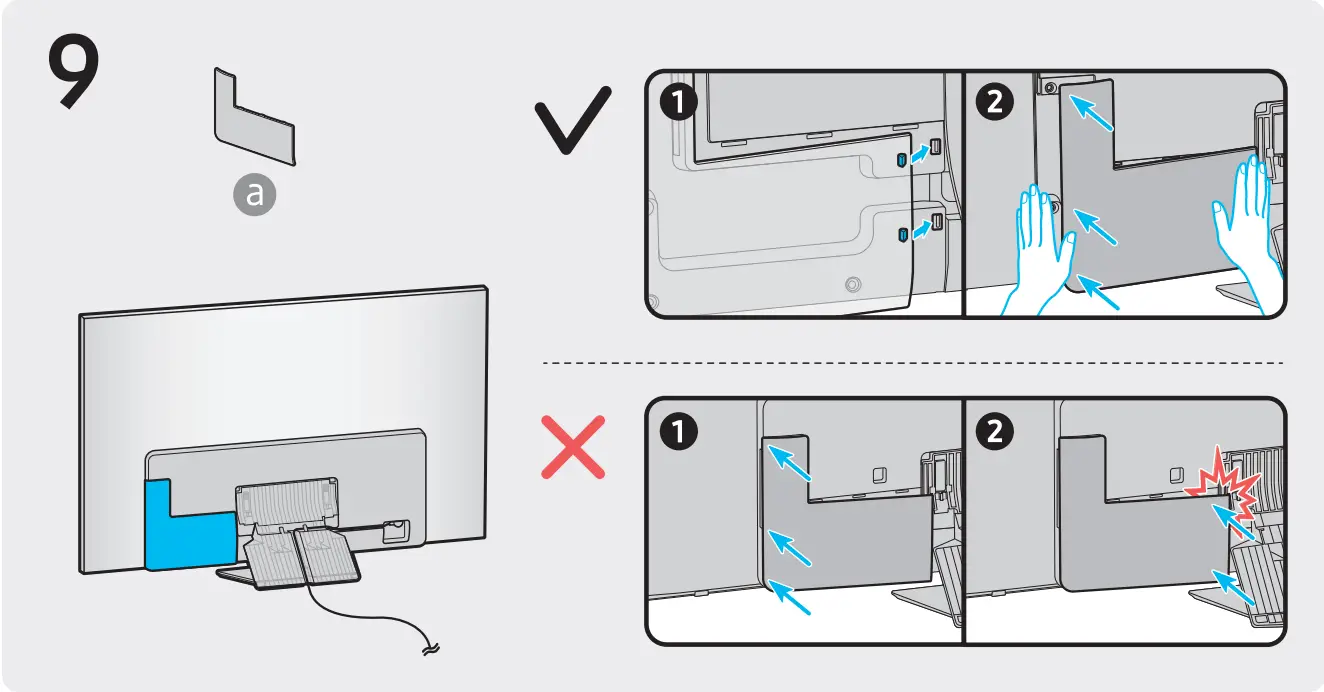

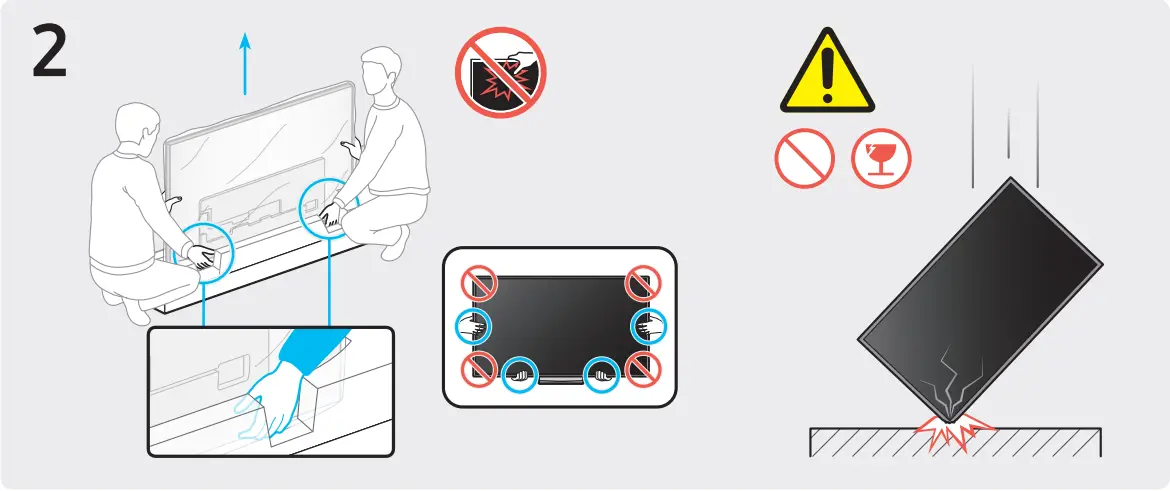

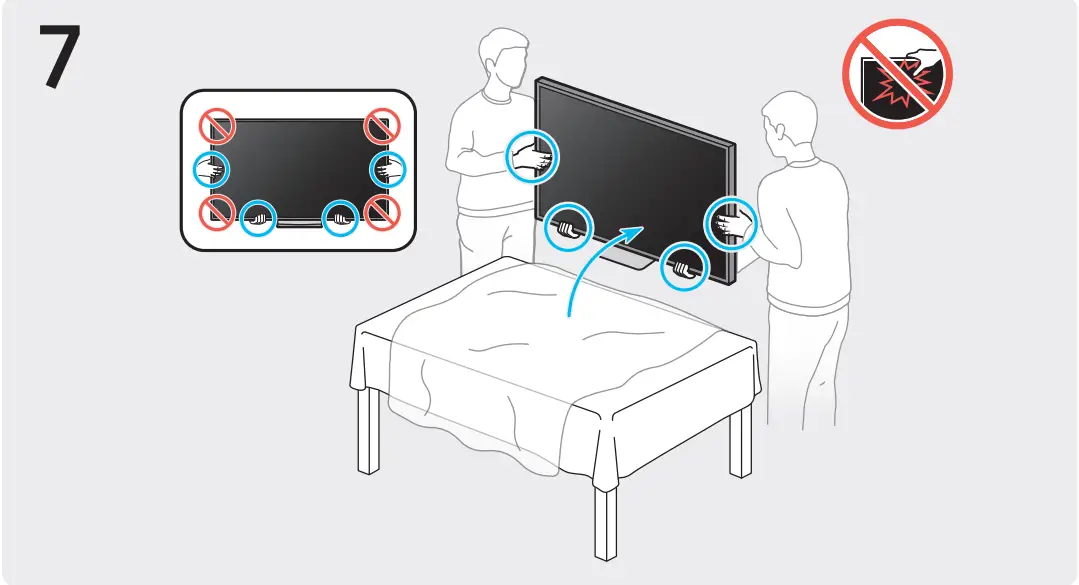

ASSEMBLY
QR CODE

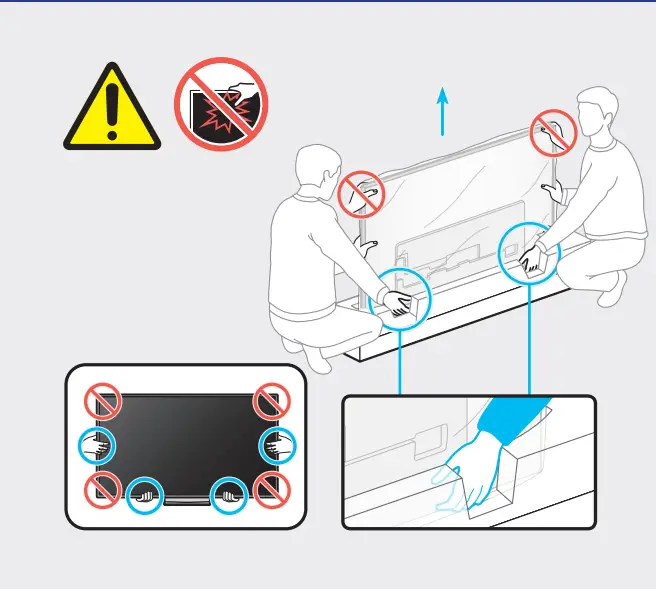

SAFETY

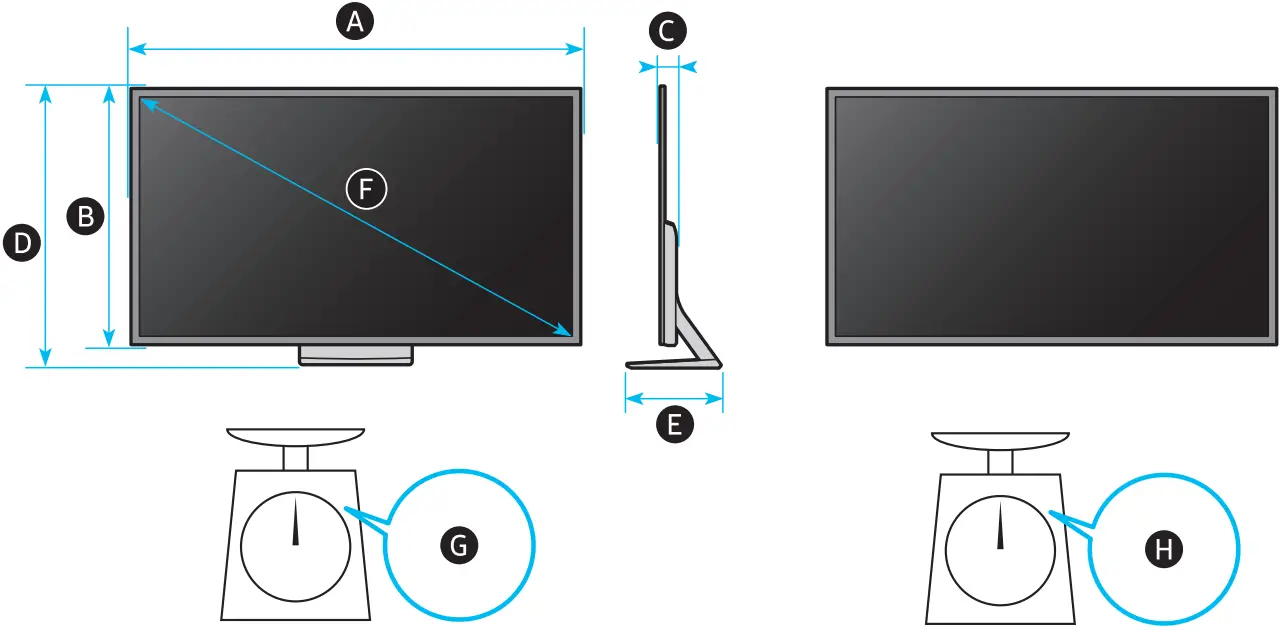

DIMENSION
| * : 0~9, A~Z | ||||||||
| A | B | C | D | E | F | G | H | |
| 55S9*B | 48.2 inches (1225.4 mm) (122.54 cm) | 27.9 inches (708.6 mm) (70.86 cm) | 1.6 inches (39.9 mm) (3.99 cm) | 30.5 inches (774.5 mm) (77.45 cm) | 11.3 inches (288.2 mm) (28.82 cm) | 54.6 inches (138 cm) | 45.6 lbs (20.7 kg) | 36.4 lbs (16.5 kg) |
| 65S9*B | 56.9 inches (1444.3 mm) (144.43 cm) | 32.7 inches (831.7 mm) (83.17 cm) | 1.6 inches (39.9 mm) (3.99 cm) | 35.3 inches (897.6 mm) (89.76 cm) | 11.3 inches (288.2 mm) (28.82 cm) | 64.5 inches (163 cm) | 56.2 lbs (25.5 kg) | 46.7 lbs (21.2 kg) |

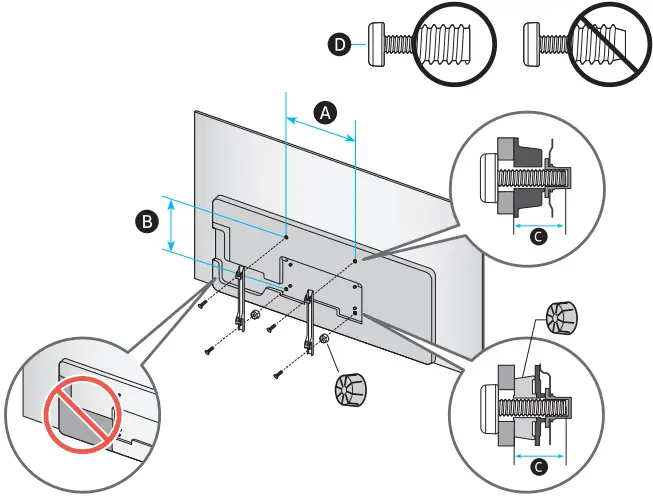

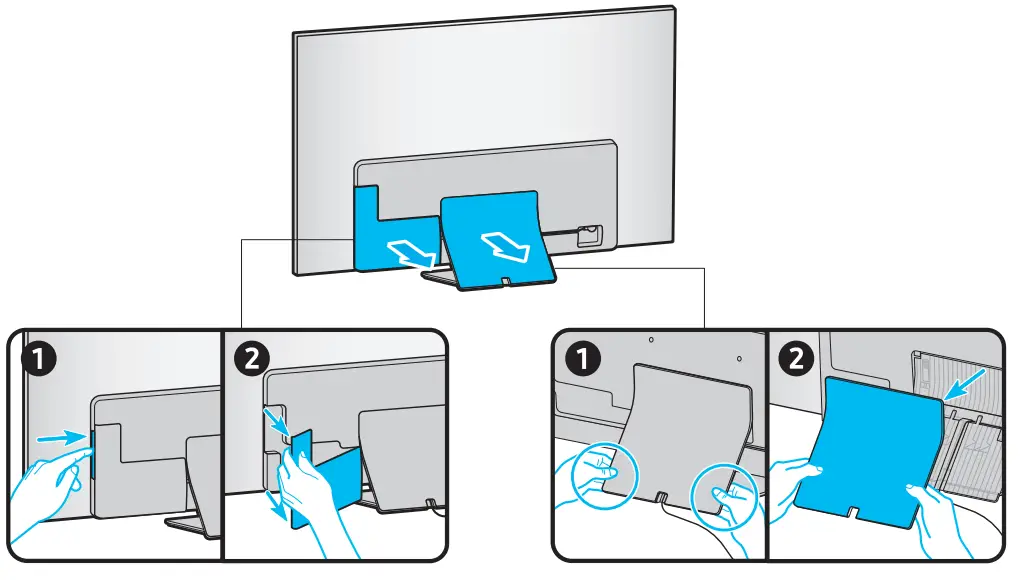

MOUNTING
| * : 0~9, A~Z | |||
| VES A x (mm) | C (mm) | Dx 4 | |
| 55S9*B | 300 x 200 | 28-30 | M8 |
| 65S9*B | |||

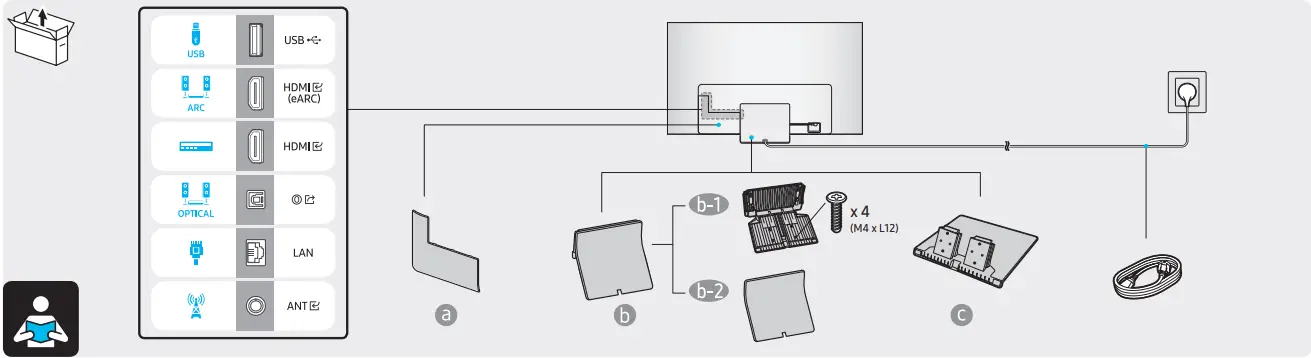

PACKAGE CONTENT
