TDMD2
Access and Power Integration Solution for DMP
TDMD2 Access and Power Integration Solution for DMP
TDMD2
* Boards not included

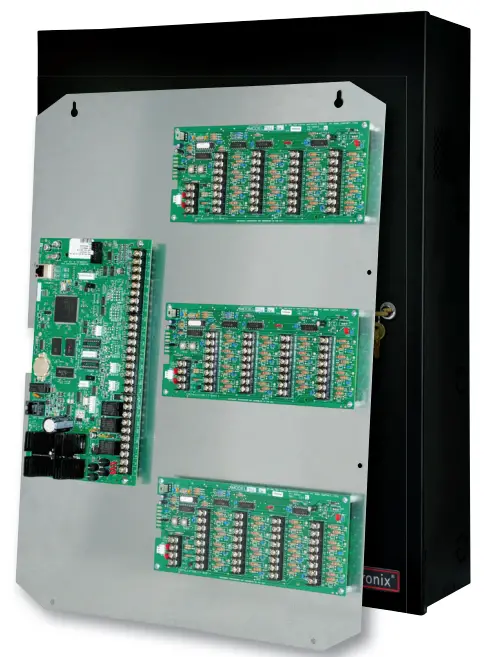

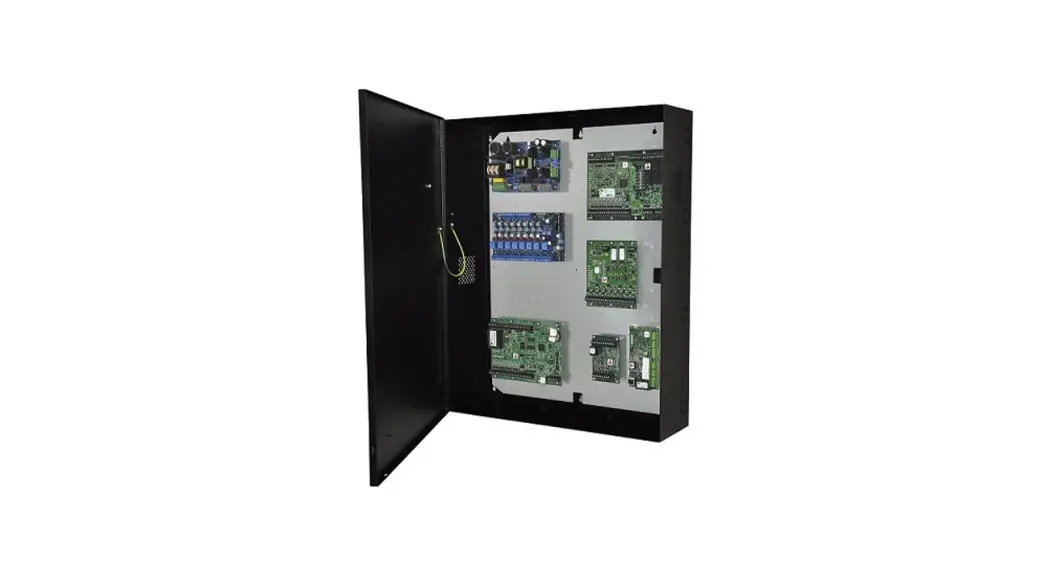

Altronix TDMD2 door backplane for Trove2 and Trove3 enclosures lets you easily integrate DMP access controllers and accessories into existing systems.
Trove simplifies board layout and wire management, reduces installation time and labor costs.
TDMD2 Door Backplane Features

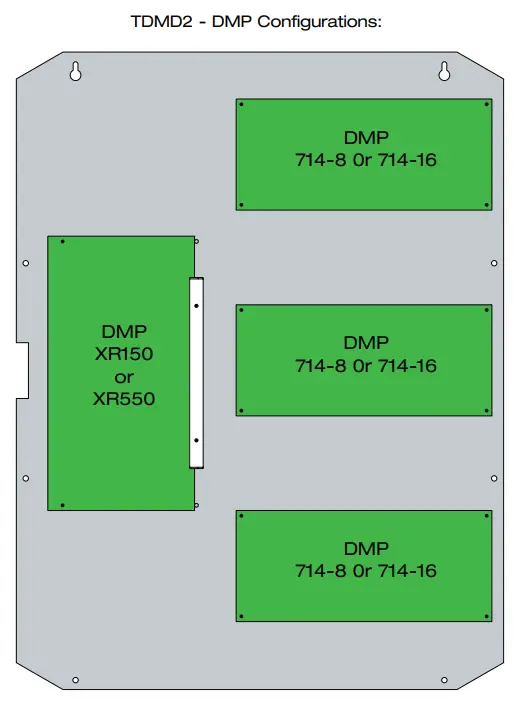

Compatible DMP Boards
One (1) XR150 or XR550 board and up to three (3) multi-zone 714 expansion boards.
Agency Listings
UL:
UL294 – Access Control System.
cUL:
CAN/ULC – s319-05 – Electronic Access Control Systems.
CE
European Conformity
Features
- Simplifies board layout and wire management.
- 16 AWG galvanized steel.

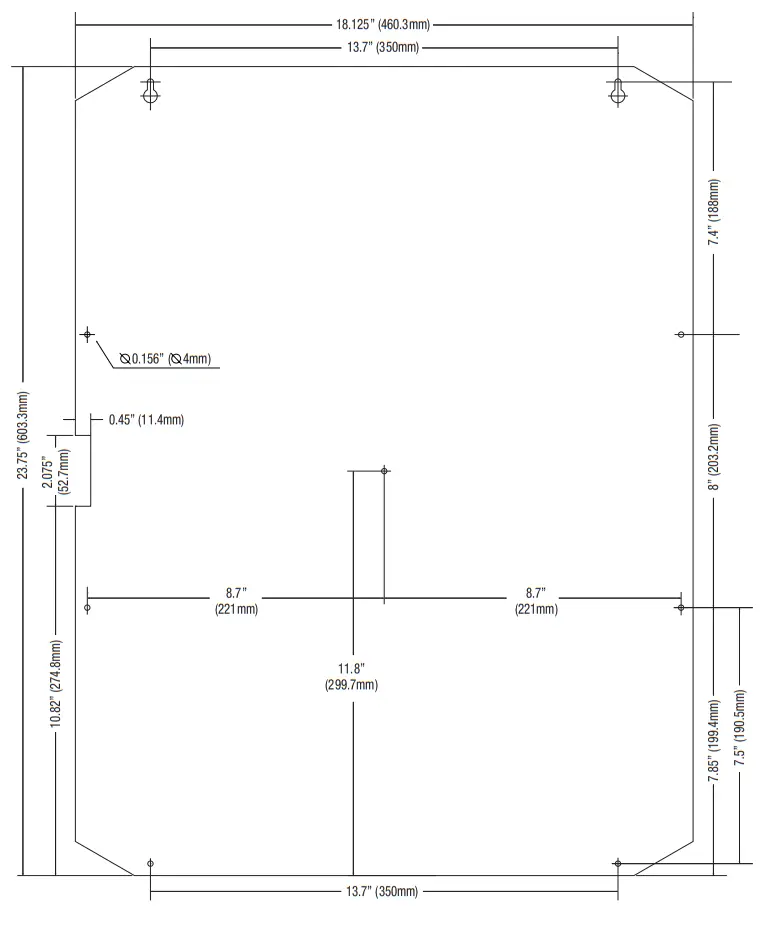

Dimensions (H x W x D):
23.75” x 18.125” x 0.3125” (603.3mm x 460.3mm x 7.9mm).
Weights:
Product – 8.0 lb. (3.63 kg).
Shipping – 9.0 lb. (4.08 kg).
