R V R ELETTRONICA AUDIGIN-TFT FM Transmitters Broadcast Systems
Introduction
Main Highlights
- The card allows to TEX-TFT exciters the integration into those systems that use digital audio distribution.

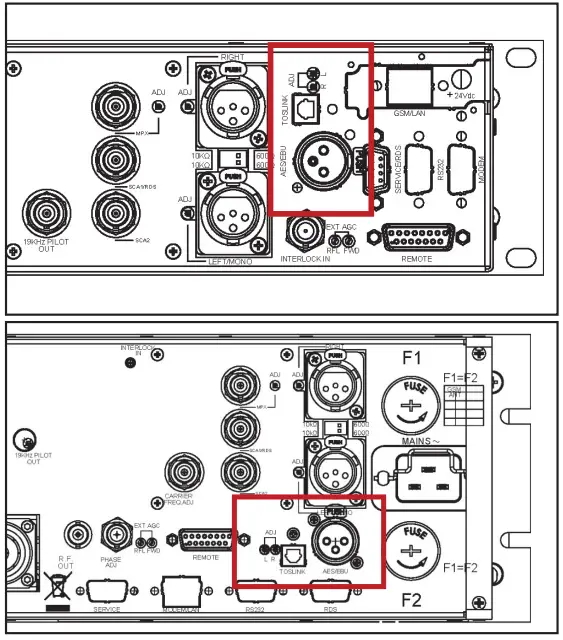

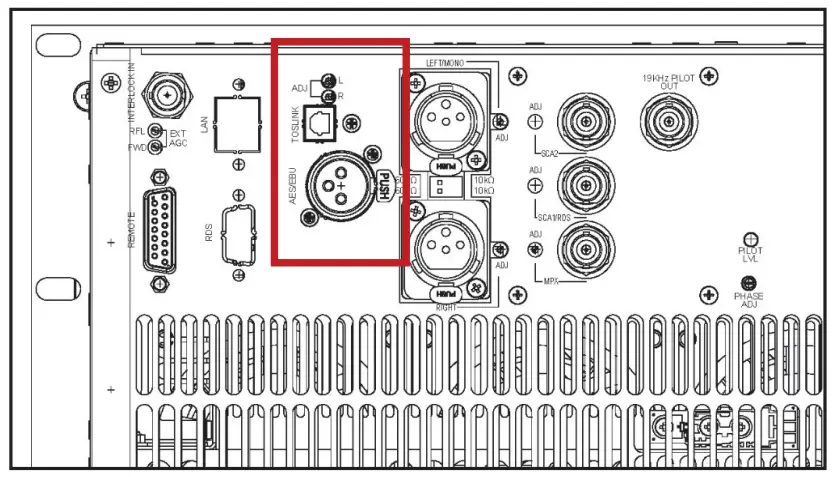

It is located on rear panel of the TEX-TFT and is internally connected to the audio motherboard using a 10-pin flat connector. - The card allows the conversion of digital signal into “Left” and “Right” analog signals and then to deliver it to the modulator.
- This card can be added without requiring any special adjustments to the typical analog audio input section; by updating it there is no need to change the exciter firmware.
- The system provides for twelve cyclical queries that allow you to immediately find the active channel and put it on the air.
If a digital input is present, then it is automatically selected by the included

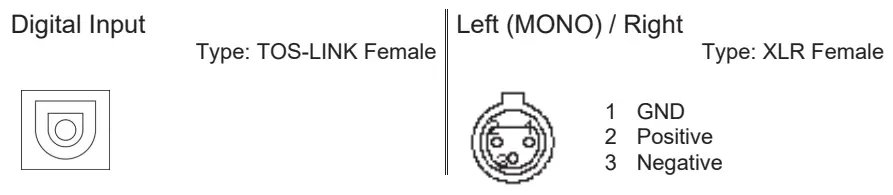

logic. The automatic exchange takes place to select the digital input between balanced (AES/EBU) or optical (TOSLINK). - Through the two trimmers it is possible to adjust the converted digital input level, to normalize the R and L signals with respect to the adjusted level for the analog input.
- The D/A conversion is performed automatically by 24-bit converters using a sampling frequency from 32 to 96 KHz.
- This card supports S/PDIF, AES/EBU, IEC958 and EIAJ CP340/1201 data formats.
AUDIGIN-TFT Option
Technical Annex

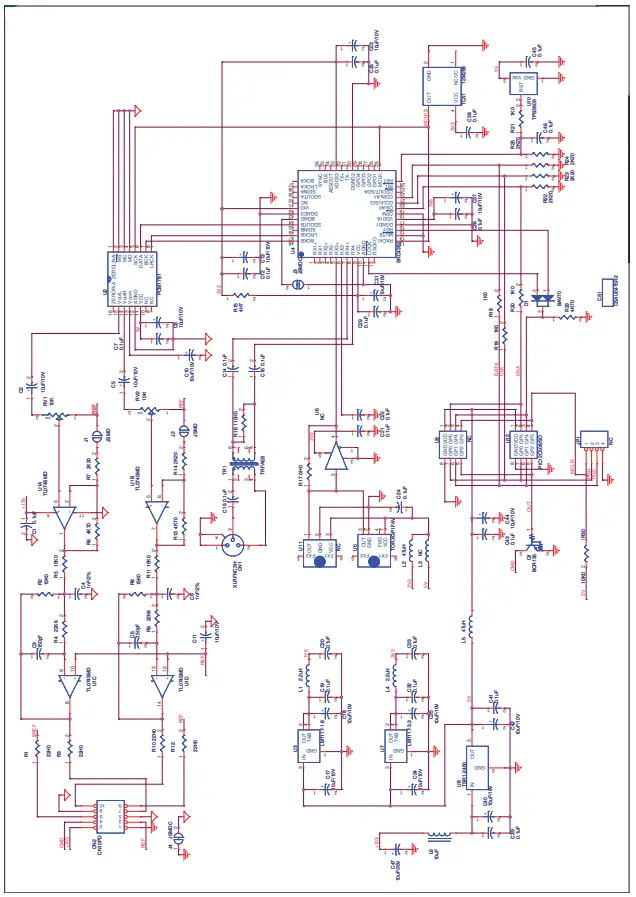

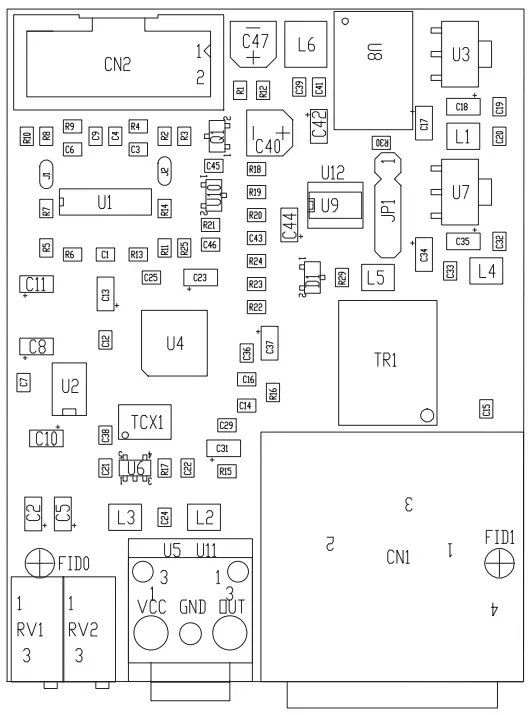

AES/EBU Audio Card – SLAU0415R02V01
TEX AES-EBU audio board Revised: Thursday, April 01, 2021
SLAU0415R02V01 Revision: 1.0
Tommasi A.
| Item | Quantity | Reference | Part | Description |
1 | 1 | CN1 | XLRFNC3H | Connettore XLR NC3 femm. cs 90° |
| 2 | 1 | CN1 | CN10PD | Connettore 10 poli Flat cs |
3 | 1 | CN1 | CSAU0415R2 | Circuito stampato |
| 4 | 22 | C1, C7, C12, C14, C15, C16, C19, C20, C21, C22, C24, C25, C29, C32, C33, C36, C38, C39, C41, C43, C45, C46 | 0.1uF | Cond. SMD 0805 |
5 | 15 | C2, C5, C8, C10, C11, C13, C17, C18, C23, C31, C34, C35, C37, C42, C44 | 10uF/10V | Cond. Elett. SMD tant. size A |
| 6 | 2 | C3, C6 | 150pF | Cond. SMD 0805 COG |
7 | 2 | C4,C9 | l nf/ 2% | Cond.SMD 0805 COG |
| 8 | 1 | C40 | 10u F/1 6V | Cond . Ele t t. SMD d. 4mm |
9 | 1 | C47 | 10uf / 35V | Cond. Elett.SMD d. 4mm |
| 10 | 1 | 01 | BAV70 | Doppio Oiodo SMD SOT23 |
11 | 1 | JPl | NC | Strip maschio 4 pin |
| 12 | 2 | ,Jl J2 | JSMO | Pad SMO a saldare |
13 | 2 | J3,J4 | JSMOC | Pad SMD a sa lda re chluso |
| 14 | 2 | Ll , L4 | 2 .2 uH | lnduttanza SMO 3225 (1210) |
15 | 2 | L2, LS | 47uH | lnduttanza SMD 3225 (1210) |
| 16 | 1 | L3 | NC | lnduttanza SMO 3225 (1210) |
17 | 1 | L6 | l OuF | SMD Vertical Ind. WE PD2 series |
| 18 | 1 | Qt | BCR13S | Tra ns./ Res. NPN SOT23 |
19 | 2 | RV1 , RV2 | l OK | Trimmer Rg H 3296X |
| 20 | 4 | Rl, R3, RlO, R12 | 22HO | Res. SMO 08051% |
21 | 4 | R2, RS, R, 8 Rl l | l SKO | Res.SMO 08051% |
| 22 | 2 | R, 4 R9 | 22K6 | Res . SMO 08051% |
23 | 3 | R, 6 R13, R29 | 4 K70 | Res.SMD 08051% |
| 24 | 6 | R, 7 Rl 4, R22, R2, 3 R24, R2S | 2K20 | Res . SMD 08051% |
25 | 1 | R15 | 4 H7 | Res.SMO 08051% |
| 26 | 1 | R16 | ll OHO | Res . SMD 08051% |
27 | 1 | R17 | OHO | Res. SMO 08051% |
| 28 | 4 | R18 , Rl 9, R20 , R21 | lKO | Res . SMO 08051% |
29 | 1 | R30 | l OKO | Res. SMD 08051% |
| 30 | 1 | TCXl | 1 2M288 | OSC SMO Sx3.2mm |
31 | 1 | TRl | TRFAES | Tra sf. SMO AES/EBU |
| 32 | 1 | Ul | TL074SMD | Quad Op. SMD 5014 |
33 | 1 | U2 | PCM1781 | Stereo DAC |
| 34 | 1 | U3 | LM1117-1.8 | Stab. SMD SOT223 |
35 | 1 | U4 | SRC4382 | 2 ch SRC DIR DIT |
| 36 | 1 | us | T ORX GPl FAV | Ricevitore d igita le ott ico |
37 | 1 | U6 | NC | Leve l t ransla tor |
| 38 | 1 | U7 | LM1117-3.3 | Stab. SMO SOT223 |
39 | 1 | U8 | TSRl-2450 | Switching SIP3 regu lator |
| 40 | 1 | U9 | NC | PIC Microproces.sor SMO |
41 | 1 | UlO | TPS3809 | uP supplysupervisor |
| 42 | 1 | Ull | NC | Ricevitore d igita le ot tico |
43 | 1 | U12 | PIC12CS08/SO | PIC MicroprocessorSMO |

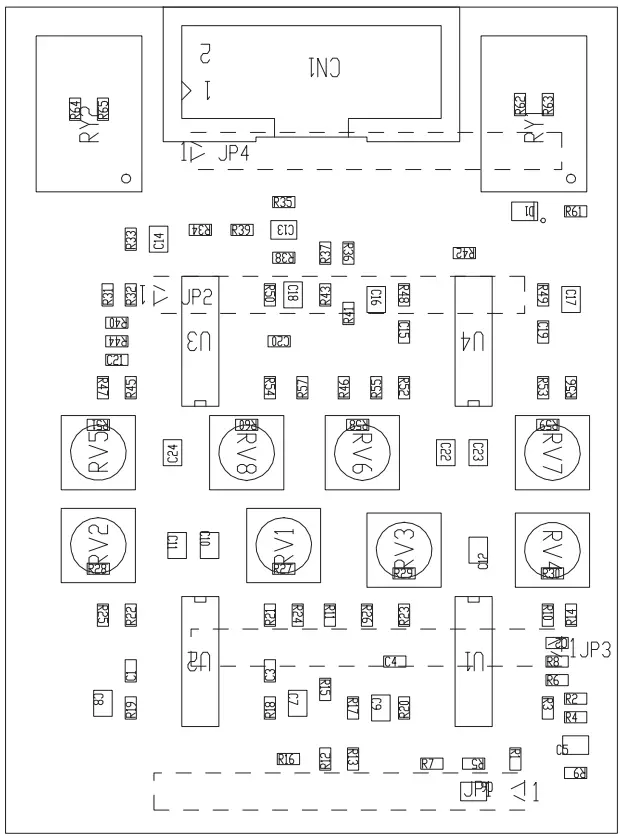

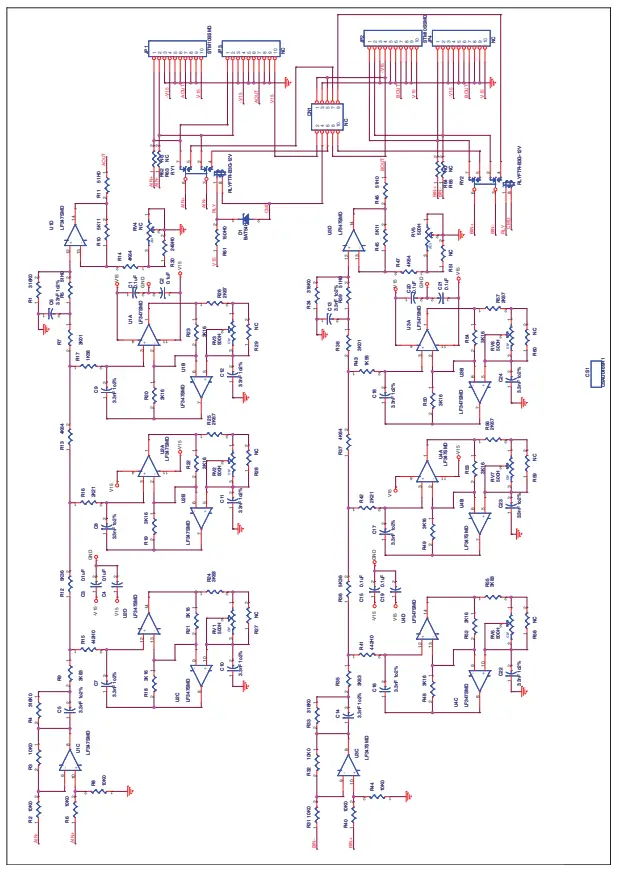

15kHz audio filter & AES/EBU card – SLAU0469R01V01
Audio Filter 15Khz TEX w AES/EBU Revised: 17/05/2017
SLAU0469R01V01 Revision: 1.1
A. Tommasi
Item | Quantity | Reference | Part | Description | Code | |
| 1 | 1 | CN1 | NC | Conn. 10 poli Flat cs | ||
2 | 1 | CN1 | CSAU0469R1 | Circuito stampato | CSAU0469R | |
| 3 | 8 | Cl, C2, C3,C4, C15,C19, C20, C21 | O.l uF | Cond.SMD 0603 | CCC063104KXC | |
4 | 16 | CS, C6, C7, C8, C9,C10, Cl,l Cl 2, Cl,3 Cl 4, Cl 6, C17, Cl 8, C22, C23, C24 | 3.3nF 10 2% | Cond. SMD 0805 COG | CCC085332GCB | |
| 5 | 1 | Dl | BAT54H | SOD323 SMD Diode | DISBAT5H4T1G | |
6 | 2 | JP, l JP2 | STMlOSSMD | Male strip 10 pin SMD | CNTSTMTlOSDLS | Precidip 350-10-110-00-106101 |
| 7 | 2 | JP3,JP4 | NC | Male strip 10 pin SMD | ||
8 | 7 | RV1,RV2, RV3,RV, S RV6, RV7, RV8 | SOOH | Trimmer SMDV 3314 | RVT4 X4HOSOOV | |
| 9 | 1 | RV4 | NC | Trimmer SMDv 3314 | ||
10 | 2 | RY1, RY2 | RLYFTR-B3G-12V | Rele’ FTR-B3G | RLM 2V12V2AS | Fujitsu FTR-B3G A 012 o FTR-B3S A 012 |
| 11 | 4 | Rl, R4, R33,R34 | 316KO | Res.SMD 0603 | RCH063F0316K | |
12 | 8 | R, 2 R3, R, 6 R8, R3, 1 R32, R4, 0 R44 | 10KO | Res. SMD 0603 | RCH063F0010K | |
| 13 | 4 | RS,Rll,R39,R46 | Sl HO | Res.SMD 0603 | RCH063F0051H | |
14 | 2 | R, 7 R38 | 3K01 | Res. SMD 0603 | RCH063F03K01 | |
| 15 | 4 | R9, R24, R35,RSS | 3K8 3 | Res.SMD 0603 | RCH063F03K83 | |
16 | 2 | R10,R45 | SKl l | Res.SMD 0603 | RCH063FOSK11 | |
| 17 | 2 | R12,R36 | SK36 | Res.SMD 0603 | RCH063FOSK36 | |
18 | 4 | R1, 3 R14, R3, 7 R47 | 4K64 | Res.SMD 0603 | RCH063F04K64 | |
| 19 | 2 | RlS,R41 | 442HO | Res.SMD 0603 | RCH063F0442H | |
20 | 2 | R16, R42 | 2K21 | Res.SMD 0603 | RCH063F02K21 | |
| 21 | 2 | R17,R43 | 1K58 | Res.SMD 0603 | RCH063F01K58 | |
22 | 12 | R18,Rl 9, R20,R21, R22,R23, R48, R49, RSO,RS2,R53, R54 | 3K16 | Res.SMD 0603 | RCH063F03K16 | |
| 23 | 4 | R25,R26, R56,R57 | 2K6 7 | Res.SMD0603 | RCH063F02K67 | |
24 | 11 | R27, R28, R29,R51, R58, R59, R60, R62, R63, R64, R65 | NC | Res.SMD 0603 | ||
| 25 | 1 | R30 | 249HO | Res. SMD 0603 | RCH063F0249H | |
26 | 1 | R61 | 150HO | Res.SMD 0603 | RCH063F0150H | |
27 | 4 | Ul,U2,U3,U4 | LF347SMD | Quad Op. SMD S014 | CILLF347SMD | |
