REXING FMVC2 FM Transmitter
Overview
Thank you for choosing REXING!
We hope you love your new products as much as we do. If you need assistance, or have any suggestions to improve it, please contact us. [email protected]
(877) 740-8004
Our support team will respond you as soon as possible. Always a surprise in Rexing.
Check us out here.
- https://www.facebook.com/rexingusa/
- https://www.instagram.com/rexingdashcam/
- https://www.rexingusa.com/support/registration/
What’s in the Box?
- FMVC2 FM Transmitter
- User Guide
- 3.5mm AUX Cable
- Spare Fuse

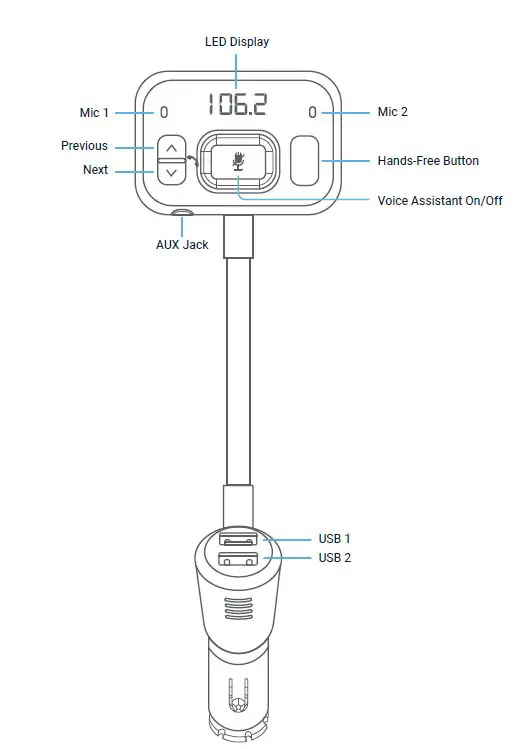

Product Overview
Product Information
Features
- Dual Internal Microphones for Echo Canceling and Voice Pickup;
- Quick activation of voice assistants such as Siri/Google;
- Support offline voice commands with 100% sensitive and accurate recognition: answer the phone; reject the call; play music; stop playing; play next; play previous; volume up; volume down;
- Dual way for Audio Streaming to your car stereo: FM Transmission, AUX jack;
- Flexible goose-neck adjustable to find better viewing;
- Dual USB Charging Ports: 5V/2.4A+QC3.0;
- Voice Prompt and Hands-free Calling for Safe Driving;
- Detect the voltage of the car battery when powered on;
- Low Battery Alert;
- Large Yellow LED Display;
- Default Language: English;
- With Short-circuit, over-voltage, over-current; over-temperature protection;
- Bluetooth Version 5.0
Specifications
- Radio Sources: FM
- Frequency Ranges: 87.5MHz-108MHz
- Power Input: 12-24V
- Power Output: DC 5V/2.4A; QC3.0
- Bluetooth Protocol: AVRCP, A2DP, HFP, HSP
- With Line-Out
- Transmit Distance: 10FT
- Product Weight: 3 oz
- Product Dimension: 9″x3″x2.75″
- LED Display Dimension: 1.1″
- Product Color: Black
- Material: ABS

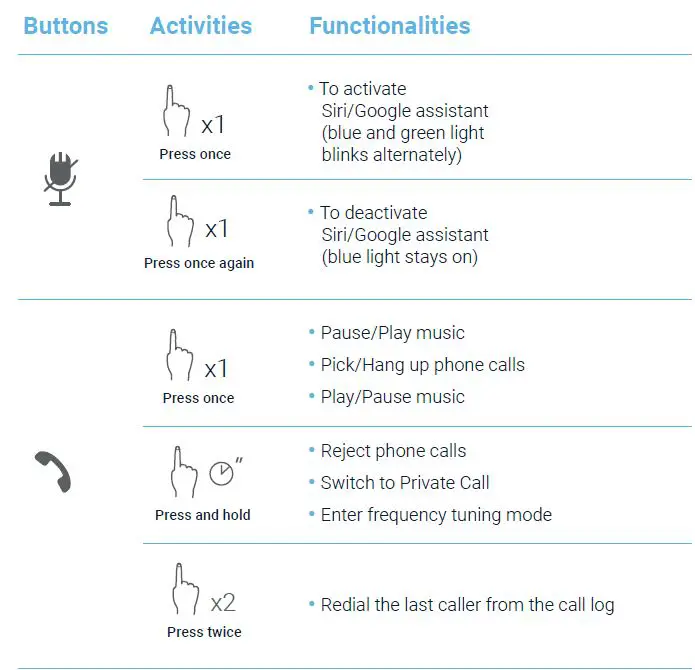

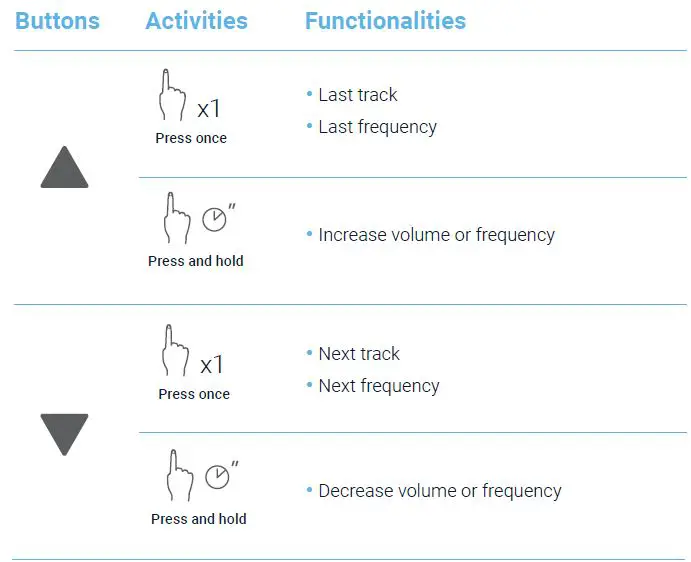

Button Controls
LED Indications
Status LED Indicators
- Power on and ready to pair Blue light blinks
- Connected Bluet light stays on
- Voice assistant Blue and Green light
- activated & listening blinks alternately
- Incoming call Blue light
- During call Blue light
- Hang-off or Reject call Blue light
Getting Started

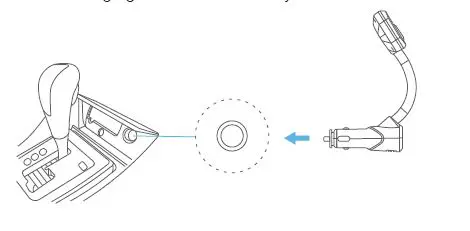

Plug FMVC2 into your vehicle’s cigarette lighter socket and then start the engine; the LED ring-light indicator will stay blue.
Connectivity for audio steaming from your cellphone to the car speakers
- Connect mobile phone to car stereo via Bluetooth.
- Set up the unit and your car radio with the same frequency. You can also use an AUX cable to connect the unit to your car

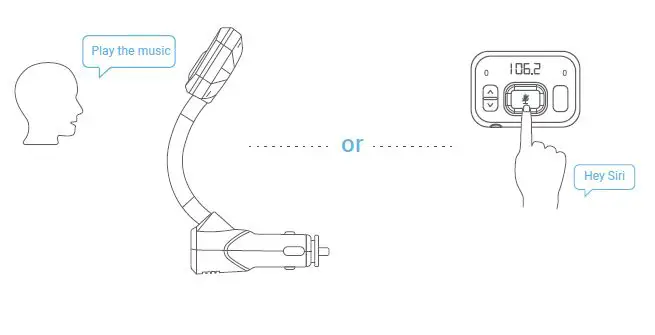

AI Voice Assistant
FMVC2 comes with an offline voice command feature which is completely data-free. You can play/pause music, take/reject a voice call etc. by using your voice.
To activate the voice service feature, say the 8 wake words:
- answer the phone;
- reject the call;
- play music;
- stop playing;
- play next;
- play previous;
- volume up
- volume down;
- FMVC2 will respond instantly.
Charging your Devices
FMVC2 has dual USB charging ports. You can charge two devices at the same time with a maximum output of 5V/2.4A+QC3.0.
These materials are protected by copyright law and international treaties. Any unauthorized use, reproduction or distribution of these materials, or any portion herein, will result in severe civil and criminal penalties and fines. Violators will be prosecuted to the fullest extent of the law.
Safety Instructions
This manual contains important safety and operating instructions for the AI Voice Assistant Hands-free Car Kit, FMVC2. Please read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply.
- Read all instructions and cautionary markings before using this product.
- Do not expose to rain, moisture, or snow.
- Use of an attachment is not recommended or sold by the manufacturer may result in a risk of fire, electric shock, or injury to persons.
- Do not operate this device if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified service person.
- Do not disassemble this device; take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
- To reduce risk of electric shock, unplug this device before attempting any maintenance or cleaning. Turning off controls will not reduce this risk.
- To reduce risk of fire or electric shock, do not interconnect output terminations.
- Avoid long exposure to direct sunlight, which may cause damage to the device.
- Exposing this product to open flames may cause it to explode.
- Do not use this product in strong magnetic fields.
- Use a dry, soft lint-free cloth to clean. Do not use any corrosive cleaner or oil to clean.
CAUTION – For continued protection against risk of fire, replace only with the same type and ratings of fuse, fuse rating is 250V DC/3A. - Always obey traffic laws and pay attention to the road. Do not attempt to use this device while driving, as some features are limited while the vehicle is in motion. Failure to pay full attention to the operation of your vehicle could result in death, serious injury or property damage. You assume total responsibility and risk for using this device.
Warranty & Support
Warranty
The Rexing FMVC2 comes with a full 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months.
Support
If you have any questions regarding your product, please do not hesitate to contact us at [email protected], or call us at (877) 740-8004. Queries are typically answered within 12-24 hours.
Your opinion matters
Rexing is firmly committed to always improving our products, services, and user experience. If you have any thoughts on how we can do even better, we welcome your constructive feedback and suggestions.
Connect with us today at [email protected]
Thank you for choosing Rexing!
