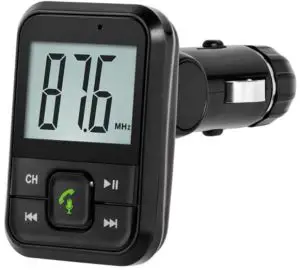

Peiying URZ0467 Car FM Transmitter with Bluetooth Function User Manual
SAFETY INSTRUCTIONS
Read this instruction manual carefully before use, and keep it for future reference. Producer does not claim liability for inappropriate use and handling.
- Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.
- Use only authorized accessories.
- Do not use this device if it has been damaged or its operation is abnormal.
- Do not attempt to repair this device yourself. In case of damage, contact with an authorized service point for check-up/repair.
- ALWAYS disconnect the device from power supply before cleaning.
- Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product.

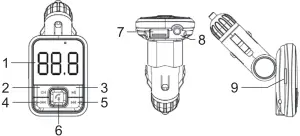

PRODUCT DESCRIPTION
- LCD display
- CH button
- Play/Pause button
- Previous/ Volume down
- Next/ Volume up
- Multi function button
(call management) - USB port (charging and music streaming)
- AUX input
- MicroSD card slot
OPERATION
| Function | FM transmitter |
| Answer/end a call | Press the  button |
| Reject a call | Press the button |
| Redial last number | Press the button twice |
| Play/Pause | Press the  button |
| Adjust volume | Press and hold the  button to decrease volume Press and hold the  button to increase volume |
| Select a track | Press / button to go to the previous/next track |
| Set frequency | Press the CH button (digits on the display start flashing); then press / to decrease/ increase the frequency |
FM TRANSMITTER
- Plug the FM transmitter into your vehicle’s cigarette lighter or power socket.
- Tune your radio to a desired FM frequency, then match the same frequency of the FM transmitter. To do this, first press the CH button until the frequency starts flashing. Then keep pressing the
/ button to set the desired frequency. - Insert a USB flash drive to the USB port or insert a microSD card into the microSD card slot. The device will play and transmit music files automatically.
Notes:
- The maximum capacity of the USB flash drive and microSD card is 32 GB.
BLUETOOTH
- Enable Bluetooth function on the external device and search for new Bluetooth devices.
- Select and connect with this device (URZ0467). Enter password “0000” if necessary.
- When there is an incoming call in the music playing mode, the device will automatically switch to the call.
CHARGING
- Make sure the FM transmitter is connected to the cigarette lighter socket in your vehicle.
- Insert one end of the USB cable into micro USB port of the mobile device; insert the other end into the USB port of the FM transmitter.
- Charging starts automatically.
SPECIFICATION
- Bluetooth 2.1
- Bluetooth range: up to 3 m
- Bluetooth profiles: AVRCP, HFP, A2DP
- USB port (charging and music streaming)
- Micro SD card slot (max. 32 GB)
- AUX input
- Music format: MP3
- LCD display
- Built-in microphone
- Call management
- Output voltage: 5 V / 1 A
- Frequency range: 87,5 – 107,9 MHz
- Maximum output power: 4 dBm
- Frequency stability: +/- 10 ppm
- Power supply: 12 – 24 V
- In set: 3,5 mm jack cable, user’s manual
Lechpol Electronics Sp. z o.o. Sp.k. hereby declares that Car FM transmitter with Bluetooth function URZ0467 is consistent with directive 2014/53/UE. Full text of the EU Declaration of Conformity is available at following Internet address: www.lechpol.pl
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
It is forbidden to place equipment waste marked with the symbol of a crossed-out trash bin together with other waste. This equipment is subject to collection and recycling. The harmful substances it contains can cause environmental pollution and pose a threat to human health.
Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
