Car Fm Transmitter With Bluetooth Function
Owner’s Manual

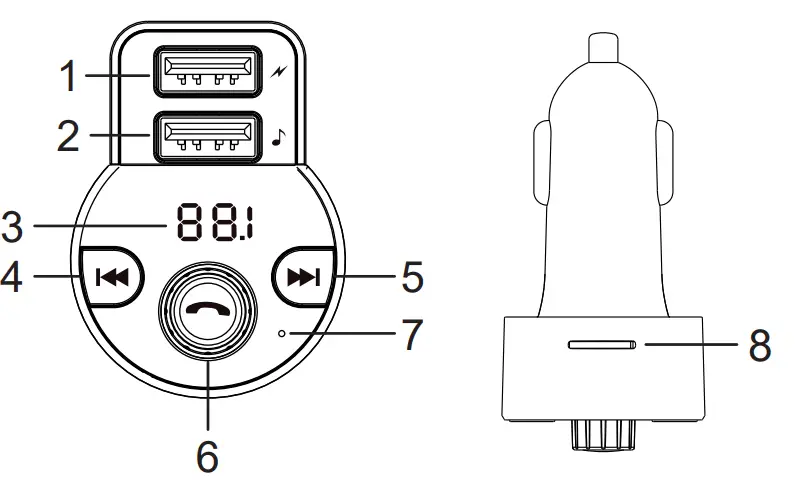

PRODUCT DESCRIPTION
USB port 1 (charging)- USB port 2 (charging and music streaming)
- LED display
- Previous track
- Next track
- Multifunction knob
(call management, music control, volume adjustment, frequency setting) - Microphone
- microSD card slot
USB port 1 (charging)OPERATION
| Function | FM transmitter |
| Answer/end a call | Press the knob twice |
| Reject a call | Press the knob twice |
| Redial last number | Press the knob twice |
| Play/Pause | Press the knob twice |
| Adjust volume | Rotate the knob right to increase volume Rotate the knob left to decrease volume |
| Set frequency | Press and hold the knob until digits on the display startflashing; rotate the knob right/left o increase/decrease the frequency |
| Select a track | Press and button to go to the previous/next track |
| Select mode | Press and hold the knob to switch between available modes (microSD card, USB, Bluetooth) |
| Detect voltage | Press and hold the  button to display car voltage |
FM TRANSMITTER
- Plug the FM transmitter into your vehicle’s cigarette lighter or power socket.
- Tune your radio to a desired FM frequency, then match the same frequency of the FM transmitter. To do this, first press and hold the knob until the frequency starts flashing. Then rotate the knob to set the desired frequency.
- Insert a USB flash drive to a USB port 2 or insert a microSD card into microSD card slot. The device will play and transmit music files automatically.
Notes:
- Only USB port 2 can serve as a USB flash drive reader.
- The maximum capacity of the USB flash drive and microSD card is 64 GB.
BLUETOOTH
- Enable Bluetooth function on the external device and search for new Bluetooth devices.
- Select and connect with this device (URZ0481). Enter password “0000” necessary.
- When there is an incoming call in the music playing mode, the device will automatically switch to the call.
CHARGING
- Make sure the FM transmitter is connectedto the cigarette lighter socket in your vehicle.
- Insert one end of the USB cable into microUSB port of the mobile device; insert the other end into USB port 1 or 2 of the FM transmitter.
- Charging starts automatically.
SPECIFICATION
Bluetooth 4.2
Bluetooth range: up to 10 m
Bluetooth profiles: AVRCP, HFP, A2DP
2x USB ports:
USB 1 – charging
USB 2 – charging and music streaming.
microSD card slot (max. 64 GB)
Music format: MP3, WMA
LED display
Built-in microphone
Call management
Voltage tester
Output voltage:
USB 1 – 5 V / 2,1 A
USB 2 – 5 V / 1 A
Frequency range: 87,5 – 108 MHz
Frequency stability: ±10 ppm
Power supply: 12 – 24 V
Lechpol Electronics Leszek Sp.k. hereby declares that Car FM transmitter with Bluetooth function URZ0481 is consistent with directive 2014/53/UE. Full text of the EU eclaration of Conformity is available at following Internet address: www.lechpol.pl.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It hould not be disposed with other household wastes at the end of its working life. T o prevent possible harm lo the environment or human health from uncontrolled waste isposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact ither the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. usiness users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.
Made in China for Lechpol
Electronics Leszek Sp.k.,
