Alpulon ZMWV118
BBQ Grill Gazebo
Instruction Manual

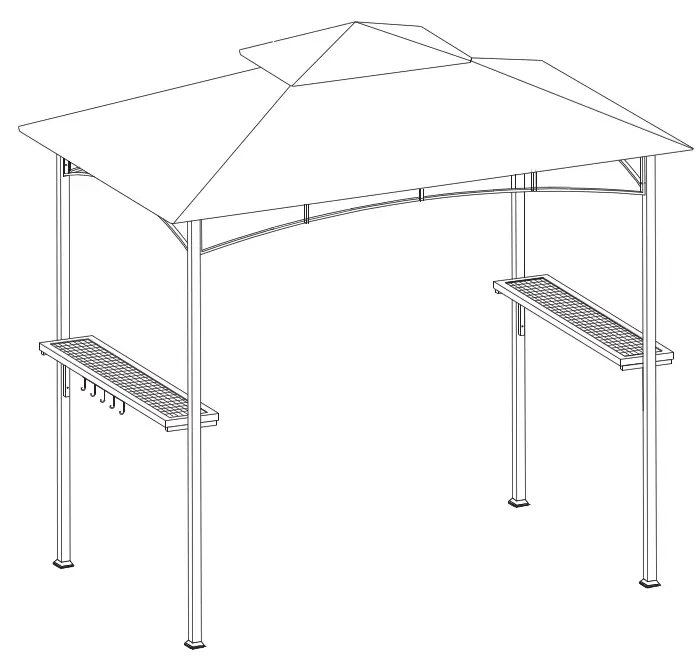

ZMWV118 BBQ Grill Gazebo
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP IT FOR FUTURE REFERENCE.
PARTS LIST
READ AND SAVE THESE INSTRUCTIONS
Please read the instructions carefully and identify all the parts before assembly. )
Caution: Small parts like nuts and bolts, may pose a choking hazard to young children. Keep out of reach of small children.
| No. | Picture | Description | Qty |
| A |  | Pillar | 2 |
| B |  | Pillar | 1 |
| B1 | | Pillar | 1 |
| C |  | Long Top Beam | 2 |
| D |  | Short Top Beam | 2 |

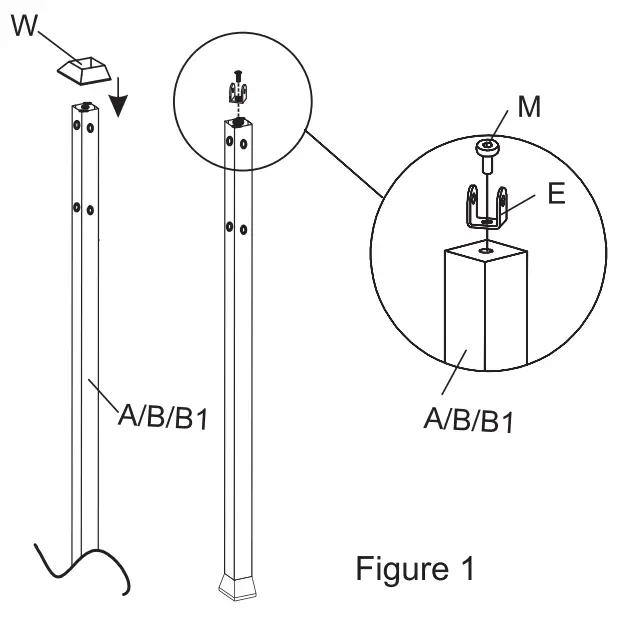

| E |  | U-shape Connector | 6 |

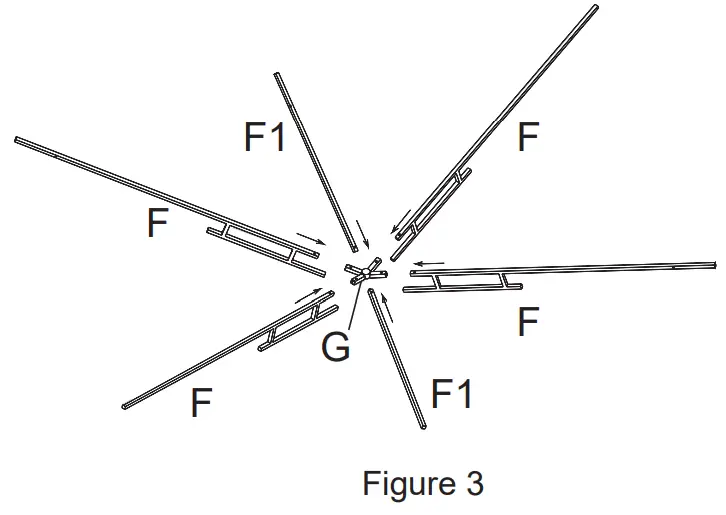

| F |  | Top Tube | 4 |
| F1 |  | Top Tube | 2 |
| G |  | Connector Hub | 1 |

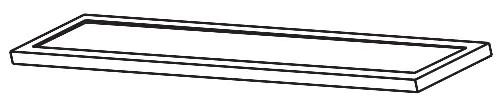

| H |  | Side Shelf | 2 |

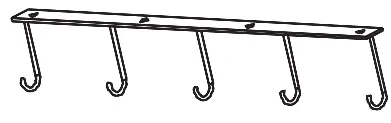

| I |  | Hook | 1 |
| J |  | Shelf Support Frame | 4 |
| No. | Picture | Description | Qty |
| K |  | Large Canopy Fabric | 1 |
| L |  | Small Canopy Fabric | 1 |
| M |  | Bolt (M6x15mm) | 27 |
| N |  | Bolt (M6x2Omm) | 8 |
| 0 | | Bolt (M6x3Omm) | 14 |
| Q |  | Nut | 6 |
| R |  | Ground Stake | 8 |
| S |  | Hex Wrench | 1 |
| T |  | Driver | 1 |
| U |  | Bolt Cap | 37 |
| V |  | Nut Cap | 6 |
| W |  | Leg Cap | 4 |
| Y |  | 1 |
ASSEMBLY INSTRUCTIONS

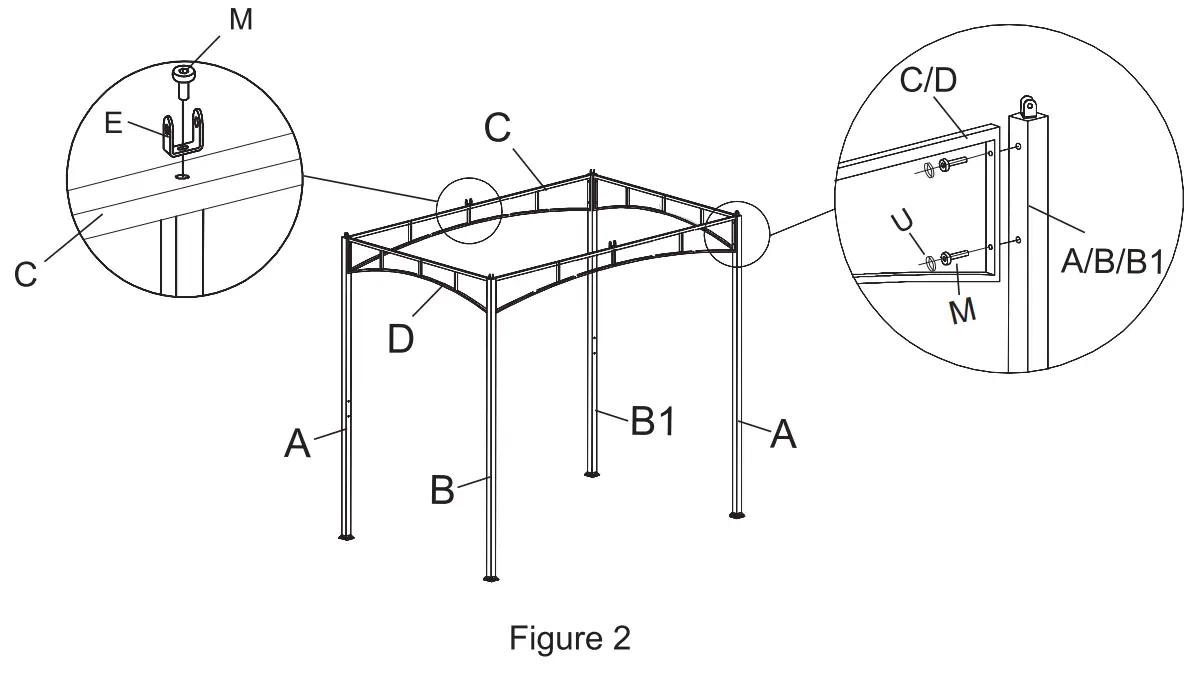

STEP 2: Attach Top Beams (C/D) to each of the Pillars (A/B/B1) with Bolt (N) and Bolt Cap (U) as shown in Figure 2. Repeat this step with the remaining Long and Short Beams (C/D) until all have been attached.

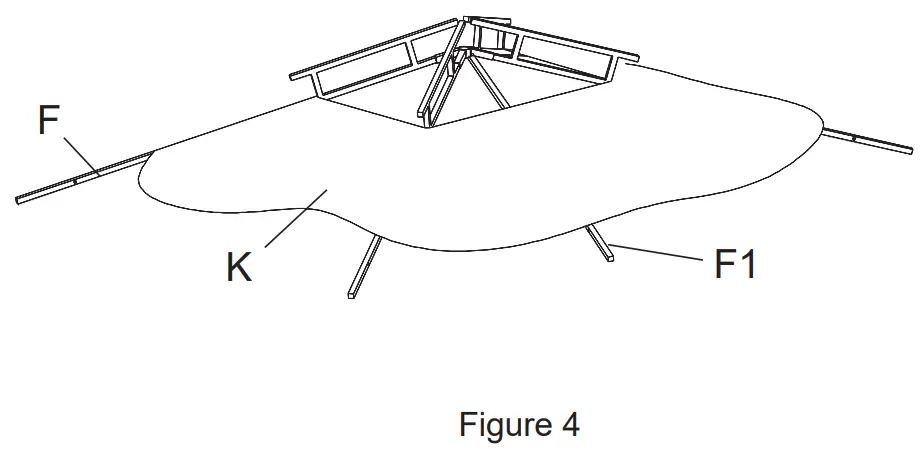

STEP 4: Attach the Large Canopy Fabric (K) to the Top Frame assembled in Step 3.
STEP 5: Attach the Small Canopy Fabric (L) to the Top Frame assembled in Step 3.
Note: There are four tube receivers in the four corners of the small and Large Canopy Fabric (L, K). You may need to enlist “teamwork” by using ladders and two or more people to complete this step.
Then Connect the Top Tube (F) of the Canopy Frame assembled in Step 3 with the U-shape Connector (E) to the Pillars (A/B/B1) in four corners with the Bolt (O), Nut (Q), and Nut Cap (V) as shown in Figure 5.

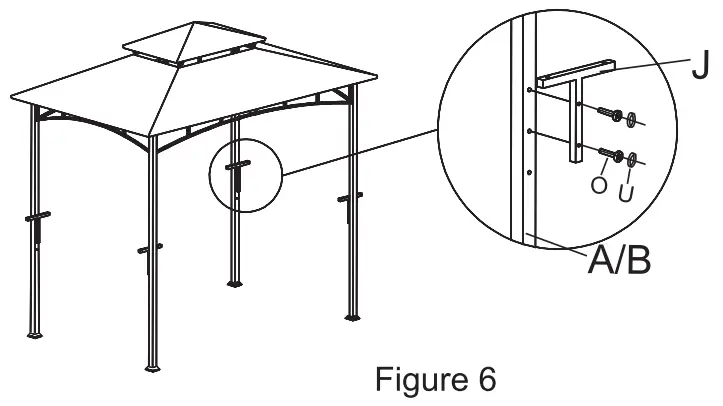

STEP 6: Connect the Shelf Support Frame (J) with the Pillars (A/B), using Bolt (O) and Bolt Cap (U). Repeat this step 4 times to assemble each of the Pillars (A/B) as shown in Figure 6.

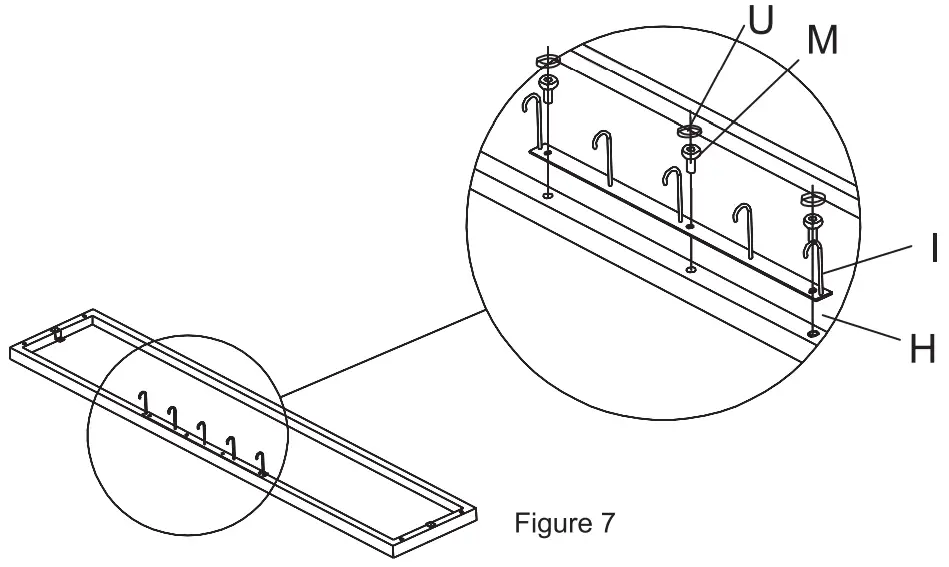

STEP 7: Attach the Hook (I) to the Glass Side Shelf (H) with Bolt (M) and Bolt Cap (U) as shown in Figure 7.

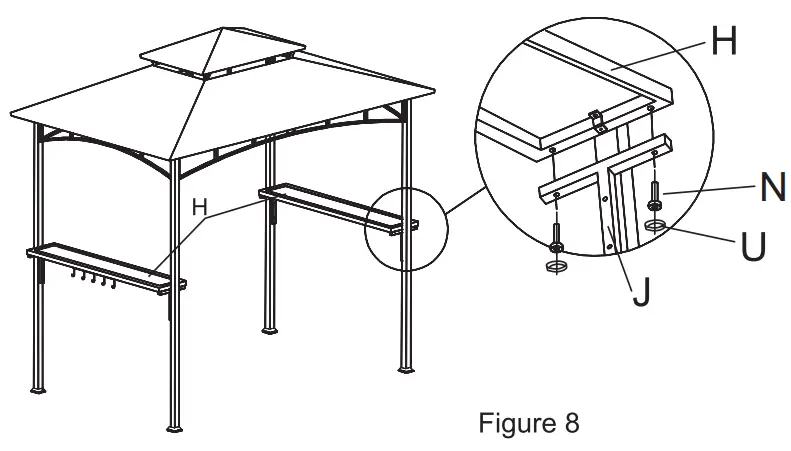

STEP 8: Attach the Side Shelf (H) to the Shelf Support Frame (J) with Bolt (0) and Bolt Cap (U) as shown in Figure 8.
WARRANTY

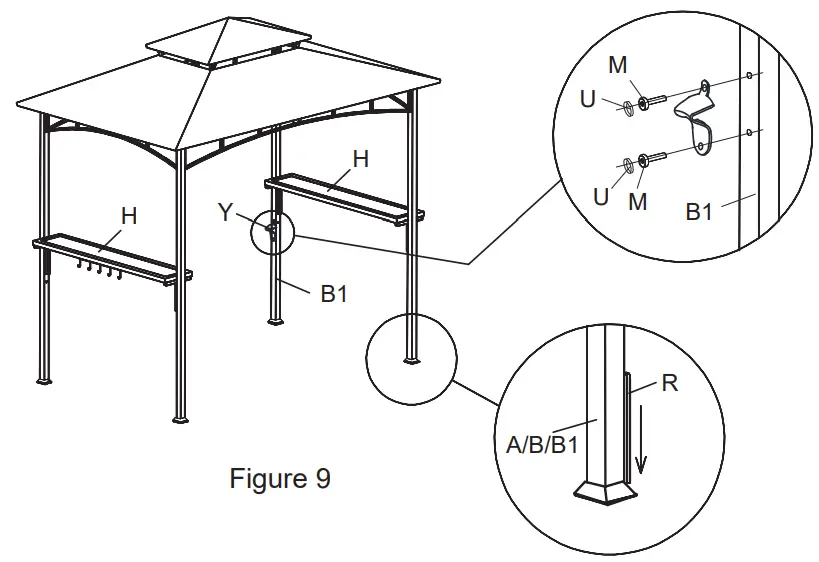

STEP 9: Fixed the bottom hole of each of the four Pillars (A/B/B1) to a solid surface, ground, patio, deck, etc. by using the Ground Stake (R). Repeat this step to attach the shelves at each of the four corners as shown in Figure 9.
NOTE: The side tables are adjustable to two heights, 24 in. and 30 in. There is a cap pre-inserted in the lowest hole on each Pillar. Please remove the cap for the hole first if you want to adjust the table height to 24 in. for the first time. And then use included bolt & cap in an unused hole in the pillar once attached.
Now please enjoy your new grill gazebo.
90-day Limited Warranty
This product is warranted to the original purchaser against defects in workmanship and materials. If a product fails during the first 90 days from the date of purchase under the terms of our limited warranty, please contact customer support. The manufacturer reserves the right in the case of discontinued or out-of-production models, to replace them with an item of similar quality.
Note: You must retain the original receipt to obtain a warranty!
Frames
Frames are warranted against defects in materials and workmanship from the date of original purchase. Damage to frame or welds due to commercial use, improper assembly, exposure to water and sub-freezing temperatures, and/or abuse are not covered.
Fabric
Fabric Sling fabric is warranted against separation at the seams. Fading, mildew, and/or discoloration due to exposure to the elements, chemicals, and spills are not covered.
Metal Finishes and/or Paint
The finish is warranted against blistering, peeling, or cracking. Fading resulting from exposure to elements, chemicals, and spills is not covered. Scratches and chips due to normal wear and use are not covered.
Storage
Your new Gazebo was crafted from steel and treated with a powder coat finish to protect it from rust. Please periodically inspect your new Gazebo for any scratches or chips and touch it up with paint for metal from your local hardware store to ensure many years of use. This product will rust if not protected. If you are dismantling and storing your Gazebo after use, store it in a dry place wiping down and drying off all metal parts.
Exclusions
- Damage caused by acts of nature.
- Wind damage.
- Failure caused by unreasonable, unanticipated, or abusive use.
- Normal fade of fabrics, upholstery, or woven materials.
- Bursting or cracking of tubing due to exposure to water and freezing temperatures.
