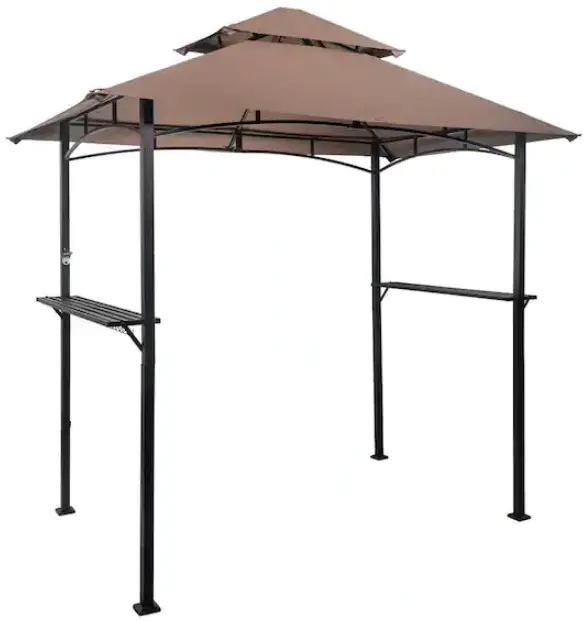

The Home Depot 200861289181 Brown Grill Gazebo Instruction Manual

THE HOME DEPOT 200861289181 Brown Grill Gazebo Instruction Manual

Notification

1. We care about your shopping experience, kindly contact us freely if any part missing or defective or any other issue, we will try our best to solve it asap.
2. Recommend at least 2 persons and prepare a ladder to assemble the gazebo.

Assembly Instruction

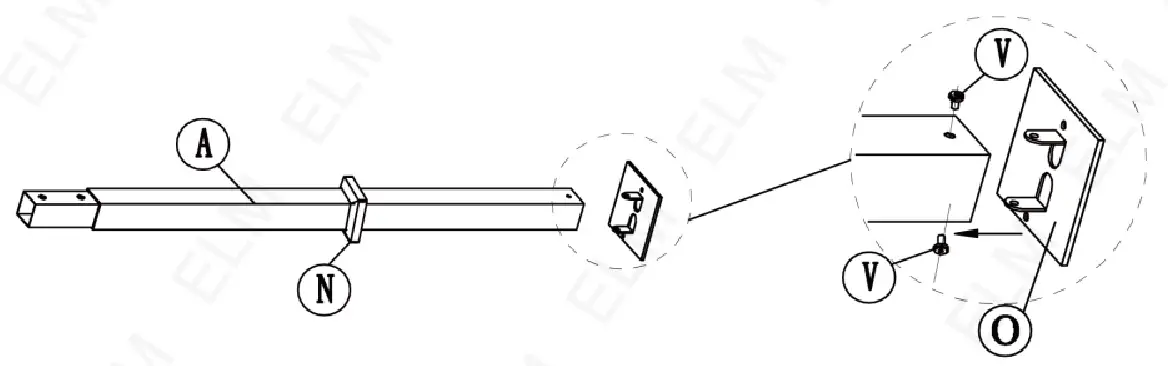

STEP 1:
Insert the part N, connect pole A and part 0 with bolt V, then put down the part N.

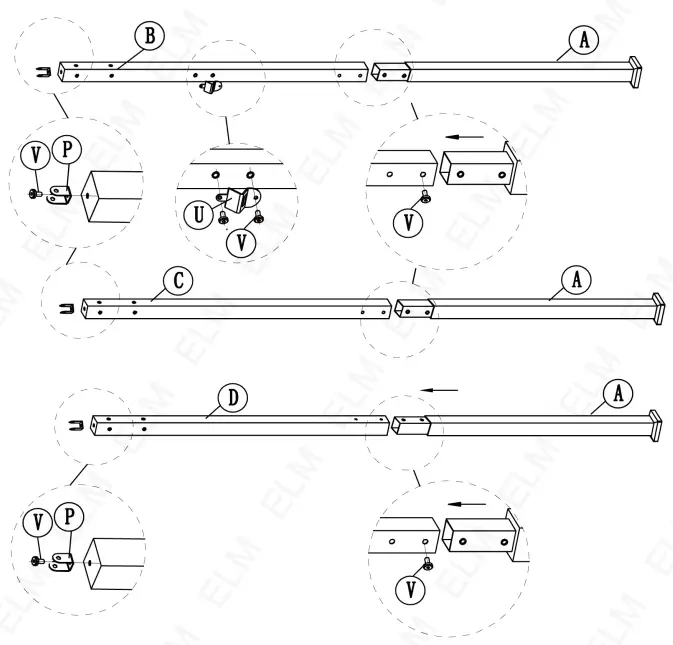

STEP 2:
Assemble the part P with pole B, C, D by bolt V, connect pole A and B, C, D with bolt V, assemble the part U with bolt V.

STEP 3:

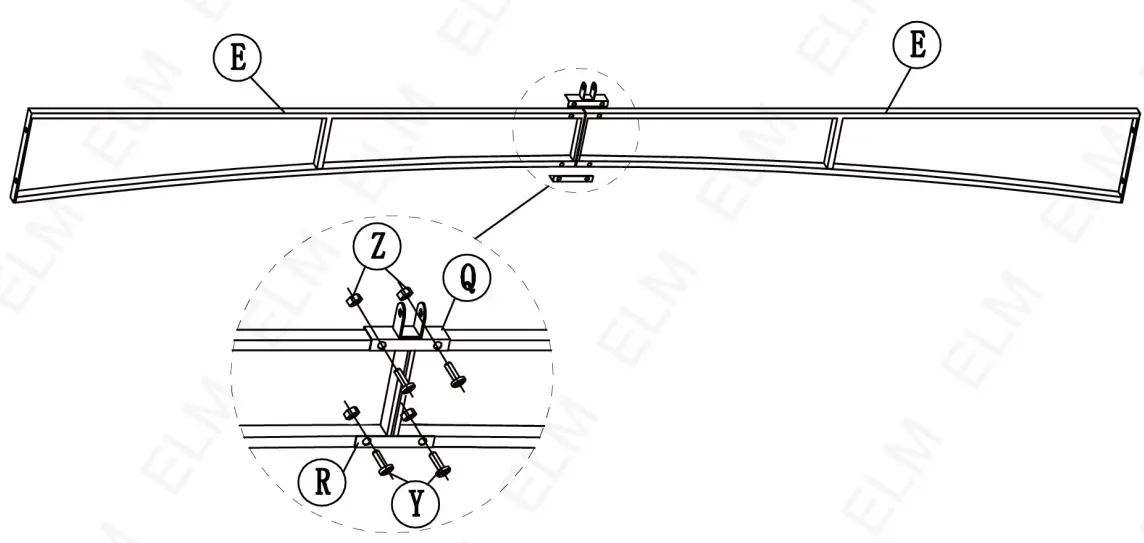

Connect part E with bracket Q, R by bolt Y and nut Z.

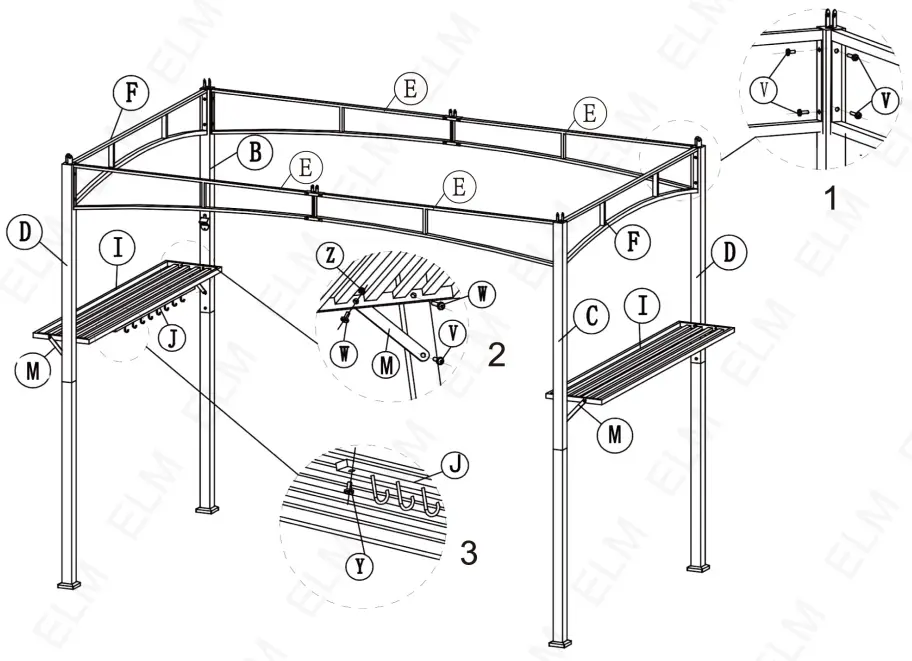

STEP 4:

1. Connect the frame E, F with bottom pole by bolt V.
2. Connect two shelves I with bottom pole by supporting bracket M, bolt V, W and nut Z.

Assemble the hook J with bolt Y.

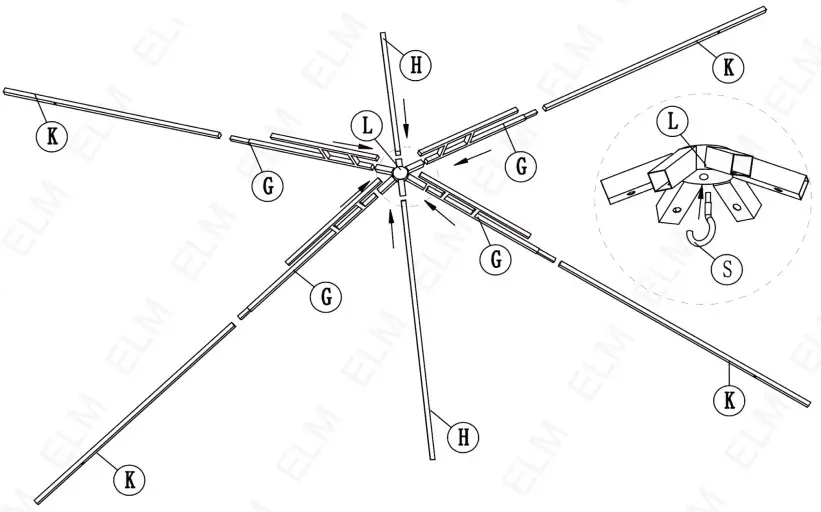

STEP 5:

1. 1. Insert all part G, K in turn and tube H into center frame L and make sure connected firmly.
   2. Connect the hook S with L.

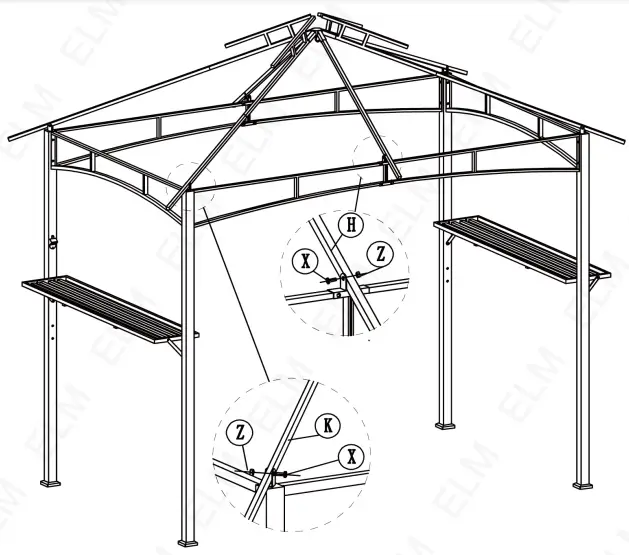

STEP 6:
Connect roof frame with base frame with bolt X and nut Z.

STEP 7:

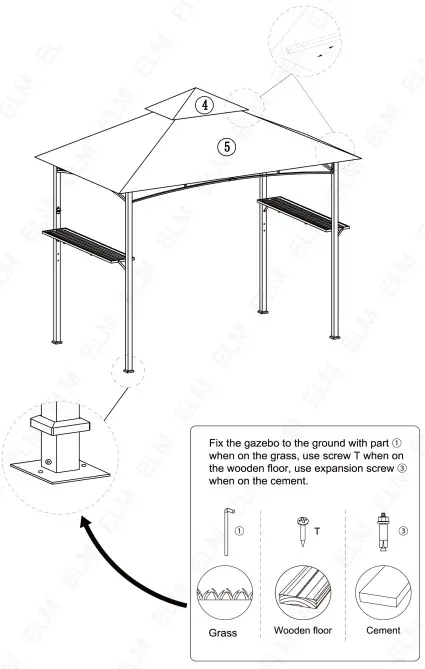

Assemble double-tiered canopy.
