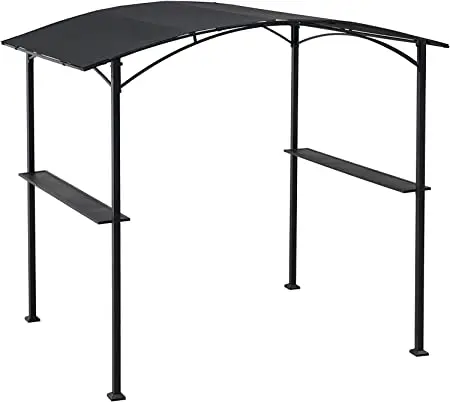

SUNJOY GROUP A103002000 Doutzen 5×8 ft. Black Steel Grill Gazebo Instruction Manual

Safety Information

• Two people are required for this assembly.
• Some parts may contain sharp edges. Wear protective gloves.
• When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal  injury and damage to equipment. Please read all instructions before assembly and usage.

CAUTION: Chair is for setting purpose only. Standing on or misuse of chair may result in damage or injury.
Not intended for commercial use. WEIGHT LIMIT 250LBS(113.5KG)
NOTICE: For outdoor use only

Warranty: 12 Months

WHAT IS COVER?

The limited warranty is extended to the original purchaser and applies to material and manufacturer’s defect provided the item is maintained with care and used only for personal, residential purposes.

WARNING:
Keep all children and pets away from assembly area.
Children and pets should be supervised when they are in the area of the Chair construction.
Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house, overhanging branches, laundry line or electrical wires.
Check all bolts for tightness before use. IMPORTANT check and tighten bolts often to keep them secure!

IMPORTANT

KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

How many people needed for the installation work

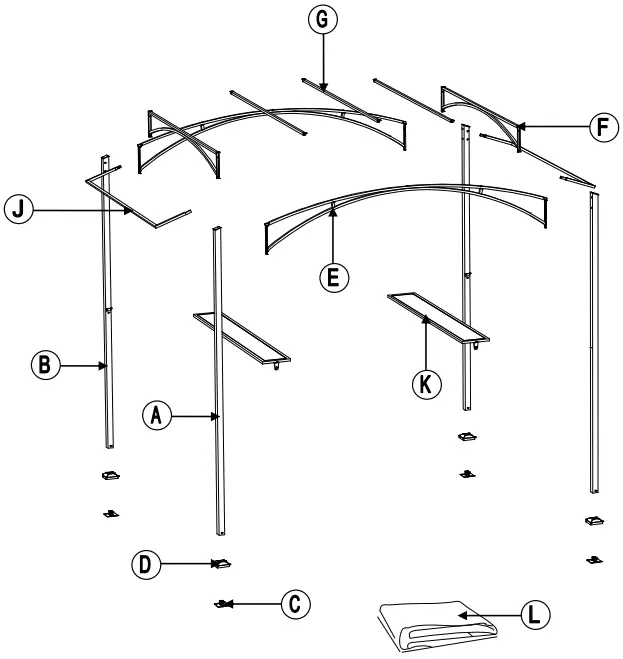

EXPLODED DRAWING

Parts List

Label	Part Number	Description	Qty	Part Image
A	P00020058201	Post 1	2
B	P00020058301	Post 2	2
C	P000100292	Post Base	4
D	P006100150	Base Cover	4

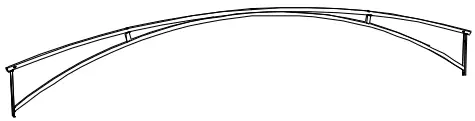

E	P000400040	Long Screen	2
F	P000400044	Short Screen	2

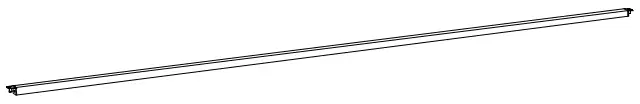

G	P000601201	Top Beam	3

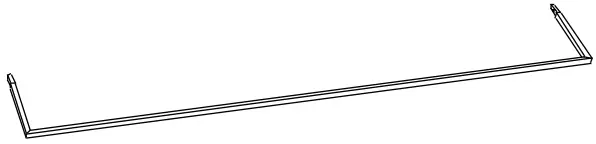

J	P000601202	Top Beam (Side)	2

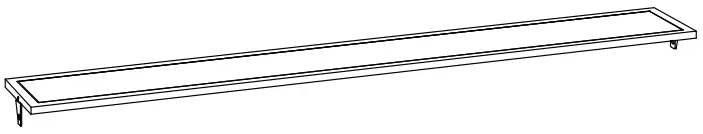

K	P002100283	Table Top	2

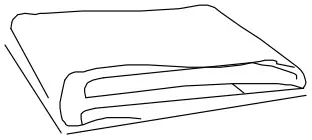

L	P001100477	Canopy	1

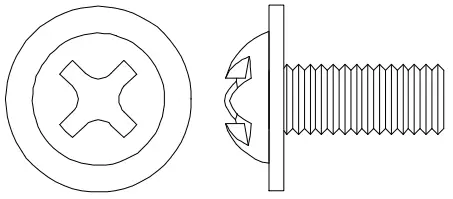

Hardware Pack

Assembly Instruction

Care and Maintenance

Before using, clean the Chair completely with a soft dry towel. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. Do not use strong detergent or abrasive cleaners. Over time nuts and bolts can loosen. Occasionally, check nuts and bolts, re-tighten if necessary.

Limited Manufacturer’s Warranty

SUNJOY Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 12 months from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes. Should any manufacturing defect arise within this warranty period, SUNJOY Group will replace (at our option) any defective merchandise or parts upon proof of purchase; however, transportation and delivery costs, as well as payments to a third party for assembly or disassembly of the item, remain the responsibility of the purchaser. A purchaser of an “open box,” previously-returned, or “clearance” item, as well as original purchasers outside of the warranty period, may obtain replacement parts from SUNJOY Group for products in current production, at nominal cost.

Exclusions

Items used for commercial, contract, or other non-residential purposes, or items damaged due to acts of nature, vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not covered. Proof of purchase (dated register receipt) is required for warranty claims. Warranty is to the original purchaser and is non-transferable. Any replacement of warranted items will be in the original style and color, or a similar style and  color if the original is unavailable or has been discontinued. As some states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

CONTACT US

24 hours / 7 days a week

  www.sunjoyonline.com
  [email protected]
