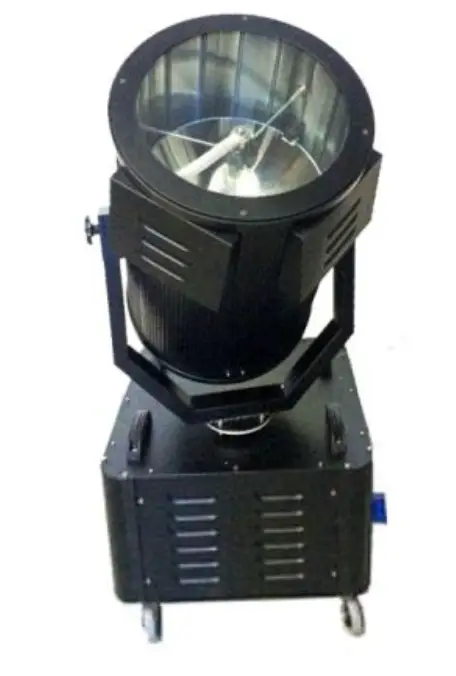

Light Sky F1700wb-p Energy Saving Outdoor Beam Light User Manual (+ PDF)

Home » Blog » Light Sky F1700wb-p Energy Saving Outdoor Beam Light User Manual

Contents hide

Channel	Value	Percentage	Function	Note
1	0-255	0-100	Pan
2	0-255	0-100	Pan Fine
3	0-255	0-100	Tilt
4	0-255	0-100	Tilt fine
5	0-255	0-100	Pan/Tilt speed
6			Function
	0-9		Reserved (0=default )
	10-14		RESET ALL
	15-19		RESET DIMMER SHUTTER
	20-24		RESET COLOR/COLOR
	25-29		RESET FRAMING
	30-34		RESET PT
	35-39		RESET ZOOM
	40-44		LAMP ON
	45-49		LAMP OFF
	50-54		Always
	55-59		Auto (30S)
	60-64		POWER MODE 1200 W
	65-69		POWER MODE 1400 W
	70-74		POWER MODE 1700 W
	75-255		Reserved
7			Shutter / strobe
	0 – 31		Shutter closed
	32 – 63		Shutter open (32=default )
	64 – 95		Strobe -effect from slow to fast）
	96 – 127		Shutter open
	128 – 143		Opening pulse in sequences from slow to fast/
	144 – 159		Closing pulse in sequences from fast to slow
	160 – 191		Shutter open
	192 – 223		Random strobe -effect from slow to fast
	224 – 255		Shutter open
8	0 – 255	0-100	Dimmer
9	0 – 255	0-100	Dimmer fine
10 11	0 – 255	0-100	Cyan
10 11	0 – 255	0-100	Magenta
12	0 – 255	0-100	Yellow
13	0 – 255	0-100	CTO/
14	0 – 255	0-100	Blade UP1
15	0 – 255	0-100	Blade UP2
16	0 – 255	0-100	Blade DW1
17	0 – 255	0-100	Blade DW2
18	0 – 255	0-100	Blade LF1

Channel /	Value / DMX	Percentage /	Function /	Note/
19	0 – 255	0-100	Blade LF2/
20	0 – 255	0-100	Blade RF1/
21	0 – 255	0-100	Blade RF2/
22	0 – 255	0-100	Framing Rot./
23			Framing Mac.
	0 — 10		No function
	11 — 20		Square
	21 — 30		Rectangle
	31 — 40		Regular triangle
	41 — 50		Iisosceles trapezoid
	51 — 60		Sector
	61 — 70		Semicircle
	71 — 255		Parallelogram
24	0 – 255	0-100	Framing Mac. Zoom
25	0 – 255	0-100	Zoom
26	0 – 255	0-100	Focus
27	0 – 255	0-100	Focus Fine
28	0-255	0-100	Auto Fin.
29			Auto Dis.
	0 – 9		No function
	10 — 19		10M
	20 — 29		15M
	30 — 39		20M
	40 — 49		30M
	50 — 59		40M
	60 — 255		50M
30			Iris
	0 – 127		Maximum to minimum aperture
	128 – 159		Slow in and fast out from slow to fast
	160 – 191		Fast in and slow out from slow to fast
	192 – 255		Slow in Slow out from slow to fast
31			Frost 1
	0 – 127		Minimum atomization to maximum atomization
	128 – 159		Slow in and fast out from slow to fast
	160 – 191		Fast in and slow out from slow to fast
	192 – 255		Slow in Slow out from slow to fast
32			Frost 2
	0 – 127		Minimum atomization to maximum atomization
	128 – 159		Slow in and fast out from slow to fast
	160 – 191		Fast in and slow out from slow to fast
	192 – 255		Slow in Slow out from slow to fast
