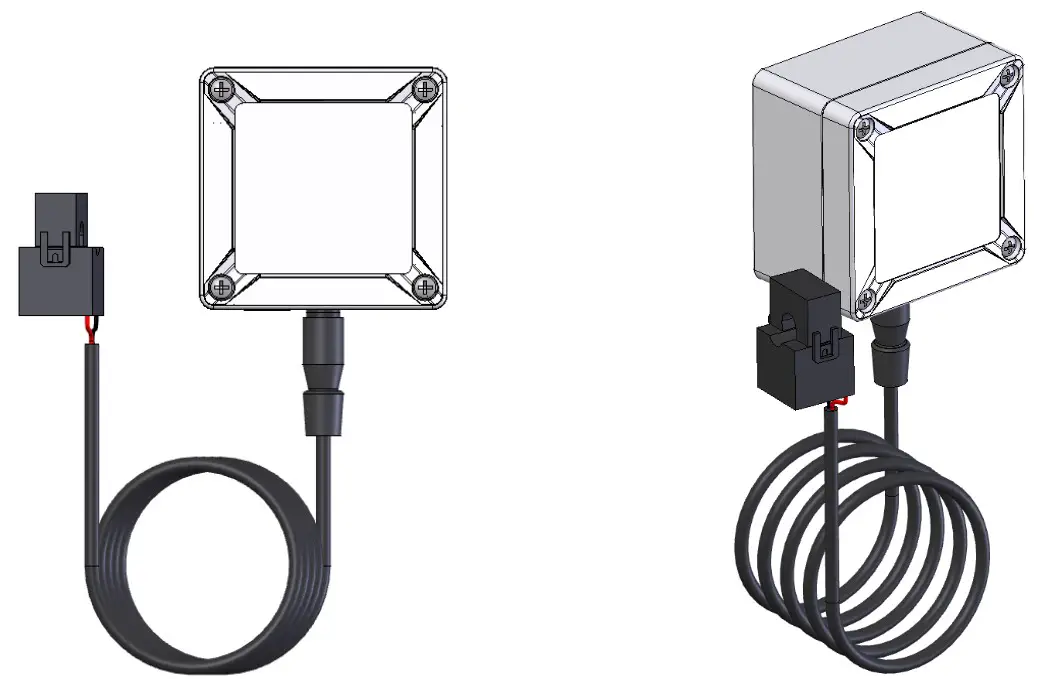

WATTECO Intens’O Electric Current Intensity Measurement

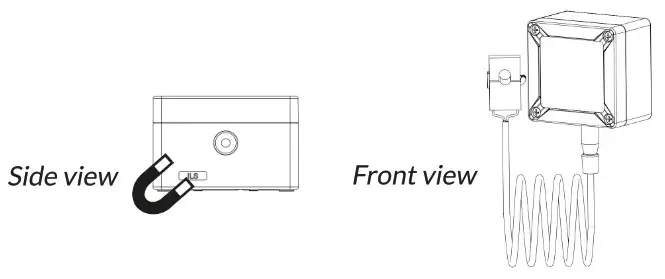

Start
Provision the device on your LoRaWAN® network with the keys available on the secure platform.

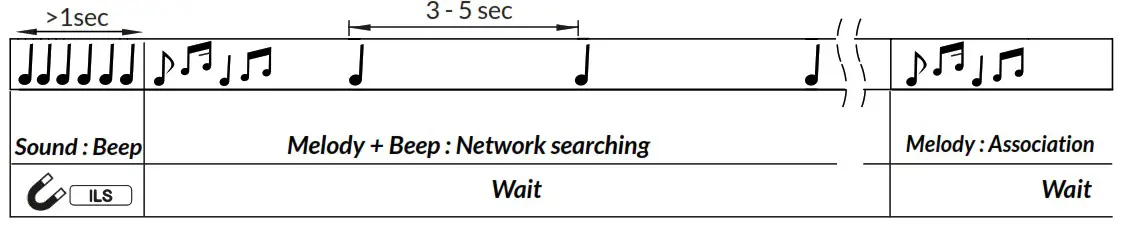

ON

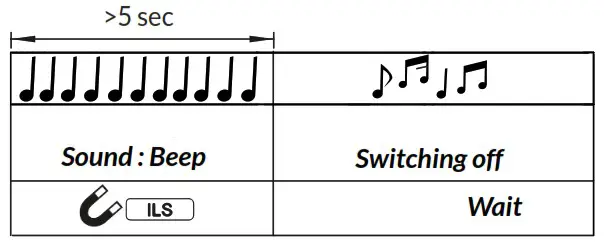

OFF
ON-OFF
https://www.watteco.fr/assistance/tutoriels-video/
Installation Setting up

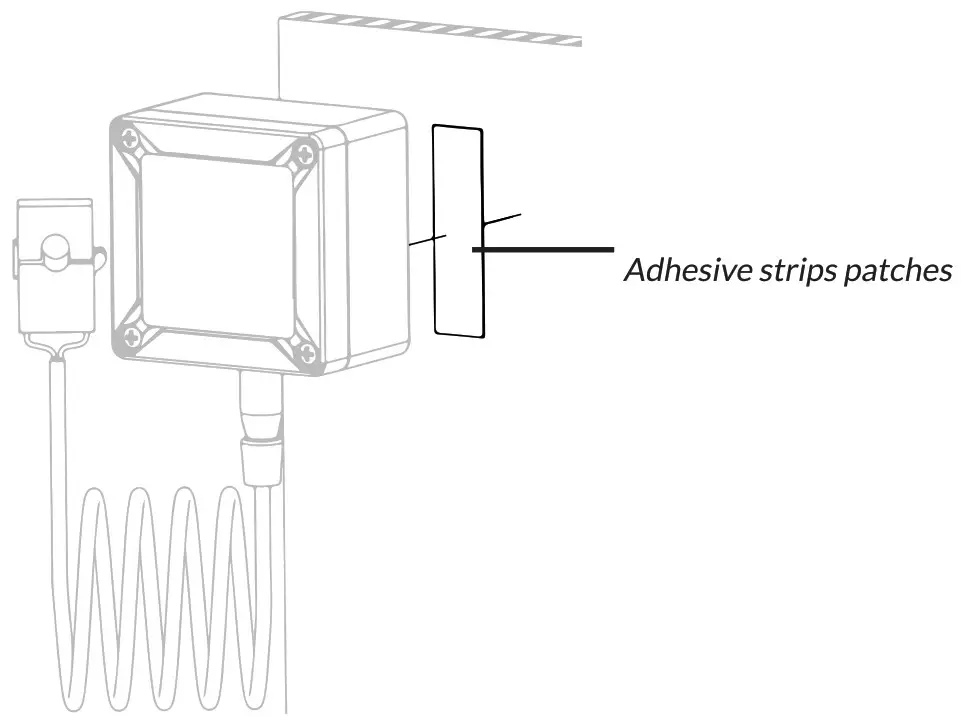

Place the adhesive strips patches together on the back of the case and press the whole assembly very firmly against the wall.

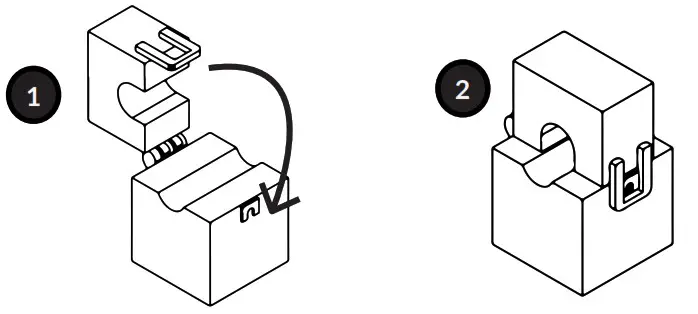

The transformer should clip around a «phase» or «neutral» cable and a slight «click» should be heard.

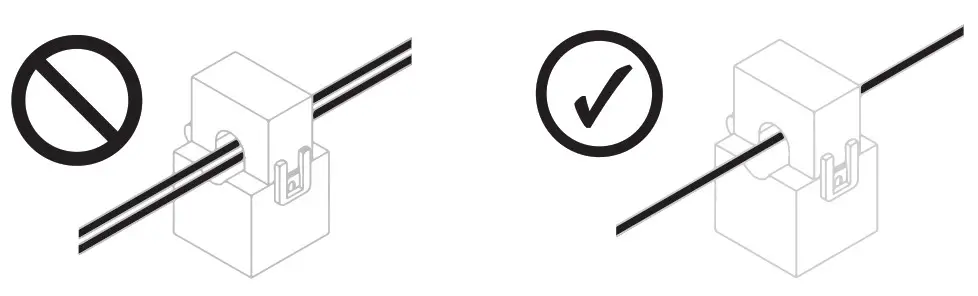

The two wires should not be placed together in the current transformer. There is no direction for the transformer to follow.

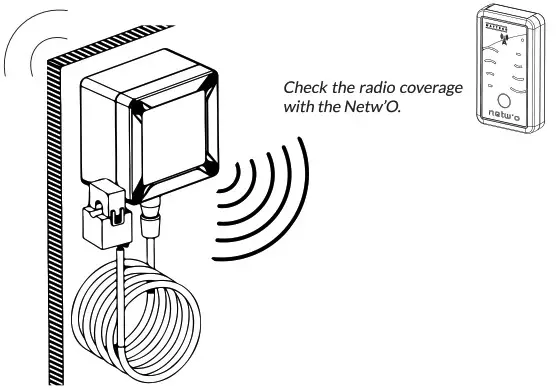

Radio propagation
For the sensor communicates correctly, the number of obstacles should be limited to avoid excessive radio attenuation.
Characteristics
| Reference | 50-70-098 |
| Class | A |
| Power Level | +14 dBm |
| Measures : | Current intensity |
| Accessory: | Current clamp |
| Antenna | Internal |
| Casing materials | PC UL 94 HB |
| IP rating | IP55 (except for the current clamp) |
 |  |
| https://www.watteco.fr/assistance/centre-de-telechargement/ |
Watteco represented by JC LE BLEIS, declares that the radio equipment type 50-70-098 is in conformity with Directive 2014/53/EU (RED). The full text of the EU Declaration of Conformity is available at the following web address: https://www.watteco.com/assistance/download-center/
IoT device manufacturer
Thanks for choosing WATTECO devices
Intens’O 50-70-098 33-70-049-000
