Stanley Pbcc65 Cutting Tool User Manual

PBCC65
CUTTING TOOL

USER MANUAL
Safety, Operation, and Maintenance

IMPORTANT

To fill out a product warranty validation form and for information on your warranty, visit www.stanleyinfrastructure.com and select the Company tab > Warranty.
Note: The warranty validation record must be submitted to validate the warranty.
SERVICING: This manual contains safety, operation, and routine maintenance instructions. STANLEY Infrastructure recommends that servicing of hydraulic tools, other than routine maintenance, must be performed by an authorized and certified dealer. Please read the following warning.

SERIOUS INJURY OR DEATH COULD RESULT FROM THE IMPROPER REPAIR OR SERVICE OF THIS TOOL.
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER.
For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative.

SAFETY SYMBOLS

Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance, and repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury, or damage to equipment.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
This safety alert and signal word indicate an imminently hazardous situation that, if not avoided, will result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation that, if not avoided, could result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION This signal word indicates a potentially hazardous situation which, if not avoided, may result in property damage.
NOTICE This signal word indicates a situation which, if not avoided, will result in damage to the equipment.
IMPORTANT This signal word indicates a situation which, if not avoided, may result in damage to the equipment.

Always observe safety symbols. They are included for your safety and for the protection of the tool.
LOCAL SAFETY REGULATIONS
Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel.

SAFETY PRECAUTIONS

Tool operators must comply with precautions given in this manual and on the stickers attached to the tool. These precautions are given for your safety. Review them carefully before operating the tool. Supervising personnel should develop additional precautions relating to the specific work area and local safety regulations. Place the added precautions in the space provided on page 4. PBCC65 6-Ton cable cutting tool will provide safe and dependable service if operated in accordance with the instructions in this manual. Read and understand this manual and the stickers attached to the tool before operation. Failure could result in injury or tool damage.

• Do not operate the tool unless thoroughly trained or under the supervision of an instructor. Establish a training program for all operators to ensure safe operation.
• Always wear safety equipment such as eye protection, ear protection, head protection, and safety shoes at all times when operating the tool. Use gloves if necessary.
• The operator must be familiar with all prohibited work areas such as excessive slopes and dangerous terrain conditions. Ensure that your footing is firm and in balance at all times.
• Do not inspect, clean, or replace parts while the battery is connected. Accidental engagement of the tool can cause serious injury.
• Do not operate a damaged, improperly adjusted, or incompletely assembled tool.
• Never wear loose clothing that can become entangled in the working parts of the tool.
• Keep all parts of your body away from pinch points. Long hair or loose clothing can become drawn into the tool.
• To avoid personal injury or equipment damage, all tool repair, maintenance and service must be performed by an authorized service center.
• Never use the tool in the vicinity of flammable materials or gases.
• Do not use the tool or charge the tool battery in an explosive atmosphere.
• Cutting or severing of body parts is possible if proper procedures are not followed.
• Do not use the tool, battery, or battery charger for purposes other than what is described in this manual.
• Always keep critical tool markings, such as labels and warning stickers, legible. Contact STANLEY for replacement labels.
• Do not use the tool while under the influence of drugs or alcohol.
• Do not use accessories or attachments other than those recommended by STANLEY.

BATTERIES

• Only charge batteries with a STANLEY recommended battery charger.
• Do not store batteries with metal objects, such as coins, nails or keys. Fire can result if battery terminals are shorted.
• Do not charge a damaged battery. Recycle damaged batteries and replace them with batteries recommended by STANLEY.
• Do not incinerate or dispose of batteries in the garbage. Recycle the batteries.
• Do not expose the battery to temperatures over 265°F. Batteries may explode at high temperatures.
• Leakage of liquid from the battery may occur under extreme use or at high temperatures. If battery liquid gets on your skin:
  1. Wash quickly with soap and water.
  2. If the liquid gets in your eyes, flush your eyes with clean water for 10 minutes. Seek medical attention immediately.
• Never open the battery.

BATTERY CHARGER

• Do not use the battery charger if the cord is damaged.
• Do not place the charger, or set items on or near the charger, in such a way as to block airflow to the charger.
• Do not use the charger with an extension cord unless absolutely necessary. Use a cord with the proper wire size for its length, as described in Table 1.

• Do not open the charger or attempt to modify it in any way.
• Disconnect the charger from power before attempting to clean it.
• Do not connect the charger to a transformer or engine generator.

TOOL ANATOMY

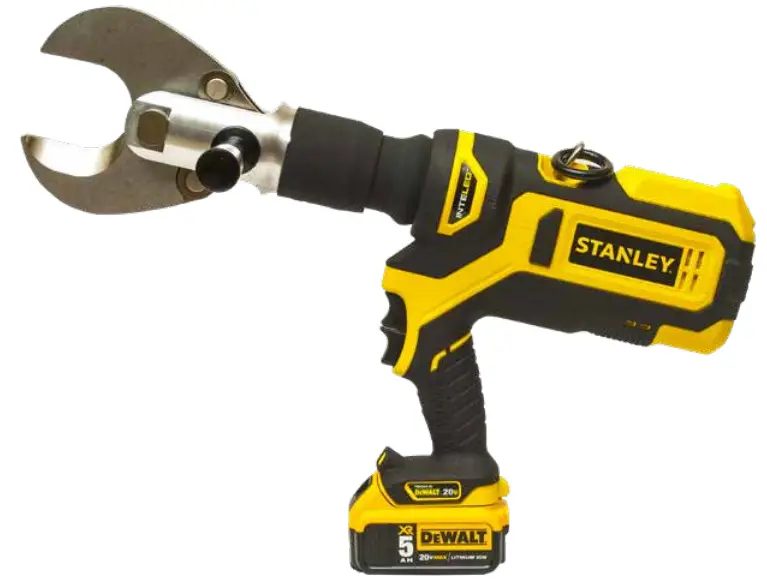

WHAT IS THE PBCC65 CUTTING TOOL?
The PBCC65 is a battery-powered 6-ton cable cutting tool with a 2.55 inch scissor head. The PBCC65 is capable of cutting copper and aluminum cable and rod up to 2.5 Inches in diameter.

DO NOT put fingers, hands, or other body parts between the cutting head. Serious injury will result!

SPECIFICATIONS & ACCESSORIES

SPECIFICATIONS

Cutting Force ……………………….6 Tons (58.8 kN)
Cutting Capacity …………………………………… Copper & Aluminum to 2.5”
Jaw Type ………………………………………………………………2.55” Scissor
Estimated Cuts per Battery Charge ……………………………………………..80
Tool Cycle Time ……………………………………………………………..7.2 Seconds
Battery Type …………………………………………………….DEWALT 20V Max, 5 amp/hour
Tool Weight ………………………………………………………………… 16.5 Lbs.
Tool Length …………………………………………………………….. 20.8 Inches
Maintenance Interval ………………………………… 15,000 Cycles

ACCESSORIES
5 Amp/hour Lithium Ion Battery …………………………………. 81188
120V AC Charger ……………………………………………………. 81189
12V DC Charger …………………………………………………….DCB119
Note: Only use battery chargers recommended by STANLEY.
Bucket Bag ………………………………………………………. BB01

OPERATION

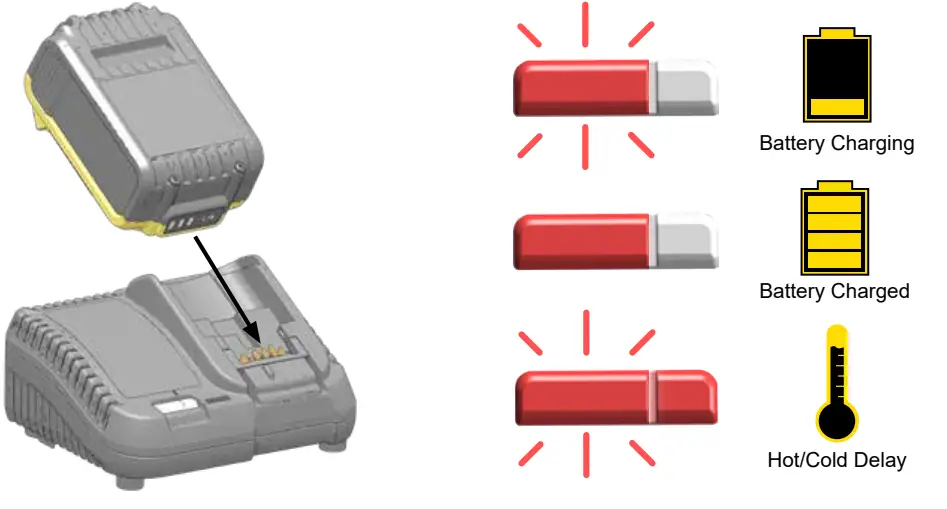

CHARGE BATTERY

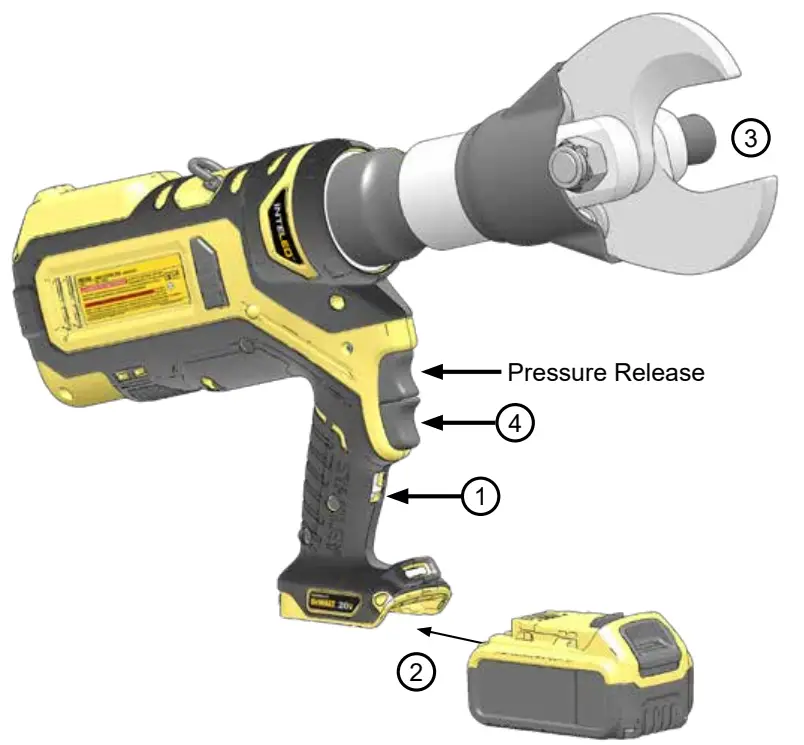

USING THE PBCC65

DO NOT put fingers, hands, or other body parts between the cutting head. Serious injury will result!

1. Set the trigger lock.
2. Insert battery.
3. Fasten the cutting head around the cable.
4. Release the trigger lock. Press and hold the trigger until the cable is cut. Press and hold the pressure release to open the cutting head.
   Note: Release the trigger to immediately stop the tool. Press the pressure release at any time to open the jaws.

INTELED SYSTEM
The InteLED light ring shows the status of the cut in real-time.
White – The tool is cutting. InteLED will stay lit for 30 seconds after the cut is complete.
Green – The tool has developed full hydraulic pressure during the cut.
Red – The tool did not develop full pressure during the cut. You may need to cycle the tool again.

CHECKING BATTERY CHARGE

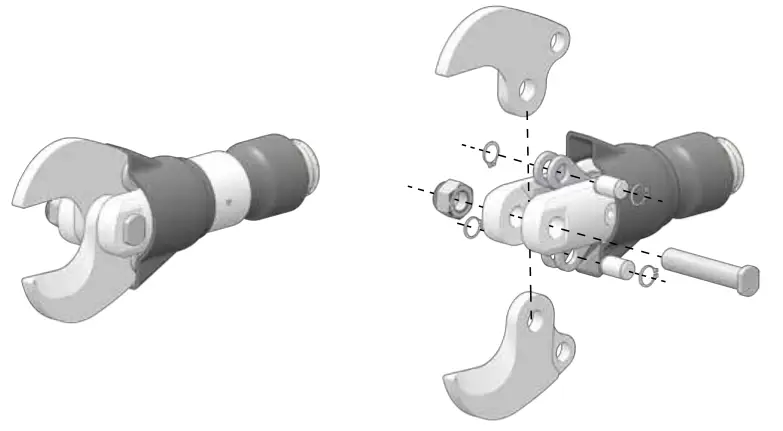

REPLACING THE BLADES

DO NOT install or change blades while the battery is connected to the tool. Disconnect the battery BEFORE installing or changing blades.

TROUBLESHOOTING

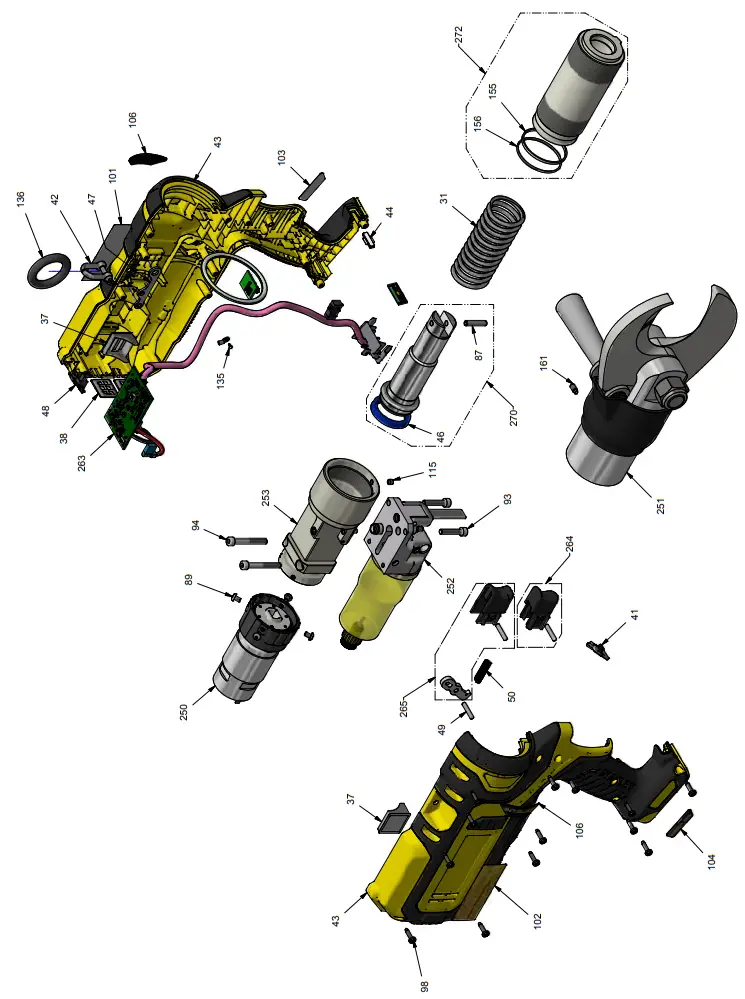

PBCC65 PARTS ILLUSTRATION

PBCC65 PARTS LIST

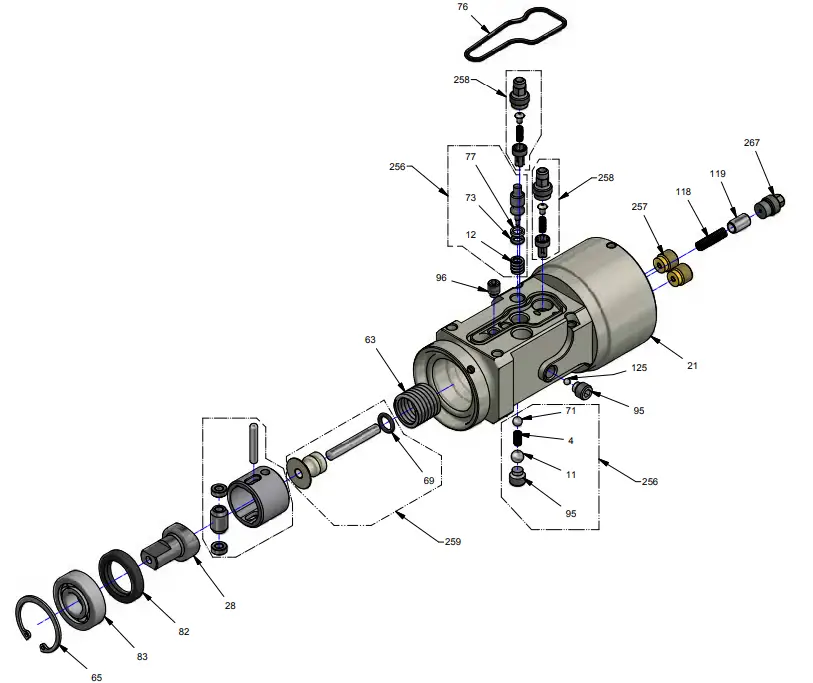

PBCC65 HYDRAULIC BODY ILLUSTRATION

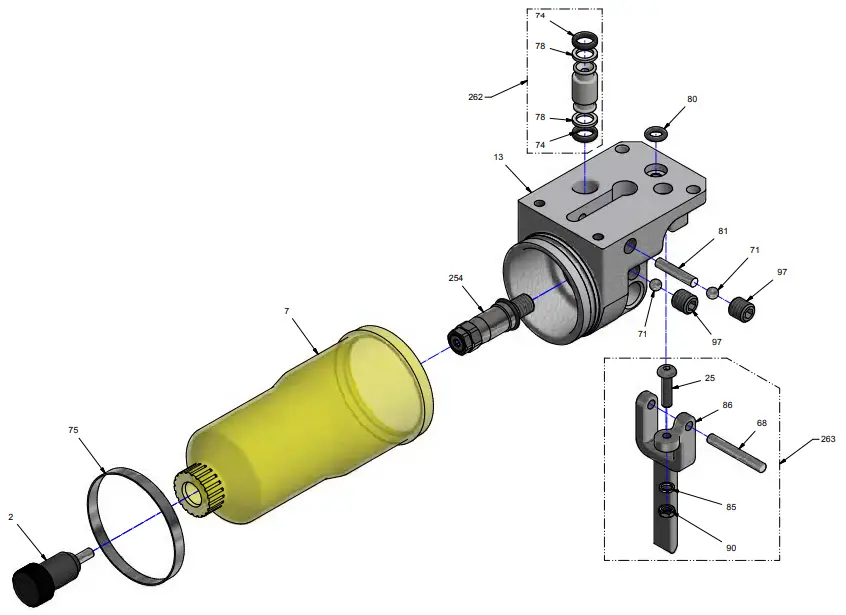

PBCC65 RESERVOIR PARTS LIST

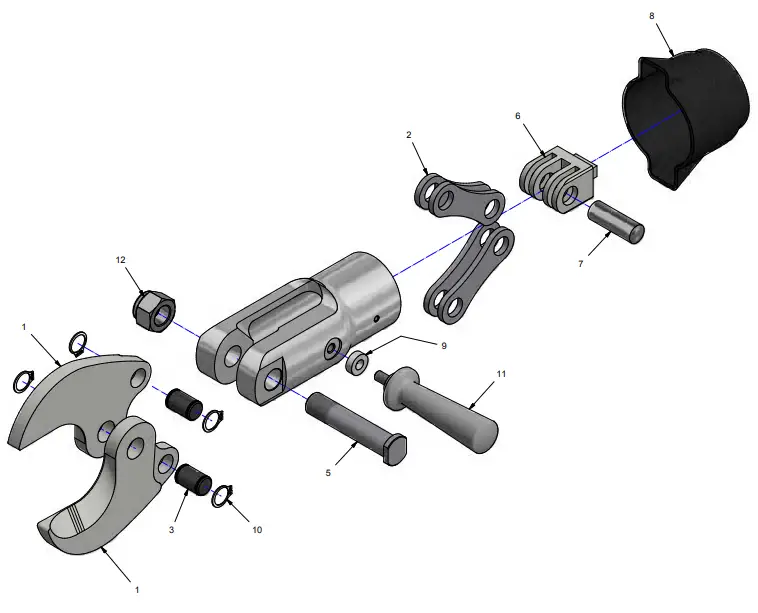

PBCC65 CUTTING HEAD

STANLEY Infrastructure
6430 SE Lake Road
Portland, Oregon 97222 USA
(503) 659-5660 / Fax (503) 652-1780
www.stanleyinfrastructure.com
© 2017 STANLEY Black & Decker, Inc.
New Britain, CT 06053
U.S.A.
81144 3/2022 Ver. 5
