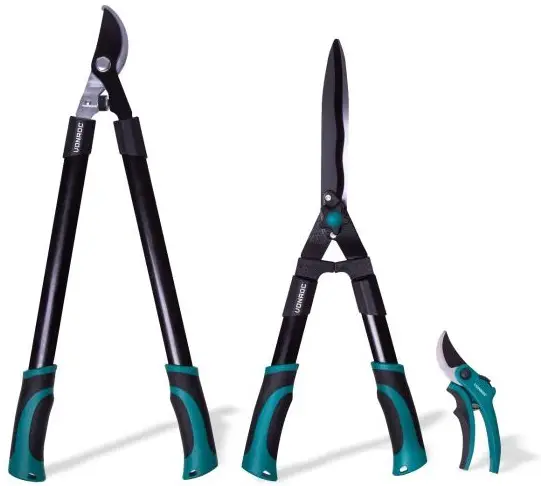

VONROC GC501XX Garden Cutting Tool Set Instructions
PRODUCT INFORMATION
Intended use
These garden cutting tools are only intended for cutting fresh branches and twigs from shrubs, bushes, ornamental plants, hedges and small trees.
SPECIFICATIONS
| Model No. | GC501XX |
| Lopper (fig. A) | |
| Application | Cutting fresh wood |
| Safety lock | No |
| Max. cutting diameter | Ø 30mm |
| Total length | 630mm |
| Blade length | 70mm |
| Hedge shears (fig. B) | |
| Application | Cutting hedge, shrub or bush |
| Safety lock | No |
| Max. cutting diameter | Ø 6mm |
| Total length | 570mm |
| Blade length | 229mm |
| Secateurs (fig. C) | |
| Application | Cutting flowers and young, fresh shoots |
| Safety lock | Yes |
| Max. cutting diameter | Ø 15mm |
| Total length | 205mm |
| Blade length | 50mm |
DESCRIPTION
- Lopper
- Hedge shears
- Secateurs
- Handle
- Top blade
- Bottom blade
- Locking knob
- Adjusting knob
- Nut
- Bolt
- Spring
- Buffer
ADJUSTMENT

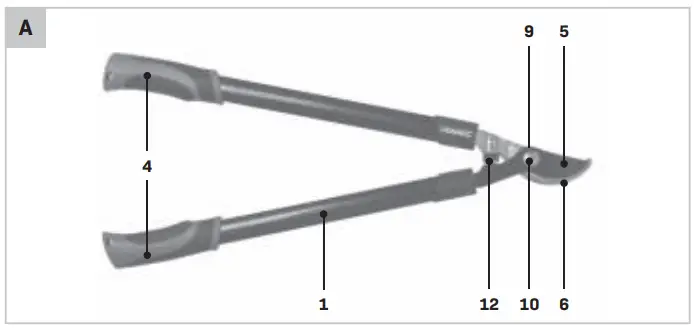

Lopper (Fig. A)
The lopper (1) is well adjusted by default, but the bolt (10) may loosen slightly with use. You can tighten or loosen the bolt (10) and nut (9) to the desired tightness. Too loose blades can cause the lopper to break. It should be tightened as tight as possible, but it should still be good to use. The required tightness can be determined by practical tests.
Hedge shears (Fig. B)
The hedge shears (2) is well adjusted by default, but the adjusting knob (8) may loosen slightly with use. You can tighten or loosen the adjustment knob (8) to the desired tightness. Too loose blades can cause the shears to break. It should be tightened as tight as possible, but it should still be good to use. The required tightness can be determined by practical tests.

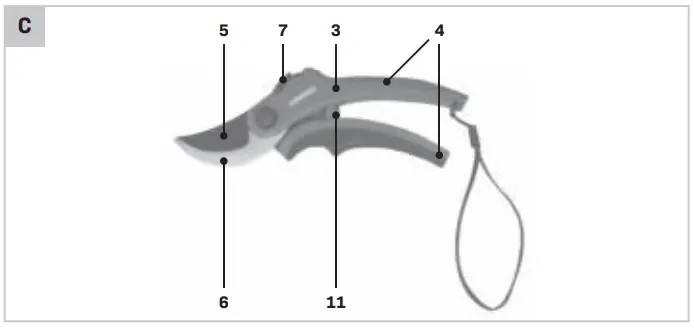

Secateurs (Fig. C)
- Slide the locking knob (7) backward to unlock the handles (4).
- Use the secateurs.
- After use push the secateurs handles (4) together and slide the locking knob (7) forward to lock the handles (4).
MAINTENANCE
Cleaning
NOTICE! Risk of product damage! Never submerge products in water while cleaning.
Do not use cleaning agents or solvents.
Wipe the device using a dry cloth.
Cutting blade
- Always wear gloves when handling or cleaning the cutting blades.
- Clean the cutting blades and spray with a protective oil after every use. We recommend lubricating the cutting blade with protective oil at regular intervals during long working periods.
- Visually inspect the condition of the cutting blade.
Storage
The cutting tools should be kept in a safe, dry place, well out of the reach of children. Do not place other objects on top of it.
WARRANTY
VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.
The following circumstances are excluded from this guarantee:
- Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
- Normal wear and tear;
- The tool has been abused, misused or improperly maintained;
- Non-original spare parts have been used.
This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages.
The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.
The product and the user manual are subject to change. Specifications can be changed without further notice.
