STANLEY PBCC40 Cutting Tool User Manual

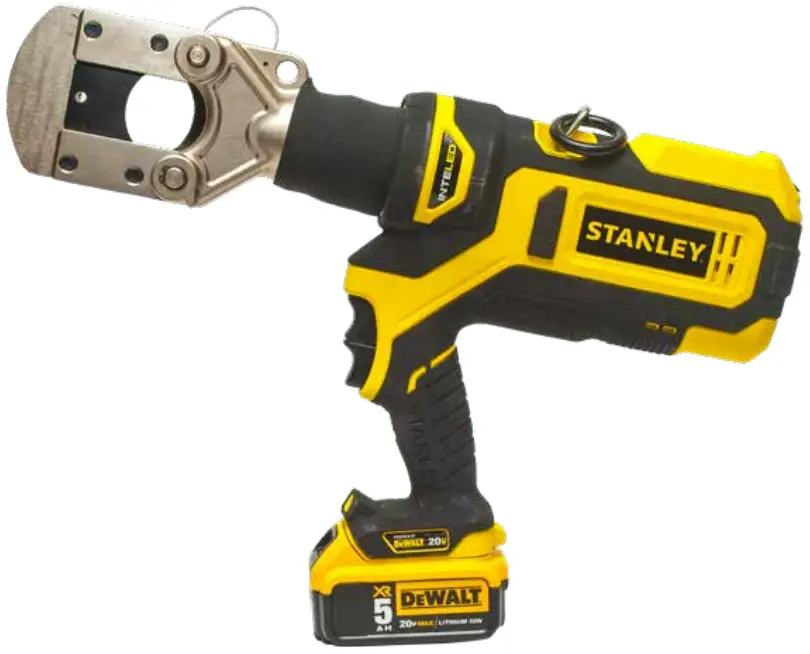

STANLEY PBCC40 Cutting Tool

Important

To fill out a product warranty validation form, and for information on your warranty, visit www.stanleyinfrastructure.com and select the Company tab > Warranty.

Note: The warranty validation record must be submitted to validate the warranty

Warning Icon Warning

SERIOUS INJURY OR DEATH COULD RESULT FROM THE IMPROPER REPAIR OR SERVICE OF THIS TOOL.

REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER.

SAFETY SYMBOLS

Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equipment.

Warning Icon  This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Warning Icon Danger: This safety alert and signal word indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Warning Icon Warning: This safety alert and signal word indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Warning Icon Caution: This safety alert and signal word indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury

Caution: This signal word indicates a potentially hazardous situation which, if not avoided,
may result in property damage.

Notice: This signal word indicates a situation which, if not avoided, will result in damage
to the equipment.

Important: This signal word indicates a situation which, if not avoided, may result in damage to the equipment.

Always observe safety symbols. They are included for your safety and for the protection of the tool.

LOCAL SAFETY REGULATIONS

Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel.

SAFETY PRECAUTIONS

Tool operators must comply with precautions given in this manual and on the stickers attached to the tool.

These precautions are given for your safety. Review them carefully before operating the tool.
Supervising personnel should develop additional precautions relating to the specific work area and local safety regulations.
Place the added precautions in the space provided on page 4.
PBCC40 8.8-Ton cable cutting tool will provide safe and dependable service if operated in accordance with the instructions in this manual. Read and understand this manual and stickers attached to the tool before operation. Failure could result in injury or tool damage.
Safety Icon

  • Do not operate the tool unless thoroughly trained or under the supervision of an instructor. Establish a training program for all operators to ensure safe operation.
  • Always wear safety equipment such as eye protection, ear protection, head protection and safety shoes at all times when operating the tool. Use gloves if necessary.
  • The operator must be familiar with all prohibited work areas such as excessive slopes and dangerous terrain conditions. Ensure that your footing is firm and in balance at all times.
  • Do not inspect, clean or replace parts while the battery is connected. Accidental engagement of the tool can cause serious injury.
  • Do not operate a damaged, improperly adjusted or incompletely assembled tool.
  • Never wear loose clothing that can become entangled in the working parts of the tool.
  • Keep all parts of your body away from pinch points. Long hair or loose clothing can become drawn into the tool.
  • To avoid personal injury or equipment damage, all tool repair, maintenance and service must be performed by an authorized service center.
  •  Never use the tool in the vicinity of flammable materials or gases.
  • Do not use the tool or charge the tool battery in an explosive atmosphere.
  • Cutting or severing of body parts is possible if proper procedures are not followed.
  • Do not use the tool, battery or battery charger for purposes other than what is described in this manual.
  • Always keep critical tool markings, such as labels and warning stickers, legible. Contact STANLEY for replacement labels.
  • Do not use the tool while under the influence of drugs or alcohol.
  • Do not use accessories or attachments other than those recommended by STANLEY.
BATTERIES
  • Only charge batteries with a STANLEY recommended battery charger.
  • Do not store batteries with metal objects, such as coins, nails or keys. Fire can result if battery terminals are shorted.
  • Do not charge a damaged battery. Recycle damaged batteries and replace them with batteries recommended by STANLEY.
  • Do not incinerate or dispose of batteries in the garbage. Recycle the batteries.
  • Do not expose the battery to temperatures over 265°F. Batteries may explode at high temperatures.
  • Leakage of liquid from the battery may occur under extreme use or high temperatures. If battery liquid gets on your skin:
    1. Wash quickly with soap and water.
    2. If the liquid gets in your eyes, flush your eyes with clean water for 10 minutes. Seek medical attention immediately.
  • Never open the battery
BATTERY CHARGER
  • Do not use the battery charger if the cord is damaged.
  • Do not place the charger, or set items on or near the charger, in such a way as to block airflow to the charger.
  • Do not use the charger with an extension cord unless absolutely necessary. Use a cord with the proper wire size for its length, as described in Table 1.
    Length of Cord (Feet)2550100150
    Wire Size (AWG)18181816
  • Do not open the charger or attempt to modify it in any way.
  • Disconnect the charger from power before attempting to clean it.
  • Do not connect the charger to a transformer or engine generator.

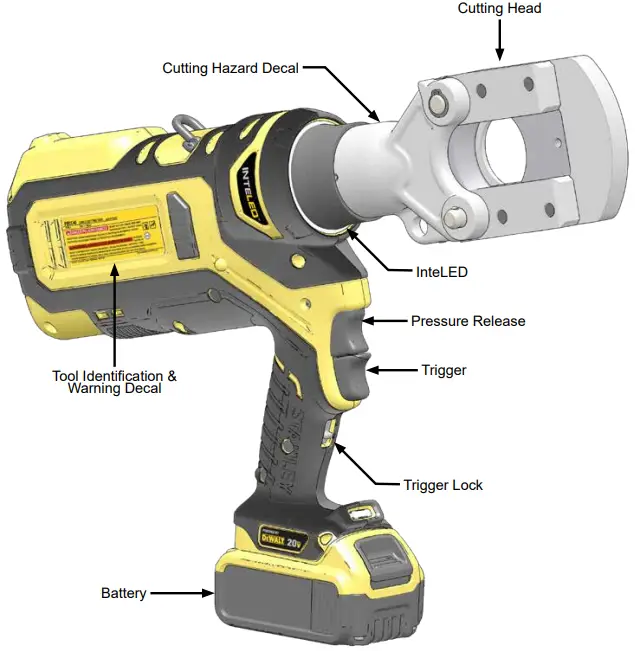

TOOL ANATOMY

WHAT IS THE PBCC40 CUTTING TOOL?

The PBCC40 is a battery powered 8.8-ton cable cutting tool with a 1.57 inch guillotine style head. The PBCC40 is capable of cutting aluminum rod up to 1.5 inches in diameter, copper rod up to 1 inch in diameter and steel rod up to 3/4 inch in diameter.

Warning Icon Danger: DO NOT put fingers, hands or other body parts between the cutting head. Serious injury will result!
Tool Anatomy

SPECIFICATIONS & ACCESSORIES

Cutting Force: 8.8 Tons (86.3 kN)
Cutting Capacity: Copper & Aluminum to 2000 MCM ACSR to 1590 Steel Cable to .75”
Aluminum Rod to 1.5” Copper Rod to 1” Steel Rod to .75”
Jaw Type: 1.57” Guillotine
Estimated Cuts per Battery Charge: 80
Tool Cycle Time:  6.5 Seconds
Battery Type: DEWALT 20V Max, 5 amp/hour
Tool Weight: 16.7 Lbs.
Tool Length: 18.5 Inches
Maintenance Interval: 15,000 Cycles

ACCESSORIES

5 Amp/hour Lithium Ion Battery : 81188
120V AC Charger : 81189
12V DC Charger: DCB119
Note: Only use battery chargers recommended by STANLEY.
Bucket Bag: BB01

OPERATION

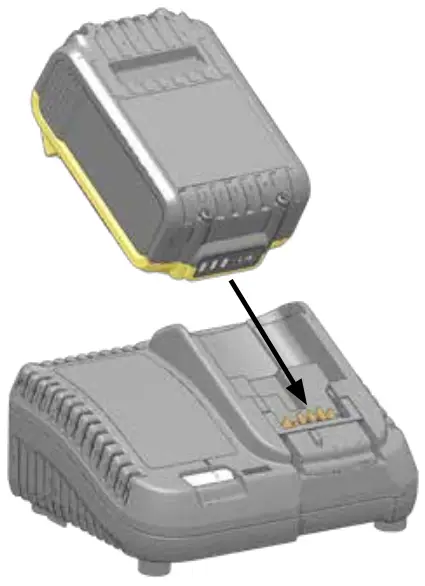

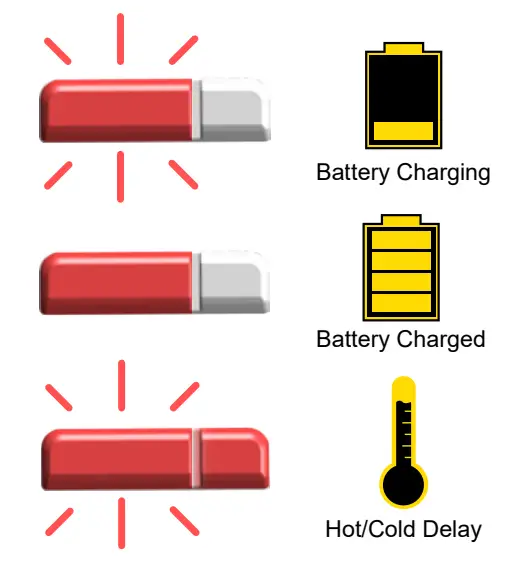

CHARGE BATTERY
CHARGE BATTERY
CHARGE BATTERY

USING THE PBCC40

Danger:
Warning Icon DO NOT
put fingers, hands or other body parts between the cutting head. Serious injury will result!

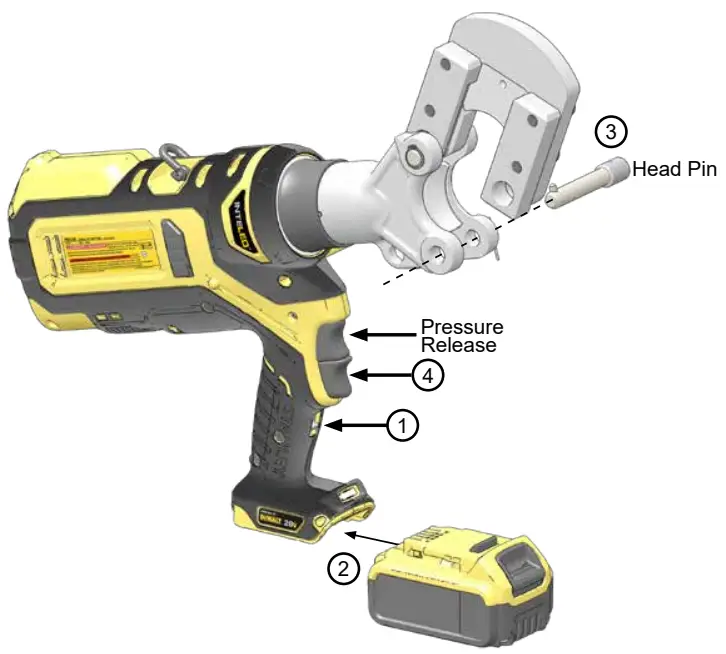

Using The PBCC40

  1. Set the trigger lock.
  2. Insert battery.
  3. Fasten the cutting head around the cable.
  4. Release the trigger lock. Press and hold the trigger until the cable is cut. Press and hold the pressure release to open the cutting head.

Note: Release the trigger to immediately stop the tool. Press the pressure release at
any time to open the jaws.

INTELED SYSTEM

The Intel LED light ring shows the status of the cut in real-time.
White:  The tool is cutting. Intel LED will stay lit for 30 seconds after the cut is complete.
Green:  The tool has developed full hydraulic pressure during the cut.
Red:  The tool did not develop full pressure during the cut. You may need to cycle the tool again.

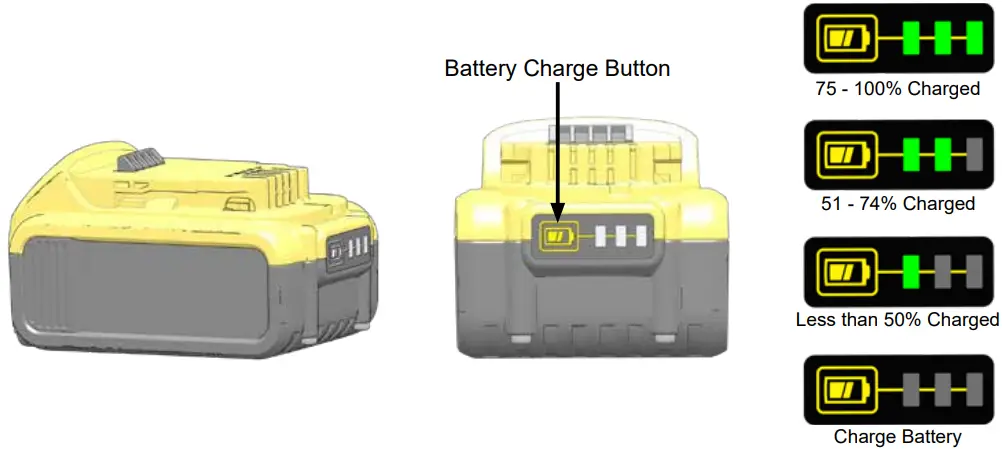

CHECKING BATTERY CHARGE

CHECKING BATTERY CHARGE

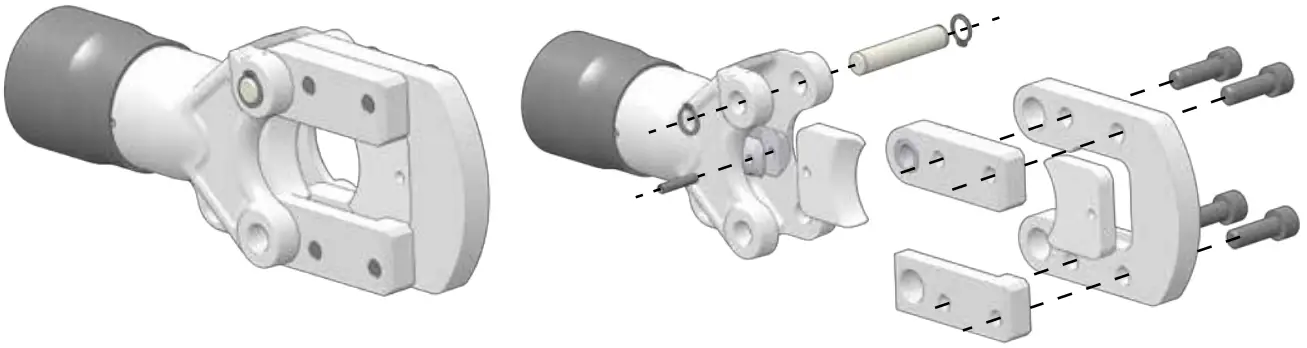

REPLACING THE BLADES

Warning Icon Danger:
DO NOT
install or change blades while the battery is connected to the tool. Disconnect the battery BEFORE installing or changing blades.
REPLACING THE BLADES

TROUBLESHOOTING

ProblemSolution
The head pin won’t fit through the hole in the cutting head.Press and hold the pressure release. Ensure the two halves of the cutting head are aligned. Close the cutting head and insert the head pin.
The tool won’t cut when I press the trigger.Ensure the battery is charged. Disengage the trigger lock.
The InteLED flashes yellow when I activate the tool.The maintenance interval is about to elapse. Have the tool serviced as soon as possible.
The tool repeatedly give me bad cuts / The InteLED flashes red after every crimp.Ensure the battery is fully charged. Ensure the blades are in good condition. If problem persists, have the tool serviced as soon as possible.
The tool is leaking hydraulic oil.Have the tool serviced immediately.

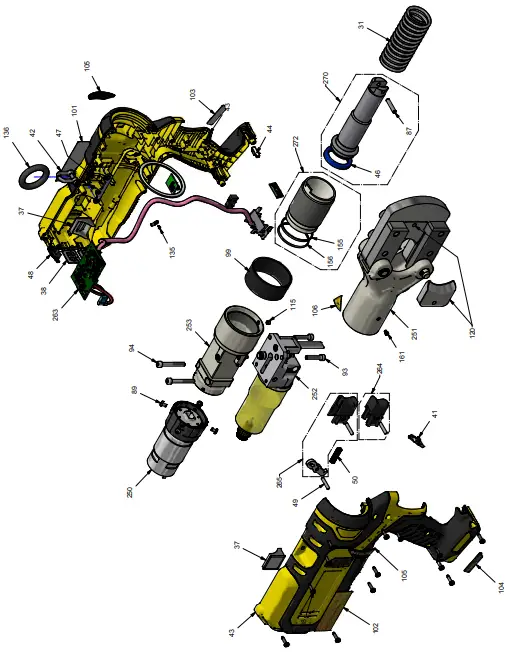

PBCC40 PARTS ILLUSTRATION

PBCC40 PARTS ILLUSTRATION

ITEMP/NQTYDESCRIPTION
3136056DUB1Spring
37916492Side Membrane
38916502Rear Membrane
41916551Trigger Lock
4277058-011Shackle
4391593-STA1Housing Set
44914391LED
46JP3240601Seal
4777051-011Shackle Holder
48914101USB Cover
49AIG4X19.8BP1Calibrated Pin
50770611Spring
87AGEM5.241Elastic Pin
89VAV04CB0064Screw
93VAV05HC0252Screw
94VAV05HC0402Screw
98VAV3.5TC014ZN13Screw
99913501Protection Cover
101916331STANLEY Label
102916421PBCC40 Label
103916341“Powered by De- Walt” Label – Left
104916351“Powered by De- Walt” Label – Right
105916362InteLED Label
106ZSETPD3371Crush Hazard Label
115VAV05CV0051Screw
12036052DUB1Screw
135ACKR02041Grooved Pin
136914651Strip Ring
155JAE45001251Anti-Extrusion Ring
156J37401801O-Ring
161VAV05TT006L1Screw
250918561Motor Reduction Unit
2511Cutting Head Unit
2521Reservoir Unit
2531Hydraulic Unit
263928861Electronic Device
26477853-STA1Advance Trigger Unit
26577854-DEW1Release Trigger Unit
ITEMP/NQTYDESCRIPTION
27036818C1Piston Unit
27278805C-011Sleeve Unit

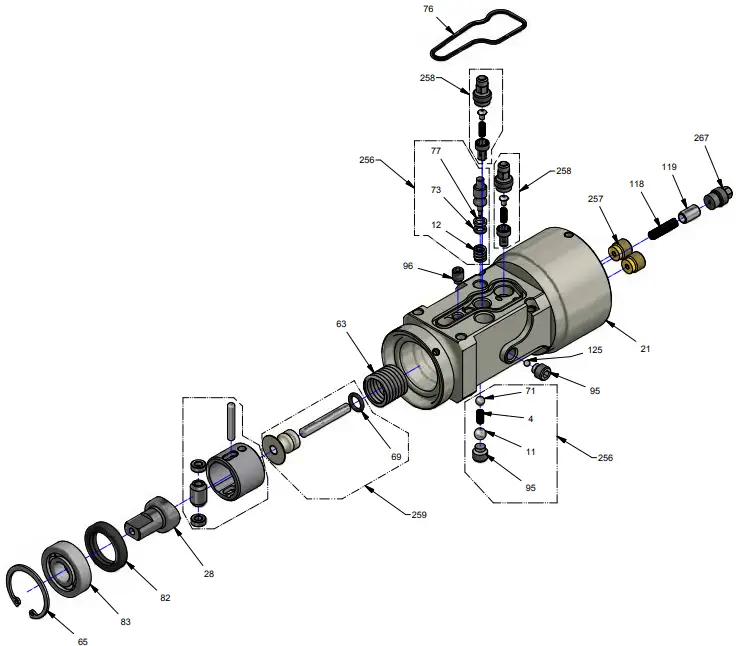

PBCC40 HYDRAULIC BODY ILLUSTRATION

PBCC40 HYDRAULIC BODY ILLUSTRATION

ITEMP/NQTYDESCRIPTION
4775041Spring
11BILL06.351Ball
1230189DUB1Spring
21915711Hydraulic Body
2877026-041Spring
63872131Spring
65AAIN301Circlip
69J07201901O-Ring
71BILL04.761Ball
73J0290178PU701O-Ring
76J43002001O-Ring
77JAE05001001Anti-extrusion Ring
82JSR19272051Wiper Ring
83R1B12.30.08Z1Ball Bearing
ITEMP/NQTYDESCRIPTION
95VIV08TT0082Screw
96VAV06TT0081Screw
118770301Spring
119770161Sliding Part
125BILL03.1751Ball
256778031Release Device
25777805-012Delivery Valve Unit
25877806-011Succion Valve Unit
25977848C-021Spring Collar Unit
26077849C1Cam Compartment Unit
26777804C1Commutator

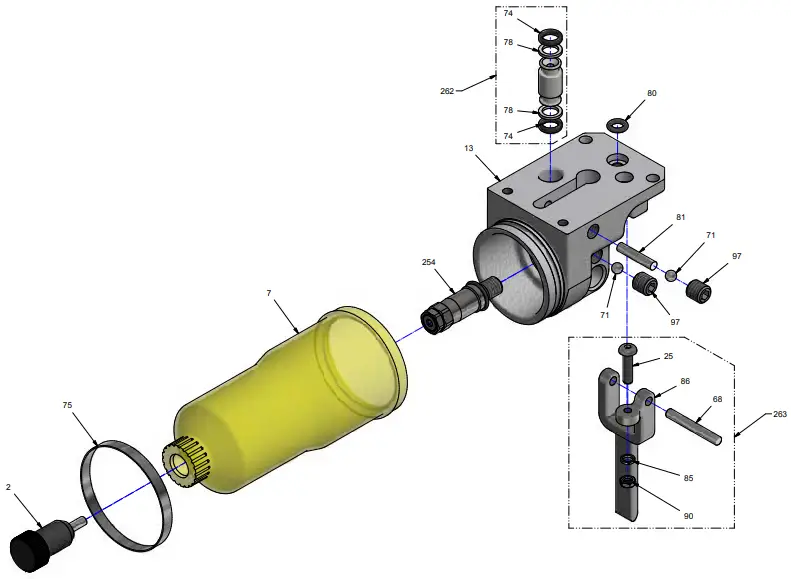

PBCC40 RESERVOIR PARTS LIST

PBCC40 RESERVOIR PARTS LIST

ITEMP/NQTYDESCRIPTION
230176DUB1Reservoir Plug
7915691Oil Reservoir
1377009-021Reservoir Body
25VAV04CB0151Screw
68AIG4X29.8BP1Calibrated Pin
71BILL04.762Ball
74J06401902O-Ring
75915761Metal Clamp
78JAE07001502Anti-extrusion Ring
80J04202501O-Ring
81ZBINA4201Magnet Pin
85VAR04W1Washer
86912321Release Trigger
90VAE041Nut
97VAV08BP0082Screw
ITEMP/NQTYDESCRIPTION
25492884-071Overload Valve
26277851C1Bodies Connector
26377852-DEW1Release Lever Unit

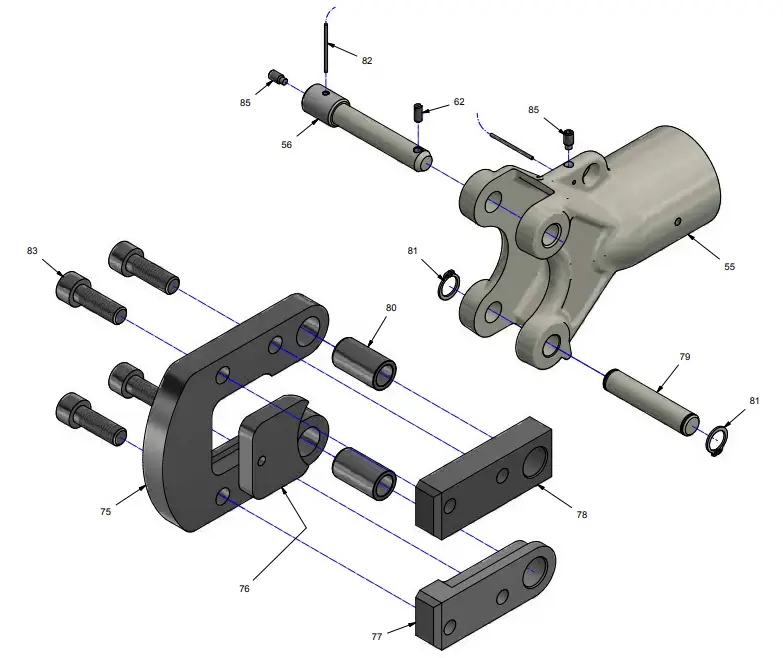

PBCC40 CUTTING HEAD

PBCC40 CUTTING HEAD

ITEMP/NQTYDESCRIPTION
55774951Double Fork Head
5636058DUB1Locking Pin
62VAV04PF1Ball Headed Dowel
7536051DUB1Counter Blade Base
7636052DUB1Blade
7736054DUB1Slide Way
7836055DUB1Slide Way
7936057DUB1Pin
8036059DUB2Pin
81AAEN122Circle
82TCA01.5.13Stainless Steel Cable
ITEMP/NQTYDESCRIPTION
83VAV10HC0304Screw
85VAV05TT0102Screw

STANLEY Infrastructure
6430 SE Lake Road
Portland, Oregon 97222 USA
(503) 659-5660 / Fax (503) 652-1780
www.stanleyinfrastructure.com
