SPARE PARTS MANUAL
FLEXTOOL PORTASCREED® FPS-3
FOR MORE INFORMATION
CONTACT US ON 1300 353 986 OR VISIT flextool.com.au
FLEXTOOL SPARE PARTS MANUAL

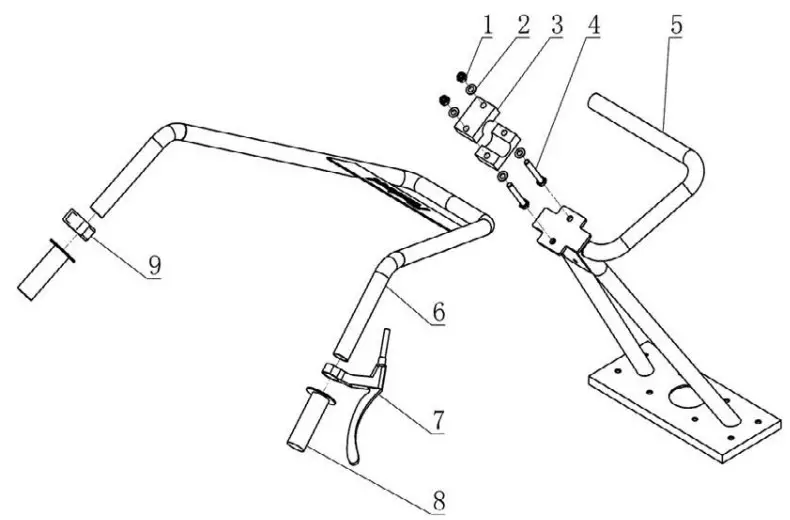

Handle Frame (FPS-3)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | NPS00406-UNIT | FLX LOCK NUT 8MM (SY-L-L260-320-CL42) | 2 | |
| 2 | NPS07228-UNIT | FLX WASHER FLAT M8 (SY-GB/T95-08) | 4 | |
| 3 | NPS07609-UNIT | FLX CLAMP (SY-R-CSD-C403-26) | 2 | |
| 4 | NPS07610-UNIT | FLX HEX HEAD SCREW, M8X60 (SY-GB/T5780-08-060) | 2 | |
| 5 | NPS07611-UNIT | FLX UPPER HANDLE SECTION (SY-R-ZJZJ-002) | 1 | |
| 6 | NPS07612-UNIT | FLX LOWER HANDLE SECTION (SY-L-296-0517) | 1 | |
| 7 | NPS07613-UNIT | FLX THROTTLE ASSY. (SY-R-CSD-C319) | 1 | |
| 8 | NPS01089-UNIT | FLX HANDLE GRIPS (SY-R-250-001) | 2 | |
| 9 | NPS07614-UNIT | FLX ON-OFF SWITCH (SY-R-CSD-C184) | 1 |

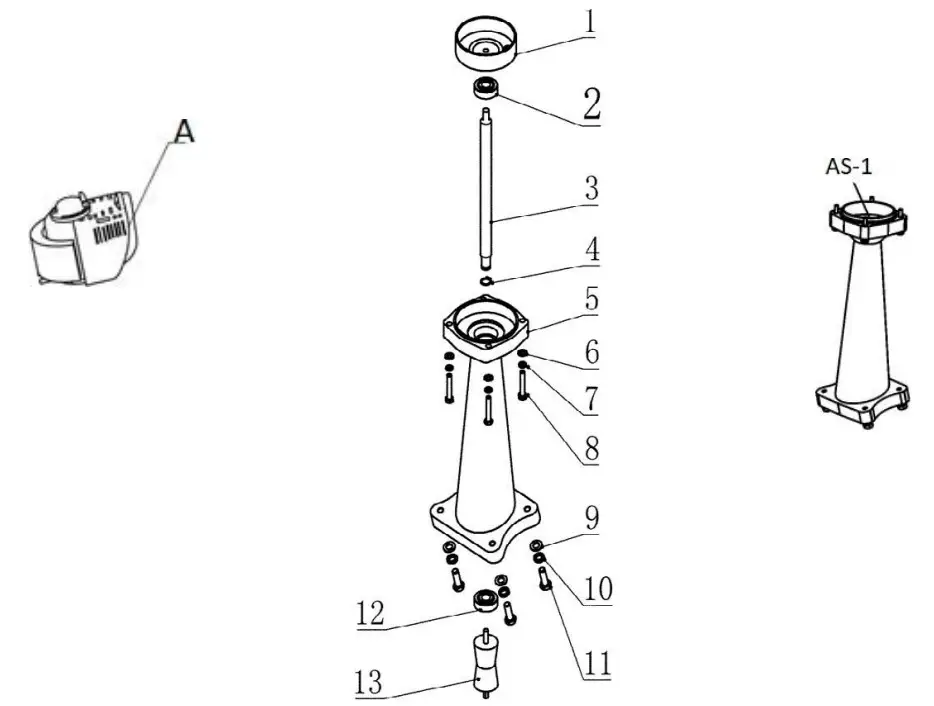

Drive Shaft Assy (FPS-3)
| Item No. | Product Code | Description | Qty | Remarks |
| A | NPS03473-UNIT | FLX HON GX35 SATM PORTASCREED (F03473) | 1 | |
| 1 | NPS07615-UNIT | FLX CLUTCH CPL. (SY-R-CSD-C408-01) | 1 | |
| 2 | NPS07616-UNIT | FLX BEARING 6201Z (SY-R-ZC-62017) | 1 | |
| 3 | NPS07617-UNIT | FLX DRIVE SHAFT (SY-R-CR-7200236) | 1 | |
| 4 | NPS07618-UNIT | FLX RETAINING RING (SY-GB/T894.1-12) | 1 | |
| 5 | See Remarks | FLX HOUSING (SY-R-ZCZ-001) | 1 | Use AS-1 |
| 6 | NPS07267-UNIT | FLX WASHER FLAT M6 (SY-GB/T95-06) | 4 | |
| 7 | NPS07268-UNIT | FLX WASHER SPRING M6 (SY-GB/T93-06) | 4 | |
| 8 | NPS07619-UNIT | FLX HEX HEAD SCREW, M6X35 (SY-GB/T5780-06-35) | 4 | |
| 9 | NPS07228-UNIT | FLX WASHER FLAT M8 (SY-GB/T95-08) | 4 | |
| 10 | NPS00404-UNIT | FLX SPRING WASHER 8MM (SY-GB-T93-08) | 4 | |
| 11 | NPS00408-UNIT | FLX BOLT M8 X 25MM (SY-GB-T5780-08-25) | 4 | |
| 12 | NPS07620-UNIT | FLX BEARING 3201z (SY-U-ZC-3201z) | 1 | |
| 13 | NPS00299-UNIT | FLX RUBBER CONNECTOR PORTASCREED (SY-R-CSD-C407) | 1 |
Drive Assembly
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS07621-UNIT | FLX DRIVE ASSY (SY-B-ZCZ-001) | 1 | Inc Items: 1-13 |

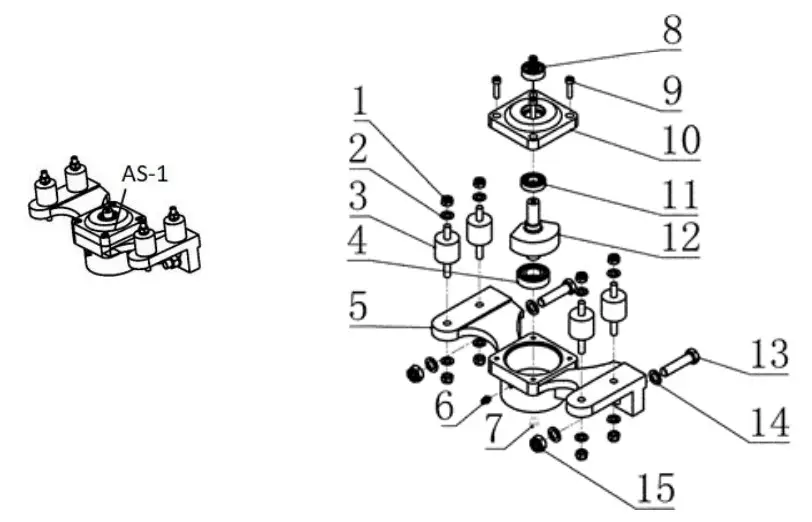

Vibrator Assy (FPS-3)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | NPS00406-UNIT | FLX LOCK NUT 8MM (SY-L-L260-320-CL427) | 8 | |
| 2 | NPS07228-UNIT | FLX WASHER FLAT M8 (SY-GB/T95-08) | 8 | |
| 3 | NPS07622-UNIT | FLX SHOCK MOUNT (SY-R-JZZ-001) | 4 | |
| 4 | NPS00293-UNIT | FLX PORTASCREED BEARING (SY-U-62203-2RS-C&U) | 1 | |
| 5 | See Remarks | FLX BRACKET (SY-L-297-0518) | 1 | Use AS-1 |
| 6 | NPS07623-UNIT | FLX GREASE FITTING (SY-R-P836-C138-M6) | 1 | |
| 7 | NPS07624-UNIT | FLX SOCKET HEAD SCREW, M6X25 (SY-R-DK-001) | 1 | |
| 8 | NPS00295-UNIT | FLX PORTASCREED OIL SEAL 15X30X7(SY-GB/T13871.1-15) | 1 | |
| 9 | NPS07625-UNIT | FLX SCREW, M6X25 (SY-GB/T70.3-06*25) | 4 | |
| 10 | See Remarks | FLX BEARING COVER (SY-R-CSD-C405) | 4 | Use AS-1 |
| 11 | NPS00294-UNIT | FLX PORTASCREED BEARING (SY-U-3202-2RZ-C&U) | 1 | |
| 12 | NPS00292-UNIT | FLX PORTASCREED DRIVE SHAFT (SY-Z00269) | 1 | |
| 13 | NPS07626-UNIT | FLX HEX HEAD SCREW, M10X50 (SY-GB/T889.1-10*50) | 2 | |
| 14 | NPS07212-UNIT | FLX WASHER FLAT M10 (SY-GB/T95-10) | 4 | |
| 15 | NPS07248-UNIT | FLX NY-LOCK NUT M10 (SY-R-205-CL1235) | 2 |
Drive System Assembly
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS00145-UNIT | FLX PORTASCREED VIBRATOR & MOUNT ASSY (SY-B-ZC-002) | 1 | Inc Items: 1-15 |

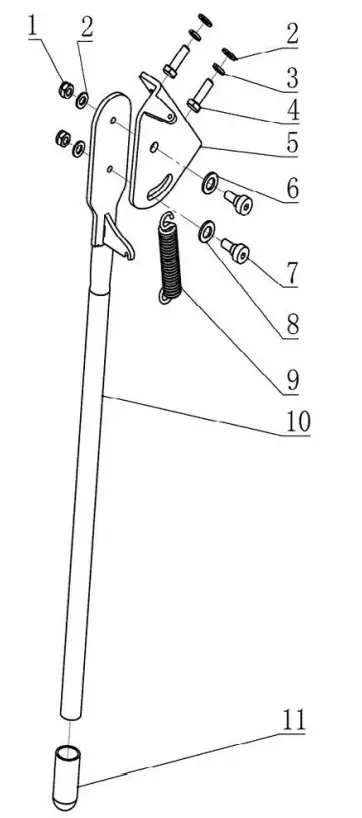

Kick Stand Assembly (FPS-3)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | See Remarks | FLX LOCK NUT, M8 (SY-GB/T923-6) | 2 | |
| 2 | See Remarks | FLX WASHER (SY-GB/T923-06) | 4 | |
| 3 | See Remarks | FLX SPRING WASHER (SY-GB/T93-06-01) | 2 | |
| 4 | NPS07269-UNIT | FLX BOLT M6X20 (SY-B-226-CL021) | 2 | |
| 5 | See Remarks | FLX PLATE (SY-R-CJ-002) | 1 | |
| 6 | See Remarks | FLX WASHER (SY-R-BXDP-003) | 1 | |
| 7 | See Remarks | FLX SCREW (SY-GB/T5281-8-5) | 2 | |
| 8 | See Remarks | FLX WASHER (SY-GB/T97.1-OS) | 1 | |
| 9 | NPS07627-UNIT | FLX SPRING (SY-R-LSTH-001) | 1 | |
| 10 | See Remarks | FLX SUPPORT STAND (SY-B-CJ-003) | 1 | |
| 11 | See Remarks | FLX RUBBER STOPPER (SY-R-XJJ-001) | 1 |
Assembly
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS07628-UNIT | FLX SUPPORT STAND CPL(SY-B-CJ-003) | Inc Items: 1-15 |
