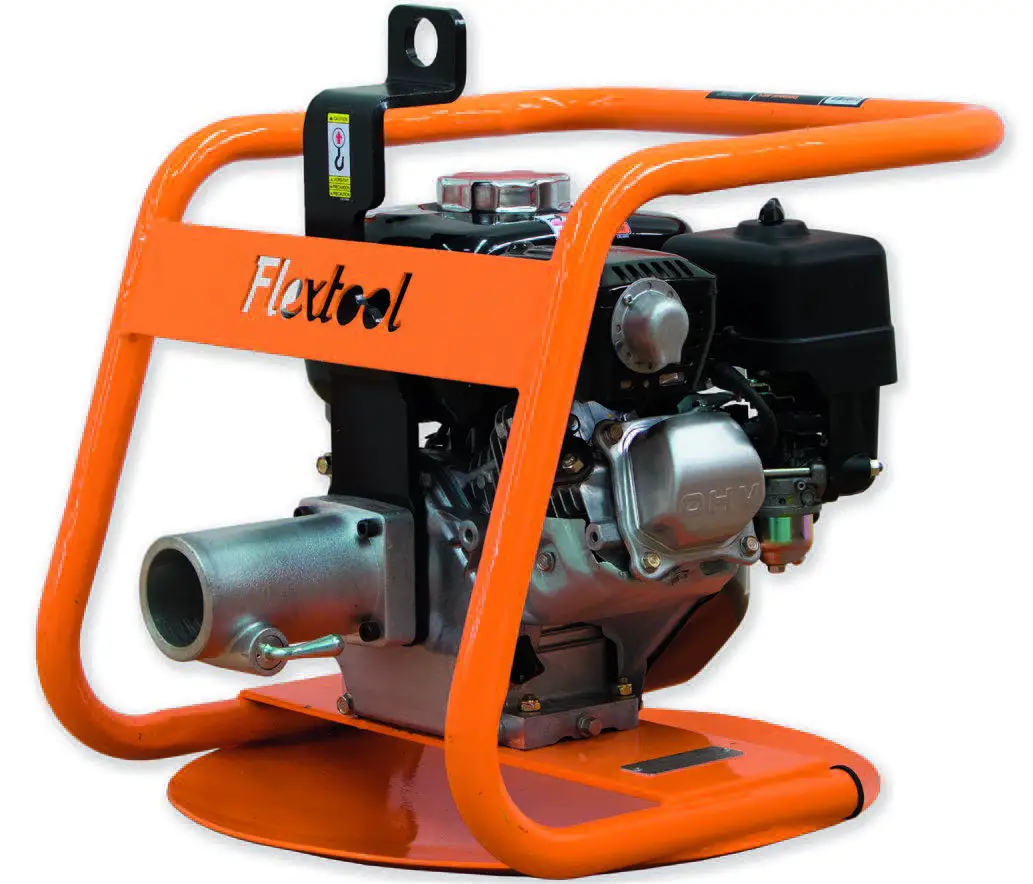

Flextool FDU-P1 Drive Unit
FLEXTOOL SPARE PARTS
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | NPS01577-UNIT | FLX DRIVE UNIT FRAME FDU-P1 (CNVR1-001) | 1 | |
| 2 | NPS01628-UNIT | HON ENGINE GX160 QX (CNVR1-002) | 1 | |
| 3 | See Remarks | FLX NYLOCK NUT (CNVR1-003) | 4 | Use SK-1 |
| 4 | See Remarks | FLX WASHER (CNVR1-004) | 4 | Use SK-1 |
| 5 | See Remarks | FLX BOLT (CNVR1-005) | 4 | Use SK-1 |
| 6 | See Remarks | FLX SPACER (CNVR1-006) | 1 | Use SK-2 |
| 7 | NPS00779-UNIT | FLX KEY (CNVR1-007) | 1 | |
| 8 | See Remarks | FLX GRUB SCREW (CNVR1-008) | 2 | Use SK-2 |
| 9 | See Remarks | FLX DRIVE DOG (CNVR1-009) | 1 | Use SK-2 |
| 10 | NPS02891-UNIT | FLX LIFTING HOOK (CNVR3-010) | 1 | |
| 11 | See Remarks | FLX ROLL PIN (CNVR1-011) | 1 | Use AS-1 or SK-3 |
| 12 | See Remarks | FLX BELL HOUSING (CNVR1-012) | 1 | Use AS-1 |
| 13 | See Remarks | FLX TRIGGER SPRING (CNVR1-013) | 1 | Use AS-1 or SK-3 |
| 14 | See Remarks | FLX TRIGGER (CNVR1-014) | 1 | Use AS-1 or SK-3 |
| 15 | NPS01581-UNIT | FLX SOCKET HEAD CAP SCREW (CNVR3-015) | 4 |
Assembly/Service Kits
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS03374-UNIT | FLX ASSY BELL HOUSING (CNVR3-017) | 1 | Inc Items: 11, 12, 13, 14 |
| SK-1 | NPS01582-UNIT | FLX SERVICE KIT BOLT SET FDU (CNVR3-018) | 1 | Inc Items: 3, 4, 5 |
| SK-2 | NPS07161-UNIT | FLX SERVICE KIT DRIVE DOG GX160-QX (CNVR3-016) | 1 | Inc Items: 6, 8, 9 |
| SK-3 | NPS07159-UNIT | FLX SERVICE KIT TRIGGER (CNVR3-019) | 1 | Inc Items: 11, 13, 14 |
