SPARE PARTS MANUAL
FLEXTOOL DRIVE UNIT
FDU-D2 (DIESEL)

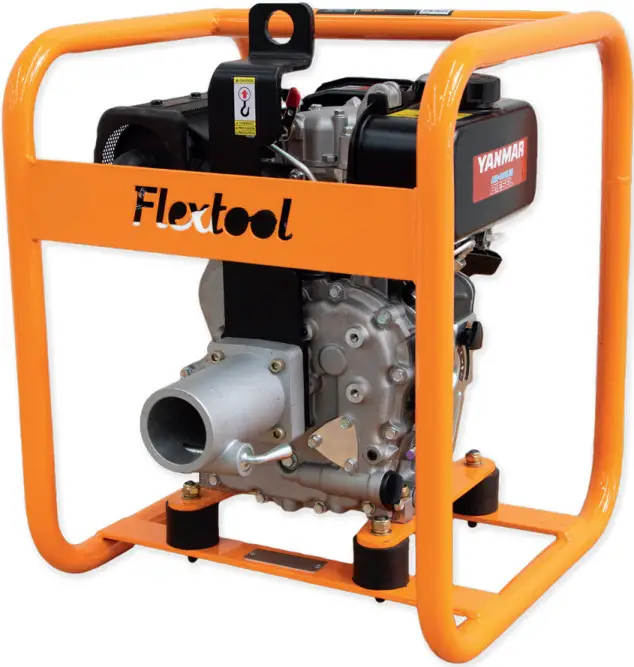

FDU-D2 Flextool Drive Unit

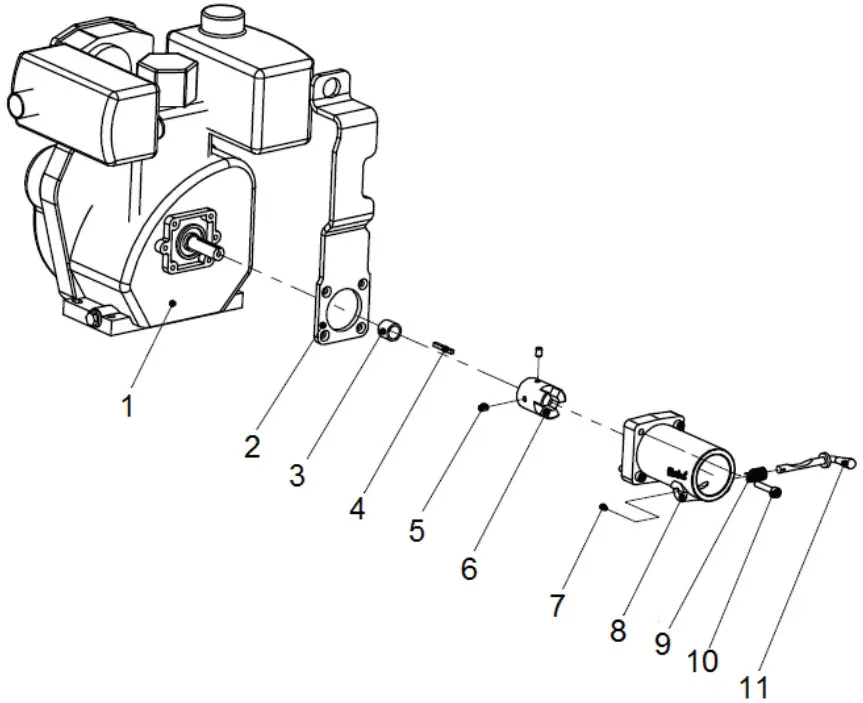

Engine & Coupling
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | NPS01710-UNIT | YAN ENGINE YANMAR L48N5 (RECOIL START) | 1 | |
| 2 | NPS02891-UNIT | FLX LIFTING HOOK (CNVR3-010) | 1 | |
| 3 | See Remarks | FLX SPACER (CNVR1-006) | 1 | Use SK-1 |
| 4 | NPS00779-UNIT | FLX KEY (CNVR1-007) | 1 | |
| 5 | See Remarks | FLX GRUB SCREW (CNVR1-008) | 2 | Use SK-1 |
| 6 | See Remarks | FLX DRIVE DOG (CNVR1-009) | 1 | Use SK-1 |
| 7 | See Remarks | FLX ROLL PIN (CNVR1-011) | 1 | Use AS-1 or SK-2 |
| 8 | See Remarks | FLX BELL HOUSING (CNVR1-012) | 1 | Use AS-1 |
| 9 | See Remarks | FLX TRIGGER SPRING (CNVR1-013) | 1 | Use AS-1 or SK-2 |
| 10 | NPS01581-UNIT | FLX SOCKET HEAD CAP SCREW (CNVR3-015) | 4 | |
| 11 | See Remarks | FLX TRIGGER (CNVR1-014) | 1 | Use AS-1 or SK-2 |
Engine & Coupling – Assembly / Service Kits
| Item No. | Product Code | Description | Qty | Remarks |
| AS-1 | NPS03374-UNIT | FLX ASSY BELL HOUSING (CNVR3-017) | 1 | Inc Items: 7, 8, 9, 11 |
| SK-1 | NPS07161-UNIT | FLX SERVICE KIT DRIVE DOG GX160-QX (CNVR3-016) | 1 | Inc Items: 3, 5, 6 |
| SK-2 | NPS07159-UNIT | FLX SERVICE KIT TRIGGER (CNVR3-019) | 1 | Inc Items: 7, 9, 11 |

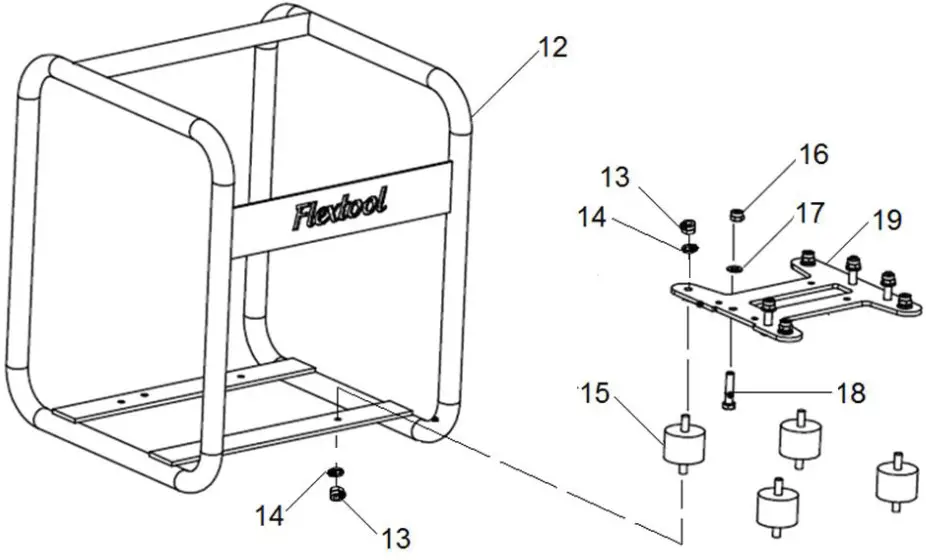

Frame & Engine Mount
| Item No. | Product Code | Description | Qty | Remarks |
| 12 | NPS03047-UNIT | FLX DRIVE UNIT FRAME FDU-D2 / DE2 (CNVR6A-007) | 1 | |
| 13 | See Remarks | FLX NYLOCK NUT (CNVR4A-001) | 8 | Use SK-3 |
| 14 | See Remarks | FLX FLAT WASHER (CNVR4A-002) | 8 | Use SK-3 |
| 15 | See Remarks | FLX RUBBER MOUNT (CNVR4A-005) | 4 | Use SK-3 |
| 16 | See Remarks | FLX NYLOCK NUT (CNVR6A-001) | 4 | Use SK-4 |
| 17 | See Remarks | FLX FLAT WASHER (CNVR6A-002) | 4 | Use SK-4 |
| 18 | See Remarks | FLX BOLT (CNVR6A-004) | 4 | Use SK-4 |
| 19 | NPS09081-UNIT | FLX ENGINE MOUNTING PLATE (CNVR5A-003) | 1 |
Frame & Engine Mount – Assembly / Service Kits
| Item No. | Product Code | Description | Qty | Remarks |
| SK-3 | NPS01579-UNIT | FLX SERVICE KIT RUBBER MOUNT FDU (CNVR2-020) | 1 | Inc Items: 13 – 14 |
| SK-4 | NPS03048-UNIT | FLX SERVICE KIT BOLT SET FDU (CNVR6A-008) | 1 | Inc Items: 16 – 17 |
