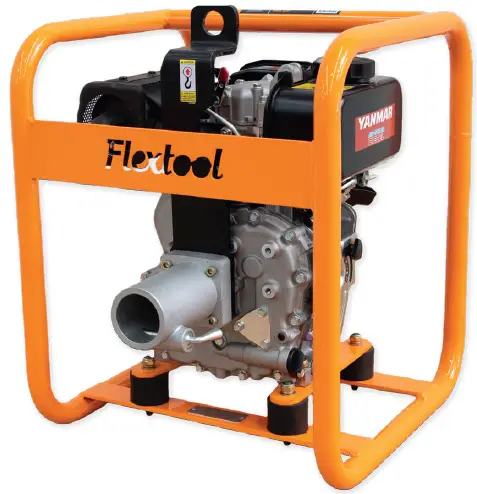

Flextool FDU-DE2 Drive Unit

FLEXTOOL SPARE PARTS

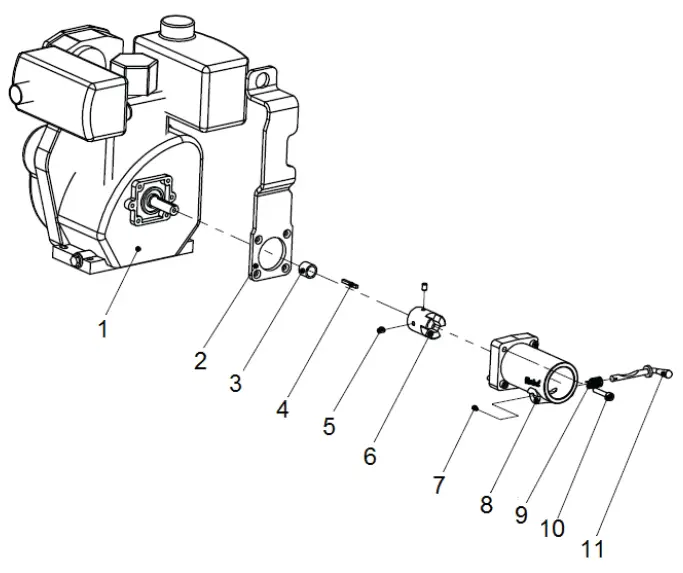

Engine & Coupling

Item No.	Product Code	Description	Qty	Remarks
1	NPS01710-UNIT	YAN ENGINE YANMAR L48N5 (RECOIL START)	1
2	NPS02891-UNIT	FLX LIFTING HOOK (CNVR3-010)	1
3	See Remarks	FLX SPACER (CNVR1-006)	1	Use SK-1
4	NPS00779-UNIT	FLX KEY (CNVR1-007)	1
5	See Remarks	FLX GRUB SCREW (CNVR1-008)	2	Use SK-1
6	See Remarks	FLX DRIVE DOG (CNVR1-009)	1	Use SK-1
7	See Remarks	FLX ROLL PIN (CNVR1-011)	1	Use AS-1 or SK-2
8	See Remarks	FLX BELL HOUSING (CNVR1-012)	1	Use AS-1
9	See Remarks	FLX TRIGGER SPRING (CNVR1-013)	1	Use AS-1 or SK-2
10	NPS01581-UNIT	FLX SOCKET HEAD CAP SCREW (CNVR3-015)	4
11	See Remarks	FLX TRIGGER (CNVR1-014)	1	Use AS-1 or SK-2

Engine & Coupling – Assembly / Service Kits

Item No.	Product Code	Description	Qty	Remarks
AS-1	NPS03374-UNIT	FLX ASSY BELL HOUSING (CNVR3-017)	1	Inc Items: 7, 8, 9, 11

SK-1	NPS07161-UNIT	FLX SERVICE KIT DRIVE DOG GX160-QX (CNVR3-016)	1	Inc Items: 3, 5, 6
SK-2	NPS07159-UNIT	FLX SERVICE KIT TRIGGER (CNVR3-019)	1	Inc Items: 7, 9, 11

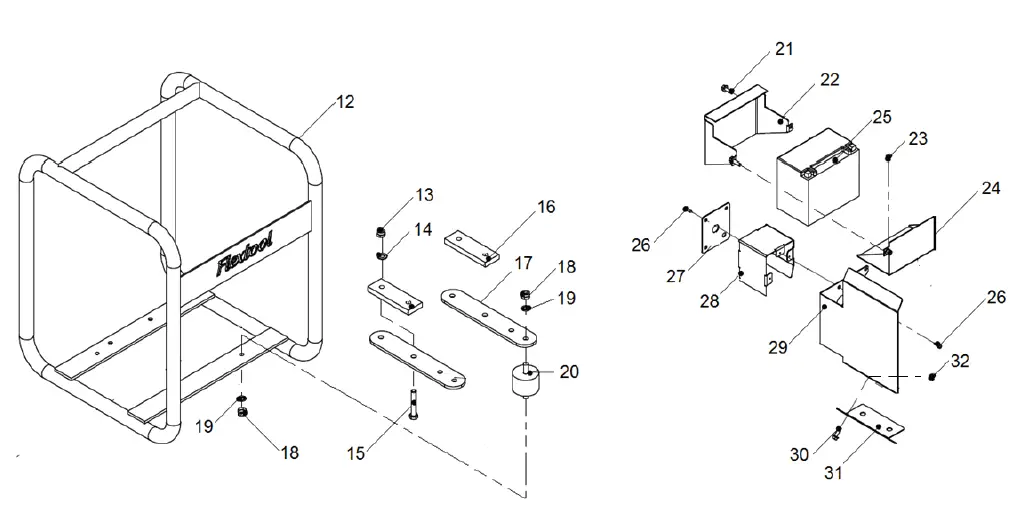

Frame & Engine Mount

Item No.	Product Code	Description	Qty	Remarks
12	NPS03047-UNIT	FLX DRIVE UNIT FRAME FDU-D2 / DE2 (CNVR6A-007)	1
13	See Remarks	FLX NYLOCK NUT (CNVR6A-001)	4	Use SK-3
14	See Remarks	FLX FLAT WASHER (CNVR6A-002)	4	Use SK-3
15	See Remarks	FLX BOLT (CNVR6A-004)	4	Use SK-3
16	NPS03049-UNIT	FLX ENGINE MOUNT SPACER FDU-DE2 (CNVR6B-009)	2
17	NPS00127-UNIT	FLX ENGINE MOUNT STRAP FDU-DE2 (CNVR6A-003)	2
18	See Remarks	FLX NYLOCK NUT (CNVR4A-001)	8	Use SK-4
19	See Remarks	FLX FLAT WASHER (CNVR4A-002)	8	Use SK-4
20	See Remarks	FLX RUBBER MOUNT (CNVR4A-005)	4	Use SK-4
21	See Remarks	FLX BOLT M6X20 (CNVR6B-014)	4	Use SK-5
22	See Remarks	FLX BATTERY CASE UPPER SECTION (CNVR6B-013)	1	Use SK-5
23	See Remarks	FLX BOLT M6X10 (CNVR6B-015)	2	Use SK-5
24	See Remarks	FLX BATTERY CASE LOWER SECTION (CNVR6B-012)	1	Use SK-5
25	See Remarks	FLX BATTERY 12V (CNVR6B-018)	1	Non Stock Part (Source Locally)
26	See Remarks	FLX SCREW (CNVR6B-021)	6	Use SK-6
27	See Remarks	FLX IGN SWITCH COVER PANEL (CNVR6B-020)	1	Use SK-6
28	See Remarks	FLX IGN SWITCH COVER SHROUD (CNVR6B-019)	1	Use SK-6
29	See Remarks	FLX STARTER MOTOR COVER (CNVR6B-022)	1	Use SK-6
30	See Remarks	FLX BOLT M6X20 (CNVR6B-014)	2	Use SK-6
31	See Remarks	FLX STARTER MOTOR MOUNT PLATE (CNVR6B-017)	1	Use SK-6
32	See Remarks	FLX NUT M6	2	Use SK-6

Frame & Engine Mount – Assembly / Service Kits

Item No.	Product Code	Description	Qty	Remarks
SK-3	NPS03048-UNIT	FLX SERVICE KIT BOLT SET FDU (CNVR6A-008)	1	Inc Items: 13 – 15

Parchem Construction Supplies Pty Ltd

1956 Dandenong Road, Clayton VIC 3168, Australia
Phone: 1300 353 986
flextool.com.au
ABN 80 069 961 968

This manual summarises our best knowledge of the product based on the information available at the time of publication. You should read this manual carefully and consider the information in the context of how the product will be used. Our responsibility for products sold is subject to our standard terms and conditions of sale.

DISCLAIMER

Any advice, recommendation, information, assistance or service provided by us in this manual is given in good faith and is believed by us to be appropriate and reliable. However, any advice, recommendation, information, assistance or service provided by us is provided without liability or responsibility PROVIDED THAT the foregoing shall not exclude, limit, restrict or modify the right entitlements and remedies conferred upon any person or the liabilities imposed upon us by any condition or warranty implied by Commonwealth, State or Territory Act or ordinance void or prohibiting such exclusion limitation or modification. The product can be expected to perform as indicated in this manual so long as operation and operational procedures of the individual products are followed as recommended in this manual.
