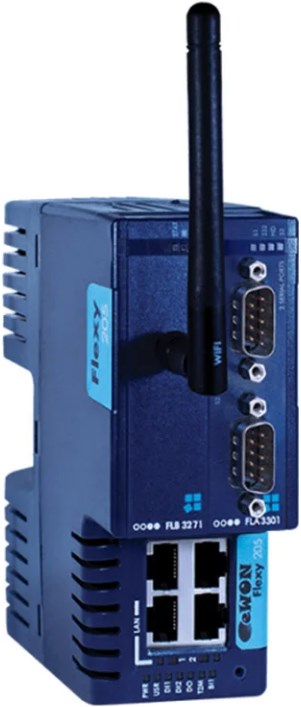

Ewon 205 Flexy Modularity Owner’s Manual
Key Benefits
| ON-DEMAND REMOTE ACCESS, IT APPROVED | Security-certified global cloud infrastructure Easy setup for unmatched connectivity success |
| LOCAL DATA COLLECTION AND DASHBOARDS | All major PLC protocols for data logging and alarm notification Local web-dashboard for remote monitoringOPC UA server to publish data to factory systems |
| CENTRAL DATA COLLECTION THROUGH THE INTERNET | Full flexibility to send data to any server (local or cloud) Out of the box solutions with HMS Solution PartnersMQTT or HTTPS using embedded BASIC or Java Virtual Machine |
PLC Connectivity
| Rockwell Automation/Allen Bradley | SLC5/500 Series Micro/Compact/Control Logix Series Micro Series |
| Siemens | S5 Series*S7-200/300/400/1200/1500**Logo |
| Schneider Electric | TSX SeriesM Series (M258, M340,…)Twido Series |
| Mitsubishi | iQ/FX5 Series Q seriesL Series FX3 series |
| VIPA | Speed 7 series |
| OMRON | C, CJ, CP, CS Series N Series |
| HITACHI | EH Series |
| Generic Modbus TCP/RTUAny Modb | us TCP/RTU Slaves(Beckoff, Crouzet, ABB, Delta,…) |
| Generic OPCUA | Any OPCUA Servers (B&R, Beijer, Beckoff,…) |
| Generic BACNET IPAny BACNET IP S | ervers |
| Generic SNMP | Any SNMP v1 servers |
* polling only, no remote access
** remote access to safety PLC devices (-F series) is not supported
Technical Specifications
| Routing | Routing capability between LAN and WAN Ethernet interface and Ethernet to serial gateway. |
| Ethernet to Serial GatewaysMODBUS | TCP to MODBUS RTU; XIP to UNITELWAY; EtherNet/IP™ to DF1; FINS TCP to FINS Hostlink; ISO TCP to PPI, MPI (S7) or PROFIBUS (S7); VCOM to ASCII. |
| Data Acquisition ProtocolsOPC UA, | MODBUS/RTU, MODBUS/TCP, Unitelway, DF1, PPI, MPI (S7), PROFIBUS (S7), FINS Hostlink,FINS TCP, EtherNet/IP™, ISO TCP, Mitsubishi FX, Mitsubishi melsec, Hitachi EH, ASCII, BACnet/IP. Stored in 2500 internal tags. |
| Data Publishing ProtocolsOPC UA, M | odbus, MQTT, SNMP, HTTPs. |
| Alarms | Alarms notification by email, SMS, FTP put and/or SNMP traps.4 Thresholds : low, lowlow, high, highhigh + deadband and activation delay. |
| Datalogging | Internal database for data logging (real-time logging and historical logging up to 1,000,000 timestamps). Historical data can be exported to DataMailbox or transferred by FTP or email. |
| SD card reader | A/ for easy commissioning (firmware upgrade, backup, Talk2M registration) B/for Extended User Memory. |
| Router | IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server, NAT 1 :1. |
| VPN Tunnelling | Open VPN either through UDP 1194 or TCP 443 ( HTTPs port). |
| VPN Security | VPN sessions are end-to-end encrypted using SSL/TLS protocol. Communications between the remote user and the eWON are fully encrypted using the SSL/TLS protocol, thereby ensuring data authenticity, integrity & confidentiality. Indeed, all users and eWON units are authenticated using x509 SSL certificates and end-to-end traffic is encrypted using strong symmetric & asymmetric algorithms that are part of the SSL/TLS protocol cipher suite. |
| Programmable | Script interpreter for Basic language, Java 2 Standard Edition environment. |
| Synchronization | Embedded real-time clock, manual setup via http or automatic via NTP. |
| File Management | FTP client and server for configuration, firmware update and data transfer. |
| Website | Embedded web interface with setup wizards for configuration and maintenance (no extra software needed). Authentication with login/password and user management capability. Possibility of uploading custom web GUI. Compatible with viewON web HMI. |
| User Flash Disk | up to 30MB available for user application. |
| Mechanicals | Din Rail or wall screw fixing system. Dimensions: 133 x 122 x 55 mm (H x D x W ). Weight: 280 g without extension card |
| Power supply | 12 – 24VDC +/-20%, LPS.Consumption: depending on the extension card installed (see Installation guide on our website). |
| Input/output | 2x digital input: 0 to 12/24VDC; 1.5kV isolation.1x digital output: open drain (MOSFET) 200mA; 1.5 kV isolation. |
| Flexy 205 base module interface | 4 x RJ45 Ethernet 10/100 Mb .Configurable LAN/WAN ports, port 1 always LAN |
| Temperature RangeOperating: -25° | C to +60°C, 10 to 95% relative humidity (non-condensing).Storage: -30°C to +70°C, 10 to 95% relative humidity (non-condensing). |
| Marking | CE, cURus, FCC, UKCA |
| Warranty | 36 months |
Certifications
| Type tests | Temperature – Operating & Storage tested according to IEC 60068-2-1 Cold testIEC 60068-2-2 Dry heat testIEC 60068-2-14 Change of temperature IEC 60068-2-30 Cyclic damp heat test Vibration & shocks tested according to: IEC 60068-2-27 BumpsIEC 60068-2-64 Vibration (broad-band random) IEC 60068-2-6 Vibration (sinusoidal) |
| CE | Compliant with:EMC directive 2014/30/EU (Immunity: industrial level) RE directive 2014/53/EU*ROHS2 2011/65/EU directive with amendment 2015/863 |
| REACH regulation* Applicable in combination with a radio extension card (Cellular & WiFi) | |
| UKCA | Compliant with: Electromagnetic Compatibility Regulations 2016; Radio Equipment Regulations 2017; The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. |
| FCC/IC | This product complies with the Part 15 of the FCC rules. |
| Japan | This device complies with Japanese regulations. |
| Other | South Korea KC, Philippines (in combinaison with 3G extension card), Russia FSS notification |
| Safety | The product fulfils the requirement of:EN 62368-1:2014 + A11:2017UL 62368-1 Second EditionCAN/CSA C22.2 No. 62368-1-14 Second EditionEN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 |
Ordering Information
ORDER CODE: Flexy20500_00MA
MODEL NUMBER : 02801
WARRANTY: 3 years
