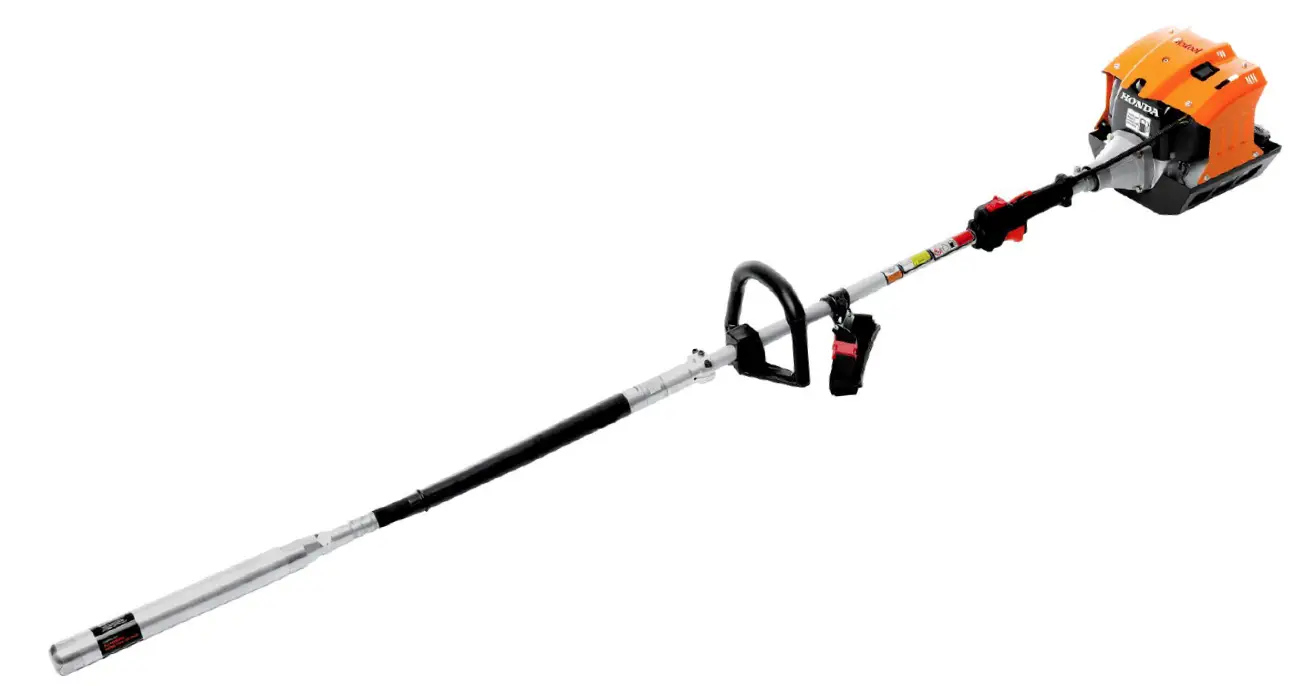

FVE44-2 Flextool Portavibe
FLEXTOOL SPARE PARTS

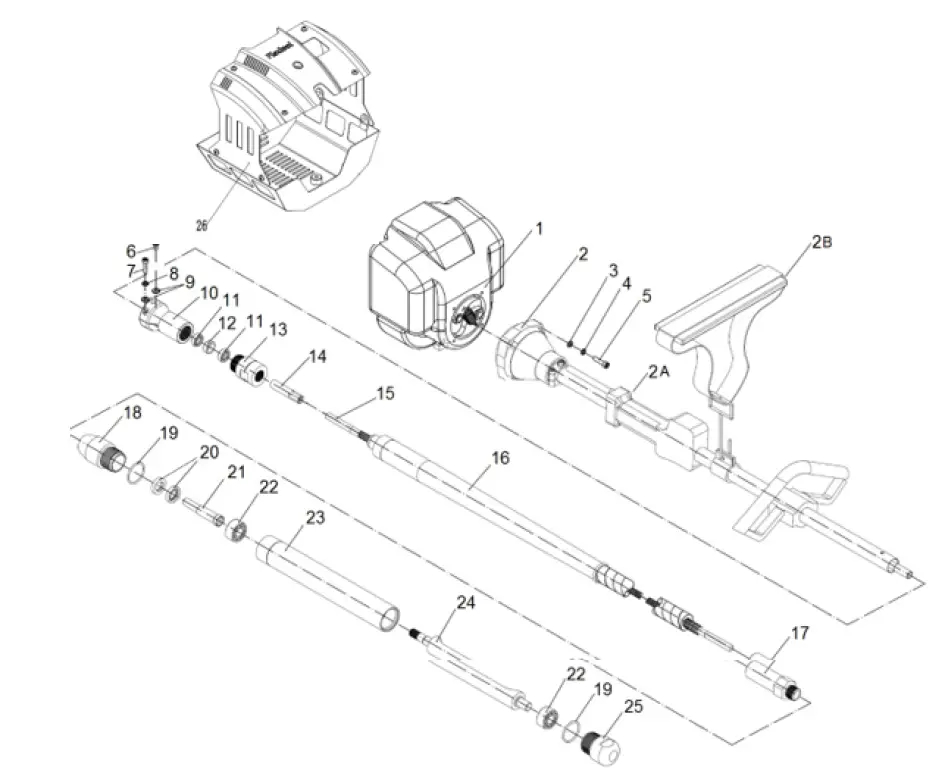

| Item No. | Product Code | Description | Qty | Remarks |
| 1 | NPS03318-UNIT | HON ENGINE GX35 (TSUT) PORTAVIBE (570614) | 1 | |
| 2 | NPS03320-UNIT | FLX DRIVE SHAFT & THROTTLE (086030) | 1 | Includes 2A, 2B |
| 2A | NPSF9S41-UNIT | HON THROTTLE CONTROL & CABLE ASSY (H17850-VF9-S41) | 1 | |
| 2B | NPSA0003-UNIT | HON SHOULDER STRAP ASSY (H90690-SA0-003) | 1 | |
| 3 | See Remarks | FLX FLAT WASHER 6MM (650103) | 4 | Use SK-1 |
| 4 | See Remarks | FLX SPRING WASHER 6MM (650502) | 4 | Use SK-1 |
| 5 | See Remarks | FLX BOLT SOCKET HEAD CAP M6 X 30MM (630433) | 4 | Use SK-1 |
| 6 | See Remarks | FLX SCREW BUTTON HEAD CAP M6 X 16MM (590511) | 1 | Use AS-1 |
| 7 | See Remarks | FLX BOLT SOCKET HEAD CAP M6 X 25MM (630404) | 2 | Use AS-1 |
| 8 | See Remarks | FLX SPRING WASHER 6MM (650502) | 2 | Use AS-1 |
| 9 | See Remarks | FLX WASHER (650302) | 3 | Use AS-1 |
| 10 | See Remarks | FLX HOUSING PORTAVIBE COUPLING (086031) | 1 | Use AS-1 |
| 11 | NPS01515-UNIT | FLX BEARING 6082Z (550508) | 2 | |
| 12 | See Remarks | FLX SPACER PORTAVIBE COUPLING (086032) | 1 | Use AS-1 |
| 13 | See Remarks | FLX ADAPTOR (086033) | 1 | Use AS-1 |
| 14 | See Remarks | FLX SEAL SLEEVE (086034) | 1 | Use AS-1 |
| 15 | NPS03002-UNIT | FLX CORE PORTAVIBE 7.5X630 (810173) | 1 | |
| 16 | See Remarks | FLX CASING PORTAVIBE (086043) | 1 | Use AS-3 |
| 17 | See Remarks | FLX CASING FERRULE (086035) | 1 | Use AS-3 |
| 18 | See Remarks | FLX ADAPTOR BARREL (086037) | 1 | Use AS-2 |
| 19 | See Remarks | FLX O-RING 32.5X3.55 (510432) | 1 | Use SK-2 or AS-2 |
| 20 | See Remarks | FLX OIL SEAL 16X28.5X8 (530509) | 2 | Use SK-2 or AS-2 |
| 21 | See Remarks | FLX ADAPTOR SPINDLE (086038) | 1 | Use AS-2 |
| 22 | See Remarks | FLX BEARING NSK5202 | 2 | Use SK-2 or AS-2 |
| 23 | See Remarks | FLX BARREL (086039) | 1 | Use AS-2 |
| 24 | See Remarks | FLX ROTOR PORTAVIBE (086040) | 2 | Use AS-2 |
| 25 | NPS09333-UNIT | FLX NOSE CAP PORTAVIBE (086041) | 1 | |
| 26 | NPS01093-UNIT | FLX PORTAVIBE ENGINE GUARD ASSY FVE44 (086100) | 1 |
Assembly / Service Kits
| Item No. | Product Code | Description | Qty | Remarks |
| SK-1 | NPS03045-UNIT | FLX SERVICE KIT BOLT SET FVE44 (086030SK) | 1 | Inc Items: 3-5 |
| SK-2 | NPS328SK-UNIT | FLX SERVICE KIT PORTAVIBE HEAD (086451SKF) | 1 | Inc Items: 19,20,22 |
| AS-1 | NPS03282-UNIT | FLX ASSY COUPLING (086451GGF) | 1 | Inc Items: 6-14 |
| AS-2 | NPS09328-UNIT | FLX ASSY VIBRATOR HEAD FVE44 (086400F) | 1 | Inc Items: 18-25 |
| AS-3 | NPS03001-UNIT | FLX ASSY CASING PORTAVIBE (086451GF) | 1 | Inc Items: 16,17 |
Engine Guard
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | See Remarks | FLX BOLT M5×40 (630738) | 2 | Use SK-1 or AS-1 |
| 2 | See Remarks | FLX ELASTIC WASHER 5 (650501) | 5 | Use SK-1 or AS-1 |
| 3 | See Remarks | FLX FLAT WASHER 5 (650301) | 5 | Use SK-1 or AS-1 |
| 4 | See Remarks | FLX BASE PLATE (86101) | 1 | Use AS-1 |
| 5 | See Remarks | FLX LEFT SIDE PLATE (86102) | 1 | Use AS-1 |
| 6 | See Remarks | FLX BOLT WITH WASHER M5×12 (590432) | 8 | Use SK-1 or AS-1 |
| 7 | See Remarks | FLX TOP PLATE (86103) | 1 | Use AS-1 |
| 8 | See Remarks | FLX BOLT M5×35 (630739) | 1 | Use SK-1 or AS-1 |
| 9 | See Remarks | FLX SLEEVE A (86104) | 1 | Use SK-1 or AS-1 |
| 10 | See Remarks | FLX SLEEVE B (86068) | 2 | Use SK-1 or AS-1 |
| 11 | See Remarks | FLX BOLT M5×16 (630713) | 2 | Use SK-1 or AS-1 |
| 12 | See Remarks | FLX RIGHT SIDE PLATE (86105) | 1 | Use AS-1 |
Assembly / Service Kits
| Item No. | Product Code | Description | Qty | Remarks |
| SK-1 | NPS01094-UNIT | FLX SERVICE KIT BOLT SET ENGINE GUARD (FY-086100SK) | 1 | Inc Items: 1-3,6,8-11 |
| AS-1 | NPS01093-UNIT | FLX PORTAVIBE ENGINE GUARD ASSY FVE44 (FY-086100) | 1 | Inc Items: 1-12 |
