Air/Hydraulic Press Wire Rope
Replacement Instructions
Product Codes: PROSHPR50TA / PROSHPR30TA
PROSHPR50TA Air Hydraulic Press Wire Rope

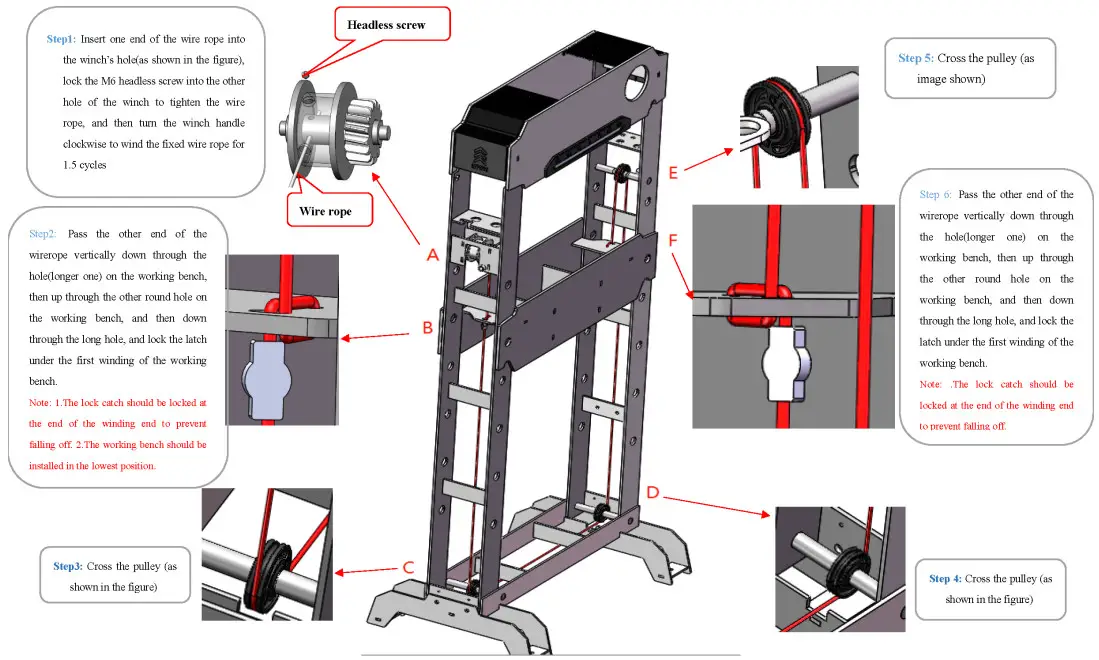

Follow the steps outlined below for the removal and replacement of the Wire Rope on Product Codes: PROSHPR50TA & PROSHPR30TA Air/Hydraulic Press.

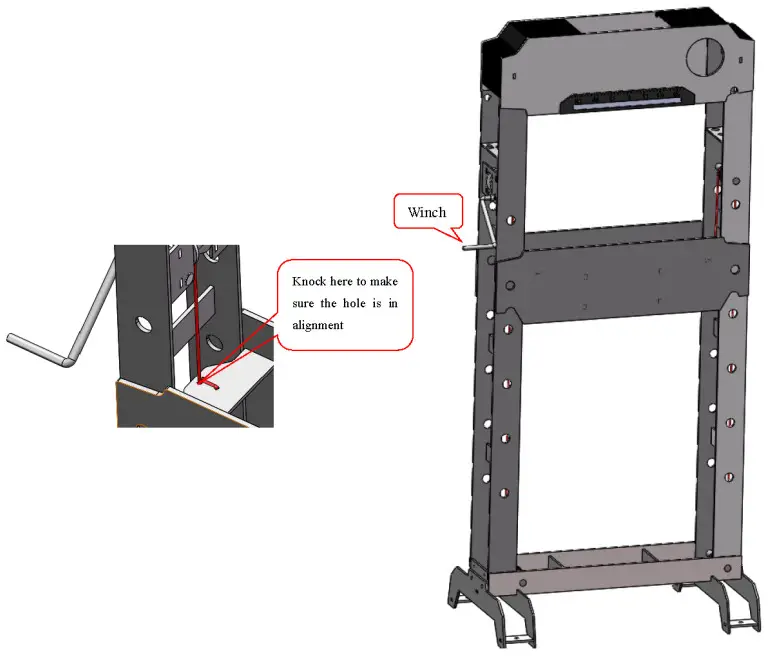

Step 7: Rotate the winch handle clockwise to raise the working bench, and observe whether gear shaft hole is aligned with the hole on the frame. Note: You can use rubber hammer to knock the winding end of the wire rope and the working bench to get the horizontal position.
