DELL Latitude 3320
Set up your Latitude 3320
About this task
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Steps:
- Connect the power adapter and press the power button.
Latitude 3320
NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer. - Finish Windows system setup.
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:- Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. - If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
- On the Support and Protection screen, enter your contact details.
- Connect to a network for Windows updates.
- Locate and use Dell apps from the Windows Start menu—Recommended
Table 1. Locate Dell apps
NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.|
| Dell Product Registration Register your computer with Dell. |
| Dell Help & Support Access help and support for your computer. |
|
| SupportAssist SupportAssist is the smart technology that keeps your computer running at its best by optimizing settings, detecting issues, removing viruses and notifies when you need to make system updates. SupportAssist proactively checks the health of your system’s hardware and software. When an issue is detected, the necessary system state information is sent to Dell to begin troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows operating system. For more information, see SupportAssist for Business PC s User’s Guide on www.dell.com/ serviceabilitytools. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty. |
| Dell Update Updates your computer with critical fixes and latest device drivers as they become available. | |
| Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. |
Views of Latitude 3320
Right
- microSD-card slot
- Universal audio port
- Two USB 3.2 Gen 1 ports
- Wedge-shaped lock slot

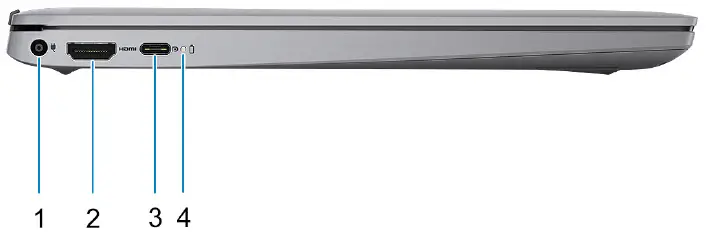

Left
- Power adapter port
- HDMI 1.4b port
- USB 3.2 Gen2x2 Type-C port with DisplayPort 1.4/Power Delivery
- Power and battery status light

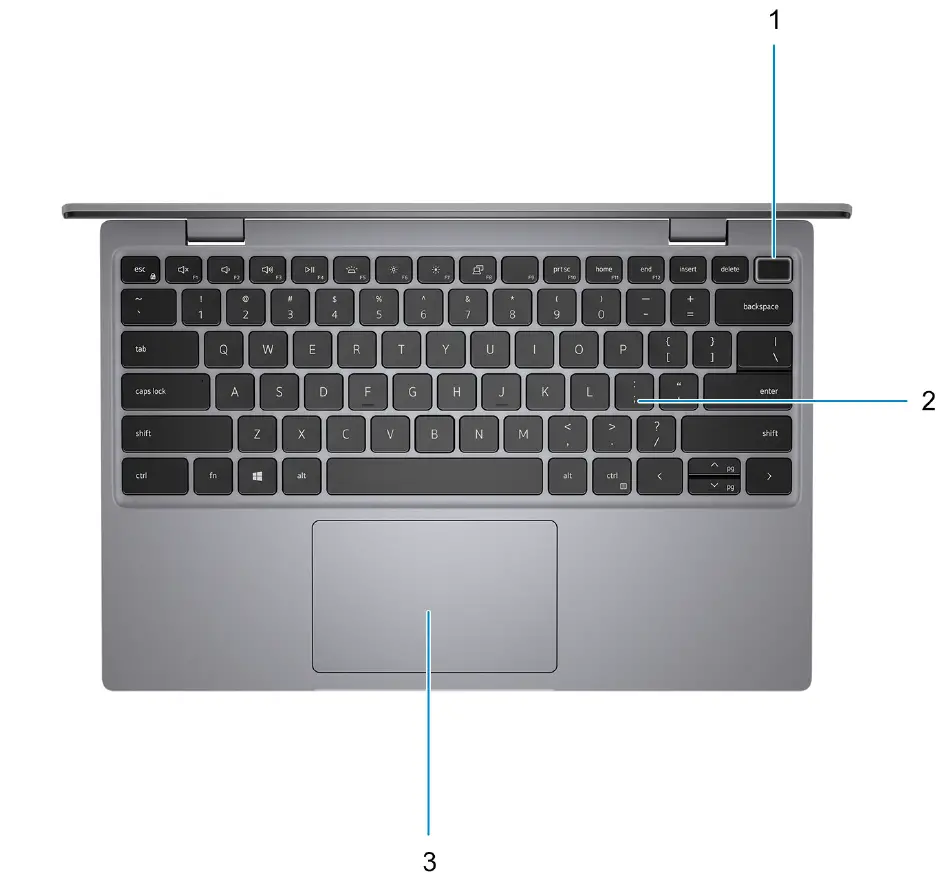

Top
- Power-button/power-button with fingerprint reader (optional)
- Keyboard
- Touchpad

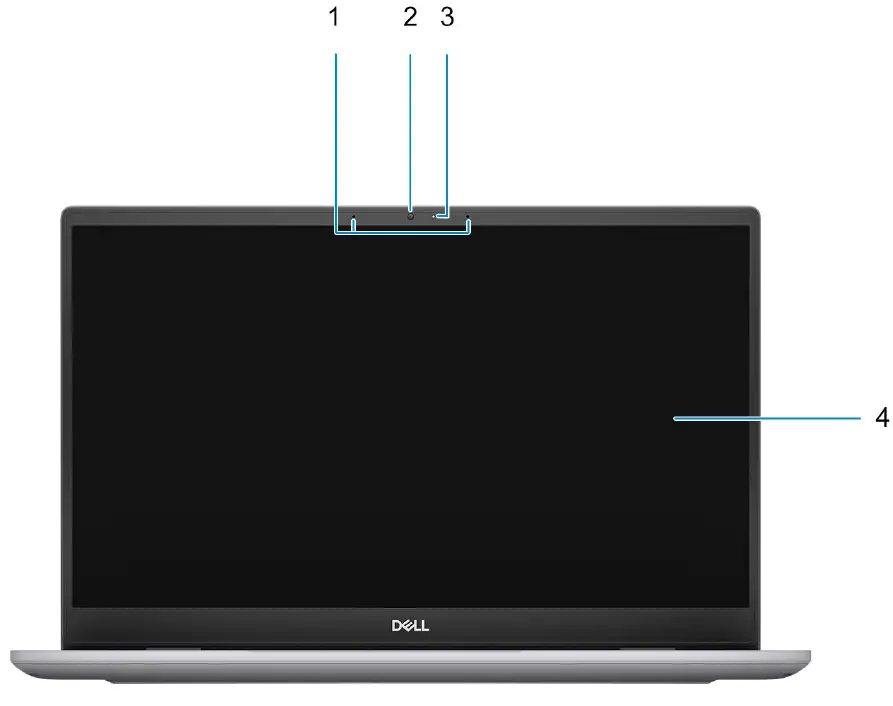

Front
- Microphones
- Camera
- Camera status LED
- Display panel

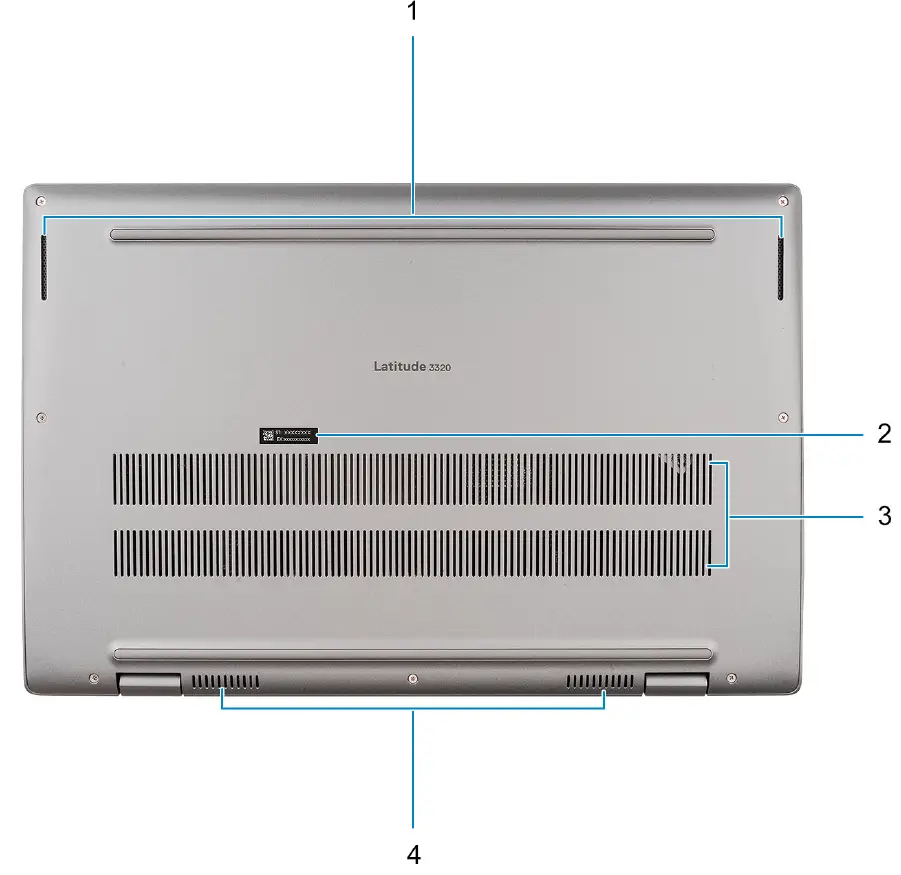

Bottom
- Speakers
- Service tag label
- Air vents
- Air vents
LED Indicators and Characteristics
Battery Charge and Status LED
Table 2. Battery Charge and Status LED Indicator
| Power Source | LED Behavior | System Power State | Battery Charge Level |
| AC Adapter | Off | S0 – S5 | Fully Charged |
| AC Adapter | Solid White | S0 – S5 | < Fully Charged |
| Battery | Off | S0 – S5 | 11-100% |
| Battery | Solid Amber (590+/-3 nm) | S0 – S5 | < 10% |
- S0 (ON) – System is turned on.
- S4 (Hibernate) – The system consumes the least power compared to all other sleep states. The system is almost at an OFF state, expect for a trickle power. The context data is written to hard drive.
- S5 (OFF) – The system is in a shutdown state.
Specifications of Latitude 3320
Dimensions and weight
The following table lists the height, width, depth, and weight of your Latitude 3320.
Table 3. Dimensions and weight
| Description | Values | |
| Height: | ||
| Front height | 15.69 mm (0.62 in.) | |
| Rear height | 16.36 mm (0.64 in.) | |
| Width | 305.96 mm (12.05 in.) | |
| Depth | 204 mm (8.03 in.) | |
| Weight | 1.16 kg (2.56 lb) NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability. | |
Processors
The following table provides the various processor options supported for Latitude 3320.
Table 4. Processors
| Description | Option one | Option two | Option three | Option four |
| Processors | 11th Generation Intel Core i3-1115G4 | 11th Generation Intel Core i5-1135G7 | 11th Generation Intel Core i5-1145G7 | 11th Generation Intel Core i7-1165G7 |
| Wattage | 15 W | 15 W | 15 W | 15 W |
| Core count | 2 Core | 4 Core | 4 Core | 4 Core |
| Thread count | 4 Thread | 8 Thread | 8 Thread | 8 Thread |
| Speed | 3.00 GHz to 4.10 GHz | 2.40 GHz to 4.20 GHz | 2.60 GHz to 4.40 GHz | 2.80 GHz to 4.70 GHz |
| Cache | 6 MB | 8 MB | 8 MB | 12 MB |
| Integrated graphics | Intel UHD Graphics | Intel Iris Xe Graphics | Intel Iris Xe Graphics | Intel Iris Xe Graphics |
Chipset
The following table provides the chipset specifications for Latitude 3320.
Table 5. Chipset
| Description | Values |
| Processor | 11th Generation Intel Core i3-1115G4/Core i5-1135G7/Core i5-1145G7/Core i7-1165G7 |
| Chipset | Intel |
| DRAM bus width | Dual-channel, 64 GB-bit |
| Flash EPROM | 64 MB |
| PCIe bus | Up to Gen4 |
Operating system
Your Latitude 3320 supports the following operating systems:
- Windows 10 Home, 64-bit
- Windows 10 Pro, 64-bit
- Ubuntu Linux 20.04 LTS, 64-bit
Memory
The following table lists the memory specifications of your Latitude 3320.
Table 6. Memory specifications
| Description | Values |
| Memory slots | Integrated on the system board NOTE: You cannot upgrade the memory on your Latitude 3320. |
| Memory type | LPDDR4x; Single-channel; Dual-channel |
| Memory speed | ● 3733 MHz for Intel Core i3 processors ● 4267 MHz for Intel Core i5/i7 processors |
| Maximum memory configuration | 16 GB |
| Minimum memory configuration | 4 GB |
| Memory size per channel | 4 GB, 8 GB, 16 GB |
| Memory configurations supported | ● 4 GB ● 8 GB ● 16 GB |
Intel Optane memory (optional)
Intel Optane memory functions only as a storage accelerator. It neither replaces nor adds to the memory (RAM) installed on your computer.
NOTE: Intel Optane memory is supported on computers that meet the following requirements:
- 7th Generation or higher Intel Core i3/i5/i7 processor
- Windows 10 64-bit version or higher (Anniversary Update)
- Latest version of Intel Rapid Storage Technology driver
Table 7. Intel Optane memory
| Description | Values |
| Type | Intel Optane Memory H20 with Solid State Storage |
| Interface | PCIe NVMe Gen3 x4 |
| Connector | M.2 2280 |
| Configurations supported | 512 GB |
| Capacity | 32 GB + 512 GB |
External ports
The following table lists the external ports on your Latitude 3320.
Table 8. External ports
| Description | Values |
| USB ports | ● One USB 3.2 Gen2x2 Type-C port with DisplayPort Alt Mode 1.4/Power Delivery ● Two USB 3.2 Gen 1 ports |
| Audio port | One headset (headphone and microphone combo) port |
| Video port/ports | One HDMI 1.4b port |
| Media-card reader | One microSD-card 3.0 |
| Docking port | Supported through USB Type-C |
| Power-adapter port | ● 65 W AC Adapter, 4.5 mm barrel ● 65 W AC adapter, USB-C |
| Security-cable slot | One wedge-shaped lock slot |
Internal slots
The following table lists the internal slots of your Latitude 3320.
Table 9. Internal slots
| Description | Values |
| M.2 | ● One M.2 2230/M.2 2280 slot for solid-state drive/One M.2 2280 slot for Intel Optane Memory ● One M.2 2230 slot for Wi-Fi/Bluetooth NOTE: To learn how to distinguish the differences between M.2 cards, see the knowledge base article 000144170 at www.dell.com/support. |
Wireless module
The following table lists the wireless module specifications of your Latitude 3320.
Table 10. Wireless module specifications
| Description | Values | |||||
| Model number | Qualcomm Wi-Fi 5 QCA61x4A | Intel Wi-Fi 6 AX201 | Intel Wi-Fi 6 AX210 | |||
| Wireless access point | 2×2 MIMO | 2×2 MIMO | 2×2 MIMO | |||
| Transfer rate | Up to 867 Mbps | Up to 2400 Mbps | Up to 2400 Mbps | |||
| Frequency bands supported | 2.40 GHz/5.00 GHz | 2.40 GHz/5.00 GHz | 2.4 GHz/5.00 GHz/6.00 GHz | |||
| Wireless standards | ● ● ● | WiFi 802.11a/b/g Wi-Fi 4 (Wi-Fi 802.11n) Wi-Fi 5 (Wi-Fi 802.11ac) | ● ● ● ● | WiFi 802.11a/b/g Wi-Fi 4 (Wi-Fi 802.11n) Wi-Fi 5 (Wi-Fi 802.11ac) Wi-Fi 6 (WiFi 802.11ax) | ● ● ● ● | WiFi 802.11a/b/g Wi-Fi 4 (Wi-Fi 802.11n) Wi-Fi 5 (Wi-Fi 802.11ac) Wi-Fi 6 (WiFi 802.11ax) |
| Encryption | ● 64-bit/128-bit WEP ● AES-CCMP ● TKIP | ● 64-bit/128-bit WEP ● AES-CCMP ● TKIP | ● 64-bit/128-bit WEP ● AES-CCMP ● TKIP | |||
| Bluetooth | Bluetooth 5.0 | Bluetooth 5.1 | Bluetooth 5.2 | |||
Audio
The following table lists the audio specifications of your Latitude 3320.
Table 11. Audio specifications
| Description | Values | |
| Audio controller | Realtek ALC3204 | |
| Stereo conversion | Supported | |
| Internal audio interface | High definition audio interface | |
| External audio interface | Universal audio port | |
| Number of speakers | Two | |
| Internal-speaker amplifier | Supported (audio codec integrated) | |
| External volume controls | Keyboard shortcut controls | |
| Speaker output: | ||
| Average speaker output | 2 W | |
| Peak speaker output | 2.5 W | |
| Subwoofer output | Not supported | |
| Microphone | Dual-array microphone | |
Storage
This section lists the storage options on your Latitude 3320.
Table 12. Storage specifications
| Storage type | Interface type | Capacity |
| M.2 2230, Class 35 solid-state drive | PCIe NVMe Gen3 x4 | Up to 1 TB |
| M.2 2280, Class 40 solid-state drive | PCIe NVMe Gen3 x4 | Up to 512 GB |
| One Intel Optane Memory H20 with Solid State Storage, M.2 2280 | PCIe NVMe Gen3 x4 | Up to 512 GB |
Keyboard
The following table lists the keyboard specifications of your Latitude 3320.
Table 13. Keyboard specifications
| Description | Values |
| Keyboard type | ● Standard non-backlit keyboard without fingerprint reader ● Standard non-backlit keyboard with fingerprint reader ● Standard backlit keyboard without fingerprint reader ● Standard backlit keyboard with fingerprint reader |
| Keyboard layout | QWERTY |
| Number of keys | ● United States and Canada: 79 keys ● United Kingdom: 80 keys ● Japan: 83 keys |
| Keyboard size | X=19.05 mm key pitch Y=18.05 mm key pitch |
Camera
The following table provides the detailed camera specifications of Latitude 3320.
Table 14. Camera specifications
| Description | Option one | |
| Number of cameras | One | |
| Type | RGB HD camera with TNR Gen 2 (Temporal Noise Reduction) | |
| Location | Front Camera | |
| Sensor type | CMOS sensor technology | |
| Resolution (RGB): | ||
| Still Image | 0.92 megapixel | |
| Description | Option one | |
| Video | 1280 x 720 (HD) at 30 fps | |
| Diagonal viewing angle, RGB | 74.9° | |
Touchpad
The following table provides the detailed touchpad specifications of Latitude 3320.
Table 15. Touchpad specifications
| Description | Values | |
| Resolution: | ||
| Horizontal | 3184 | |
| Vertical | 1979 | |
| Dimensions: | ||
| Horizontal | 105 mm (4.13 in.) | |
| Vertical | 65 mm (2.56 in.) | |
| Touchpad gestures For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com. | Yes | |
Power adapter
Table 16. Power adapter specifications
| Description | Option one | Option two |
| Type | 65 W AC adapter, 4.5 mm barrel | 65 W AC adapter, USB-C |
| Diameter (connector) | 4.5 mm x 2.9 mm | N/A |
| Input voltage | 100 VAC x 240 VAC | 100 VAC x 240 VAC |
| Input frequency | 50 Hz x 60 Hz | 50 Hz x 60 Hz |
| Input current (maximum) | 1.60 A/1.70 A | 1.70 A |
| Output current (continuous) | 3.34 A | ● 20 V/3.25 V ● 15 V/3 A ● 9 V/3 A ● 5 V/3 A |
| Rated output voltage | 19.50 VDC | ● 20 VDC ● 15 VDC ● 9 VDC ● 5 VDC |
| Description | Option one | Option two | |
| Temperature range: | |||
| Operating | 0°C to 40°C (32°F to 104°F) | 0°C to 40°C (32°F to 104°F) | |
| Storage | -40°C to 70°C (-40°F to 158°F) | -40°C to 70°C (-40°F to 158°F) | |
Battery
The following table lists the battery specifications of your Latitude 3320.
Table 17. Battery specifications
| Description | Option one | Option two | |
| Battery type | 3-cell, 41 WHr, polymer, ExpressCharge Capable Battery | 4-cell, 54 WHr, polymer, ExpressCharge Capable Battery | |
| Battery voltage | 11.25 VDC | 15 VDC | |
| Battery weight (maximum) | 0.18 kg (0.40 lb) | 0.23 kg (0.51 lb) | |
| Battery dimensions: | |||
| Width | 206.40 mm (8.12 in.) | 271.90 mm (10.70 in.) | |
| Depth | 82.00 mm (3.22 in.) | 82.00 mm (3.22 in.) | |
| Height | 5.75 mm (0.22 in.) | 5.75 mm (0.22 in.) | |
| Temperature range: | |||
| Operating | 0°C to 35°C (32°F to 95°F) | 0°C to 35°C (32°F to 95°F) | |
| Storage | -20°C to 65°C (-4°F to 149°F) | -20°C to 65°C (-4°F to 149°F) | |
| Battery operating time | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. | |
| Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com. | 4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com/ | 4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com/ | |
| Life span (approximate) | 300 cycles at room temperature | 300 cycles at room temperature | |
| ExpressCharge | Supported | Supported | |
| User replaceable | No (Field Replaceable Unit) | No (Field Replaceable Unit) | |
| Coin-cell battery | CR2032 | CR2032 | |
NOTE:
For batteries with the ExpressCharge feature, the battery will typically have at least an 80% charge after about an hour of charging with the system off, and fully charged in about 2 hours with the system off.
Enabling ExpressCharge requires that both the computer and the battery used be ExpressCharge capable. If these requirements are not met, ExpressCharge will not be enabled.
Display
The following table lists the Display specifications of your Latitude 3320.
Table 18. Display specifications
| Description | Values | |
| Type | 13.3-inch, Full High Definition (FHD) | |
| Panel technology | Wide-viewing angle (WVA) | |
| Luminance (typical) | 250 nits | |
| Dimensions (active area): | ||
| Height | 165.24 mm (6.51 in.) | |
| Width | 293.76 mm (11.57 in.) | |
| Diagonal | 337.08 mm (13.27 in.) | |
| Native resolution | 1920 x 1080 | |
| Megapixels | 2.07 | |
| Color gamut | 45% NTSC | |
| Pixels Per Inch (PPI) | 166 | |
| Contrast ratio (min) | 600:1 | |
| Response time (max) | 35 ms | |
| Refresh rate | 60 Hz | |
| Horizontal view angle | 80° | |
| Vertical view angle | 80° | |
| Pixel pitch | 0.153 x 0.153 mm | |
| Power consumption (maximum) | 3.50 W | |
| Anti-glare vs glossy finish | Anti-glare | |
| Touch options | No | |
| Hinge rotation | Up to 180° | |
| Screen to Body Ratio | 86.3% | |
Fingerprint reader
The following table lists the specifications of fingerprint reader supported by your Latitude 3320.
NOTE: The fingerprint reader is an optional offering.
NOTE: The fingerprint reader is located on the power button.
Table 19. Fingerprint reader specifications
| Description | Values |
| Sensor technology | Trans-capacitive sensing (optional) |
| Sensor resolution | 550 DPI |
| Sensor area | 5.49 mm x 4.47 mm |
| Sensor pixel size | 108 x 88 |
GPU—Integrated
The following table lists the integrated Graphics Processing Unit (GPU) supported by your Latitude 3320.
Table 20. GPU—Integrated
| Controller | External display support | Memory size | Processor |
| Intel UHD Graphics | ● One HDMI 1.4b port ● One DisplayPort Alt Mode 1.4 over USB Type-C port | Shared system memory | Intel Core i3 Processors |
| Intel Iris Xe Graphics | ● One HDMI 1.4b port ● One DisplayPort Alt Mode 1.4 over USB Type-C port | Shared system memory | Intel Core i5/i7 Processors |
Operating and storage environment
This table lists the operating and storage specifications of your Latitude 3320.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 21. Computer environment
| Description | Operating | Storage |
| Temperature range | 0°C to 35°C (32°F to 95°F) | -40°C to 65°C (-40°F to 149°F) |
| Relative humidity (maximum) | 10% to 90% (non-condensing) | 0% to 95% (non-condensing) |
| Vibration (maximum)* | 0.66 GRMS | 1.30 GRMS |
| Shock (maximum) | 110 G† | 160 G† |
| Altitude (maximum) | 3048 m (10000 ft) | 10668 m (35000 ft) |
Measured using a random vibration spectrum that simulates user environment.
Measured using a 2 ms half-sine pulse when the hard drive is in use.
Keyboard shortcuts
NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is
pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For
example, mute audio by pressing Fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.
Table 22. List of keyboard shortcuts
| Function key | Redefined key (for multimedia control) | Behavior |
| F1 | Fn + F1 | Mute audio |
| F2 | Fn + F2 | Decrease volume |
| F3 | Fn + F3 | Increase volume |
| F4 | Fn + F4 | Play previous track/chapter |
| F5 | Fn + F5 | Play/Pause |
| F6 | Fn + F6 | Play next track/chapter. |
| F8 | Fn + F8 | Switch to external display |
| F9 | Fn + F9 | Search |
| F10 | Fn + F10 | Click keyboard backlight (optional). NOTE: Non-backlight keyboards have F10 function key without the backlight icon and do not support toggle keyboard backlight function. |
| F11 | Fn + F11 | Decrease brightness |
| F12 | Fn + F12 | Increase brightness |
The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.
Table 23. Secondary behavior
| Function key | Behavior |
| Fn + PrtScr | Turn off/on wireless |
| Fn + B | Pause/Break |
| Fn + Insert | Sleep |
| Fn + S | Toggle scroll lock |
| Function key | Behavior |
| Fn + H | Toggle between power and battery-status light/hard-drive activity light |
| Fn + R | System request |
| Fn + Ctrl | Open application menu |
| Fn + Esc | Toggle Fn-key lock |
| Fn + PgUp | Page up |
| Fn + PgDn | Page down |
| Fn + Home | Home |
| Fn + End | End |
Getting help and contacting Dell
Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 24. Self-help resources
| Self-help resources | Resource location |
| Information about Dell products and services | www.dell.com |
| My Dell app | |
| Tips | |
| Contact Support | In Windows search, type Contact Support, and press Enter. |
| Online help for operating system | www.dell.com/support/windows |
| Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents. | Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer. |
| Dell knowledge base articles for a variety of computer concerns | 1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles. |
Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE:
- Availability varies by country/region and product, and some services may not be available in your country/region.
- If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
