Dell Inspiron 3593 User Manual

DELL Inspiron 3593

Notes, Cautions, and Warnings

NOTE:	A NOTE indicates important information that helps you make better use of your product
CAUTION:	A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING:	A WARNING indicates a potential for property damage, personal injury, or death.

Set Up Your Inspiron 3593

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

1. Connect the power adapter and press the power button.
   NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.

2. Finish operating system setup.
   For Ubuntu:
   Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see the knowledge base articles SLN151664 and SLN151748 at www.dell.com/support.
   For Windows:
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
   • Connect to a network for Windows updates.
   NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
   • If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
   • On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended.

Table 1. Locate Dell apps in Windows 10 Home in S Mode

Resources	Description
	Dell Product Registration Register your computer with Dell.
	Dell Help & Support Access help and support for your computer.
	SupportAssist Proactively checks the health of your computer’s hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.

Table 2. Locate Dell apps in Windows 10 Home

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/support.
	SupportAssist Proactively checks the health of your computer’s hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.

Views of Inspiron 3593

Left

1. Power-adapter port
   Connect a power adapter to provide power to your computer.
2. USB 3.1 Gen 1 (Type-C) port (optional)
   Connect to external storage devices. Provides data transfer speeds up to 5 Gbps.
   NOTE: This port does not support video/audio streaming.
3. HDMI port
   Connect to a TV or another HDMI-in enabled device. Provides video and audio output.
4. Network port
   Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access.
5. USB 3.1 Gen 1 ports (2)
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
6. Headset port
   Connect headphones or a headset (headphone and microphone combo)

Right

For computers with optical drive

1. SD-card slot
   Reads from and writes to the SD card, supporting the following card types:
   • Secure Digital (SD)
   • Secure Digital High Capacity (SDHC)
   • Secure Digital Extended Capacity (SDXC)
2. USB 2.0 port
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps.
3. Optical drive
   Reads from and writes to CDs, DVDs, and Blu-ray discs.
   NOTE: Blu-ray support is only available in certain regions.
4. Security-cable slot (wedge-shaped)
   Connect a security cable to prevent unauthorized movement of your computer.

For computers without optical drive

1. SD-card slot
   Reads from and writes to the SD card, supporting the following card types:
   • Secure Digital (SD)
   • Secure Digital High Capacity (SDHC)
   • Secure Digital Extended Capacity (SDXC)
2. USB 2.0 port
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps.
3. Security-cable slot (wedge-shaped)
   Connect a security cable to prevent unauthorized movement of your computer.

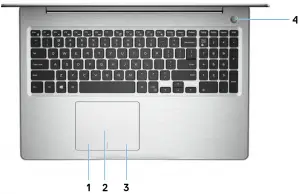

Base

1. Left-click area
   Press to left-click.
2. Touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.
3. Right-click area
   Press to right-click.
4. Power button with optional fingerprint reader
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
   When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 4 seconds to force shut-down the computer.
   If the power button has a fingerprint reader, place your finger on the power button to log in.
   NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.

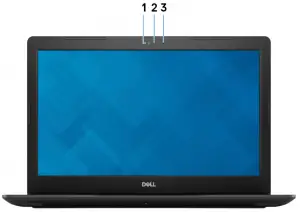

Display

1. Camera
   Enables you to video chat, capture photos, and record videos.
2. Camera-status light
   Turns on when the camera is in use.
3. Microphone
   Provides digital sound input for audio recording, voice calls, and so on.

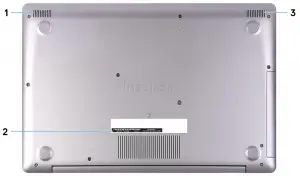

Bottom

For computers with optical drive

1. Left speaker
   Provides audio output.
2. Service Tag label
   The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
3. Right speaker
   Provides audio output.

Specifications of Inspiron 3593

Dimensions and weight

Table 3. Dimensions and weight

Processors

Table 4. Processors

Chipset

Table 5. Chipset

Operating system

• Windows 10 Home (64-bit)
• Windows 10 Home in S Mode (64-bit)
• Windows 10 Professional (64-bit)
• Ubuntu

Memory

Table 6. Memory specifications

Intel Optane memory (optional)

Intel Optane technology utilizes 3D XPoint memory technology and functions as a non-volatile storage cache/accelerator and/or storage device depending on the Intel Optane memory installed in your computer.
Your computer supports the following Intel Optane Memory devices:

• Intel Optane Memory M10
• Intel Optane Memory M15

Intel Optane Memory M10

Intel Optane Memory M10 functions only as a non-volatile storage cache/accelerator, enabling enhanced read/write speeds for hard-drive storage. It neither replaces nor adds to the memory (RAM) installed on your computer.

Table 7. Intel Optane Memory M10 specifications

NOTE: Intel Optane Memory M10 is supported on computers that meet the following requirements:

• 7th Generation or higher Intel Core i3/i5/i7 processors
• Windows 10 64-bit version or higher (Anniversary Update)
• Intel Rapid Storage Technology driver version 15.7 or higher

Intel Optane Memory M15

Intel Optane Memory M15 functions only as a non-volatile storage cache/accelerator, enabling enhanced read/write speeds for hard-drive storage. It neither replaces nor adds to the memory (RAM) installed on your computer.

Table 8. Intel Optane Memory M15 specification

NOTE: Intel Optane Memory M15 is supported on computers that meet the following requirements:

• 7th Generation or higher Intel Core i3/i5/i7 processors
• Windows 10 64-bit version or higher (Anniversary Update)
• Intel Rapid Storage Technology driver version 17 or higher

Ports and connectors

Table 9. External ports and connectors

Table 10. Internal ports and connectors

Communications

Ethernet

Table 11. Ethernet specifications

Wireless module

Table 12. Wireless module specifications

Audio

Table 13. Audio specifications

Storage

Your computer is shipped with one of the following configurations:

• One M.2 solid-state drive
• One 2.5-inch hard drive
• One M.2 solid-state drive and one 2.5-inch hard drive
  NOTE: The solid-state drive is the primary drive.
• One 2.5-inch hard drive and one Intel Optane Memory M10 or M15
  NOTE: The 2.5-inch hard drive is the primary drive.

Table 14. Storage specifications

Form factor	Interface type	Capacity
2.5-inch hard drive	SATA AHCI, up to 6 Gbps	Up to 2 TB
M.2 2230/2280 solid-state drive	PCIe NVMe Gen3.0 x4, up to 32 Gbps	Up to 1 TB
9.5 mm Slimline optical drive NOTE: Applicable only to computers shipped with optical drive	SATA AHCI, up to 1.5 Gbps	One Slimline optical drive

Media-card reader

Table 15. Media-card reader specifications

Keyboard

Table 16. Keyboard specifications

Description	Values
Type	Standard non-backlit keyboard Backlit keyboard
Layout	QWERTY
Number of keys	United States and Canada: 101 keys United Kingdom: 102 keys Japan: 105 keys Brazil: 104 keys
Size	X = 19.05 mm key pitch Y = 18.05 mm key pitch
Shortcut keys	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program. See Keyboard shortcuts.

Camera

Table 17. Camera specifications

Touchpad

Table 18. Touchpad specifications

Touchpad gestures

For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com.

Power adapter

Table 19. Power adapter specifications

Battery

NOTE: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.

Table 20. Battery specifications

Description	Values
Type	3-cell “smart” lithium-ion (33 WHr)	3-cell “smart” lithium-ion (42 WHr)
Voltage	10.95 VDC	11.40 VDC
Weight (maximum)	0.2 kg (0.44 lb)	0.2 kg (0.44 lb)
Dimensions:
Height	5.90 mm (0.23 in.)	5.90 mm (0.23 in.)
Width	175.37 mm (6.9 in.)	97.15 mm (3.82 in.)
Depth	90.73 mm (3.57 in.)	184.15 mm (7.25 in.)
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
Storage	–40°C to 65°C (–40°F to 149°F)	–40°C to 65°C (–40°F to 149°F)
Operating time	Varies depending on operating conditions and can significantly reduce under certain power intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Charging time (approximate)	4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com	4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com
Life span (approximate)	300 discharge/charge cycles	300 discharge/charge cycles
Coin-cell battery	CR-2032	CR-2032
Operating time	Varies depending on operating conditions and can significantly reduce under certain power intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Display

Table 21. Display specifications

Fingerprint reader (optional)

Table 22. Fingerprint reader specifications

Video

Table 23. Video specifications

Table 24. Video specifications

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 25. Computer environment

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press Shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multi media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by
pressing Fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1 F12) by changing Function Key Behavior in BIOS setup program.

Table 26. List of keyboard shortcuts

Function key	Re-defined key (for multi media control)	Behavior
		Mute audio
		Decrease volume
		Increase volume
		Play previous track/chapter
		Play/Pause
		Play next track/chapter
		Switch to external display
		Search
		Toggle keyboard backlight (optional)
		Decrease brightness
		Increase brightness

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 27. List of keyboard shortcuts

Function key	Behavior
	Turn off/on wireless
	Pause/Break
	Sleep
	Toggle scroll lock
	Toggle between power and battery-status light/hard-drive activity light
	System request
	Open application menu
	Toggle Fn-key lock
	Page up
	Page down
	Home
	End

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 28. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Del
Tips
Contact Support	In Windows search, type Contact Support, and press Enter
Online help for operating system	www.dell.com/support/windows www.dell.com/support/linux
Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on.	www.dell.com/support
Dell knowledge base articles for a variety of computer concerns	Go to www.dell.com/support. Type the subject or keyword in the Search box. 3 Click Search to retrieve the related articles.
Learn and know the following information about your product: Product specifications Operating system Setting up and using your product Data backup Troubleshooting and diagnostics Factory and system restore BIOS information	See Me and My Dell at www.dell.com/support/manuals. To locate the Me and My Dell relevant to your product, identify your product through one of the following: Select Detect Product. Locate your product through the drop-down menu under View Products. Enter the Service Tag number or Product ID in the search bar.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

References

• Microsoft Support
• Computers, Monitors & Technology Solutions | Dell USA
• Computers, Monitors & Technology Solutions | Dell USA
• Contact Support | Dell US
• Support | Dell US
• Dell - Dell Linux - Community Web
• Manuals | Dell US
• Windows Operating Systems | Dell US
• Microsoft Support
• Touch gestures for Windows - Microsoft Support
• Computers, Monitors & Technology Solutions | Dell USA
• Computers, Monitors & Technology Solutions | Dell USA
• Contact Support | Dell US
• Support | Dell US
• How to Install Ubuntu Linux on your Dell Computer | Dell US
• What is Dell Digital Delivery? | Dell US
• How to distinguish the differences between M.2 cards | Dell US
• Dell Update and Alienware Update - Overview and common questions | Dell US
• How to configure Ubuntu Linux after it's first installed on your Dell PC | Dell US
• Support for SupportAssist for Home PCs | Documentation | Dell US
• Dell - Dell Linux - Community Web
• Manuals | Dell US
• Windows Operating Systems | Dell US
