Onforu Dt84 12v Uv Led Strip Light Installation Guide

12V UV LED Strip Light

INSTALLATION GUIDE
THANK YOU for buying this product. To provide an excellent user experience, please install it according to these instructions.

SAFETY INFORMATION

1. Disconnect the power supply before attempting any work on the unit
2. Check all components for damage, do not use the product if it is damaged.
3. To ensure the product can work normally, please use it in the voltage within the range on the lamp label.
4. Do not install the unit on (normally) flammable surfaces.
5. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
6. This light is a non-dimmable product.To avoid failure, please don’t connect it with the dimming controller.
7. Please pay attention to anti-static during the installation and use of the product. Don’t touch the product with sharp tools
8. Never plug the light in with wet hands in case of electric shock.
9. This product is not a toy. Do not let children play it as the toy.
10. The 3M adhesive might be used during the installation, please make sure it is applied firmly to prevent the product from falling.
11. This product is used for decoration, not suitable for lighting
12. To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
13. This product is not waterproof, please do not submerge in water or do not use it in a humid environment for a long time.
14. Don’t roll the light strip during the operation, otherwise, it will melt.
15. Don’t cover the light strip as the covering may cause the light strip to overheat and melt or ignite.
16. Please use our power adapter, controller or dimmer, the power of the strip light cannot be higher than the maximum power of the adapter, controller or dimmer.
17. Only use the provided hanger or clip to protect the light strip. Do not use staples, nails or similar things to fix this product or its wires, which may damage the insulation.
18. Risk of fire – do not replace the plug. The plug contains a safety device (fuse) that should not be removed. Discard the product if the plug is damaged.

NOTE

1. Safety Class III = Only operate lamps with this symbol with Safety Extra Low Voltage (SELV). Only connect to SELV circuits.
2.  Lights that are not suitable for covering with thermal insulation materials.
3.  Lights that are not suitable for being directly installed on normally flammable surfaces.(only suitable for being installed on a non-flammable surface)
4. It is not suitable for household room illumination.
5.  Safety Class II=This lamp is doubly insulated and may not be wired to a protective conductor.

• Please install the lights on the dust-free, clean and smooth surface, otherwise the strips will fall.
• During the installation, the bend should be avoided to be just in the position of LEDs or other components.

SPECIFICATIONS

Model	DT5UV	DT5UV	DT1OUV
Input of Adapter	100-240 V – 50/60Hz 0.6A	100-240 V – 50/60Hz 0.8A	100-240 V 50/60Hz 0.8A
The input of light strip	12V. 1A	12V 2A	12V 2A
Wavelength	385-400nm
Chromaticity coordinate	x=0.1763 y=0.0317
CRI	-2.
Power factor	0.5
Length	5m/16.4ft	5m/16.4ft	2*5m/2*16.4ft
LEDs Quantity	300units	300units	600units
ta:	-20-40°C / -4°F-104°F

The intended purpose of this special purpose product: This light is used to create an atmosphere. it is not suitable for household room illumination， the light source is not intended for use in other applications.

How to install:

STEP 1 Peel off the cover of the LED strip light.STEP 2 Stick the adhesive strip onto the targeted places where you want to use the strip. To avoid falling out, please choose the proper area to stick the LED strip lights, and sweep the dust off the surface.

Tips You can reinforce the strip light with transparent fixing clips in the package.

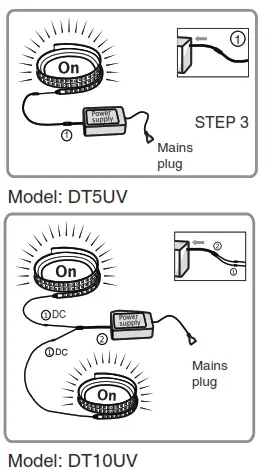

STEP 3 For the pack of 1 sets Connect the DC Female Side of the LED strip light to the power adapter. Plug the power adapter into the socket. Then the LED strip light works.

For the pack of 2 sets

1. Connect the DC female side of the LED strip light with the DC Line.
2. Connect the Line with the power adapter.
3. Plug the power adapter into the socket. Then the LED striplight work.

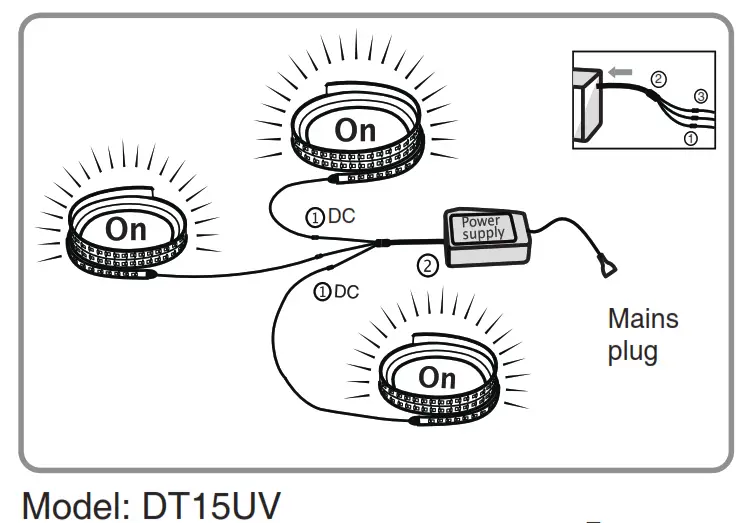

For the pack of 3 sets

1. Connect the DC female side of the LED strip light with the DC Line.
2. Connect the Line with the power adapter.
3. Plug the power adapter into the socket. Then the LED strip light work.

Tips
If the light strip is not fixed with tape, you can reinforce it with clips in the package.
If the strip can’t be turned on after installation, please check whether the joint is connected correctly.

Operation / Maintenance

• Prior to cleaning the light, make sure it has been disconnected from the power supply.
• The unit is not suitable for burglar alarm systems as it is not tamperproof in the manner prescribed for such systems.
• Never use any chemicals or corrosive substances for cleaning.
• This light should be used in conditions with sound heat dissipation. The working temperature of it should be less than 40°C. Overhigh working temperature will cause serious lumen depression and affect the lifespan of the light.

Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner. Do not dispose of electrical and electronic equipment as domestic waste.
EU countries only:
Under the current European Directive on Waste Electrical and Electronic equipment and its implementation in national law, electrical and electronic equipment no longer  suitable for use must be collected separately and recycled in an environmentally compatible manner.

Manufacturer / Hersteller:
Address:  [email protected]
www.onforuleds.com
MDH LIGHTING LTD
PSuite 302, 292 Strovolos Avenue, 2048 Strovolos
Nicosia, Cyprus | [email protected]
MDH LIGHTING LTD
69 Aberdeen Avenue, Cambridge CB2 8DL,
United Kingdom | [email protected]

Made in China
