LED STRIP LIGHT
INSTALLATION GUIDE
THANK YOU for buying this product. To provide an excellent user experience, please install it according to these instructions.
Safety Information:
- Don’t roll the light strip during the operation, otherwise, it will melt.
- Don’t cover the light strip as the covering may cause the light strip to overheat and melt or ignite.
- Don’t immerse the light strip in the liquid, or use it near water or other liquids.
- Please use our power adapter, controller or dimmer, the power of the strip light cannot be higher than the maximum power of the adapter, controller or dimmer.
- Only use the provided hanger or clip to protect the light strip. Do not use staplers, nails or similar things to fix this product or its wires, which may damage the insulation.
- Risk of fire – do not replace the plug. The plug contains a safety device (fuse) that should not be removed.
- Discard the product if the plug is damaged.
- Please pay attention to anti-static during the installation and use of the product.
- Don’t touch the product with sharp tools.
Note:
01 Safety Class III = Only operate lamps with this symbol with Safety Extra Low Voltage (SELV). Only connect to SELV circuits.
- Please install the lights on the dust-free, clean and smooth surface, otherwise the strips will fall.
- During the installation, the bend should be avoided to be just in the position of LEDs or other components.
HOW TO INSTALL

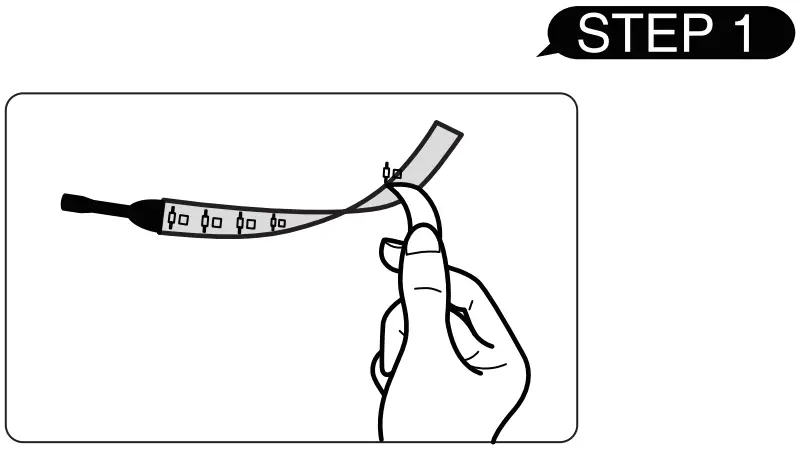

Peel off the cover of the LED strip light.

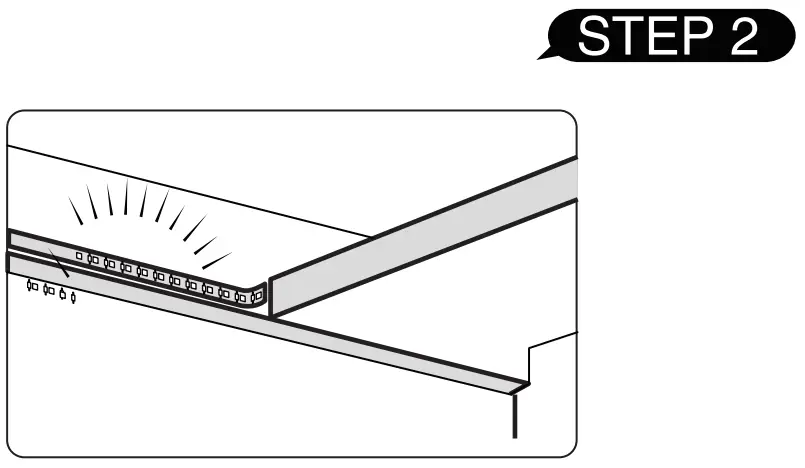

Stick the adhesive strip onto the targeted places where you want to use the strip.
To avoid falling out, please choose the proper area to stick the LED strip lights, and sweep the dust off the surface.

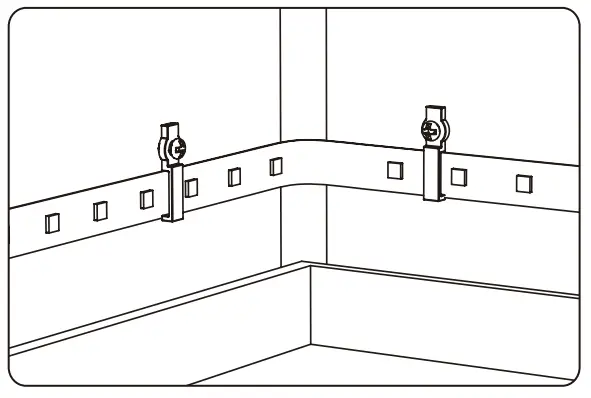

Tips ：
You can reinforce the strip lightly with transparent fixing clips in the package.
5m /16.4ft Without Dimmer DT5
| ULSAD011201 | ULSAW011201 | ON-DT60-DW-EU-NF |
| KLSAD011201 | KLSAW011201 | ON-DT60-WW-EU-NF |
| ELSAD011201 | ELSAW011201 |

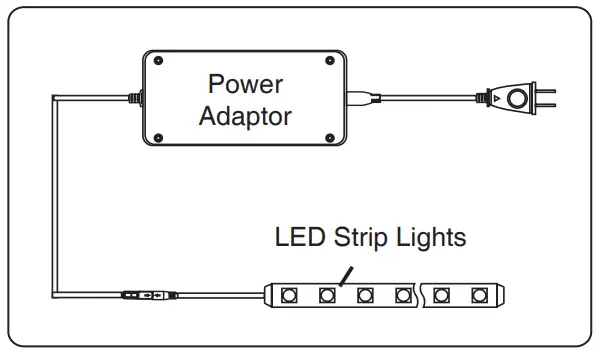

Connect the DC female side of the
LED strip light to the power adapter.
Plug the power adapter into the socket. Then the led strip light works.
5m/ 16.4ft With Dimmer DT5
| ULSAD011201-1 | ULSAW011201-1 |
| ON-DT31-DW-UK-NF | ON-DT31-WW-US-NF |
| ON-DT31-DW-EU-NF | ON-DT31-WW-UK-NF |
| ON-DT58-DW-EU-NF | ON-DT31-WW-EU-NF |
| ON-DT58-WW-EU-NF |

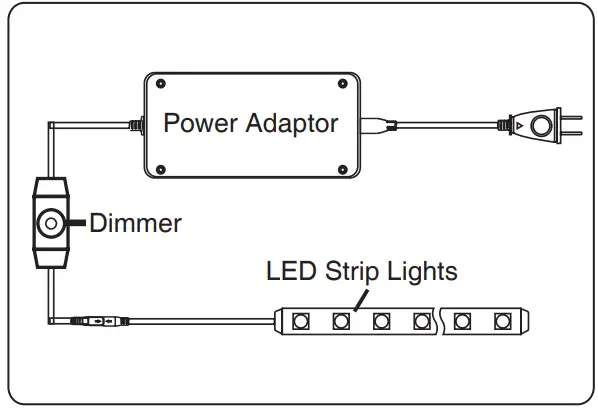

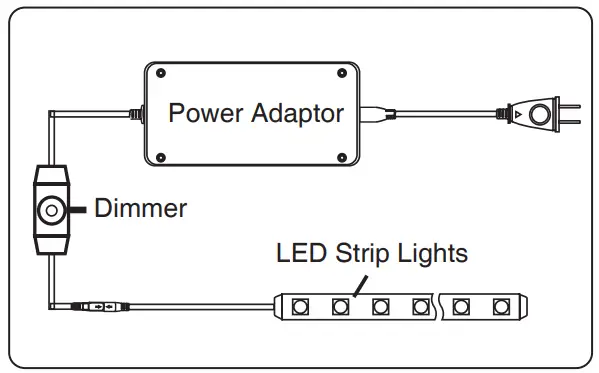

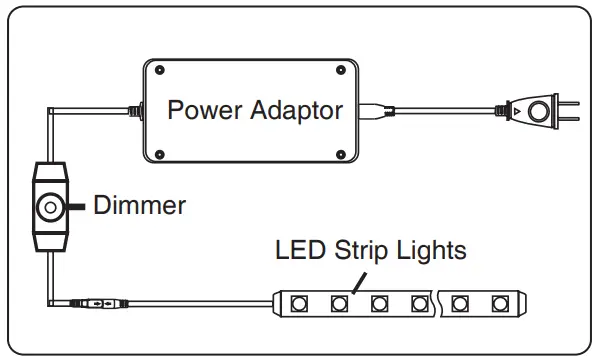

Connect the DC female side of the LED strip light to the dimmer.
Connect the dimmer to the power adapter.
Plug the power adapter into the socket.
Switch on the dimmer, then the led strip light works.
10m/ 32.8ft With Dimmer DT10
| ULSAW002201 | ULSAD012201 | ON-DT61-WW-EU-NF | ON-DT49-WW-JP-NF |
| KLSAW002201 | KLSAD001201 | ON-DT61-DW-EU-NF | ON-DT49-DW-JP-NF |
| ELSAW002201 | ELSAD001201 |
Connect the DC female side of the LED strip light to the dimmer.
Connect the dimmer to the power adapter.
Plug the power adapter into the socket.
Switch on the dimmer, then the led strip light works.
15m/ 49.2ft Without Dimmer DT15
| ULSAD008101 | ULSAW008101 | ON-DT56-WW-US-F |
| KLSAD008101 | KLSAW008101 | ON-DT56-WW-UK-F |
| ELSAD008101 | ELSAW008101 | ON-DT56-WW-EU-F |
| ON-DT59-DW-EU-F | ON-DT59-WW-EU-F |

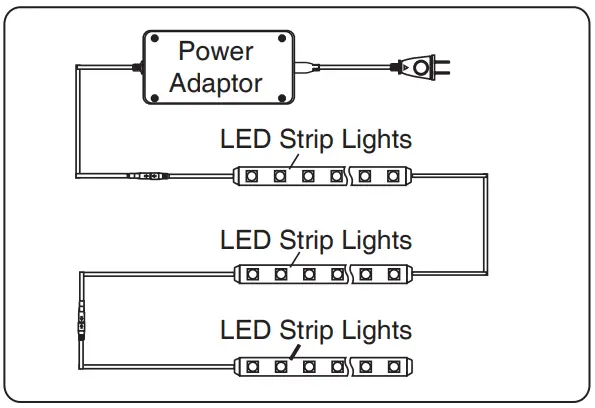

Connect the DC female side of the LED strip light to the power adapter.
Plug the power adapter into the socket.
Then the led strip light works.
15m/ 49.2ft With Dimmer DT15
| ON-DT27-DW-US-NF | ON-DT27-WW-US-NF | ON-DT45-DW-US-NF | ON-DT45-WW-US-NF |
| ON-DT27-DW-UK-NF | ON-DT27-WW-UK-NF | ON-DT45-DW-UK-NF | ON-DT45-WW-UK-NF |
| ON-DT27-DW-EU-NF | ON-DT27-WW-EU-NF | ON-DT45-DW-EU-NF | ON-DT45-WW-EU-NF |
| ON-DT63-DW-EU-NF | ON-DT63-WW-EU-NF | ||
| ON-DT45-DW-JP-NF | ON-DT45-WW-JP-NF |
Connect the DC female side of the LED strip light to the dimmer.
Connect the dimmer to the power adapter.
Plug the power adapter into the socket.
Switch on the dimmer, then the led strip light works.
20m/ 65.6ft With Dimmer DT20
| ULSAD009201 | ULSAW009201 |
Connect the DC female side of the LED strip light to the dimmer.
Connect the dimmer to the power adapter.
Plug the power adapter into the socket. Switch on the dimmer, then the led strip light works.

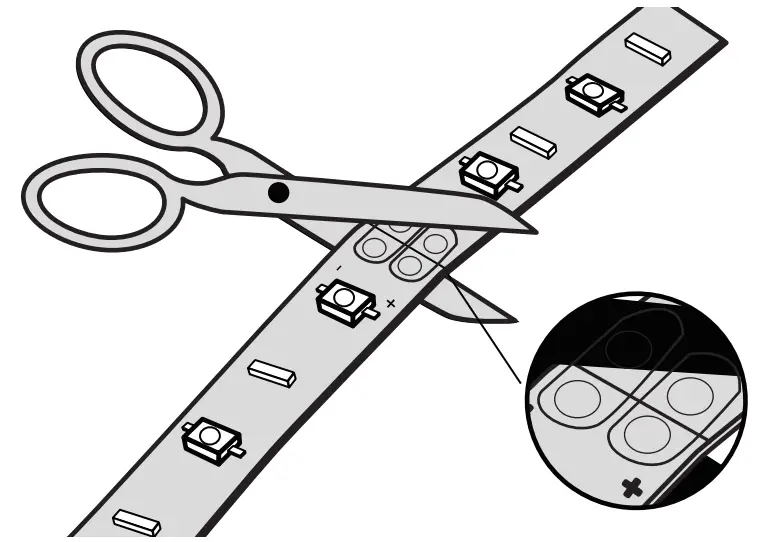

CUTTING THE LED STRIP
How to cut the LED Strip
- Please cut the LED strip through the lines marked on it.
- The 12V low voltage LED strip can be connected after being cut along the cutting marks on the copper sheet..
TIPS：
If the strip can’t be turned on after installation, please check whether the joint is connected correctly.
Operation / Maintenance
Never use any chemicals or corrosive substances for cleaning.
Disposal
Electrical and electronic equipment, accessories, and packaging must be recycled in an environmentally compatible manner.
Do not dispose of electrical and electronic equipment as domestic waste.
EU countries only:
Under the current European Directive on Waste Electrical and Electronic equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.
