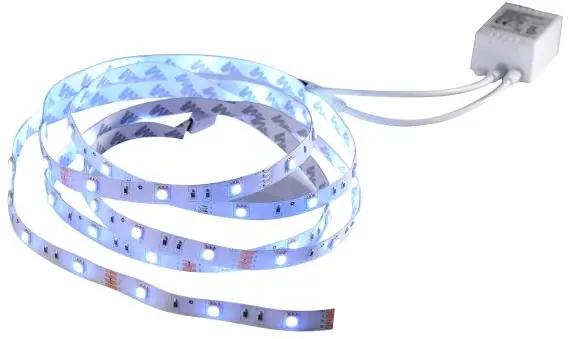

LeuchtenDireckt 81215-70 Tenia LED Strip Light
FEATURES
- No UV or IR radiation
- Superthin, and easy to install
High brightness 5050 LED - LEDQTY:150PCcs
- 25000 hours long life span
- Low temperature rising, less than 30°C
Less than 5% light decay in 10,000 hours testing - 120° Beaming Angle
- Colour: RGB
- IR Remote control.
- Dimming function.

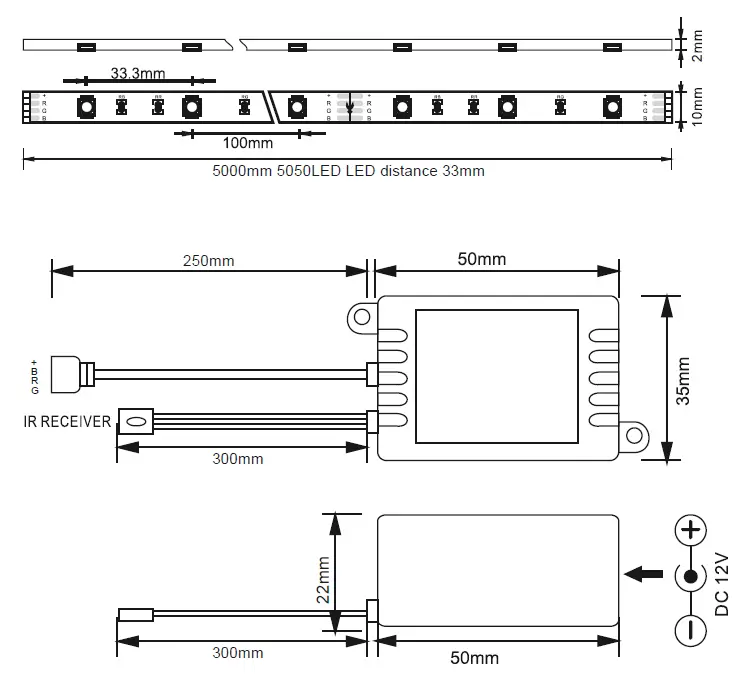

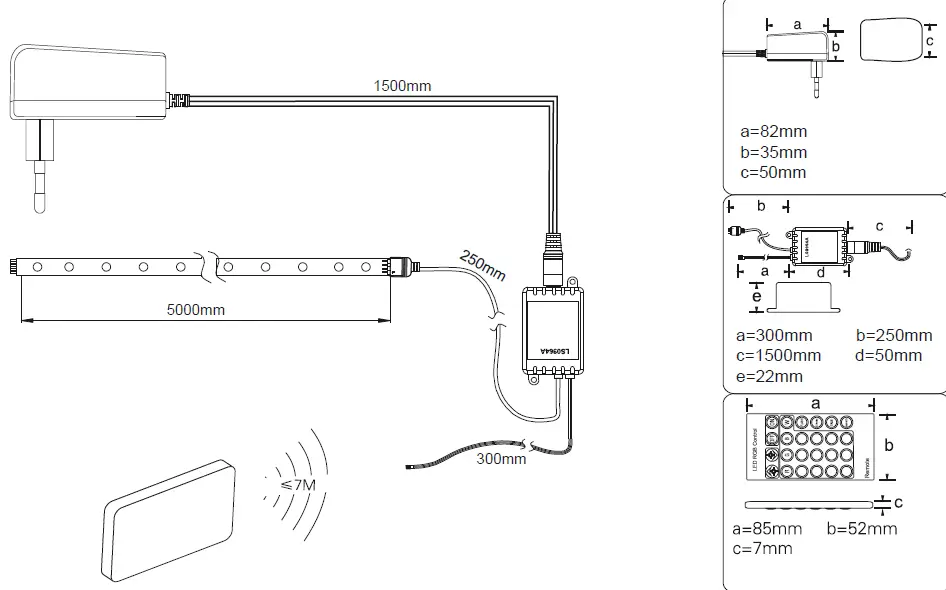

- All the size date above is in mm
- Tolerance for the size date is+0.2mm
- Tolerance of all the optical data is t15%
- Please don’t install in flammable, explosive or corros
APPLICATIONS
- Illuminated signs
- For any shape of channel letters
SPECIFICATIONS
- Input Voltage Transformator
100-240V/50-60 Hz - Max. Power 24 Watt
Input Voltage LED Stripe DC12V
Operating Temperatur -20°C -45°C - Storage Temperatur -25°C 85°C
Installation

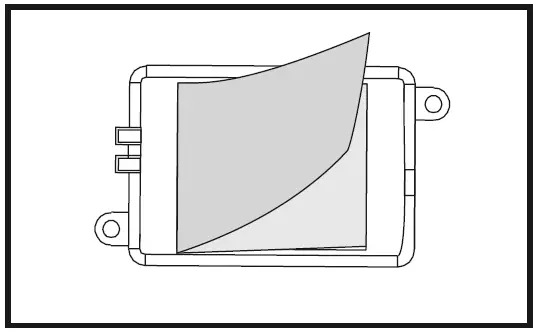

- Rip PE adhesive tape one the back of the product,then stick to the objects where you want.
- Rip PE adhesive tape one the back of the product, then stick to the objects where you want.
- Connect the controller with special connector.

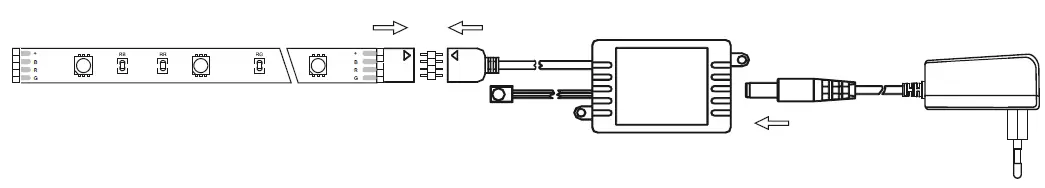

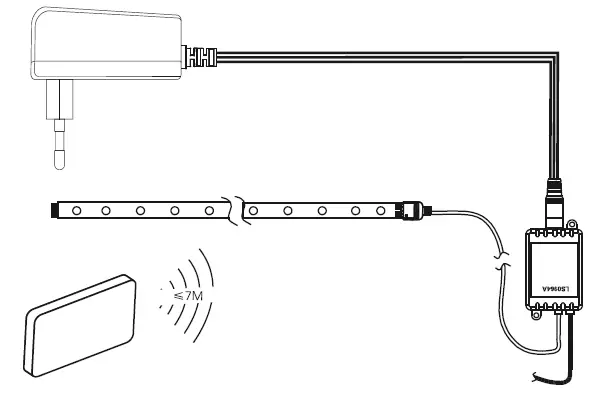

Connection method

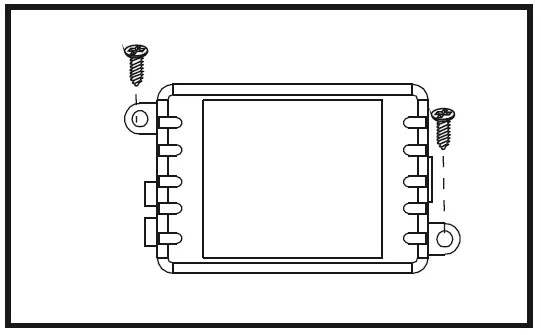

Fix the Controller with screws.
Terminal
