Onforu Gy9uv Uv Led Bulbs Instruction Manual

Instruction Manual

MODEL: GY9UV

UV LED BULBS
Product Manual

SAFETY INFORMATION

Disconnect the power supply before attempting any work on the unit!

• Installing these units involves work on the mains voltage supply; installation must therefore be carried out professionally in accordance with the appliance national wiring regulations and electrical operating conditions.
• When you are not sure whether the power is completely off, please do not install or replace the bulb with wet hands, as well as do not wipe the place near the bulb with wet objects.
• Do not look at the bulb for a long period when it’s working, it will make your eyes uncomfortable.
• Do not touch the bulb when it’s working. The surface may become hot and burn your skin.
• After a long time of use, please do not replace or touch the bulb immediately after it’s turned off. You need to wait about 10 minutes until the bulb cools down, make sure the power supply is disconnected before replacing the bulb.
• To ensure the product can work normally, please use it in the voltage within the range on the lamp label.
• Do not install the bulb in a place with a high heat source, hot steam, or corrosive gas, which will seriously affect its lifespan.
• This bulb is not waterproof, Use in Dry Locations only.
• Check all components for damage, do not use the product if it is damaged.
• The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
• This light is a non-dimmable product. To avoid failure, please don’t connect it with the dimming controller.

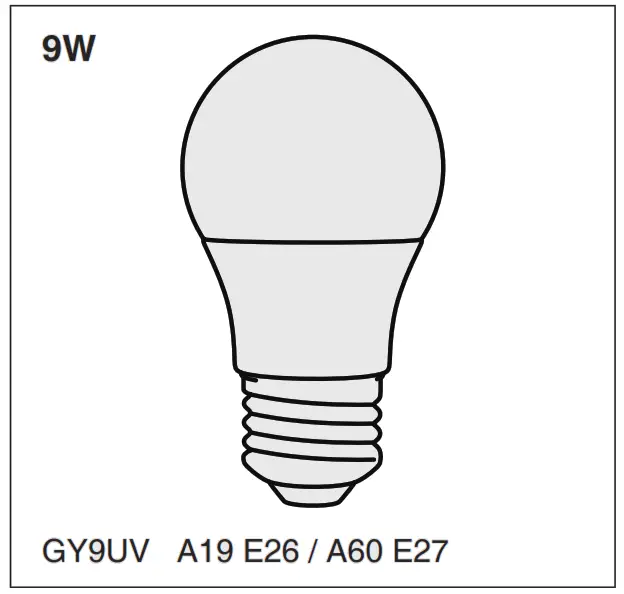

PARAMETER

	A – 70 x 70 x 132 mm    2.75 x 2.75 x 5.11 in
	0.07 kg / 0.15 lb
	100-120V～60Hz  0.09A  9W  /  220-240V～50Hz  0.04A  9W
	UV 385-400nm
	270°
ta	-25°C – 40°C/-4°F-104°F
PF	≥0.9
CRI	-1.9
chromaticity coordinate	x=0.1763 y=0.0317

The intended purpose of this special purpose product: This light is used to create an atmosphere. it is not suitable for household room illumination， the light source is not intended for use in other applications.

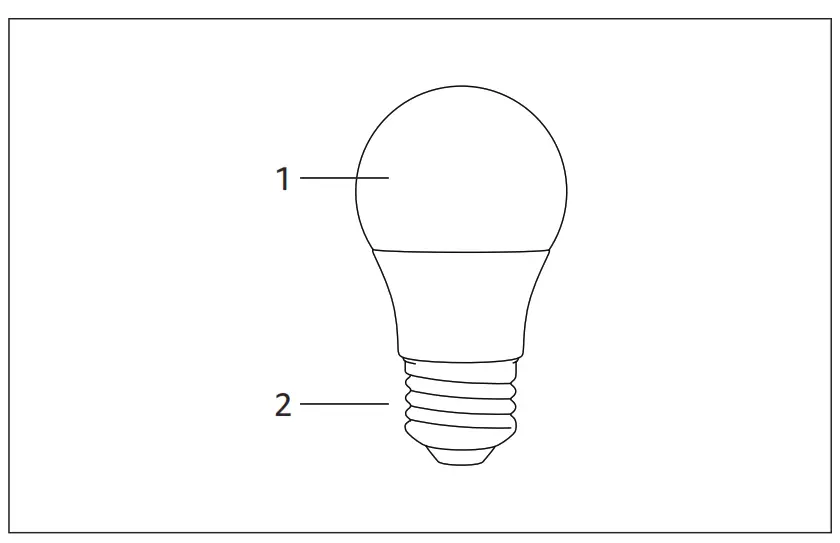

COMPONENTS AND STRUCTURE

1. Light; 2. E26/E27 Base

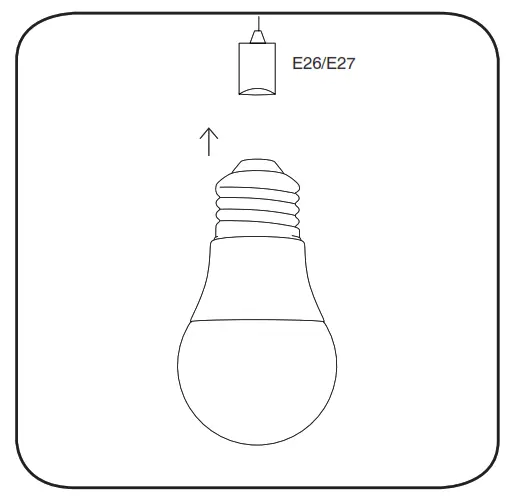

INSTALLATION STEPS

Installation for bulbs with E26/E27 Base: Screw the bulbs into the base directly and then plug the bulbs in.

NOTE

01- Safety Class II This lamp is doubly insulated and may not be wired to a protective conductor.
02 – Use in Dry Locations only.
03 – It is not suitable for household room illumination.
Limitations of Indoor and Outdoor Use

1. This light is powered by a High Voltage Alternating Current (HVAC). It should be connected to the ground wire and kept away from easy reach.
2. This light should be used in conditions with sound heat dissipation. The working temperature of it should be less than 40°C. Overhigh working temperature will cause serious lumen depression and affect the lifespan of the light.

OPERATION & MAINTENANCE

• Prior to cleaning the light, make sure it has been disconnected from the power supply.
• The unit is not suitable for burglar alarm systems as it is not tamperproof in the manner prescribed for such systems.
• Never use any chemicals or corrosive substances for cleaning.

DISPOSAL

Electrical and electronic equipment, accessories, and packaging must be recycled in an environmentally compatible manner.
Do not dispose of electrical and electronic equipment as domestic waste.
EU countries only:
Under the current European Directive on Waste Electrical and Electronic equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

Manufacturer / Hersteller:
Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si
Address: Qian wan Yi lu 1 hao A dong 201 shi Qian hai shen gang he Zuo Qu Shen Zhen, Guang
Dong, 518000, CN
[email protected] www.onforuleds.com

EU REP MDH LIGHTING LTD
Suite 302, 292 Strovolos Avenue, 2048 Strovolos
Nicosia, Cyprus | [email protected]

UK REP MDH LIGHTING LTD
69 Aberdeen Avenue, Cambridge CB2 8DL,
United Kingdom | [email protected]
Made in China
