ONFORU CTB24UV LED Light

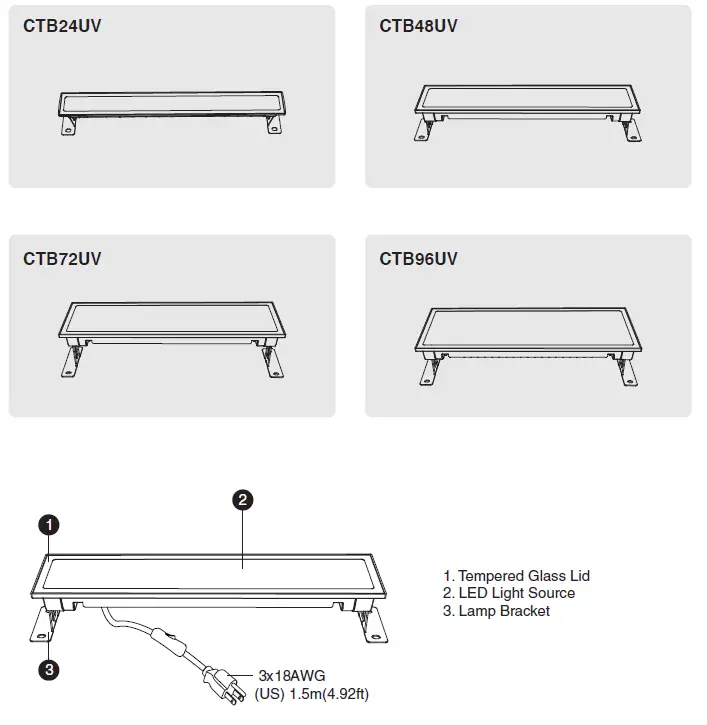

COMPONENTS AND STRUCTURE

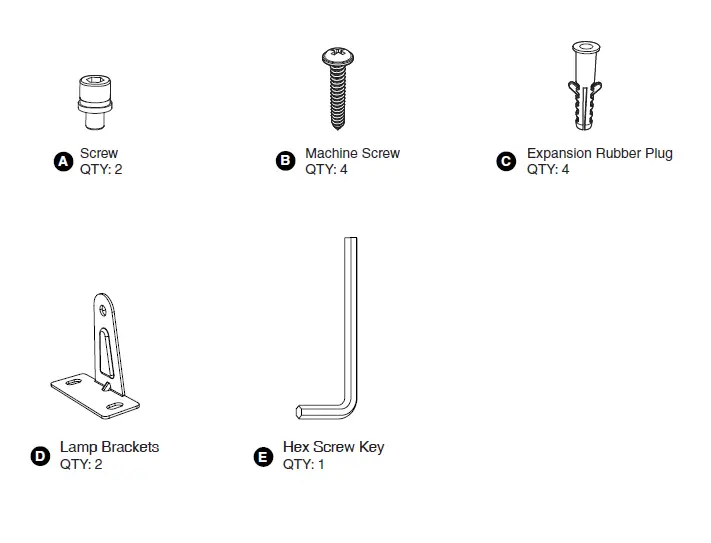

PARTS LIST
SPECIFICATIONS
| LED FLOODLIGHT | |||||||||
| Model | CTB24UV | CTB48UV | CTB72UV | CTB96UV | |||||
| Input Voltage | 100-120V～60Hz | ||||||||
| Input Current | 0.2A | 0.42A | 0.6A | 0.82A | |||||
| Rated Power | 24W | 48W | 72W | 96W | |||||
| Wavelength | 385-400nm | ||||||||
| Power Factor | ≥0.9 | ||||||||
| Chromaticity coordinate | x=0.1763 y=0.0317 | ||||||||
| CRI | -1.9 | ||||||||
| Beam Angle | 120° | ||||||||
| ta | -20-40°C/-4°F-104°F | ||||||||
| Luminaire Location | SUITABLE FOR WET LOCATIONS | ||||||||

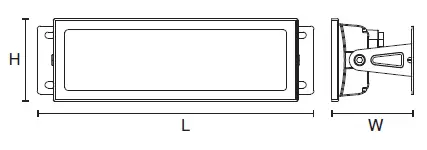

| DIMENSIONS | |||||||||
| Model | CTB24UV | CTB48UV | CTB72UV | CTB96UV | |||||
| Dimensions （LxHxW） | 430*66*76mm/ 10.93*2.58*2.99in | 430*80*76mm/ 10.93*3.15*2.99in | 430*110*110mm/ 10.93*4.33*4.33in | 430*140*110mm/ 10.93*5.5*4.33in | |||||
| Weight | 0.53KG/1.17lb | 0.9KG/1.98lb | 1.21kg/2.67lb | 1.6kg/3.53lb | |||||
| Max Projected Area | 0.0255m²/0.2744ft² | 0.0309m²/0.333ft² | 0.0425m²/0.457ft² | 0.0542m²/0.583ft² | |||||
| Note: The intended purpose of this special purpose product:This light is used to create atmosphere. it is not suitable for household room illumination，the light source is not intended for use in other applications. |
| ||||||||
PREPARATION
Check all components for damage, do not use the product if it is damaged. Estimated Assembly Time:10-30 minutes

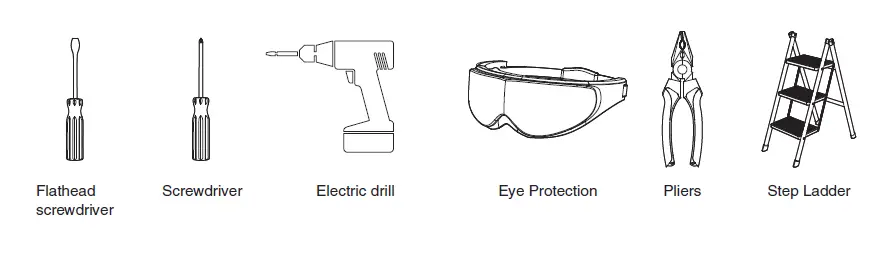

TOOLS REQUIRED（not included）
WARNING:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED. RISK OF SHOCK- BEFORE BEGINNING INSTALLATION, TURN OFF ELECTRICITY AT THE CIRCUIT BREAKER BOX OR THE MAIN FUSE BOX.
CAUTION:
- PLEASE MAKE SURE YOUR WALL SWITCH AND POWER AT
- MAIN CIRCUIT BREAKER BOTH ARE OFF.
- IF IN DOUBT ABOUT ELECTRICAL INSTALLATION, CONSULT
- A LICENSED ELECTRICIAN.
- WARNING: INSTALLING THIS LIGHT IN AN UNGROUNDED ELECTRICAL SYSTEM MAY CAUSE THE METAL PARTS OF THE LIGHT TO CARRY CURRENT IF ANY WIRES OR WIRE CONNECTIONS ARE DAMAGED OR LOOSE. IN THIS CASE, ANYONE WHO TOUCHES THE LIGHT WILL RECEIVE AN ELECTRIC SHOCK, RESULTING IN INJURY OR DEATH.
- BE CAREFUL NOT TO DAMAGE OR CUT THE WIRE INSULATION (COVERING) DURING INSTALLATION. DO NOT LET THE WIRES TOUCH ANY SHARP EDGES.
INSTALLATION STEPS
Product appearance may vary from image shown.

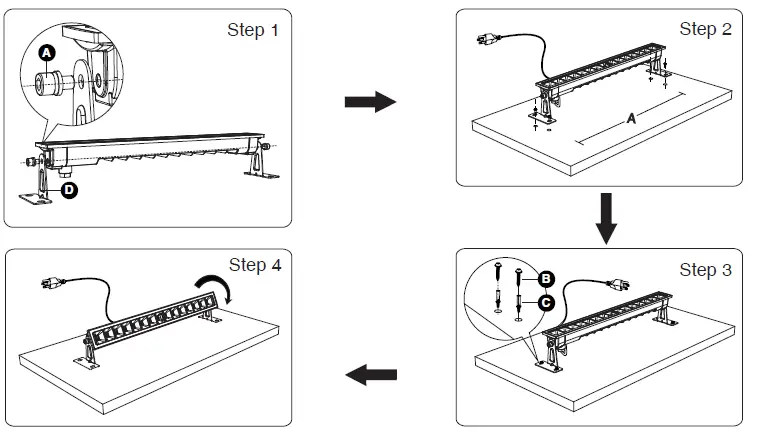

- STEP 1:
Fix the bracket on the lamp with the combination screw. (as shown in the image) - STEP 2:
According to the spacing (see the “A” part of the picture) of four holes on the lamp brackets, drill four mounting holes. (as shown in the image) - STEP 3:
Put the brackets onto the prepared mounting holes and then screw them on. - STEP 4:
Adjust the beam direction as you like, and then plug into the main socket.
NOTE:
Recommended installation height not higher than 5 m (16.4 ft).
