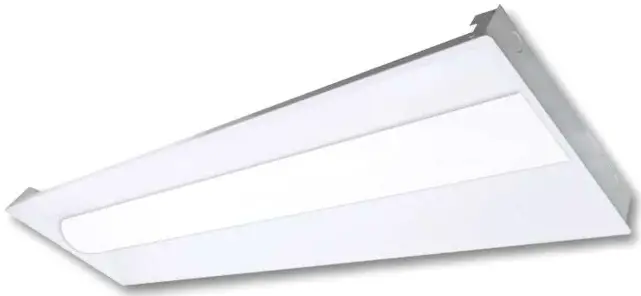

GREEN CREATIVE 26TROF14DIM LED Troffer Light Instruction Manual
- Exceptional efficacy 127LPW in Cool White CCT
- High performance lighting distribution and low glare lens
- 120-277V circuit and 0-10V dimming control compatible
- Modern look and high quality architectural finish
- Easy installation for new construction or retrofit
- Extra long 100,000 hour lifetime
EFFICIENCY AT WORK
INSTALLATION GUIDE
TROFFER INSTALLATION
- Step 1.
Make sure the POWER IS TURNED OFF at the source to the location at which you are installing the product. - Step 2.
Remove existing troffer if applicable. - Step 3.

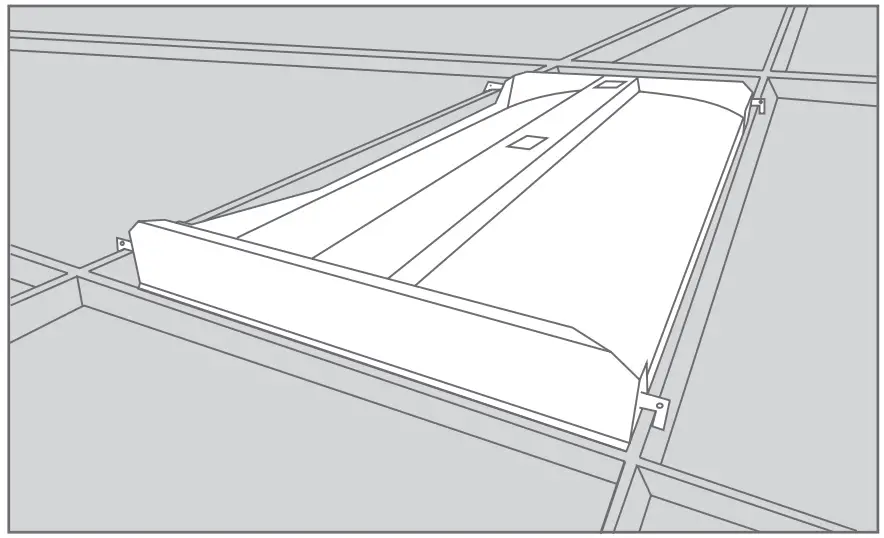

Pull L tabs out on each corner. (fig. 1)
- Step 4.

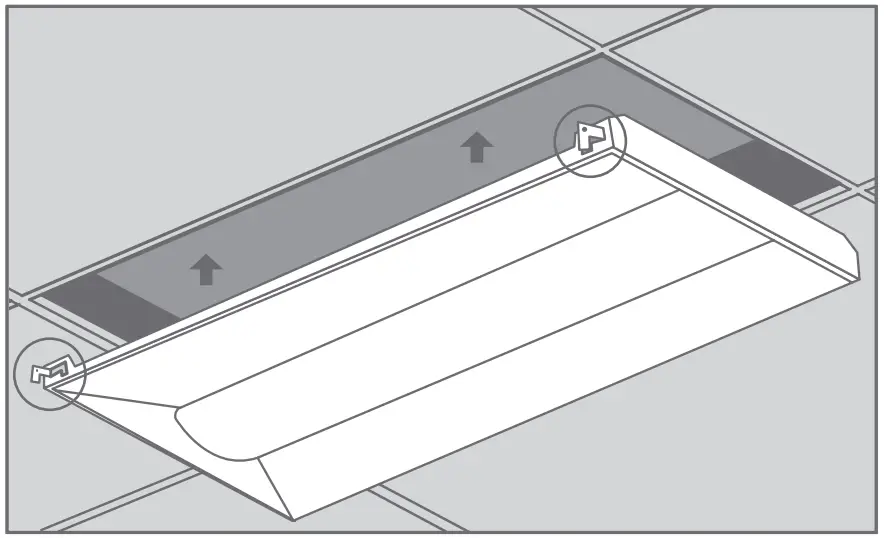

Place troffer in ceiling making sure each L tab is securely hooked on T-bar grid. (fig. 1 & fig. 2) - Step 5
Remove power conduit plate. Insert power supply into power conduit plate using appropriate electrical fittings. (fig. 3) - Step 6.
Return power back to the source and installation is complete. (fig. 4)
SPECIFICATIONS
| Product | 97939 | 97940 |
| Model | 26TROF14DIM/835/277V | 26TROF14DIM/840/277V |
| Type | 1×4′ Troffer | 1×4′ Troffer |
| Power (W) | 26 | 26 |
| Voltage – Frequency | 120-277V 50-60Hz | 120-277V 50-60Hz |
| Color Temp. (ANSI) | Neutral White 3500K | Cool White 4000K |
| CRI (Ra) | 82 | 82 |
| Typical lumens (lm) | 3250 | 3300 |
| Efficacy (LPW) | 125 | 127 |
| Beam Angle | 120° | 120° |
| Dimmable | Yes | Yes |
| Power Factor | 0.9 | 0.9 |
| THD | <20% | <20% |
| Rated Lifetime – L85 (hrs.) | 100,000 | 100,000 |
| Rated Lifetime – L90 (hrs.) | 36,000 | 36,000 |
| L x W x H | 47.71″x11.73″x3.35″ (1212x298x85mm) | 47.71″x11.73″x3.35″ (1212x298x85mm) |
| Weight (lb. / g) | 11.22lb./5.10kg | 11.22lb./5.10kg |
ORDERING INFORMATION
| Model | Description | Instructions |
| /STEPDIM | Step Dimming Module 50/50 | To order this option add /STEPDIM after the model number |
| /EM | Emergency LED Driver 10W | To order this option add /EM after the model number |
| Example: 26TROF14DIM/835/277V/STEPDIM Note: To order the emergency LED driver and step dimming module add both: ex. 26TROF14DIM/835/277V/STEPDIM/EM | ||
