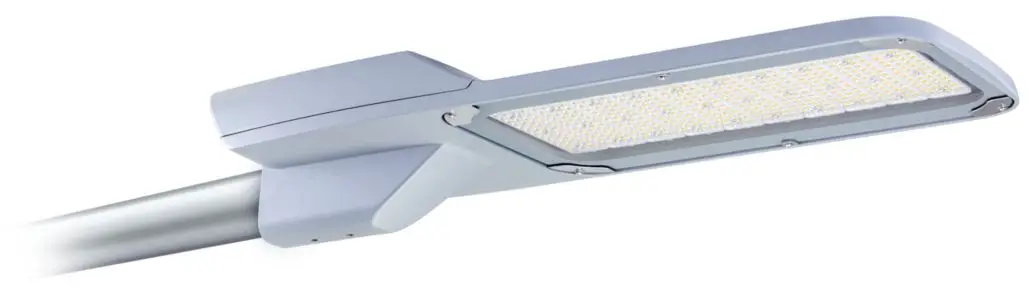

PHILIPS BRP381 GreenVision Xceed Gen2 LED Instruction Manual

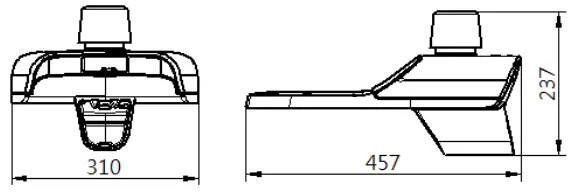

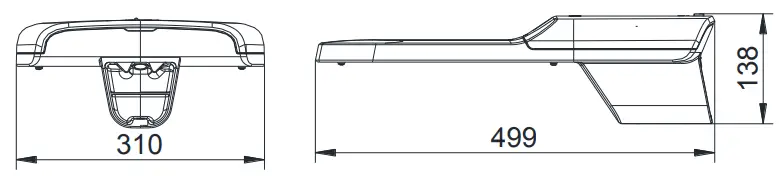

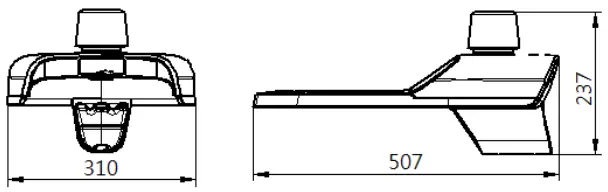

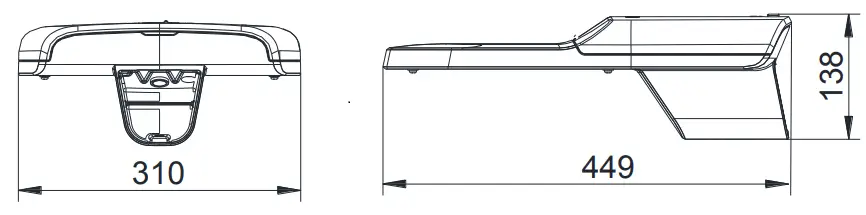

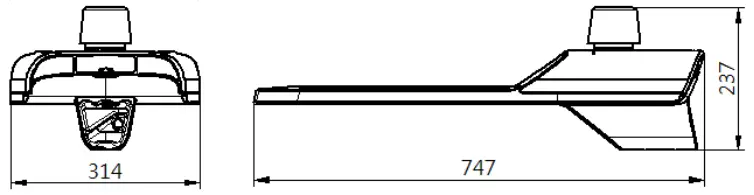

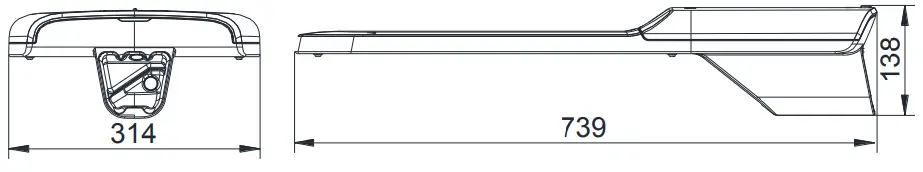

Product Size
- BRP381
- BRP382
- BRP383
- BRP381 CT
- BRP382 CT
- BRP383 CT
Caution
- Caution, risk of electric shock. Switch off power before operation.
- . The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical
regulations or the national requirements . - The light source and/or control gear contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- Road luminaire used physical toughened glass. The glass will be granular after broken. The flat glass: Max 220℃， Min -30℃，Δt200℃.
- The luminaire should not be installed less than x m and be stared at for long time.
- The insulation between LV and control circuit is basic insulation.
| Socket/Node | Picture |
NEMA Socket |  |
NEMA LLC |  |
NEMA Short cap |  |
SR Socket |
|
SR LLC |  |
SR Socket cap |  |
Note: Must use Philips Subsidiary short cap to ensure IP66

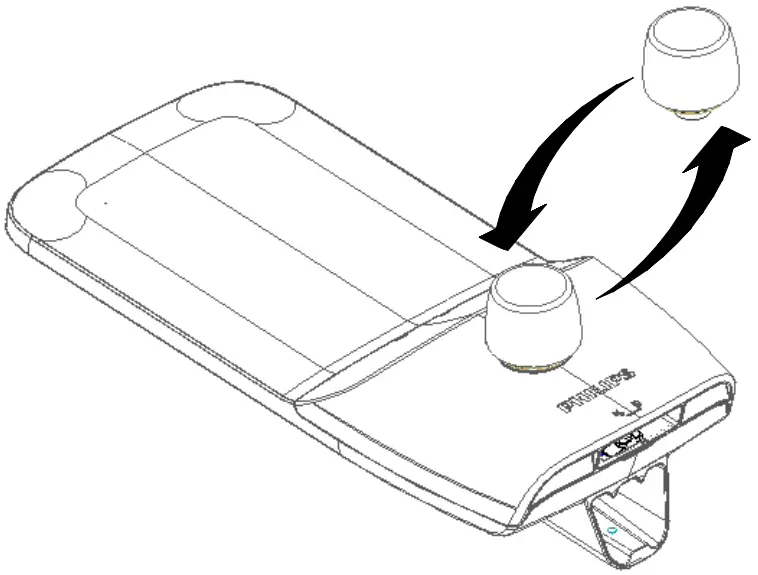

- Press the cover by hand
- Push the button to open the cover.
- Push the button to open the cover.

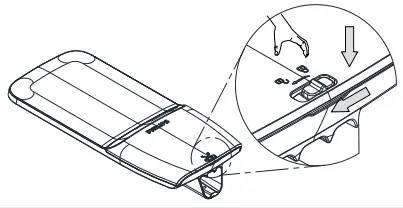

Installation instruction
- Press the cover by hand
- Push the button to open the cover.
Notice: Correct connection for polarities

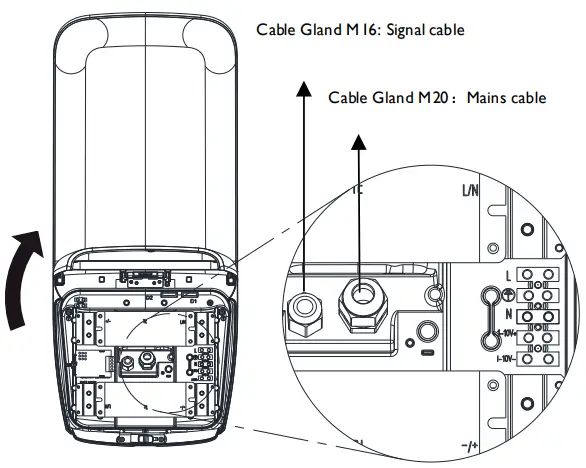

- Loosen the cap of cable gland, then remove the front plug, should keep the rubber lining in. Insert the cable in and ensure the inner sealing tube not fall off, then fasten the cap.

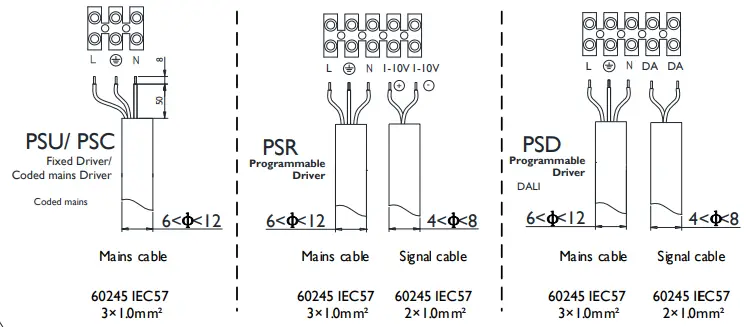

- Connect power cable.

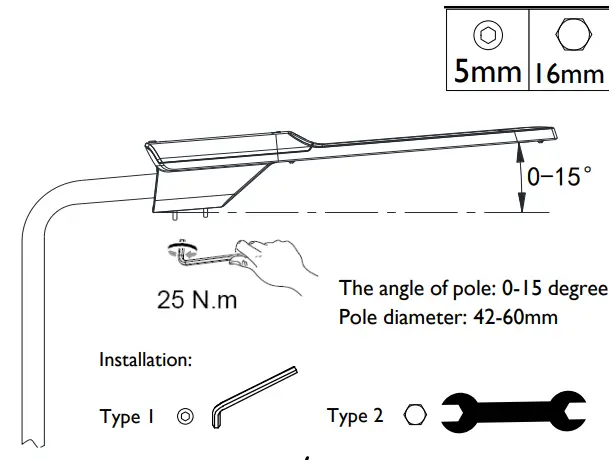

Install the luminaire on the pole.
Product list
Product list | ||||||
Type | LEDs | Power/W | Weight/kg | L*W*H(mm) | Wind force area（m²） | CCT/K |
BRP383 384LED117 D | 384 | 280 | 10 | 739*214*138 | 0.23 | 3000 4000 |
| BRP383 372LED117 D | 372 | 270 | 10 | 739*214*138 | 0.23 | |
BRP383 360LED117 D | 360 | 260 | 10 | 739*214*138 | 0.23 | |
| BRP383 348LED117 D | 348 | 250 | 10 | 739*214*138 | 0.23 | |
BRP383 336LED117 D | 336 | 245 | 10 | 739*214*138 | 0.23 | |
| BRP383 324LED117 D | 324 | 235 | 10 | 739*214*138 | 0.23 | |
BRP383 312LED117 D | 312 | 230 | 10 | 739*214*138 | 0.23 | |
| BRP383 300LED117 D | 300 | 220 | 10 | 739*214*138 | 0.23 | |
BRP383 288LED117 D | 288 | 210 | 10 | 739*214*138 | 0.23 | |
| BRP383 276LED117 D | 276 | 200 | 10 | 739*214*138 | 0.23 | |
BRP383 264LED117 D | 264 | 190 | 10 | 739*214*138 | 0.23 | |
| BRP383 252LED117 D | 252 | 185 | 10 | 739*214*138 | 0.23 | |
BRP383 240LED117 D | 240 | 180 | 10 | 739*214*138 | 0.23 | |
| BRP383 228LED117 D | 228 | 170 | 10 | 739*214*138 | 0.23 | |
BRP383 216LED117 D | 216 | 160 | 10 | 739*214*138 | 0.23 | |
| BRP383 204LED117 D | 204 | 150 | 10 | 739*214*138 | 0.23 | |
BRP382 192LED117 D | 192 | 140 | 6 | 499*310*138 | 0.16 | |
| BRP382 180LED117 D | 180 | 130 | 6 | 499*310*138 | 0.16 | |
BRP382 168LED117 D | 168 | 120 | 6 | 499*310*138 | 0.16 | |
| BRP382 156LED117 D | 156 | 115 | 6 | 499*310*138 | 0.16 | |
BRP381 144LED117 D | 144 | 105 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 132LED117 D | 132 | 100 | 5.3 | 449*310*138 | 0.14 | |
BRP381 120LED117 D | 120 | 90 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 108LED117 D | 108 | 80 | 5.3 | 449*310*138 | 0.14 | |
BRP381 96LED117 D | 96 | 70 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 84LED117 D | 84 | 60 | 5.3 | 449*310*138 | 0.14 | |
BRP381 72LED117 D | 72 | 55 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 60LED117 D | 60 | 45 | 5.3 | 449*310*138 | 0.14 | |
BRP381 48LED117 D | 48 | 37 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 36LED117 D | 36 | 28 | 5.3 | 449*310*138 | 0.14 | |
BRP383 384LED117 CTF | 384 | 280 | 10 | 739*214*138 | 0.23 | |
| BRP383 372LED117 CTF | 372 | 270 | 10 | 739*214*138 | 0.23 | |
BRP383 360LED117 CTF | 360 | 260 | 10 | 739*214*138 | 0.23 | |
| BRP383 348LED117 CTF | 348 | 250 | 10 | 739*214*138 | 0.23 | |
BRP383 336LED117 CTF | 336 | 245 | 10 | 739*214*138 | 0.23 | |
| BRP383 324LED117 CTF | 324 | 235 | 10 | 739*214*138 | 0.23 | |
BRP383 312LED117 CTF | 312 | 230 | 10 | 739*214*138 | 0.23 | |
| BRP383 300LED117 CTF | 300 | 220 | 10 | 739*214*138 | 0.23 | |
BRP383 288LED117 CTF | 288 | 210 | 10 | 739*214*138 | 0.23 | |
| BRP383 276LED117 CTF | 276 | 200 | 10 | 739*214*138 | 0.23 | |
BRP383 264LED117 CTF | 264 | 190 | 10 | 739*214*138 | 0.23 | |
| BRP383 252LED117 CTF | 252 | 185 | 10 | 739*214*138 | 0.23 | |
BRP383 240LED117 CTF | 240 | 180 | 10 | 739*214*138 | 0.23 | |
| BRP383 228LED117 CTF | 228 | 170 | 10 | 739*214*138 | 0.23 | |
BRP383 216LED117 CTF | 216 | 160 | 10 | 739*214*138 | 0.23 | |
| BRP383 204LED117 CTF | 204 | 150 | 10 | 739*214*138 | 0.23 | |
BRP382 192LED117 CTF | 192 | 140 | 6 | 499*310*138 | 0.16 | 3000 4000 0-2021 approved |
| BRP382 180LED117 CTF | 180 | 130 | 6 | 499*310*138 | 0.16 | |
BRP382 168LED117 CTF | 168 | 120 | 6 | 499*310*138 | 0.16 | |
| BRP382 156LED117 CTF | 156 | 115 | 6 | 499*310*138 | 0.16 | |
BRP381 144LED117 CTF | 144 | 105 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 132LED117 CTF | 132 | 100 | 5.3 | 449*310*138 | 0.14 | |
BRP381 120LED117 CTF | 120 | 90 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 108LED117 CTF | 108 | 80 | 5.3 | 449*310*138 | 0.14 | |
BRP381 96LED117 CTF | 96 | 70 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 84LED117 CTF | 84 | 60 | 5.3 | 449*310*138 | 0.14 | |
BRP381 72LED117 CTF | 72 | 55 | 5.3 | 449*310*138 | 0.14 | |
| BRP383 384LED117 | 384 | 276 | 10 | 739*214*138 | 0.23 | |
BRP383 372LED117 | 372 | 267 | 10 | 739*214*138 | 0.23 | |
| BRP383 360LED117 | 360 | 259 | 10 | 739*214*138 | 0.23 | |
BRP383 348LED117 | 348 | 251 | 10 | 739*214*138 | 0.23 | |
| BRP383 336LED117 | 336 | 242 | 10 | 739*214*138 | 0.23 | |
BRP383 324LED117 | 324 | 234 | 10 | 739*214*138 | 0.23 | |
| BRP383 312LED117 | 312 | 225 | 10 | 739*214*138 | 0.23 | |
BRP383 300LED117 | 300 | 217 | 10 | 739*214*138 | 0.23 | |
| BRP383 288LED117 | 288 | 208 | 10 | 739*214*138 | 0.23 | |
BRP383 276LED117 | 276 | 200 | 10 | 739*214*138 | 0.23 | |
| BRP383 264LED117 | 264 | 192 | 10 | 739*214*138 | 0.23 | |
BRP383 252LED117 | 252 | 183 | 10 | 739*214*138 | 0.23 | |
| BRP383 240LED117 | 240 | 175 | 10 | 739*214*138 | 0.23 | |
BRP383 228LED117 | 228 | 166 | 10 | 739*214*138 | 0.23 | |
| BRP383 216LED117 | 216 | 158 | 10 | 739*214*138 | 0.23 | |
BRP383 204LED117 | 204 | 150 | 10 | 739*214*138 | 0.23 | |
| BRP382 192LED117 | 192 | 138 | 6 | 499*310*138 | 0.16 | |
BRP382 180LED117 | 180 | 129 | 6 | 499*310*138 | 0.16 | |
| BRP382 168LED117 | 168 | 121 | 6 | 499*310*138 | 0.16 | |
BRP382 156LED117 | 156 | 113 | 6 | 499*310*138 | 0.16 | |
| BRP381 144LED117 | 144 | 104 | 5.3 | 449*310*138 | 0.14 | |
BRP381 132LED117 | 132 | 96 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 120LED117 | 120 | 87 | 5.3 | 449*310*138 | 0.14 | |
BRP381 108LED117 | 108 | 79 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 96LED117 | 96 | 71 | 5.3 | 449*310*138 | 0.14 | |
BRP381 84LED117 | 84 | 62 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 72LED117 | 72 | 54 | 5.3 | 449*310*138 | 0.14 | |
BRP383 128LED700 | 128 | 270 | 10 | 739*214*138 | 0.23 | |
| BRP383 124LED700 | 124 | 260 | 10 | 739*214*138 | 0.23 | |
BRP383 92LED700 | 92 | 200 | 10 | 739*214*138 | 0.23 | |
| BRP383 84LED700 | 84 | 180 | 10 | 739*214*138 | 0.23 | |
BRP383 80LED700 | 80 | 170 | 10 | 739*214*138 | 0.23 | |
| BRP383 76LED700 | 76 | 160 | 10 | 739*214*138 | 0.23 | |
BRP383 72LED700 | 72 | 150 | 10 | 739*214*138 | 0.23 | |
| BRP382 60LED700 | 60 | 130 | 6 | 499*310*138 | 0.16 | |
BRP381 48LED700 | 48 | 100 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 40LED700 | 40 | 90 | 5.3 | 449*310*138 | 0.14 | |
BRP381 28LED700 | 28 | 60 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 16LED700 | 16 | 35 | 5.3 | 449*310*138 | 0.14 | |
BRP381 16LED350 | 16 | 20 | 5.3 | 449*310*138 | 0.14 21-1 | |
| BRP383 384LED117 S | 384 | 280 | 10 | 739*214*138 | 0.23 |
3000 2700 2200 |
BRP383 360LED117 S | 360 | 260 | 10 | 739*214*138 | 0.23 | |
| BRP383 336LED117 S | 336 | 250 | 10 | 739*214*138 | 0.23 | |
BRP383 312LED117 S | 312 | 230 | 10 | 739*214*138 | 0.23 | |
| BRP383 288LED117 S | 288 | 210 | 10 | 739*214*138 | 0.23 | |
BRP383 264LED117 S | 264 | 190 | 10 | 739*214*138 | 0.23 | |
| BRP383 240LED117 S | 240 | 180 | 10 | 739*214*138 | 0.23 | |
BRP383 216LED117 S | 216 | 160 | 10 | 739*214*138 | 0.23 | |
| BRP382 192LED117 S | 192 | 140 | 6 | 499*310*138 | 0.16 | |
BRP382 168LED117 S | 168 | 120 | 6 | 499*310*138 | 0.16 | |
| BRP381 144LED117 S | 144 | 105 | 5.3 | 449*310*138 | 0.14 | |
BRP381 144LED110 S | 144 | 100 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 120LED117 S | 120 | 85 | 5.3 | 449*310*138 | 0.14 | |
BRP381 96LED117 S | 96 | 70 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 72LED117 S | 72 | 55 | 5.3 | 449*310*138 | 0.14 | |
BRP383 384LED117 WW S | 384 | 280 | 10 | 739*214*138 | 0.23 | |
| BRP383 360LED117 WW S | 360 | 260 | 10 | 739*214*138 | 0.23 | |
BRP383 336LED117 WW S | 336 | 250 | 10 | 739*214*138 | 0.23 | |
| BRP383 312LED117 WW S | 312 | 230 | 10 | 739*214*138 | 0.23 | |
BRP383 288LED117 WW S | 288 | 210 | 10 | 739*214*138 | 0.23 | |
| BRP383 264LED117 WW S | 264 | 190 | 10 | 739*214*138 | 0.23 | |
BRP383 240LED117 WW S | 240 | 180 | 10 | 739*214*138 | 0.23 | |
| BRP383 216LED117 WW S | 216 | 160 | 10 | 739*214*138 | 0.23 | |
BRP382 192LED117 WW S | 192 | 140 | 6 | 499*310*138 | 0.16 | |
| BRP382 168LED117 WW S | 168 | 120 | 6 | 499*310*138 | 0.16 | |
BRP381 144LED117 WW S | 144 | 105 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 144LED110 WW S | 144 | 100 | 5.3 | 449*310*138 | 0.14 | |
BRP381 120LED117 WW S | 120 | 85 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 96LED117 WW S | 96 | 70 | 5.3 | 449*310*138 | 0.14 | |
BRP381 72LED117 WW S | 72 | 55 | 5.3 | 449*310*138 | 0.14 | |
| BRP383 384LED117 727 S | 384 | 280 | 10 | 739*214*138 | 0.23 | |
BRP383 360LED117 727 S | 360 | 260 | 10 | 739*214*138 | 0.23 | |
| BRP383 336LED117 727 S | 336 | 250 | 10 | 739*214*138 | 0.23 | |
BRP383 312LED117 727 S | 312 | 230 | 10 | 739*214*138 | 0.23 | |
| BRP383 288LED117 727 S | 288 | 210 | 10 | 739*214*138 | 0.23 | |
BRP383 264LED117 727 S | 264 | 190 | 10 | 739*214*138 | 0.23 | |
| BRP383 240LED117 727 S | 240 | 180 | 10 | 739*214*138 | 0.23 | |
BRP383 216LED117 727 S | 216 | 160 | 10 | 739*214*138 | 0.23 | |
| BRP382 192LED117 727 S | 192 | 140 | 6 | 499*310*138 | 0.16 | |
BRP382 168LED117 727 S | 168 | 120 | 6 | 499*310*138 | 0.16 | |
| BRP381 144LED117 727 S | 144 | 105 | 5.3 | 449*310*138 | 0.14 | |
BRP381 144LED110 727 S | 144 | 100 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 120LED117 727 S | 120 | 85 | 5.3 | 449*310*138 | 0.14 | |
BRP381 96LED117 727 S | 96 | 70 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 72LED117 727 S | 72 | 55 | 5.3 | 449*310*138 | 0.14 | |
BRP383 384LED117 722 S | 384 | 280 | 10 | 739*214*138 | 0.23 | |
| BRP383 360LED117 722 S | 360 | 260 | 10 | 739*214*138 | 0.23 | |
BRP383 336LED117 722 S | 336 | 250 | 10 | 739*214*138 | 0.23 | |
| BRP383 312LED117 722 S | 312 | 230 | 10 | 739*214*138 | 0.23 | |
BRP383 288LED117 722 S | 288 | 210 | 10 | 739*214*138 | 0.23 | |
| BRP383 264LED117 722 S | 264 | 190 | 10 | 739*214*138 | 0.23 | |
BRP383 240LED117 722 S | 240 | 180 | 10 | 739*214*138 | 0.23 | |
| BRP383 216LED117 722 S | 216 | 160 | 10 | 739*214*138 | 0.23 | |
BRP382 192LED117 722 S | 192 | 140 | 6 | 499*310*138 | 0.16 | |
| BRP382 168LED117 722 S | 168 | 120 | 6 | 499*310*138 | 0.16 | |
BRP381 144LED117 722 S | 144 | 105 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 144LED110 722 S | 144 | 100 | 5.3 | 449*310*138 | 0.14 | |
BRP381 120LED117 722 S | 120 | 85 | 5.3 | 449*310*138 | 0.14 | |
| BRP381 96LED117 722 S | 96 | 70 | 5.3 | 449*310*138 | 0.14 | |
BRP381 72LED117 722 S | 72 | 55 | 5.3 | 449*310*138 | 0.14 | |

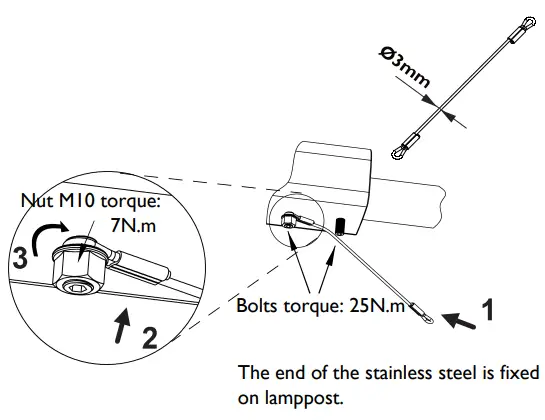

The end of the stainless ste on lamppost.
